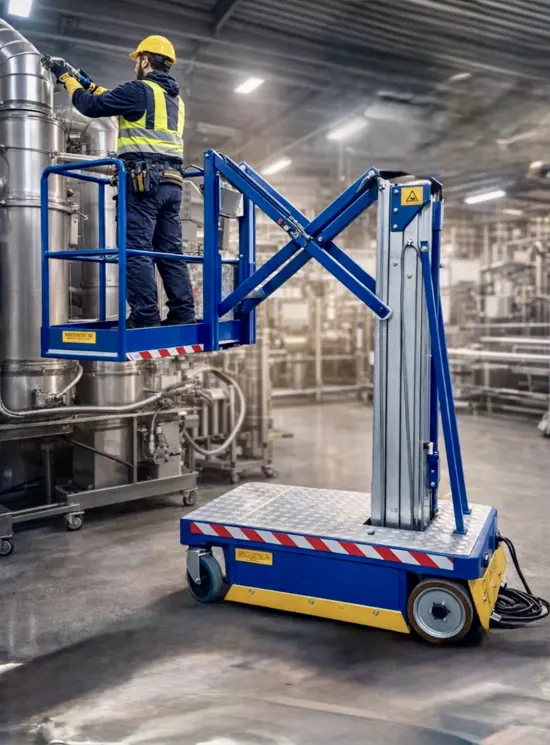

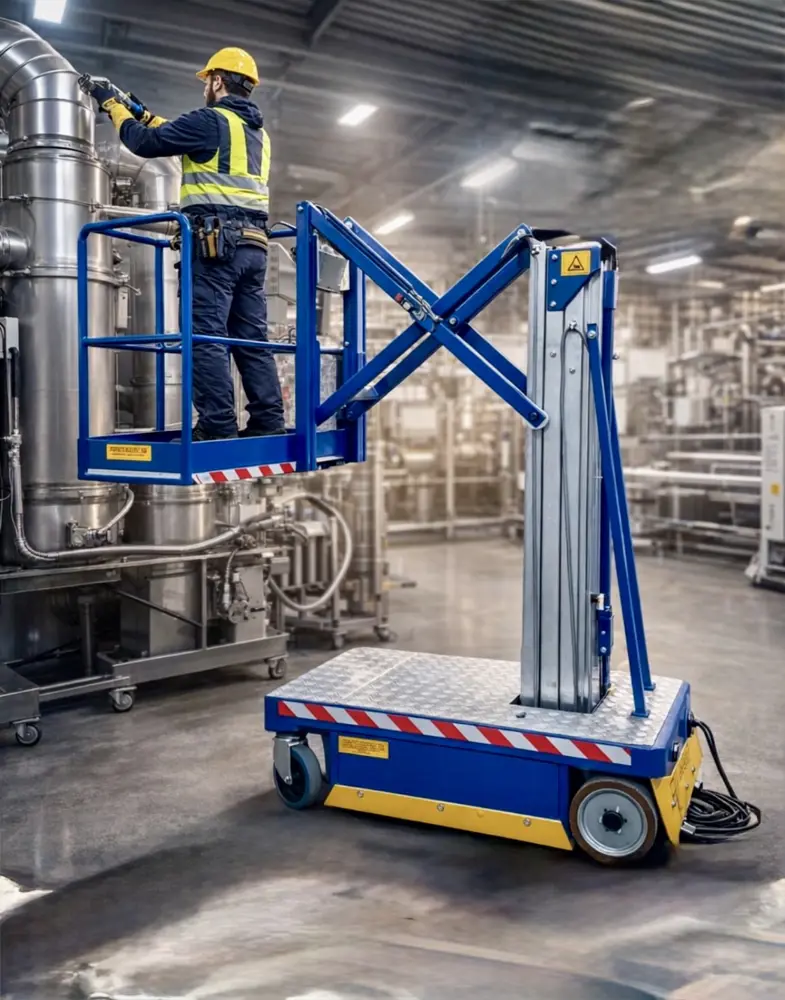

Microlift ZXP with outreach platform

Working hight m 4,99

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

CE mark

Suitable for heavy duty

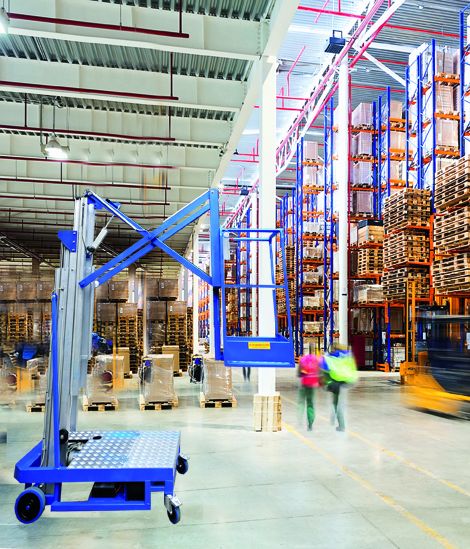

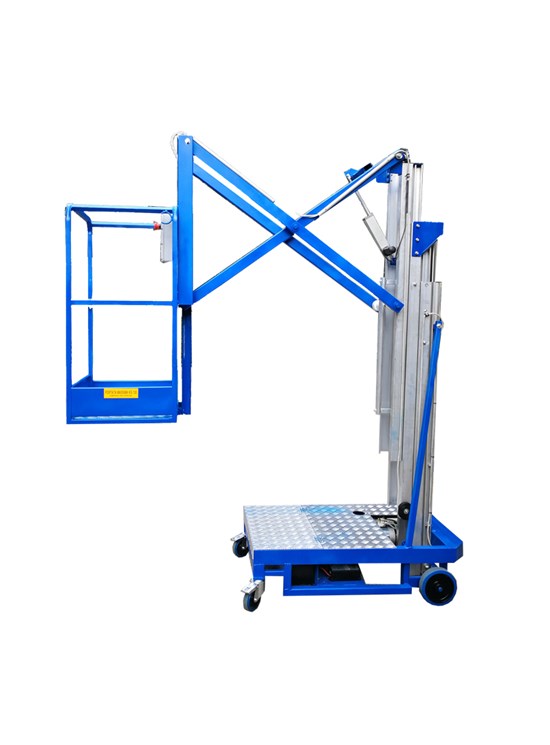

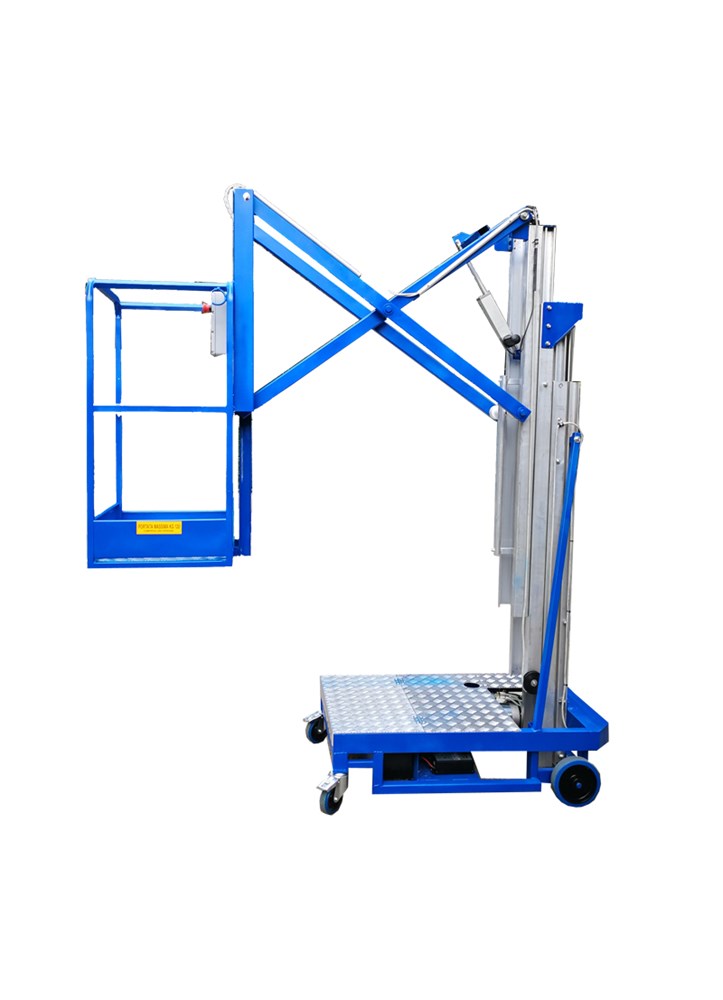

Ultra-compact vertical push platform with 100 cm outreach basket, max platform height m 2.99, max working height 4.99 m

Aerial platform with vertical extension.
We wanted to increase our range of products by offering the possibility of overhanging work up to 100 cm from the edge of the chassis on the ground of the machine while maintaining extremely small dimensions that make it easily transportable on small vans thanks to its extremely low weight.
The version has a hydraulic reach which electrically carries the cantilever basket up to 1 meter.
Offering a maximum working height of 5 meters and an extremely easy handling, these platforms are suitable for maintenance work in companies, offices, warehouses and supermarkets while the 24 V battery operation allows them to be used even in environments without electricity supply, offering a high autonomy.
Among the standard features on the Microlift series aerial platforms we can find the electronic battery charger incorporated in the base frame, indicator of residual battery charge on the work surface, high sliding nylon wheels and a large aluminum work surface.
These solutions have been specifically designed to allow the operator to work comfortably without having to protrude from the work surface.
The extruded aluminum lifting column, designed directly by our company, also gives the maximum working height safety and stability while always keeping the necessary maintenance to a minimum.

Weight and capacity

Maximum capacity 120 kg (1 person)
Maximum admissible thrust kg 20
Maximum chassis inclination 1 °
Permissible wind 12 m / s
Weight 375 kg

Dimensions

Max platform height m 2.99
Max working height 4.99 m
Minimum platform height 0.40 m
Total width 0.70 m
Total length 1.10 m
Toe height 150 mm
Guardrail height 1.1 m
Height closed 1.75 m
Transport width 0.70 m
Transport length 1.10 m
Basket outreach 100 cm
Platform dimensions 88x60 cm

Electrical data

Voltage 24 V
Motor 2.1 Kw
Batteries 2 X 12v / 80ah
Electronic battery charger

Hydraulic data

Max hydraulic pressure 120 bar
Hydraulic tank 3 liters

Standard features

Rise time 30 s
Descent time 30 s
Platform with electrically controlled cantilever output
Cantilever cylinder
2 Wheels with pedal parking brake
Column in extruded aluminum with nylon rollers
Self closing gate by gravity
Safety toe on the entire perimeter of the platform

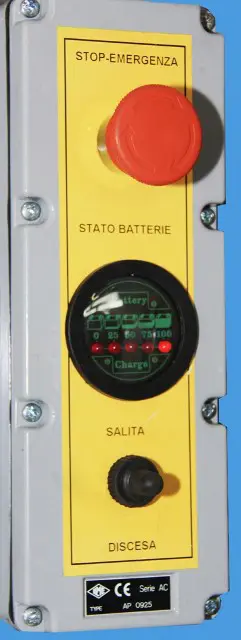

Platform control panel with emergency lock button
Charge meter
Secondary emergency lock button mounted on the base
Non-slip walking surface equipped with anchor point for PPE
Over flow and pressure loss valves
Emergency lowering mechanism (manual)
High charge heavy duty battery chargers and batteries
Go through doors and corridors and enter elevators
Easy to access components
Pick-up points for forklift and crane and locking for transport
Anti-fingerprint wheels
Approved for internal use
Labels and user and maintenance manual
Test certificate according to Italian and European regulations (CE)
