U3

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Ecoline brand name is the right answer to a rising demand for ladders and scaffoldings for both domestic and DIY use. Ecoline series respects all the safety requirements according to the laws in force

Suitable for light duty

Three-section push-up and stepladder for domestic and DIY use, Fixed straps preventing uncontrolled ladder opening, Painted steel opening system

Extension ladders in ribbed aluminium suitable for DIY with standard structure and components.

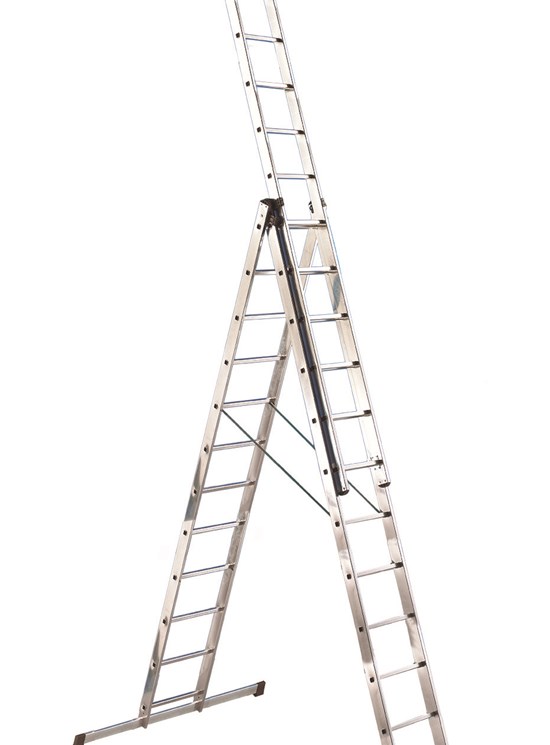

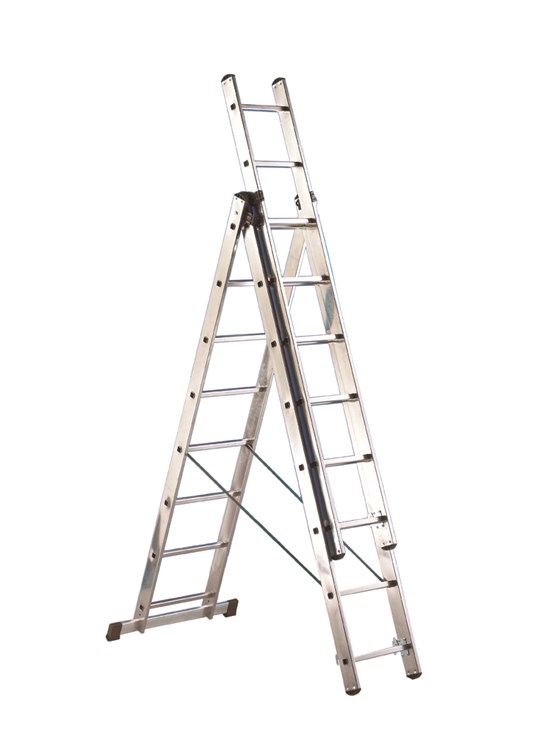

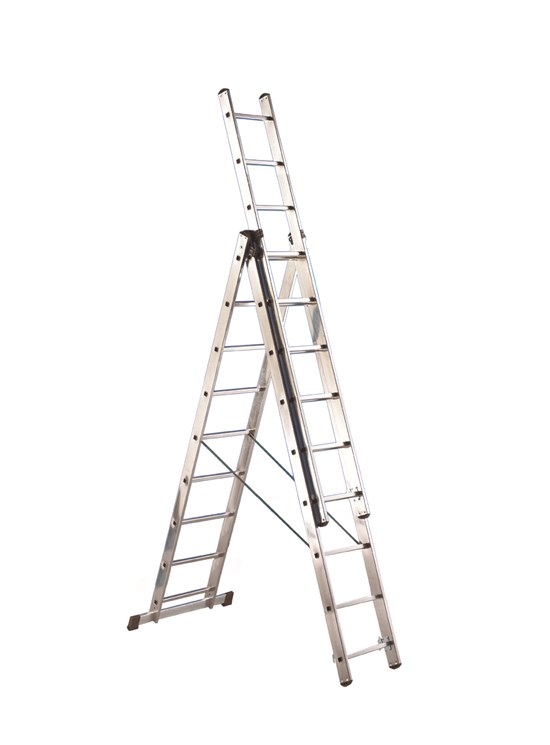

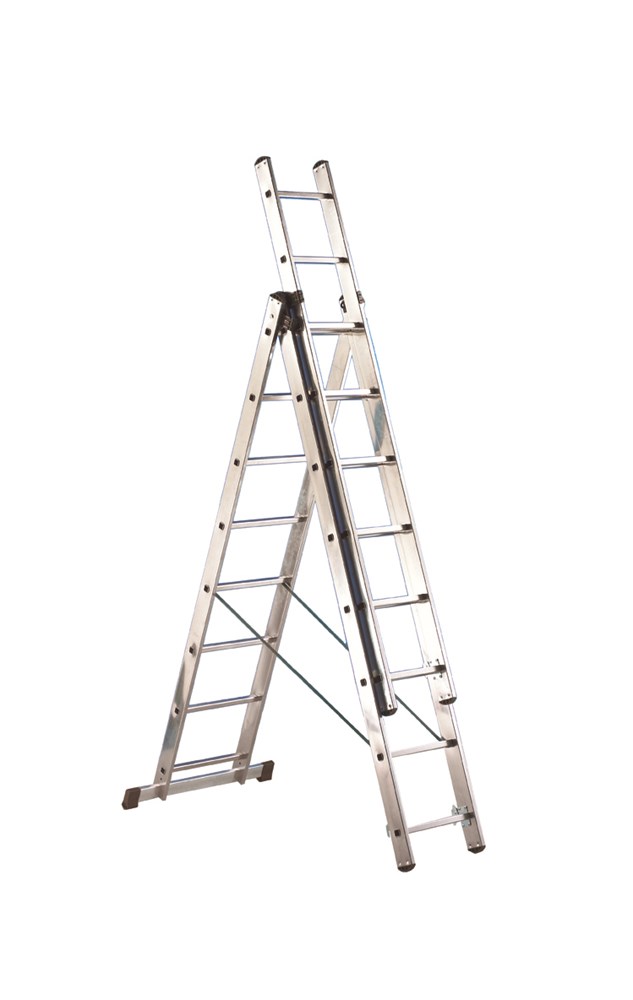

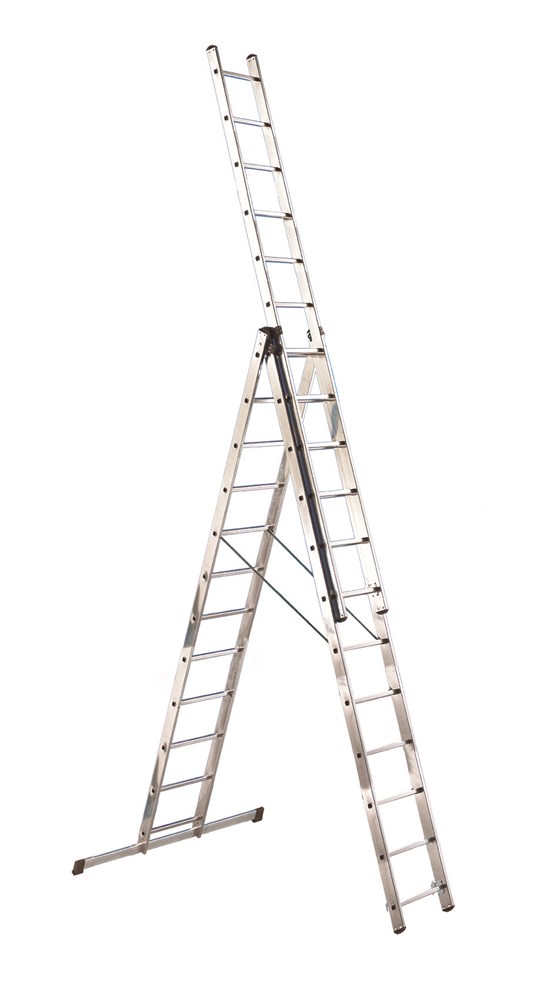

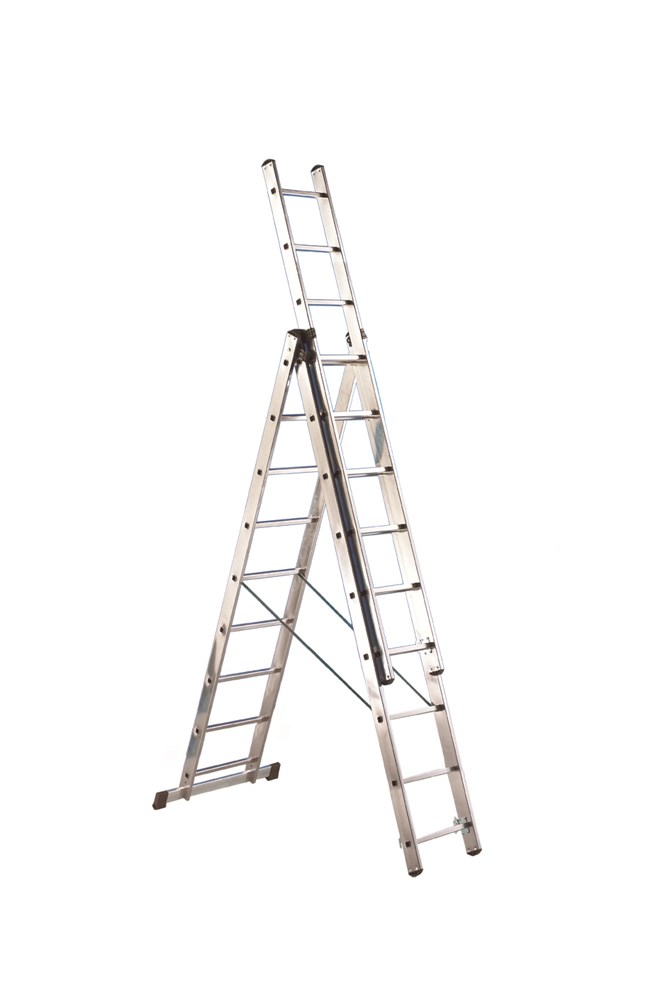

Three-section push-up and stepladder.

Number of rungs	da 7 a 12
Hight when folded	da m 2 a m 3,40
A frame hight	da m 1,88 a m 3,25
Max extended hight	da m 4,24 a m 7,88
Base section width	cm 46
Medium section width	cm 40,6
Final section width	cm 34,5

STANDARD PARTS

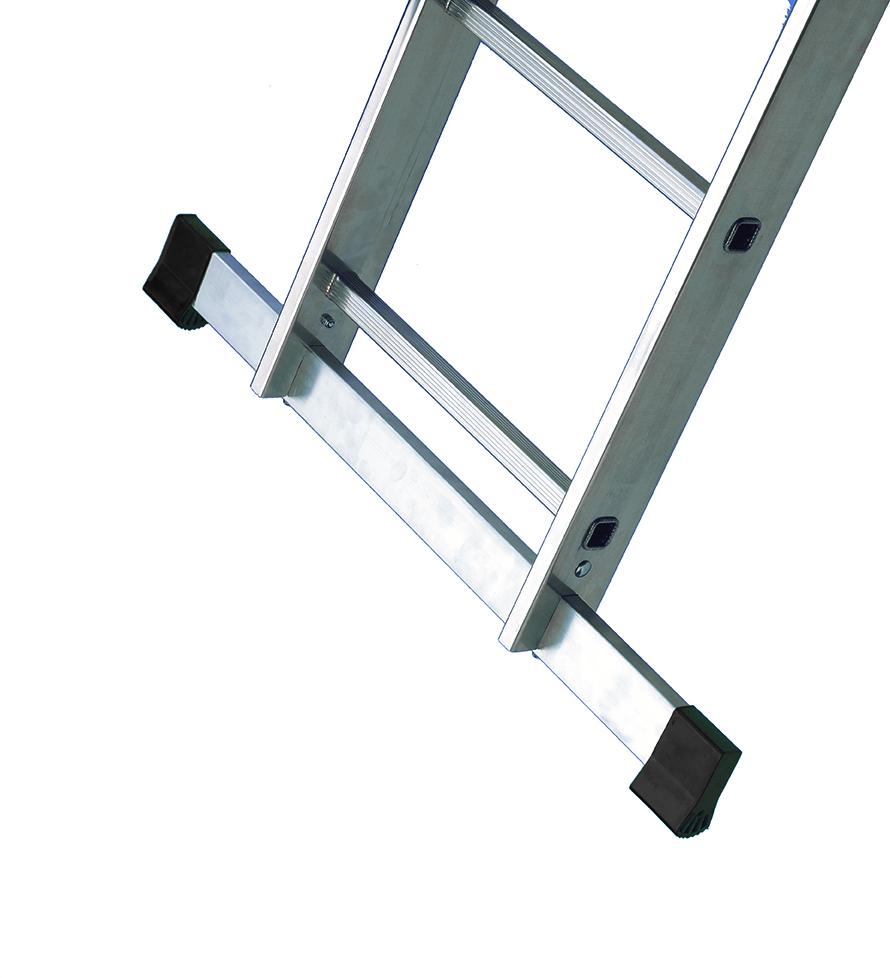

Base stabiliser
Fixed straps preventing uncontrolled ladder opening

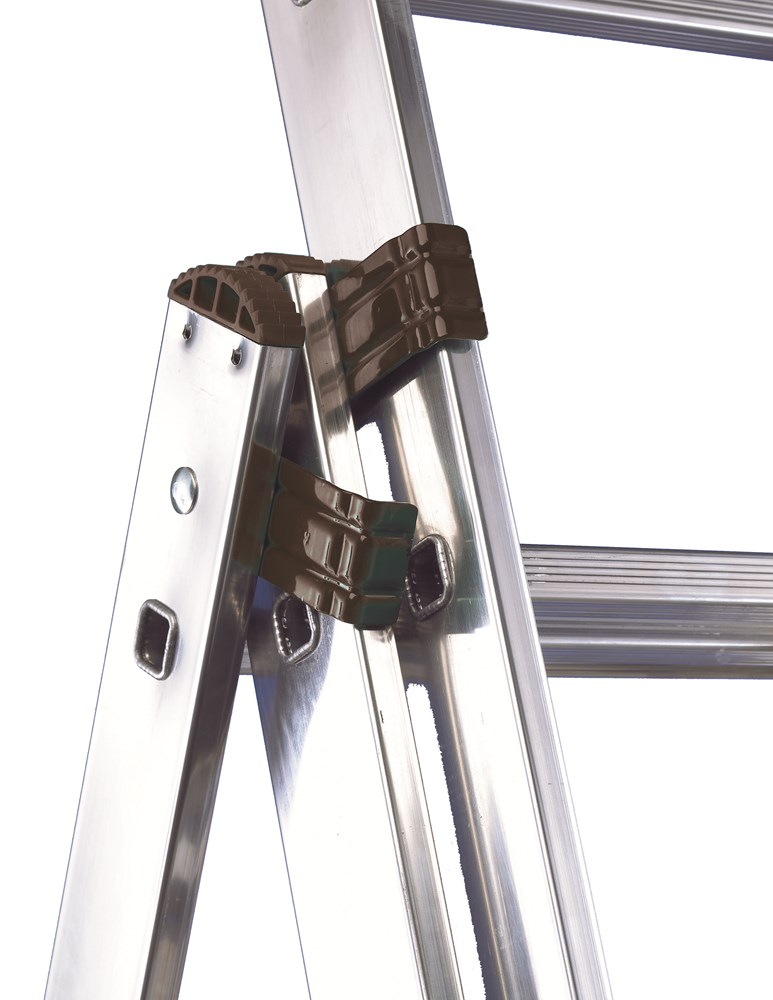

Device to stop uncontrolled upward movement
Non-skid rubber feet
Extension blocking device to prevent ladder moving when the safety limit is reached
Assembly and use instructions
Flanged rung 25 mm
Distance between steps cm 28
Painted steel opening system
Capacity kg 150
Rung section 27x27 mm
