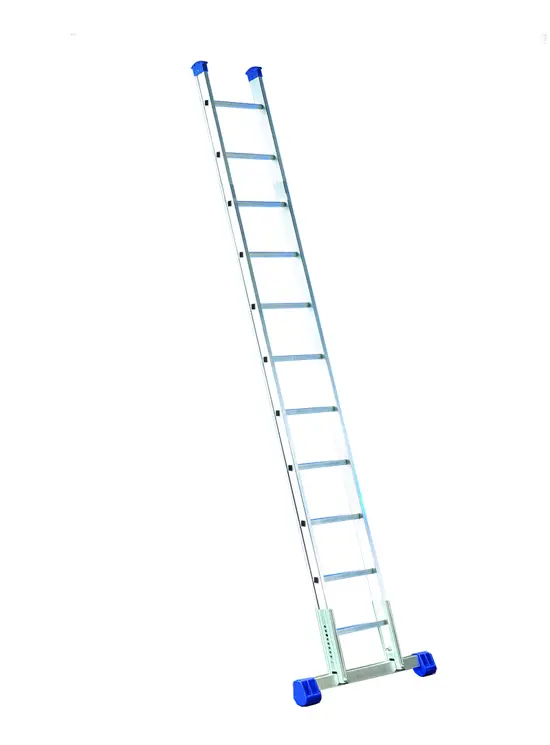

Luxe1 EN131

max height m 4,70

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

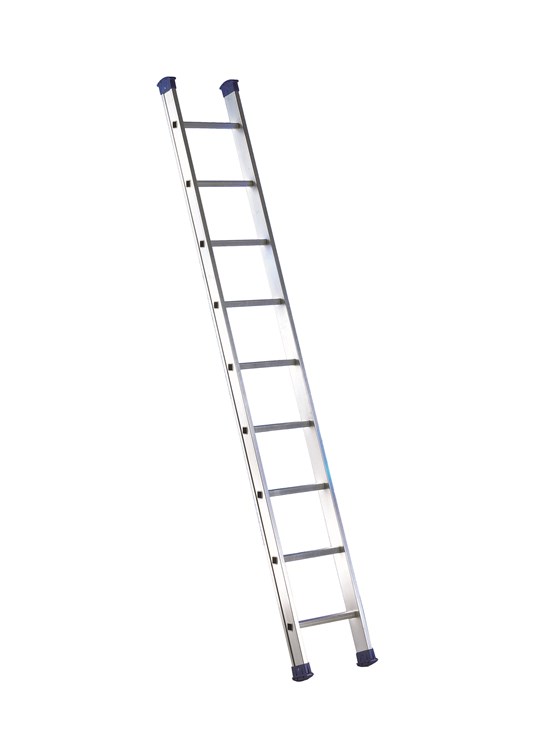

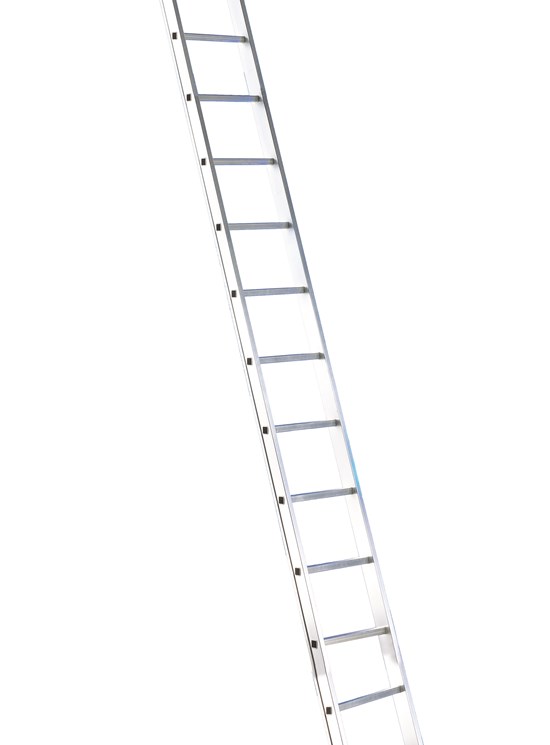

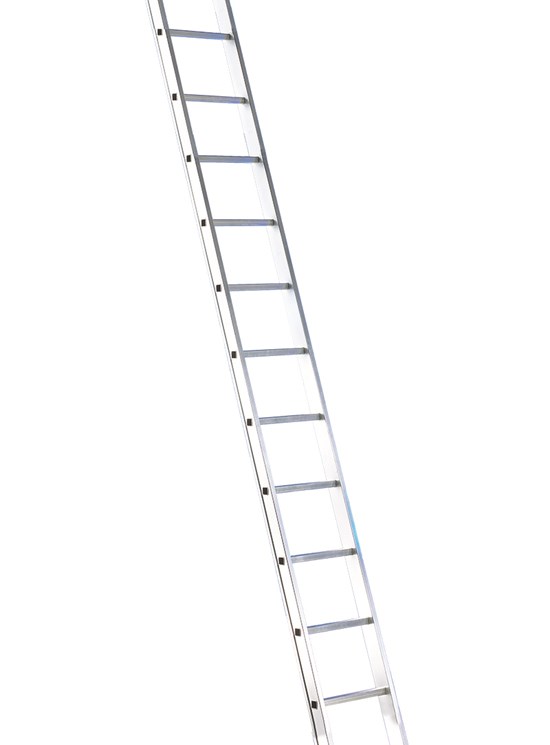

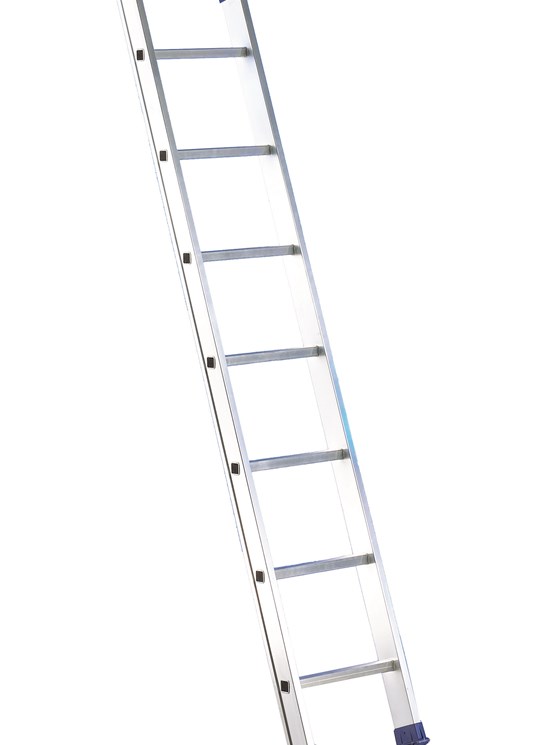

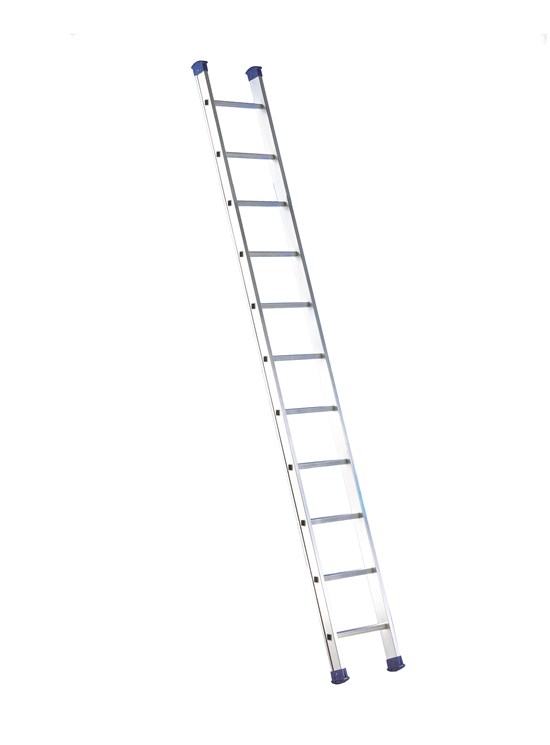

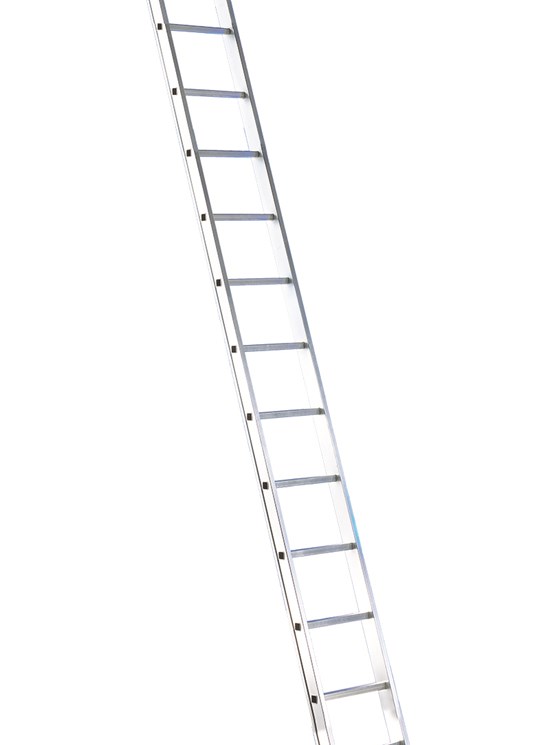

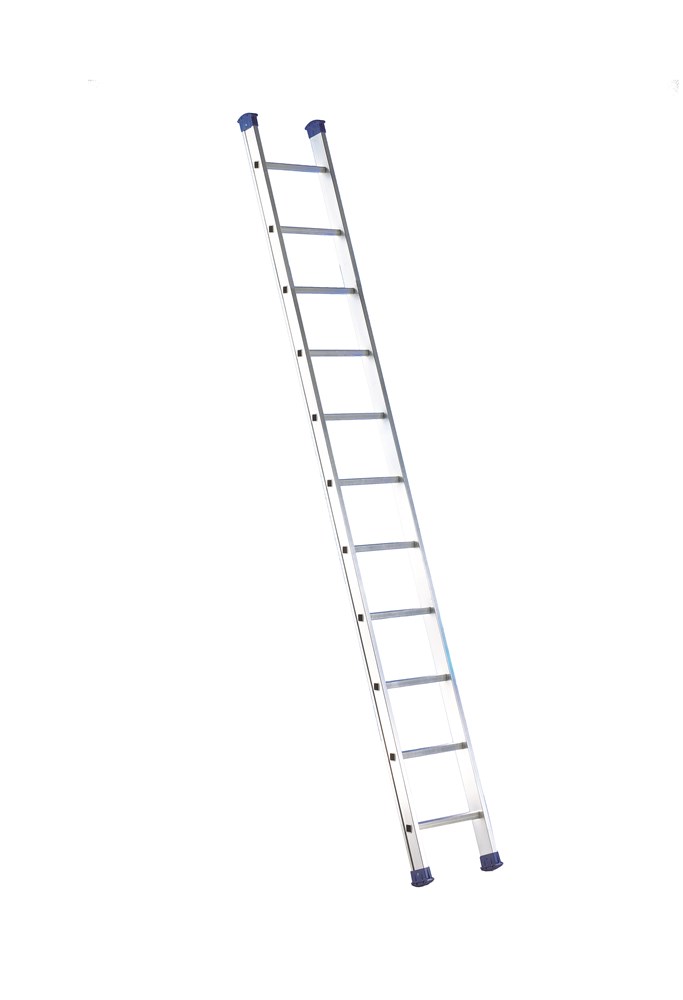

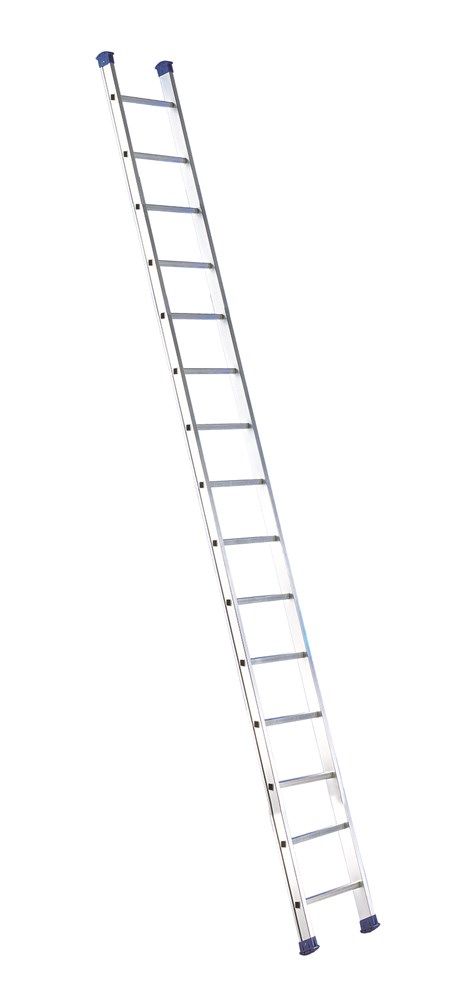

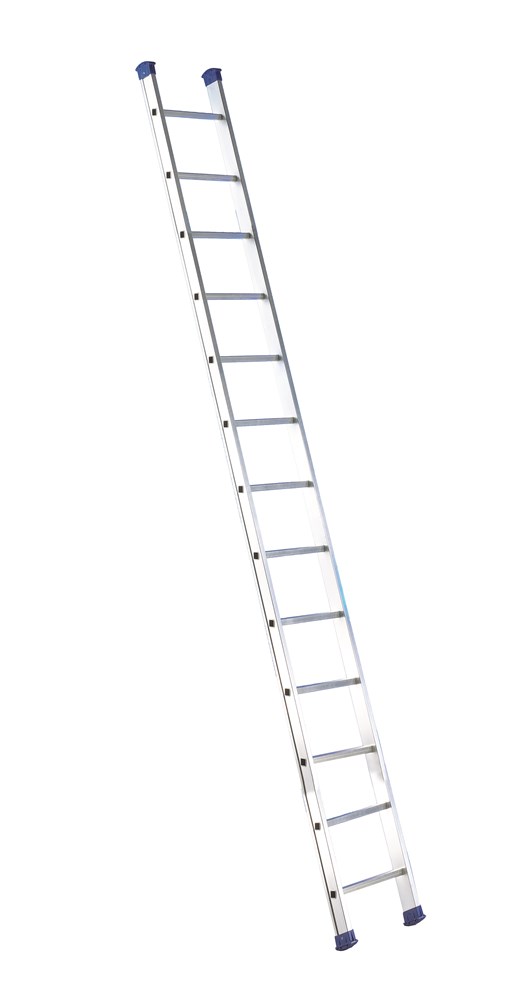

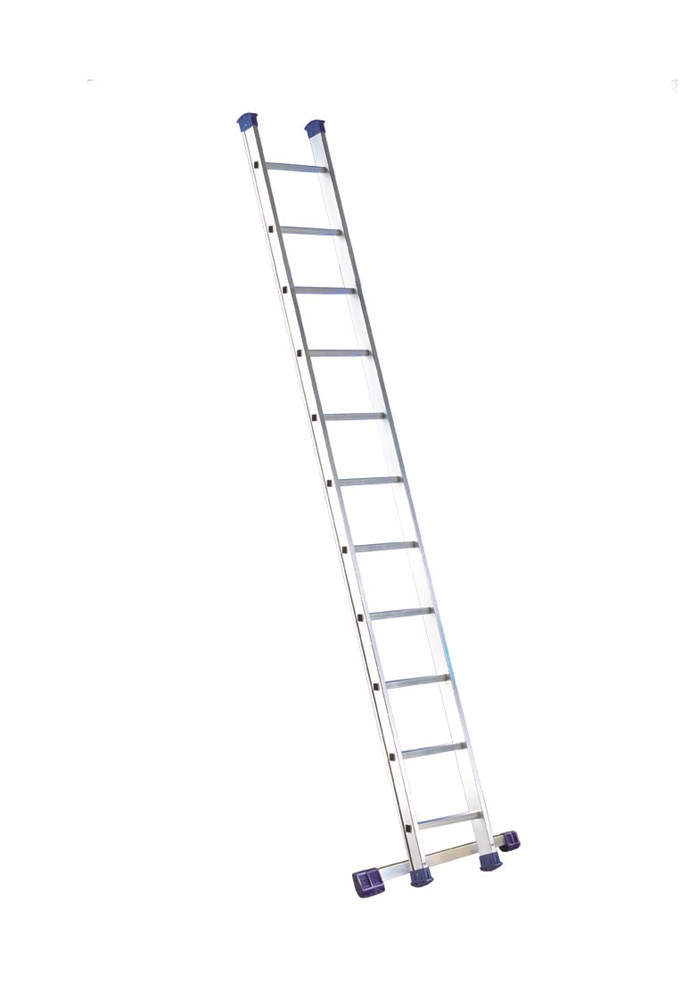

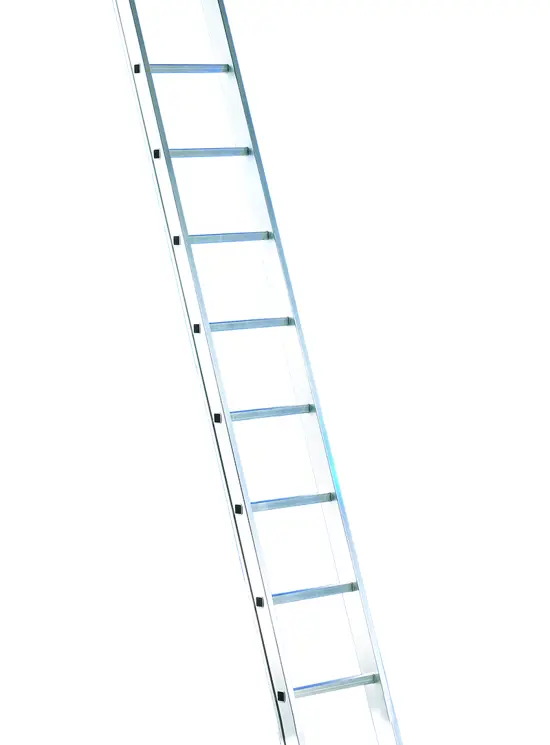

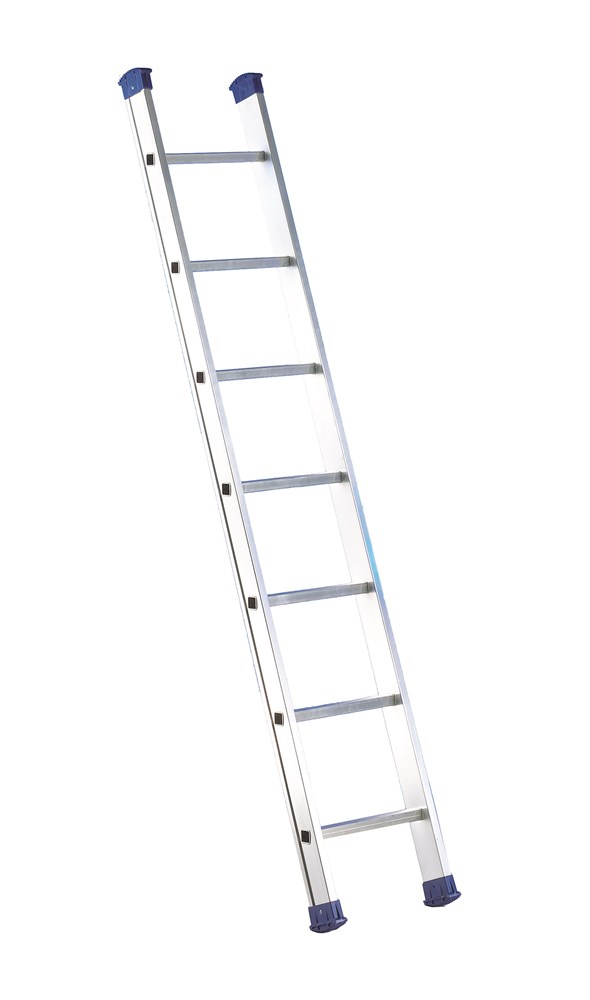

Single section ladder for comfortable climbing supertop quality line, Flat rungs under feet. No. of rungs: 7 to 15. European Standards UNIEN131

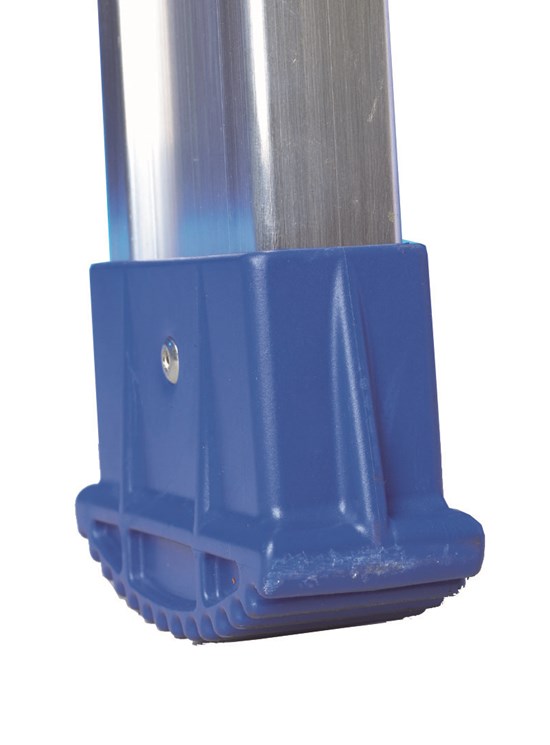

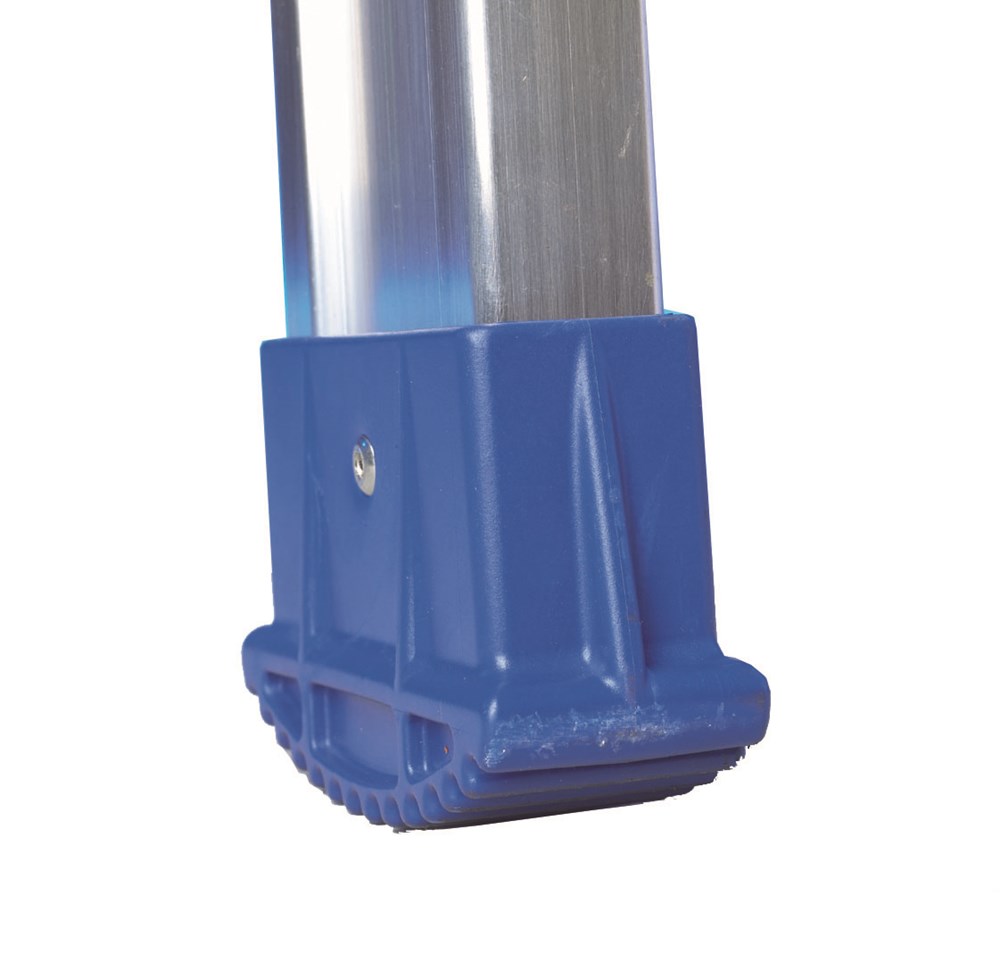

Light and resistant single section ladder provided with ergonomic reinforced rubber feet on all 4 ends which are fixed through a rivet.

This method helps avoiding their loss and the ladder can also be used upside down.
The De Luxe range of heavy duty ladders is made of a high quality ribbed extruded aluminium, manufactured with an advanced automatic flanging method (the rungs are fixed to the ladder profiles with a “sandwich” system) giving great strength and long-lasting performance.

It conforms to European standard EN131 TESTED BY TUV

TECHNICAL FEATURES

Rungs section 30 x 30 mm
Rung distance 28 cm
Capacity 150 kg
No. of rungs: 7 to 15
Section width: cm 42,3

STANDARD PARTS

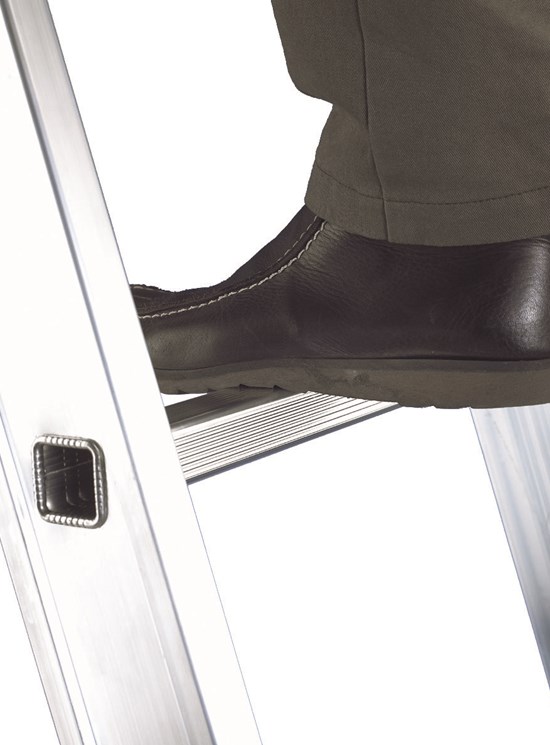

Flat rungs under shoes

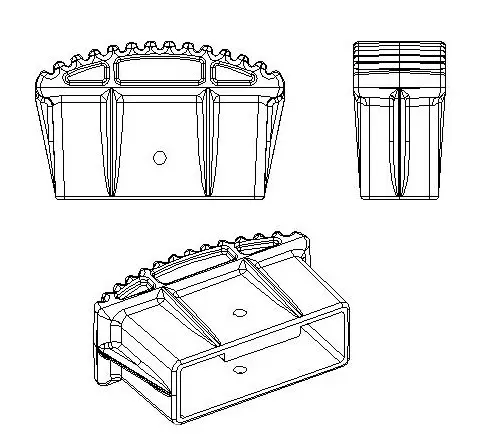

Anti-skid rubber feet (Luxe 1)
Label and instructions for assembly and use
Thermo-shrinkable plastic package with showcard

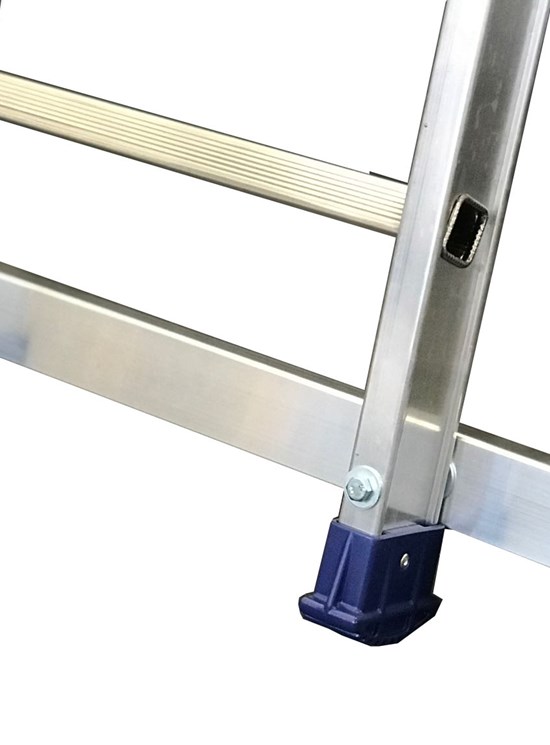

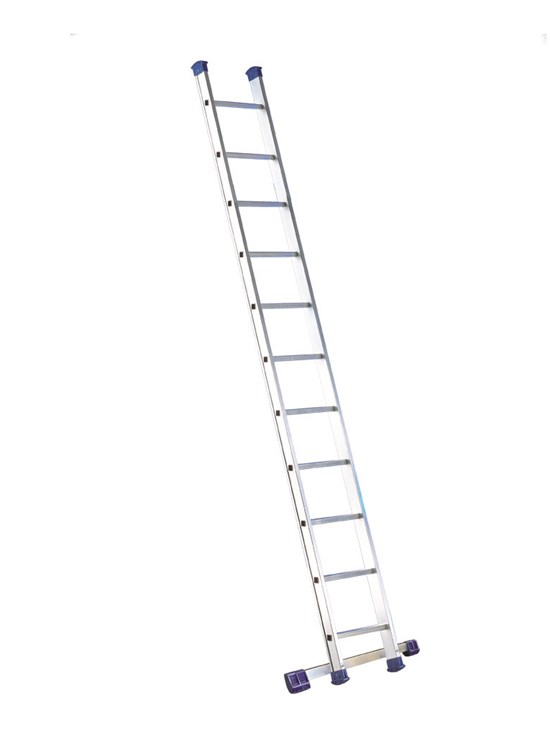

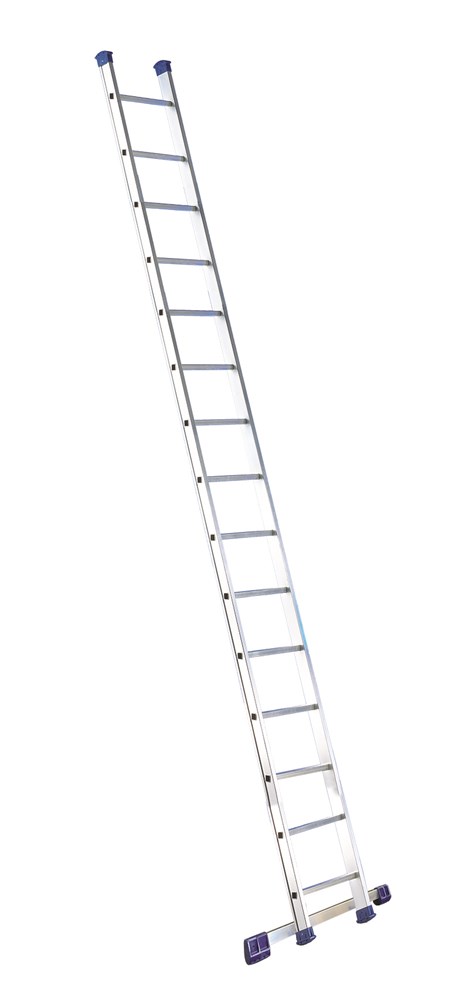

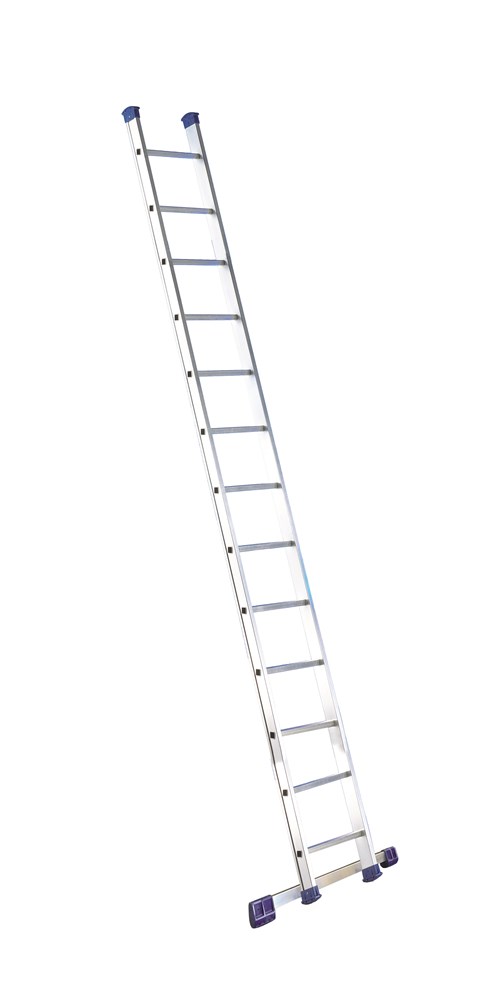

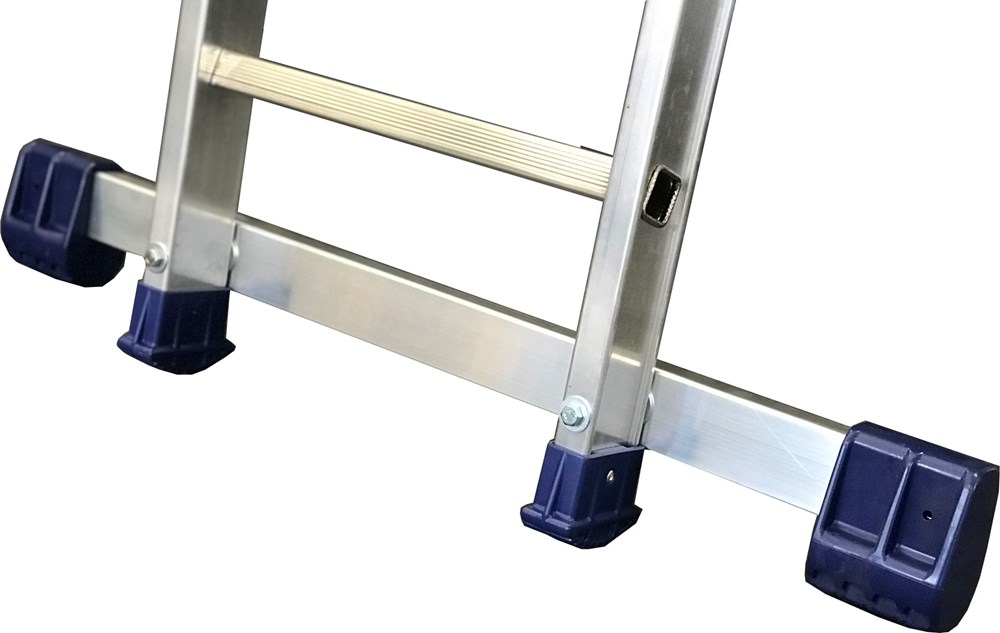

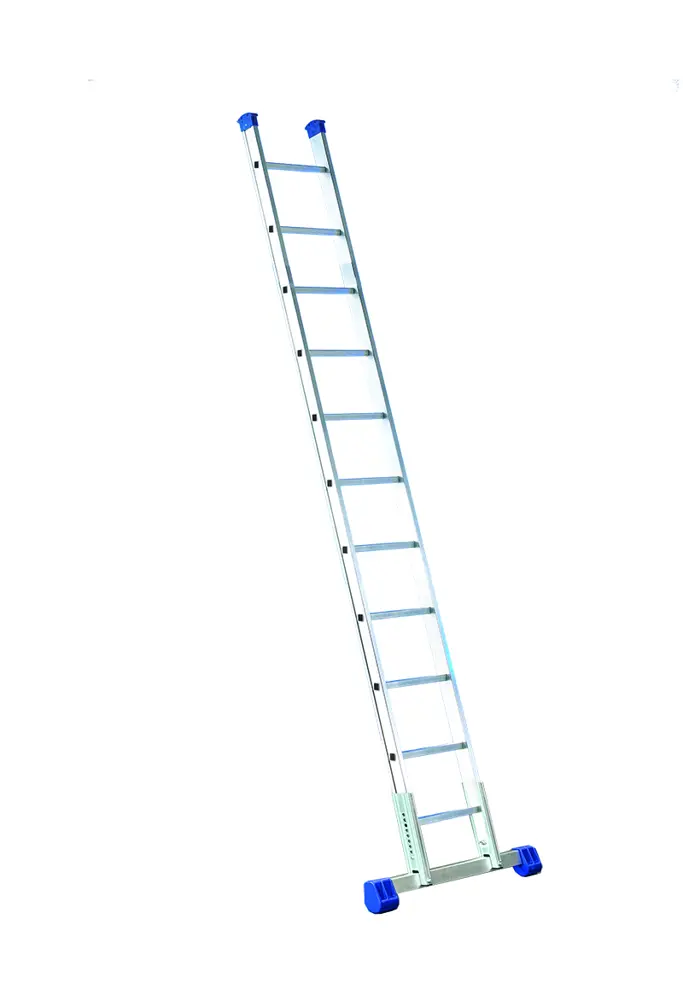

Stabilizer for ladders over 3 m height EN131

TECHNICAL FEATURES

Code	Rungs number	Height m	Profile mm	Weight Kg
SCNX1007	7	2,30	67x27	4,3	EN131
SCNX1009	9	2,90	67x27	5,4	EN131
SCNX1011	11	3,50	67x27	6,5
ASCNX1011	11 with stabilizer	3,50	67x27	8,5	EN131

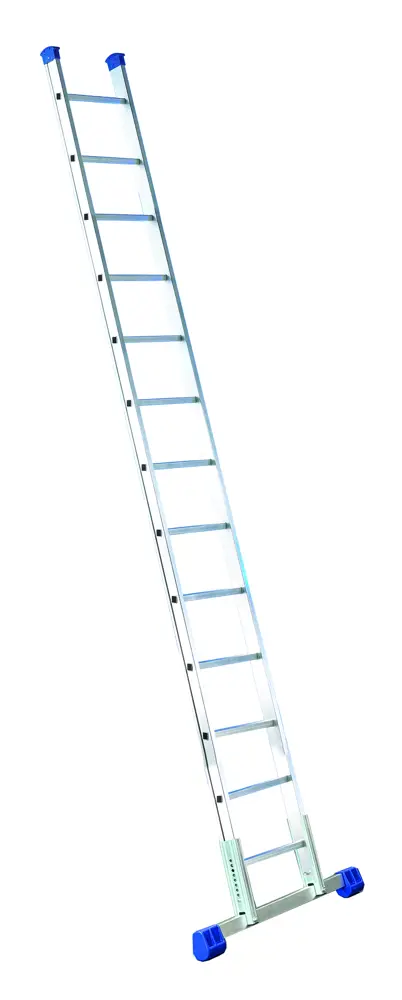

SCNX1013	13	4,10	67x27	7,5
ASCNX1013	13 with stabilizer	4,10	67x27	9,5	EN131

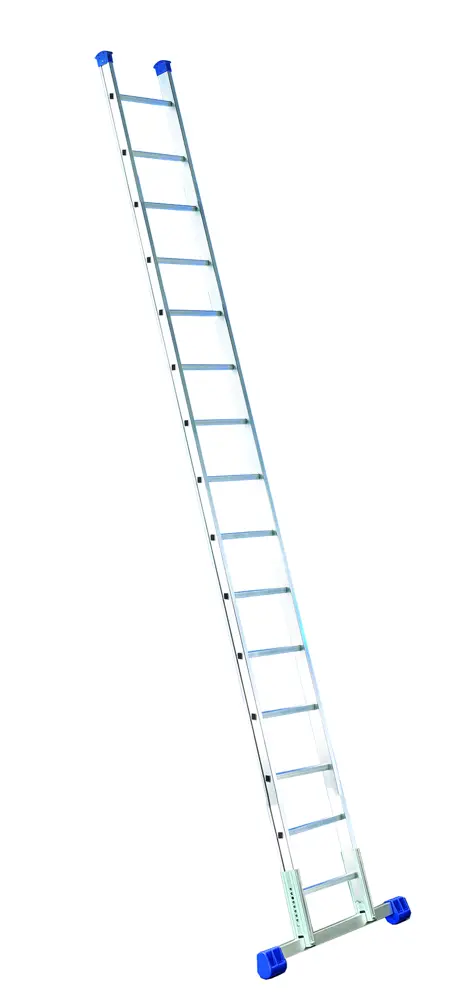

SCNX1015	15	4,70	67x27	8,5
ASCNX1015	15 with stabilizer	4,70	67x27	10,5	EN131

DE LUXE.pdf (2.2 MB)
