Luxe3

max height m 9,72

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

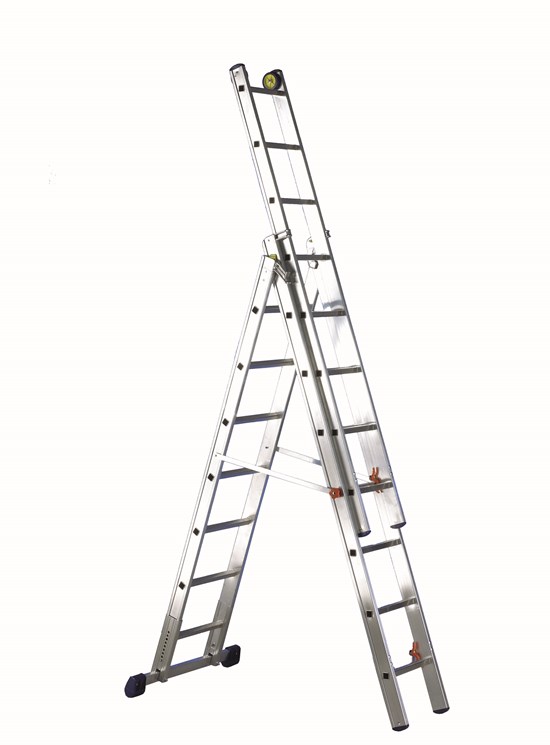

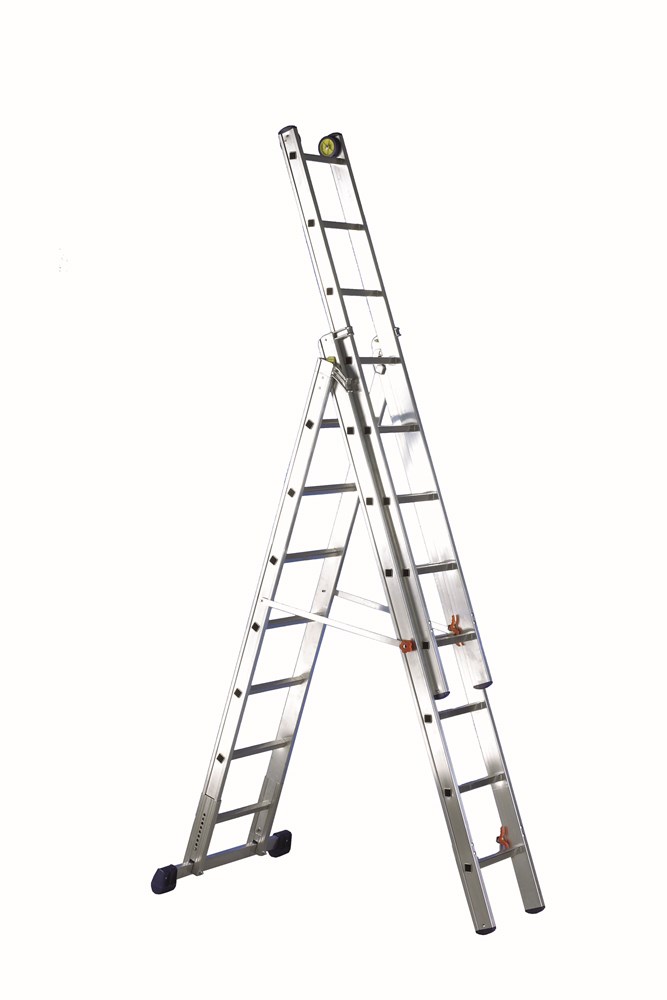

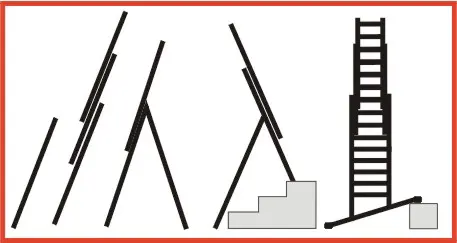

3-section push-up and A frame aluminium ladder, suitable also for use on stairs, for comfortable climbing, device to prevent third section overturning (D), sliding wheels

It is equipped with adjustable base stabiliser and sliding wheels when used as lean-to-wall ladder. When used as a stepladder, the third section is only used as a guar¬drail.

The De Luxe range of Heavy Duty ladders is made of a high quality ribbed extruded aluminium, manufactured with an advanced automatic flanging method (the rungs are fixed to the ladder profiles with a “sandwich” system) giving great strength and long-lasting performance. It conforms to European standard EN131.

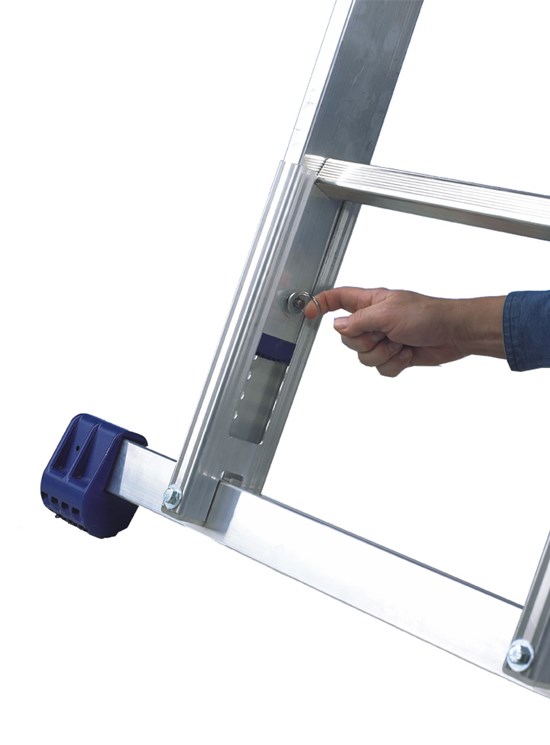

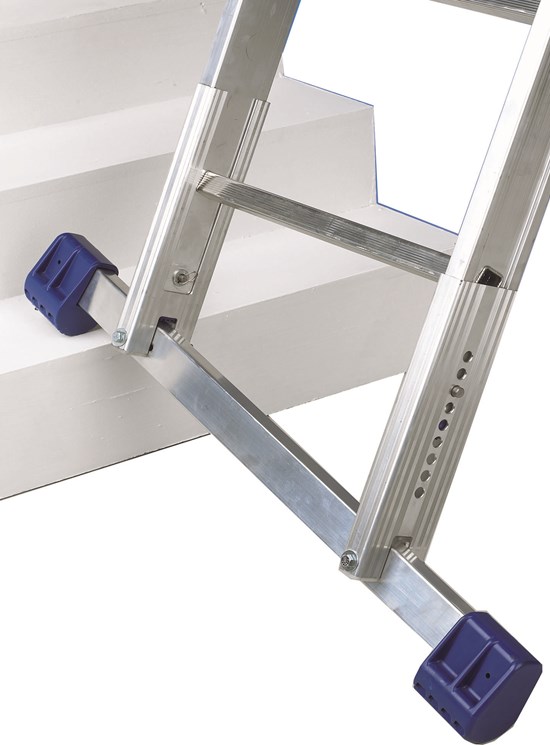

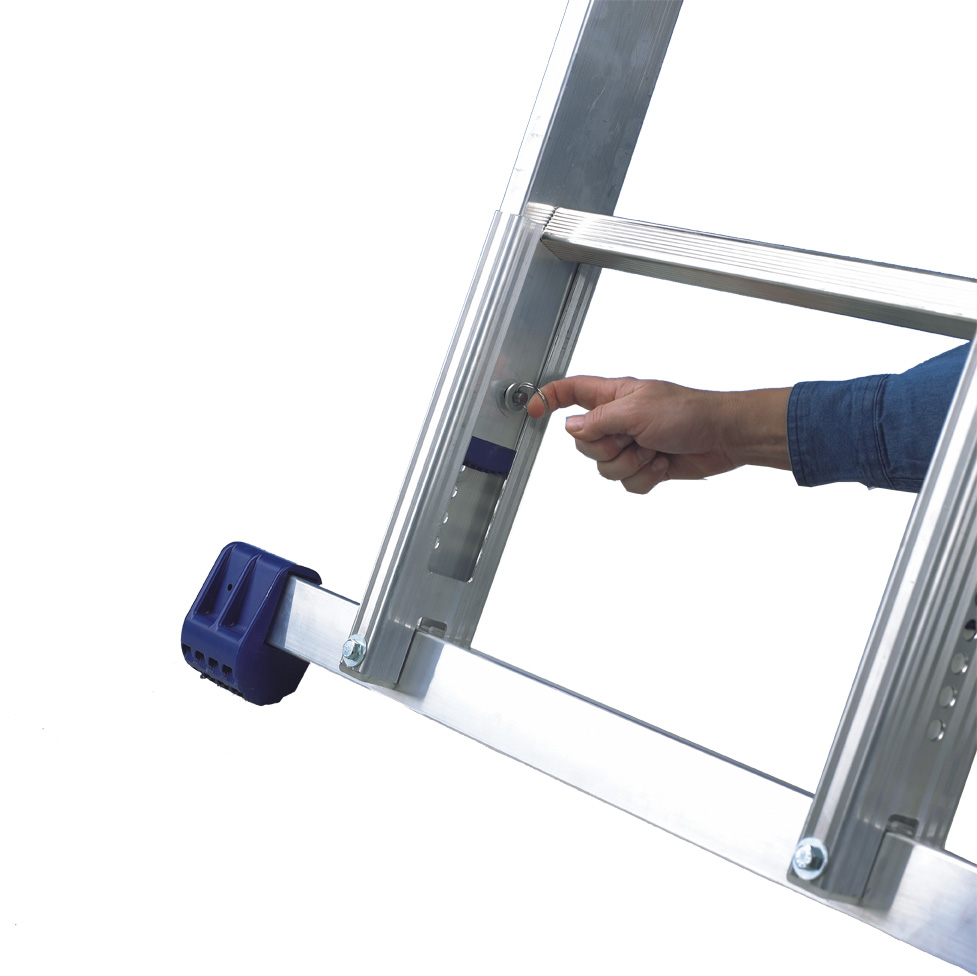

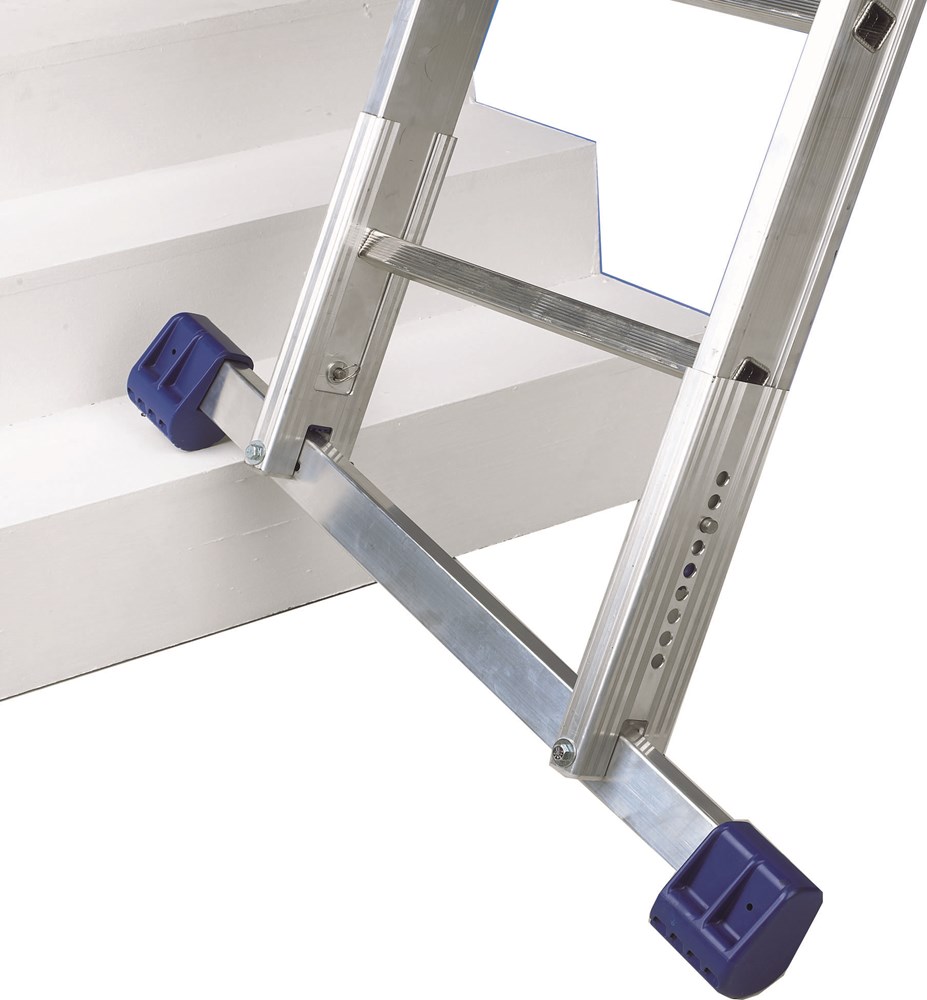

Patented adjustable base stabiliser standard on Luxe 3
Constructed in strong but lightweight aluminium, this is a new system which allows adjustment on uneven ground by counter-balancing the effects of uneven surfaces ensuring easy safe operation and usage of the ladder.

This is facilitated by the use of 2 strong extractable pins which allow the user to level the ladder.

When the ladder is extended in a narrow operating area, the ladder can be used without the stabiliser.

The reinforced feet lift the base stabiliser to 45 mm so the ladder can be used even where there are stones or other small obstacles.

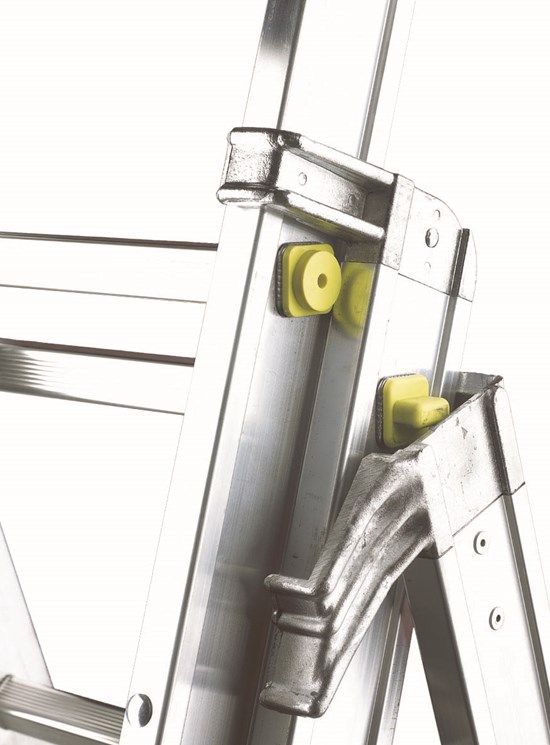

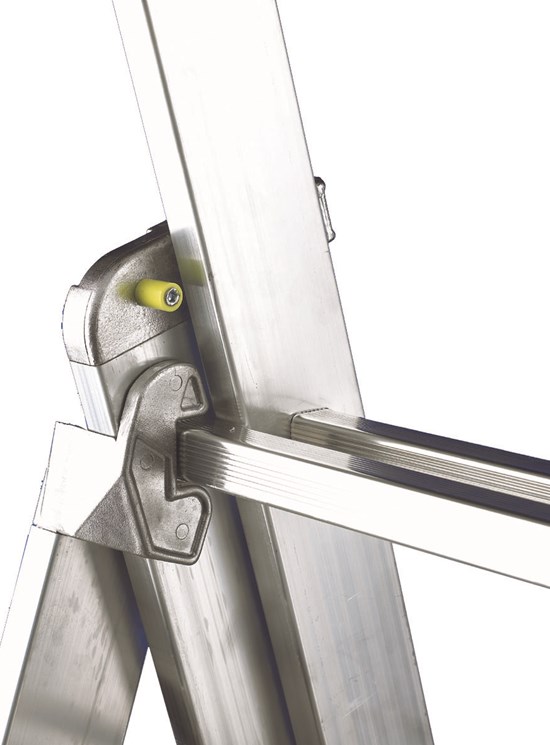

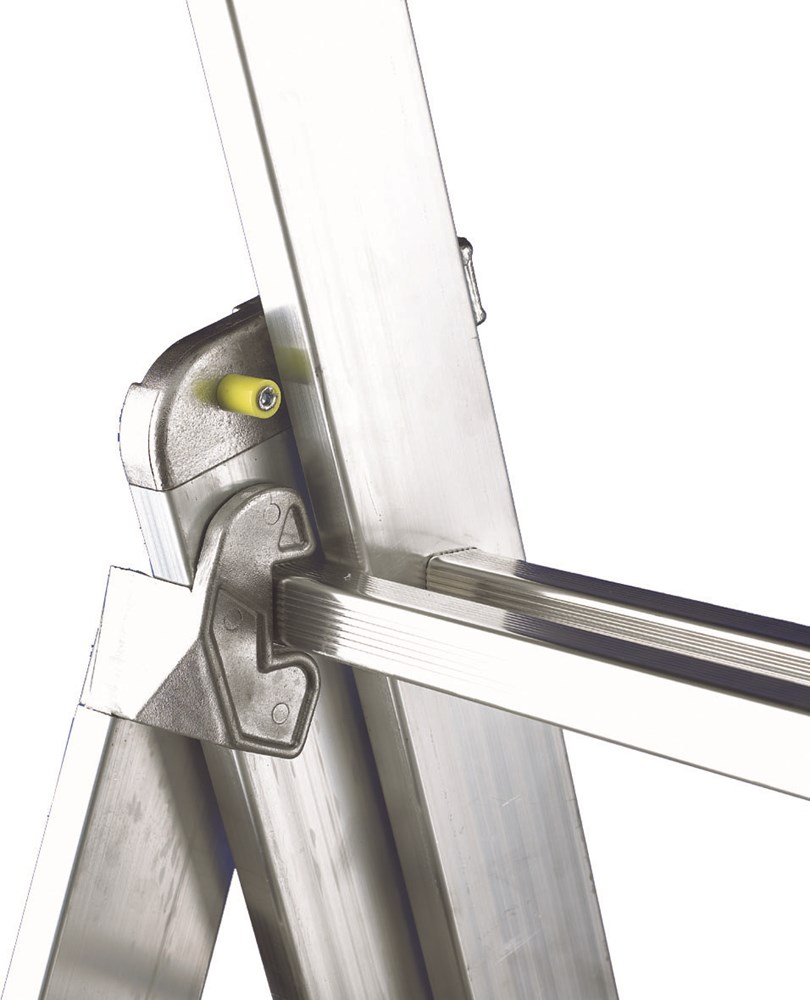

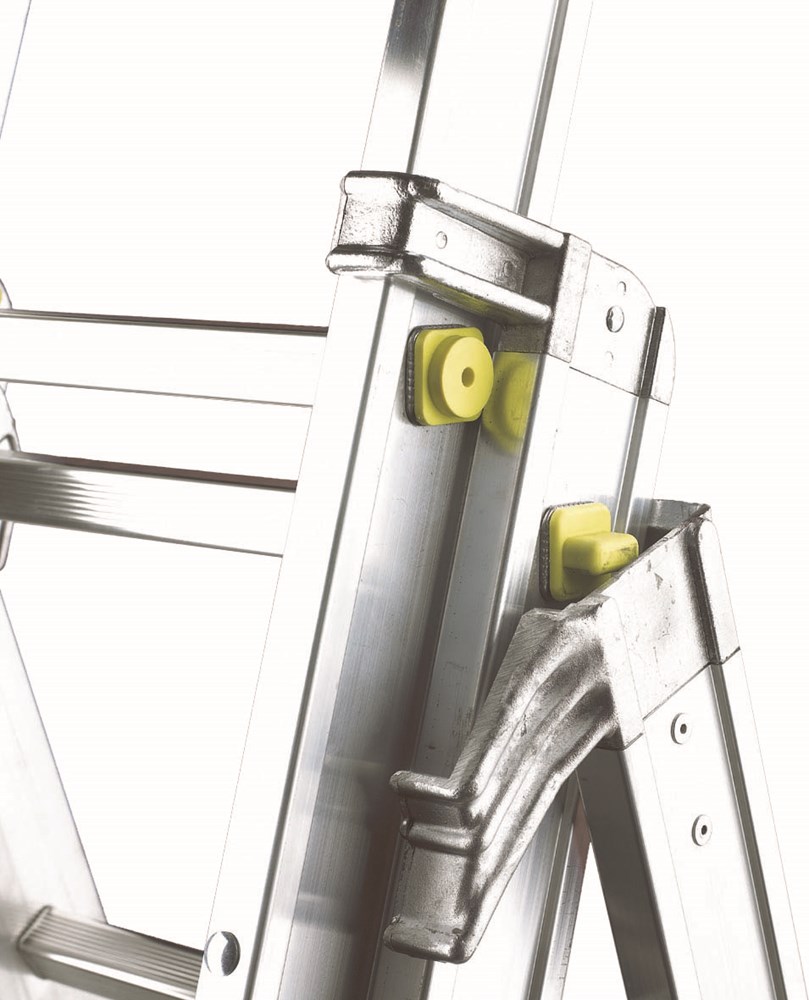

Device to prevent third section overturning.
It prevents uncontrolled slipping of the ladder from the user’s hand, and
falling of the third section during extension of the ladder when used as
a stepladder.

Flanged, ribbed and ergonomic rungs.
Three-phase flanging (rungs are fixed with a “sandwich” system) for a long lasting: 1 and 2.

Frame inner side swelling, frame outer side flanging and 3 swelling inside the frame.

Safe and easy use is therefore ensured by a flat stable rung for the user granting greater ease and productivity.
There is no cutting into the foot as in traditional square rungs which form a diamond shape causing uncomfortable use.

TECHNICAL FEATURES

No. of rungs: 6+7+7 to 12+13+13
Stepladder height: from m 2,10 to m 3,90
Extended height: from m 4,95 to m 9,72
Base section width 48,5 cm
Intermediate section width 42,3 cm
Final section width 36,5 cm
Rung distance 30 cm
Capacity 150 kg

STANDARD PARTS

Flat rungs under shoes

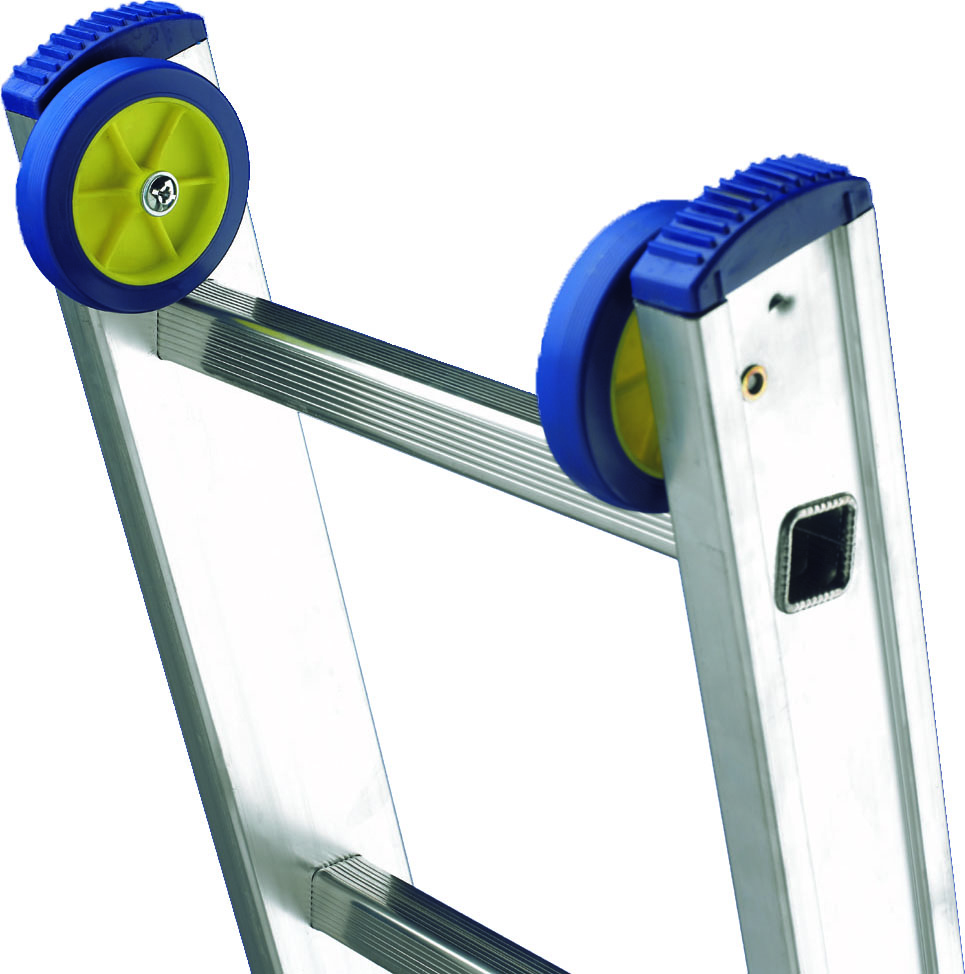

Sliding wheels
Adjustable base stabiliser

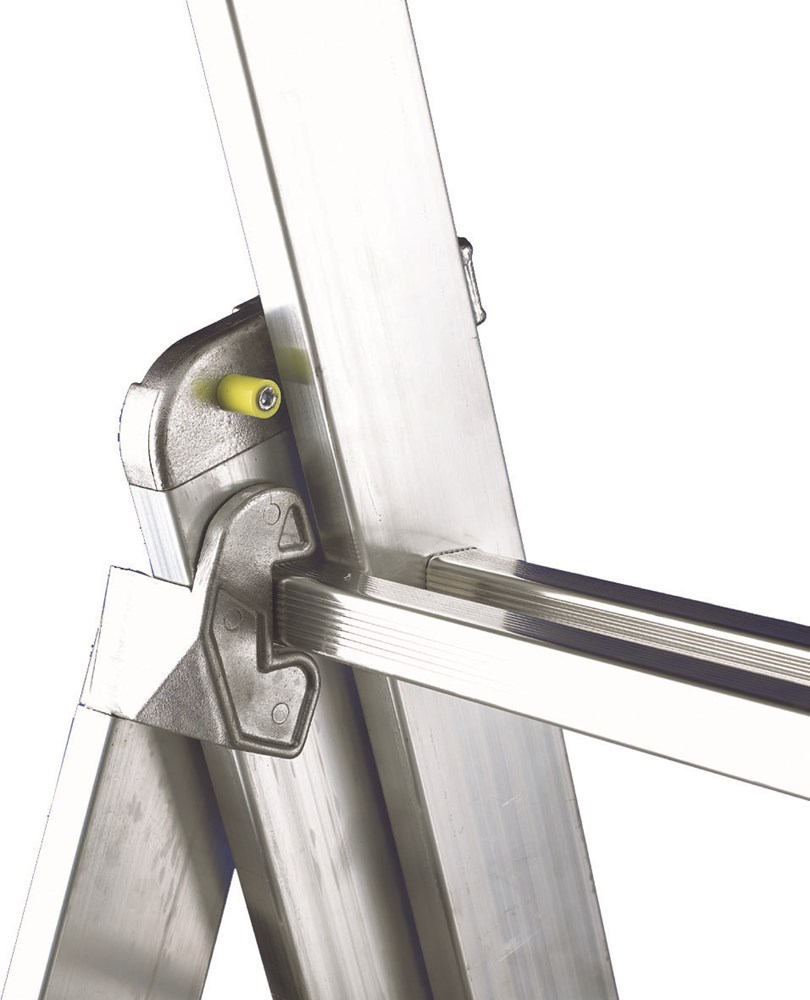

Aluminium opening system
Bar preventing uncontrolled closure and opening of the ladder
Anti-skid rubber feet
Extension blocking device to prevent ladder moving when the safety limit is reached
Device to stop upward shifting
Label and instructions for assembly and use

• Thermo-shrinkable plastic package with showcard
