V1 EN131 Fiberglass ladder

max height m 2,85

Producted in compliance with the European standard for dielectric fiberglass ladders for voltages up to1000V AC and 1500V C.C. It defines the tests and sizing

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Indicates the tested electrical potential

Suitable for heavy duty

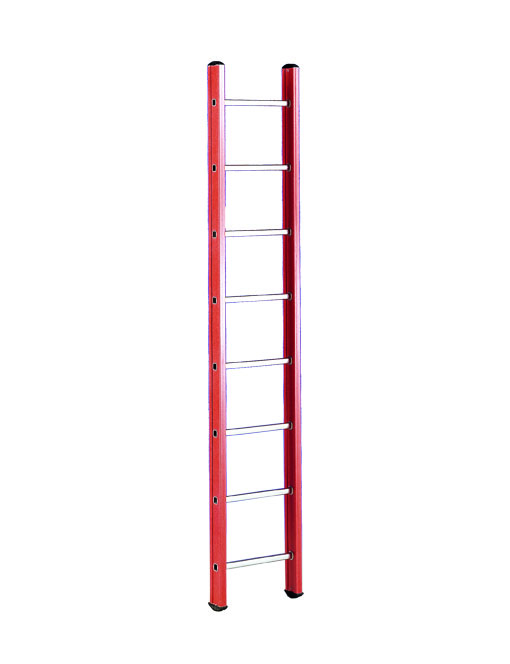

Light and strong single section ladder in fiberglass, section width 42 cm, step distance 28 cm

Light and strong single section ladder.
Professional fiberglass ladders suitable for those operators who work next to cables, outlets or other electric energy sources.
The fiberglass frames assure electric insulation but our ladders are also light and easy to manage thanks to the non-skid knurled aluminium rungs.

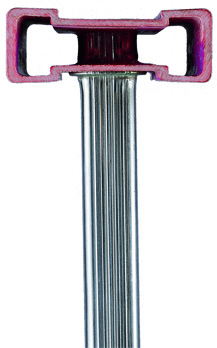

Rungs section 27x27 mm
No. of rungs: 8 to 10
Height: 2,30 to 2,85 m
Section width: 42 cm
Capacity 150 kg
Step distance 28 cm
Non-skid rubber feet
Label and instructions for assembly and use
Thermo-shrinkable plastic package with showcard

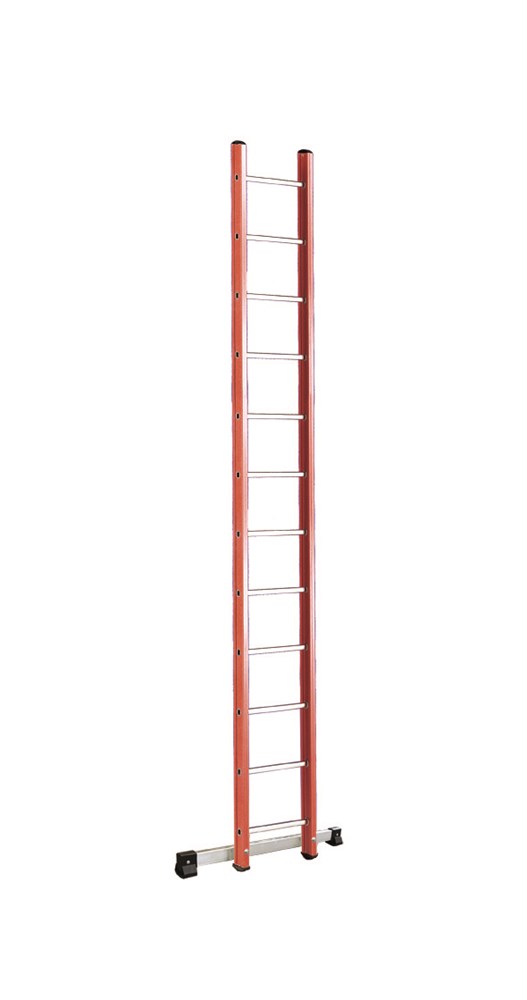

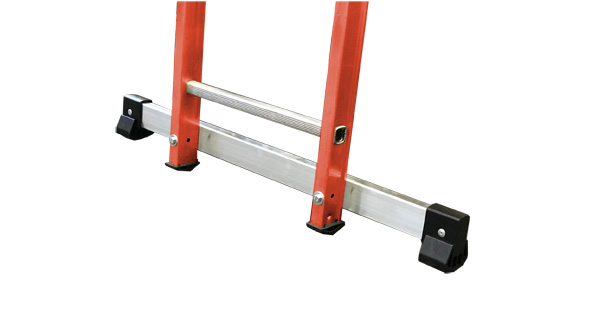

V1 ladders above m 3 can be used in compliance with the European Standard only with purchase and assembly of the stabilizer.

EUROPEAN STANDARD CEI EN 50528:

The V1 fiberglass ladder complies with Standard EN 50528 which concerns ladders used for work on low voltage live parts such as making connections, work on supports and switching operations.
These ladders are also used for preliminary operations for live work such as checking the voltage, earthing and short-circuiting, etc.
The purpose of this Standard is to provide ladders that have two main functions: access to the parts of the system on which work must be done and protect the worker from electrical risks by providing the level of insulation and maintaining a safety distance between the operator and the potentially live parts of the system.
It concerns insulating ladders for use on low voltage systems or in their proximity.
This Standard, which complies with EN 61477, must be used in accordance with Standards EN 50110-1 and EN 50110-2.
This Standard is published by CEI in English only as it is particularly aimed at specialized sectors.
This Standard remains applicable until 29-04-2027.
The tests are carried out with an electric charge of 36,000 Volts for one minute.

V1 V2 V3 INTERNATIONAL.pdf (4.2 MB)
