V2F
Max height m 8,00
Producted in compliance with the European standard for dielectric fiberglass ladders for voltages up to1000V AC and 1500V C.C.
It defines the tests and sizing
This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
It is the European Standard for ladders
Indicates the tested electrical potential
It is shown on products tested by TÜV SÜD PRODUCT SERVICE, the German Quality Standard organization, and certify they conform to EN131 for ladders and UNIEN14183 for stools.
Suitable for heavy duty

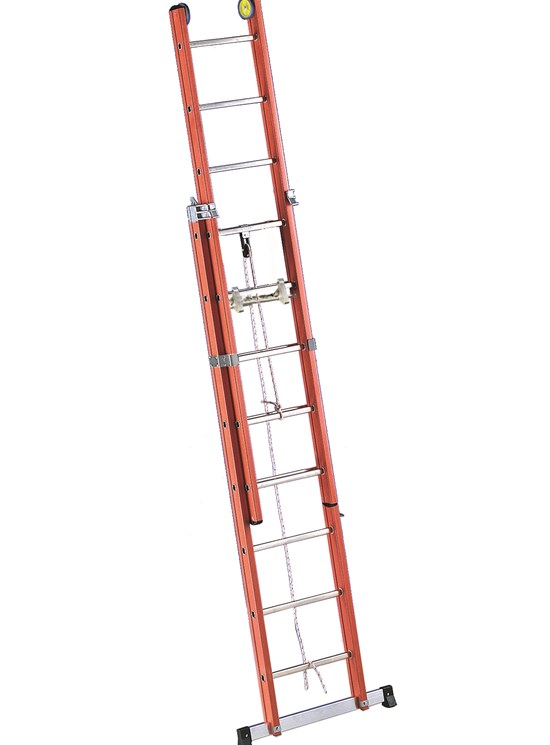

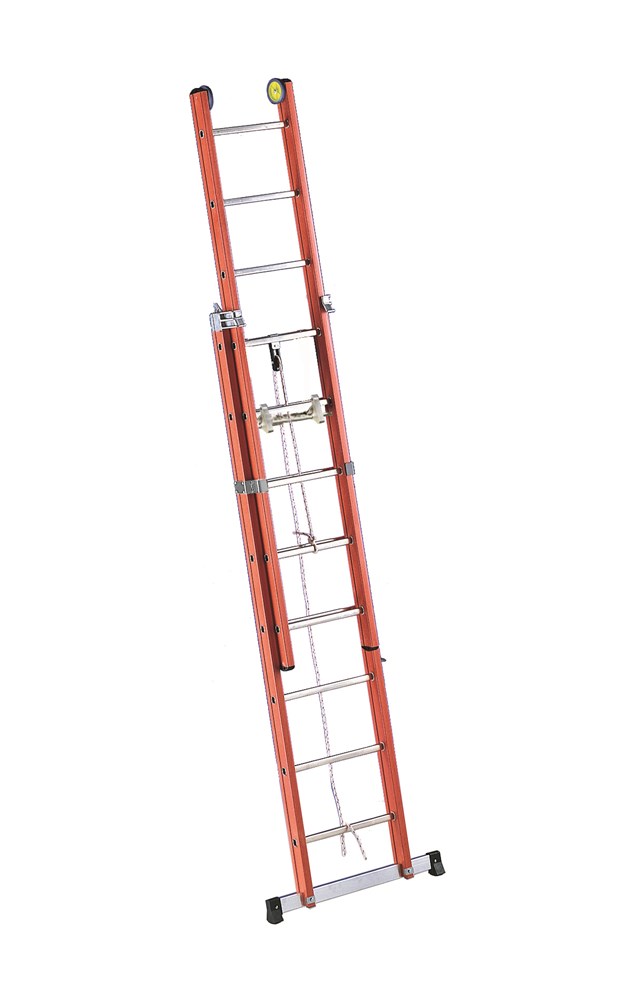

Two-section push-up ladder with rope, adjustable wrench for stabiliser fastening, strap preventing uncontrolled ladder opening
Professional fiberglass ladders suitable for those operators who work next to cables, outlets or other electric energy sources. The fiberglass frames assure electric insulation but our ladders are also light and easy to manage thanks to the non-skid knurled aluminium rungs.
Two-section push-up ladder with rope.
STANDARD OUTFITS
• Sliding wheels

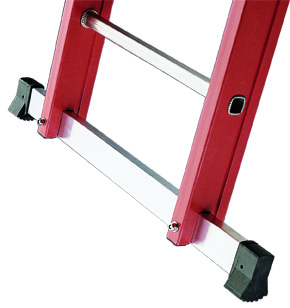

• Base stabiliser
• Adjustable wrench for stabiliser fastening
• Instructions for assembly and use
• Nylon reinforcement inside stabiliser seat
• Aluminium opening system
• Strap preventing uncontrolled ladder opening
• Non-skid rubber feet
• Device to stop upward movement
• Extension blocking device
• Capacity 150 kg
• Step distance 28 cm

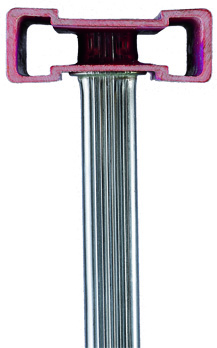

• Rungs section 27x27 mm
• Base section width 49 cm
• Final section width 42 cm
• Thermo-shrinkable plastic package with showcard
Equipped with sliding wheels, base stabiliser and pulley for rope control.
Very important: this model cannot be used as a stepladder.
Two-section push-up ladder with rope.
STANDARD OUTFITS
• Sliding wheels
• Base stabiliser
• Adjustable wrench for stabiliser fastening
• Instructions for assembly and use
• Nylon reinforcement inside stabiliser seat
• Aluminium opening system
• Strap preventing uncontrolled ladder opening
• Non-skid rubber feet
• Device to stop upward movement
• Extension blocking device
• Capacity 150 kg
• Step distance 28 cm
• Rungs section 27x27 mm
• Base section width 49 cm
• Final section width 42 cm
• Thermo-shrinkable plastic package with showcard
Equipped with sliding wheels, base stabiliser and pulley for rope control.
Very important: this model cannot be used as a stepladder.
EUROPEAN STANDARD CEI EN 50528:
The V2F fiberglass ladder complies with Standard EN 50528 which concerns ladders used for work on low voltage live parts such as making connections, work on supports and switching operations.
These ladders are also used for preliminary operations for live work such as checking the voltage, earthing and short-circuiting, etc.
The purpose of this Standard is to provide ladders that have two main functions: access to the parts of the system on which work must be done and protect the worker from electrical risks by providing the level of insulation and maintaining a safety distance between the operator and the potentially live parts of the system.
It concerns insulating ladders for use on low voltage systems or in their proximity.
This Standard, which complies with EN 61477, must be used in accordance with Standards EN 50110-1 and EN 50110-2.
This Standard is published by CEI in English only as it is particularly aimed at specialized sectors.
This Standard remains applicable until 29-04-2027.
The tests are carried out with an electric charge of 36,000 Volts for one minute.
These ladders are also used for preliminary operations for live work such as checking the voltage, earthing and short-circuiting, etc.
The purpose of this Standard is to provide ladders that have two main functions: access to the parts of the system on which work must be done and protect the worker from electrical risks by providing the level of insulation and maintaining a safety distance between the operator and the potentially live parts of the system.
It concerns insulating ladders for use on low voltage systems or in their proximity.
This Standard, which complies with EN 61477, must be used in accordance with Standards EN 50110-1 and EN 50110-2.
This Standard is published by CEI in English only as it is particularly aimed at specialized sectors.
This Standard remains applicable until 29-04-2027.
The tests are carried out with an electric charge of 36,000 Volts for one minute.
