V2X - Multipurpose fiberglass ladder

Max height 6,08 m.

Producted in compliance with the European standard for dielectric fiberglass ladders for voltages up to1000V AC and 1500V C.C. It defines the tests and sizing

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

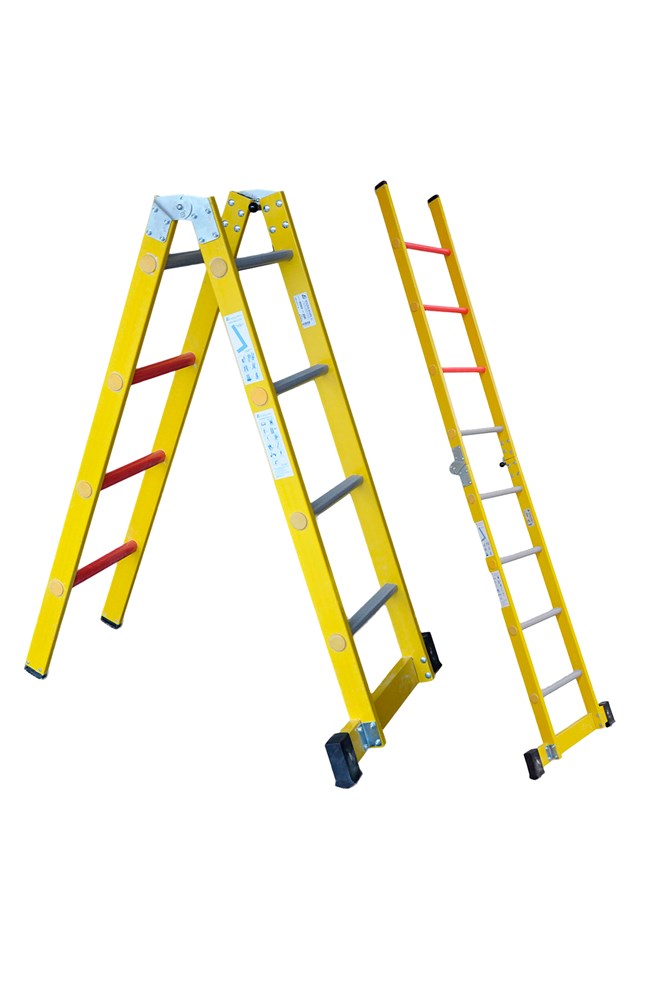

Insulating multipurpose ladder for electricians. Convertible into lean to wall and A frame ladder

V2X is 100% FIBERGLASS (POSTS AND RUNGS)

V2X is a transformable multiposition ladder made entirely of fiberglass to insulate electricians working near electrical sockets from the electric current,
cables or other sources of electricity.

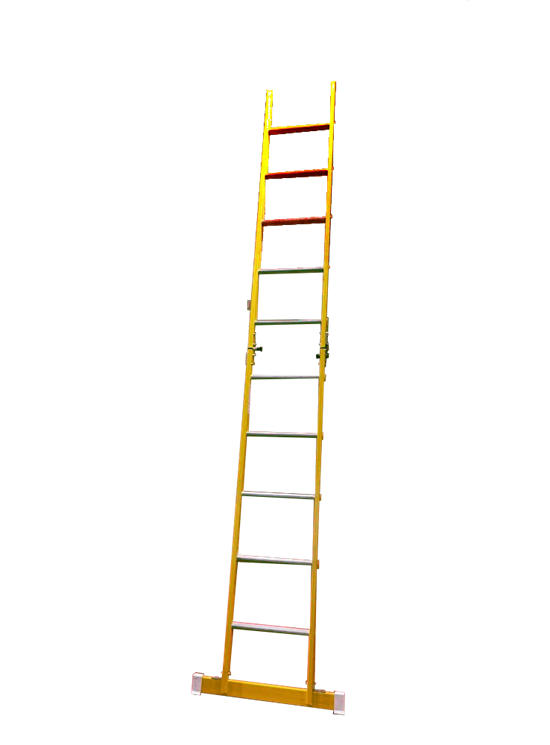

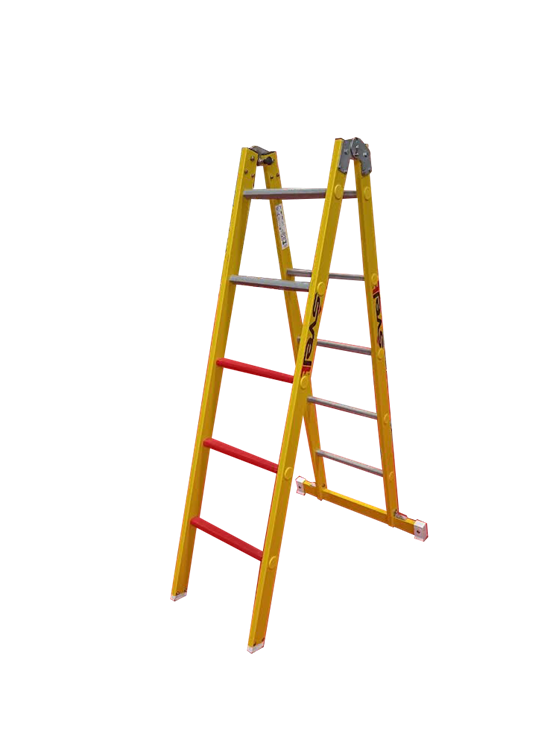

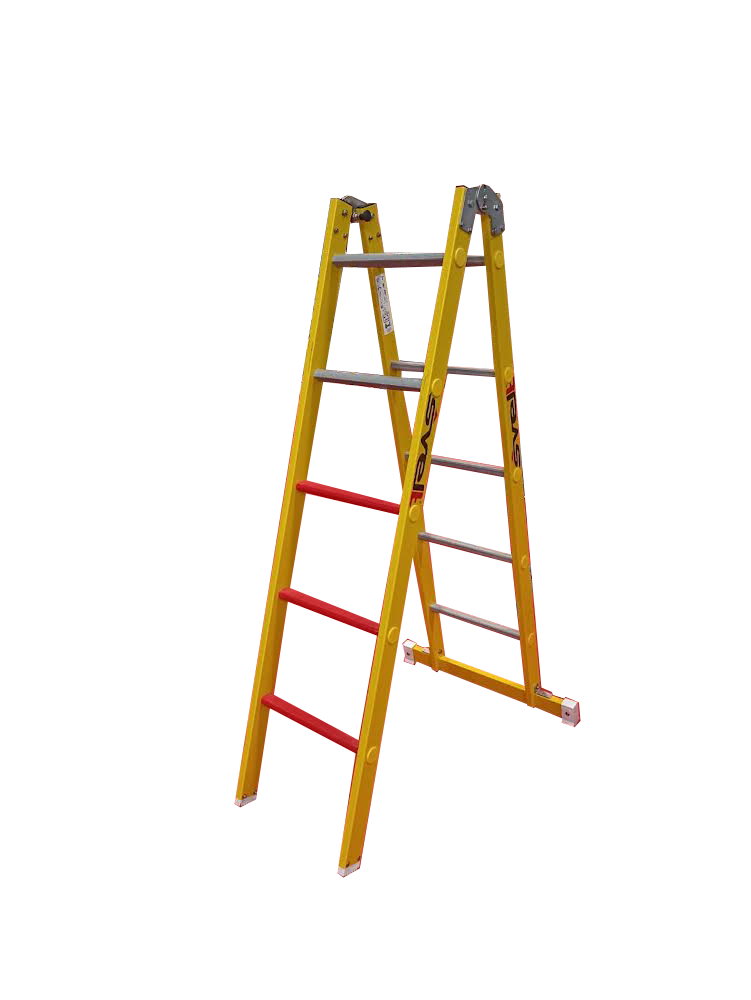

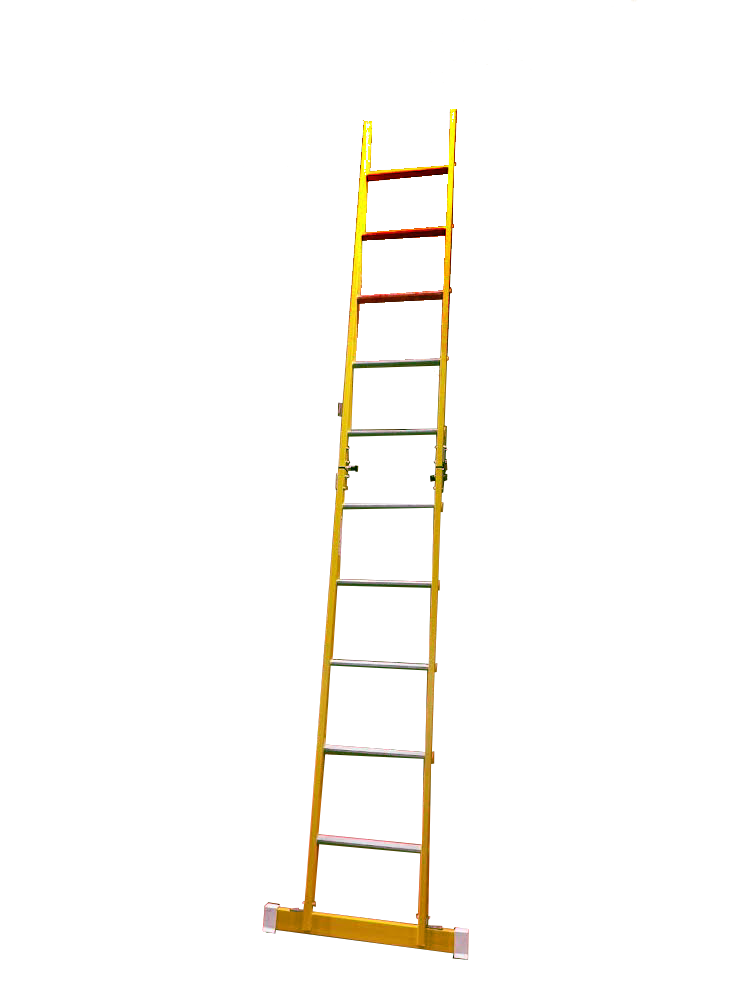

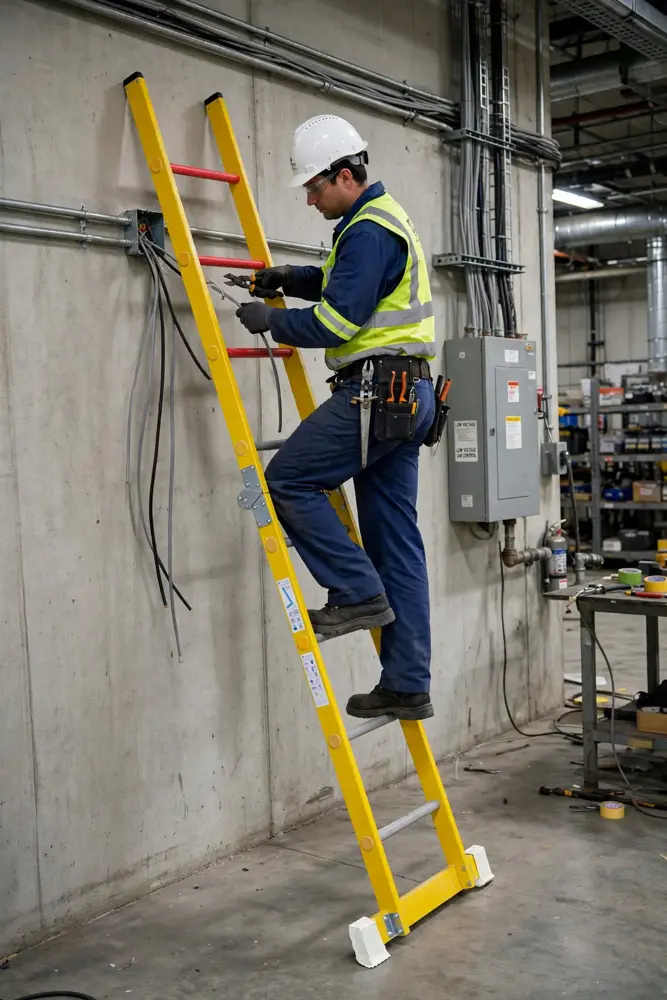

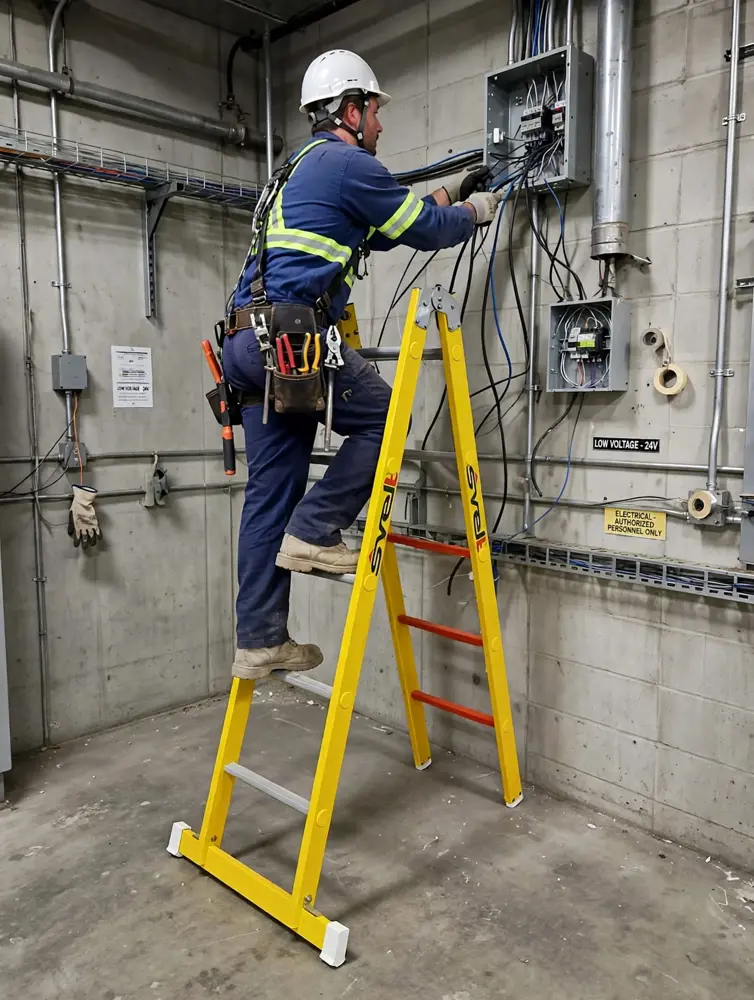

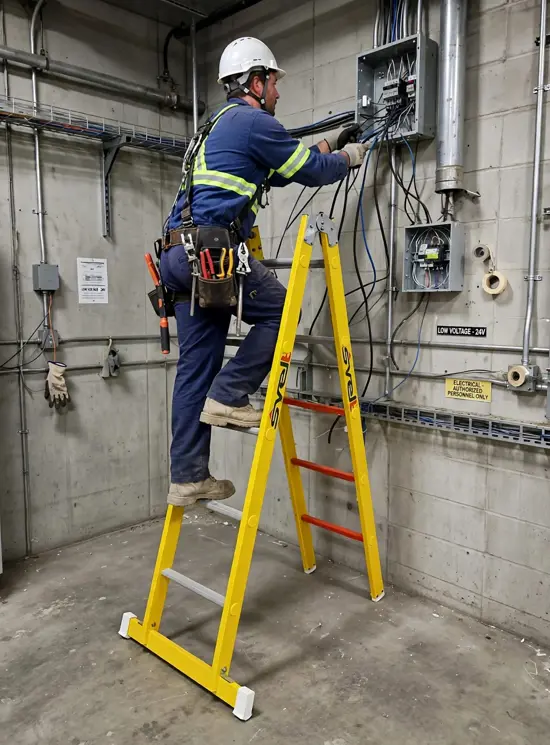

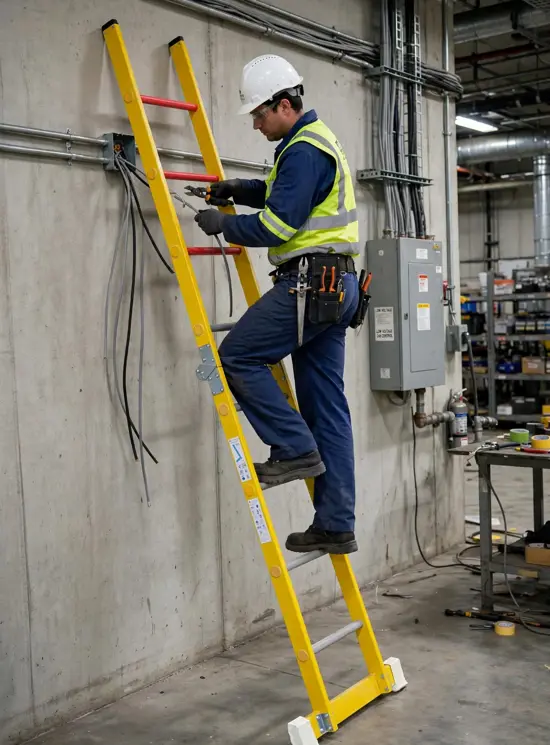

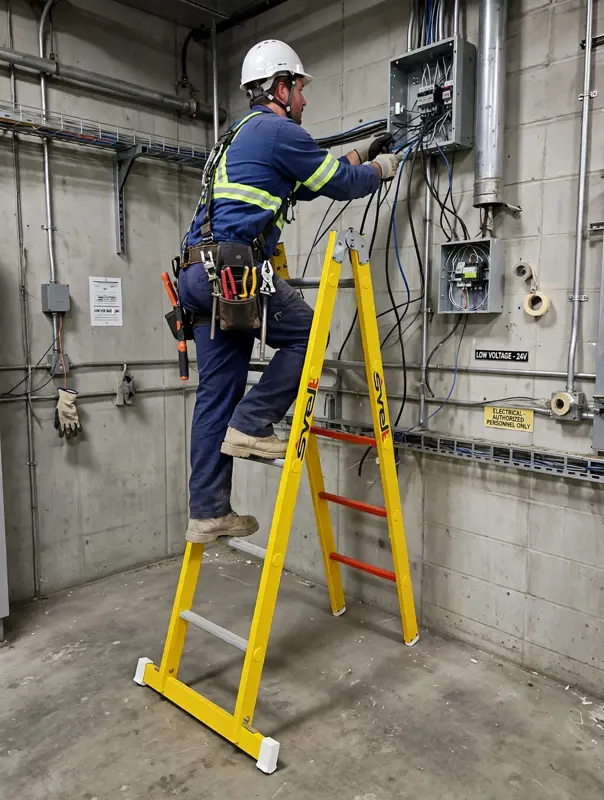

It can be used both as a lean-to-wall ladder and as a trestle (A frame) ladder.

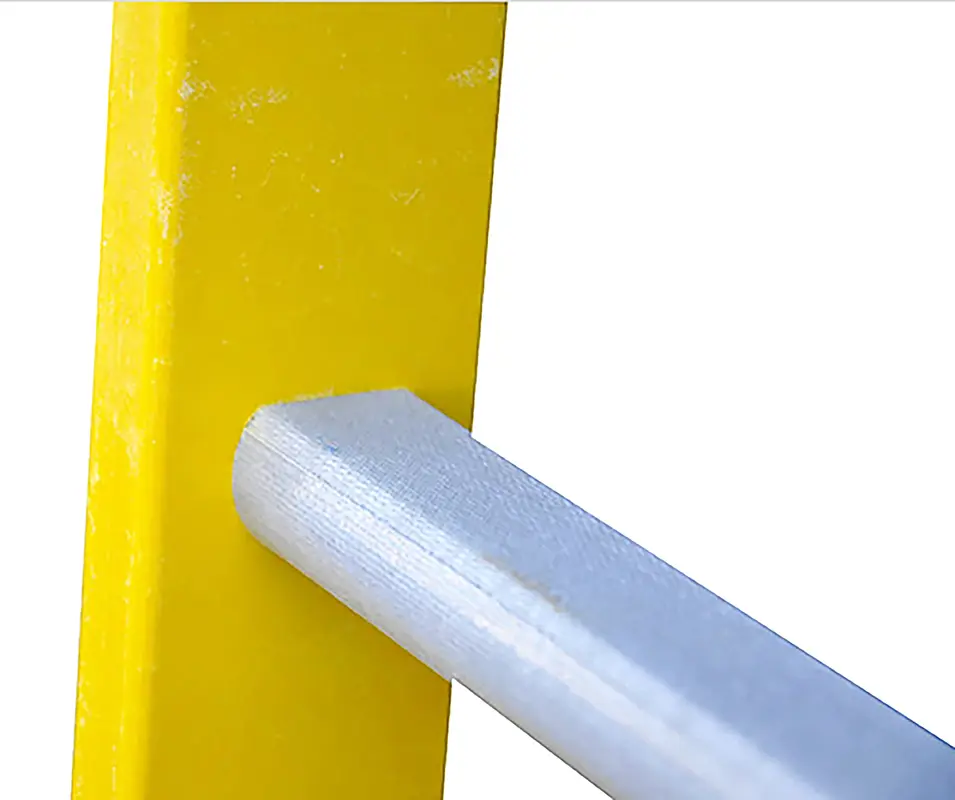

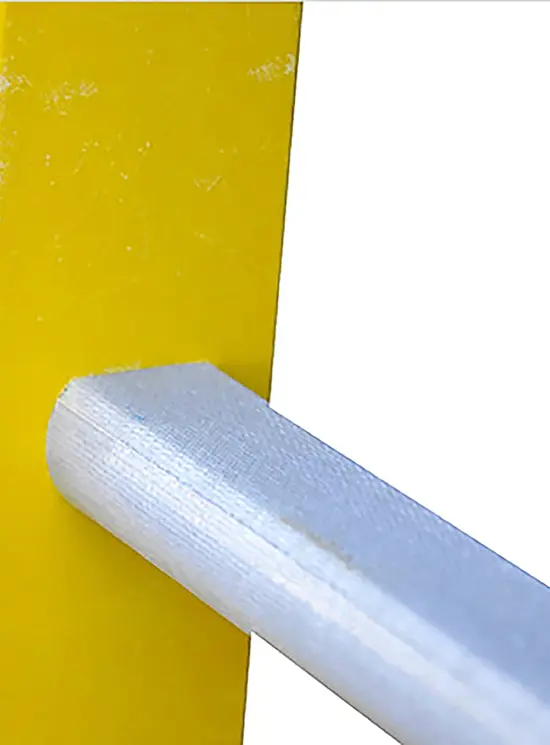

It is assembled with an advanced automatic system that permanently fixes the rungs to the profiles stiles.

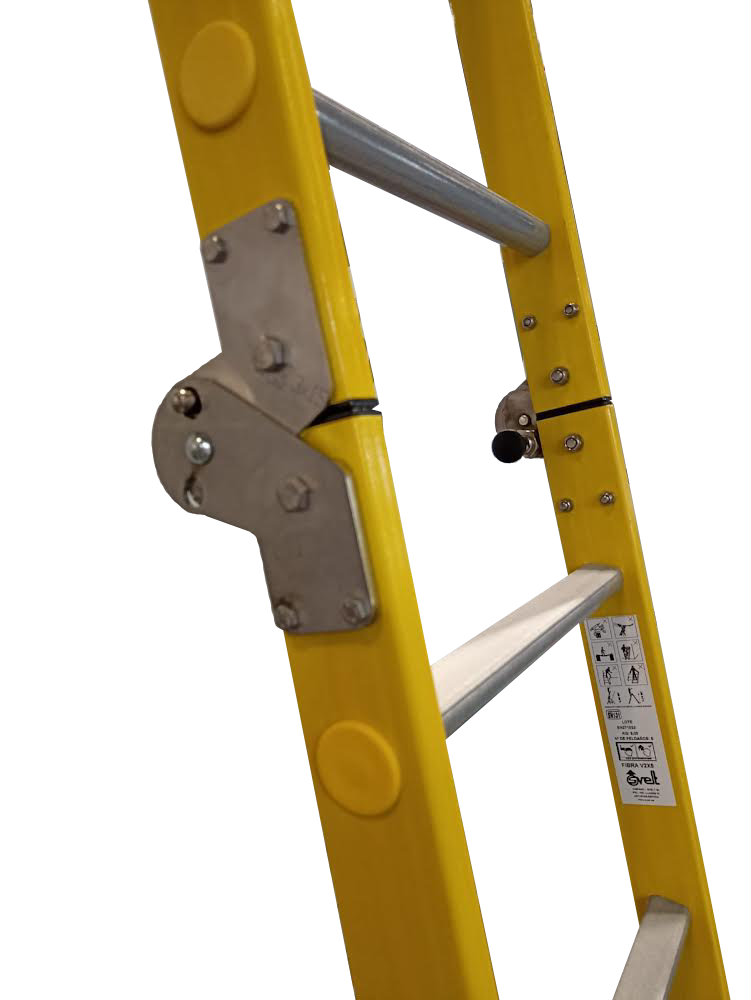

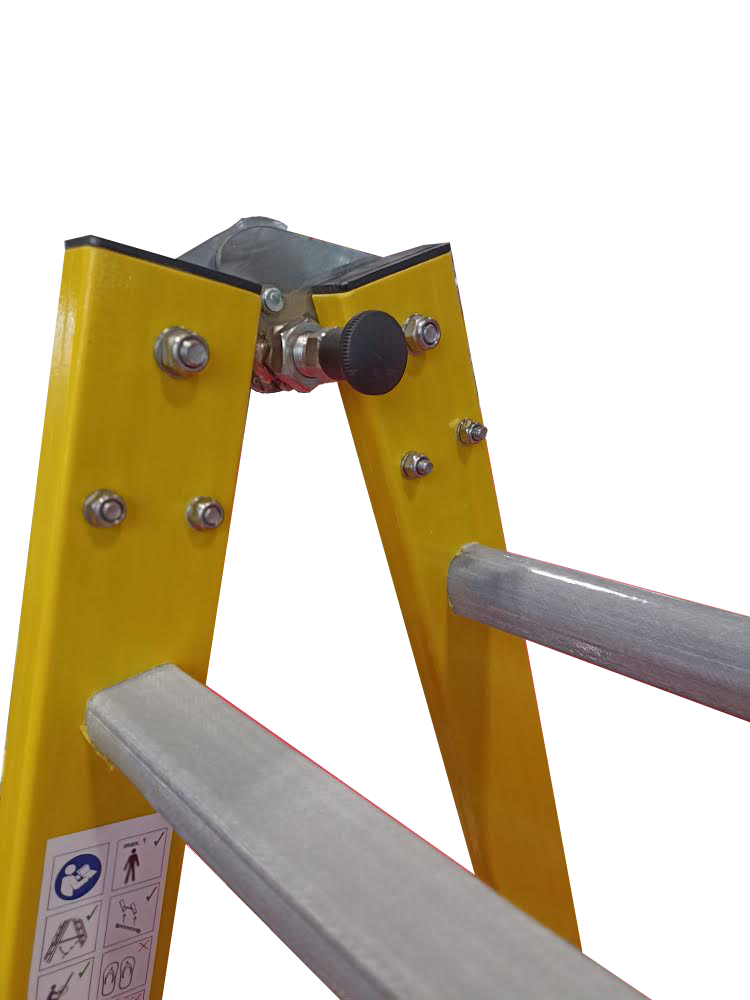

Its stainless steel screws and fittings make this ladder a durable and stable tool.
In addition, the ladder is anti-magnetic and resistant to moisture, acids, corrosion and ultraviolet rays.

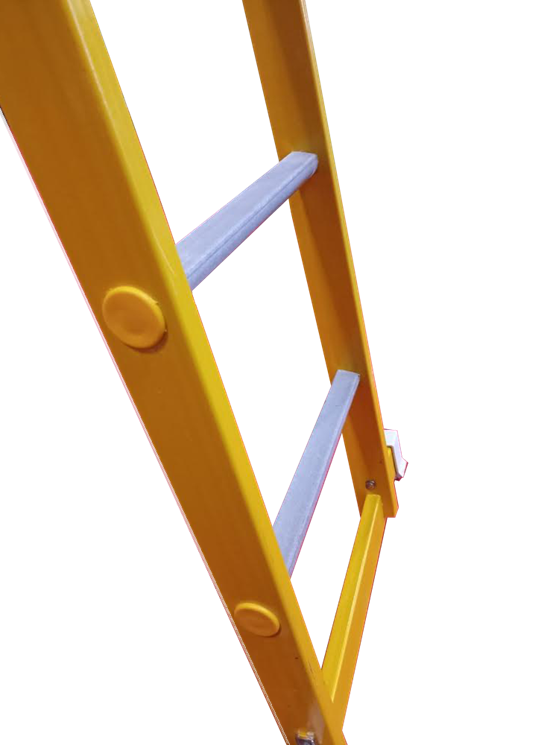

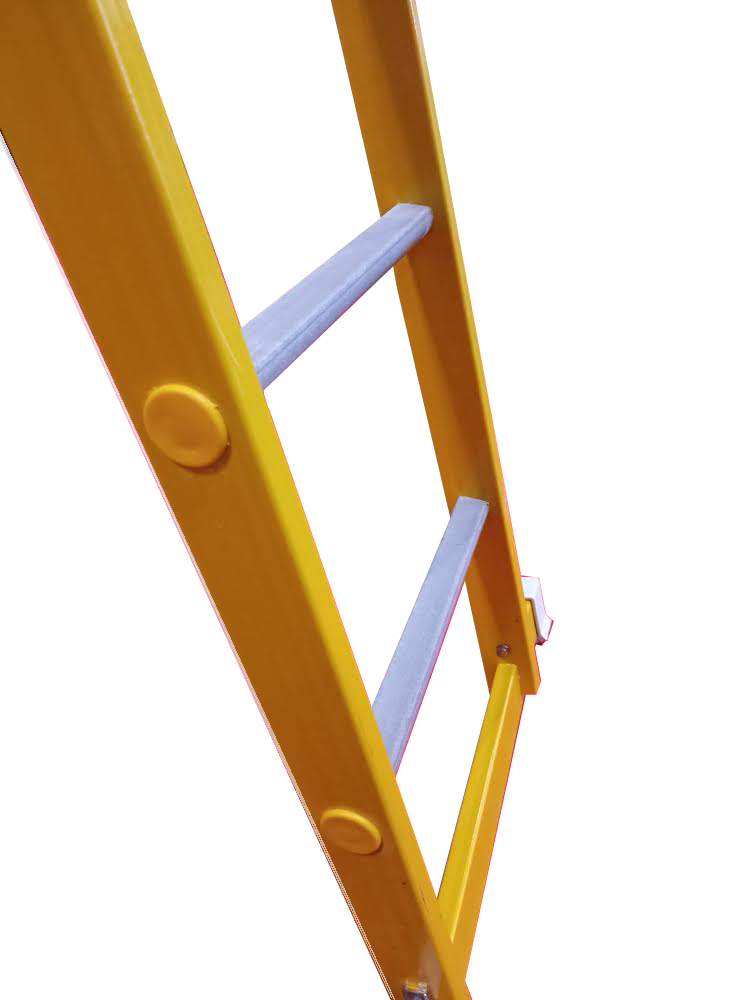

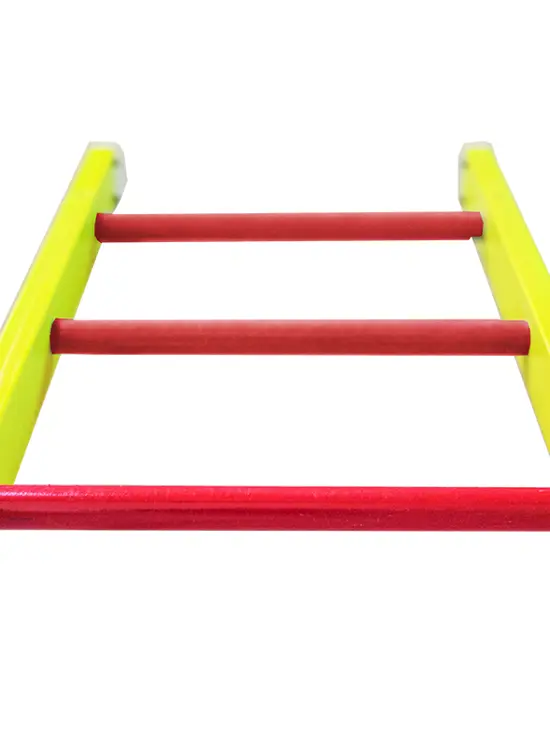

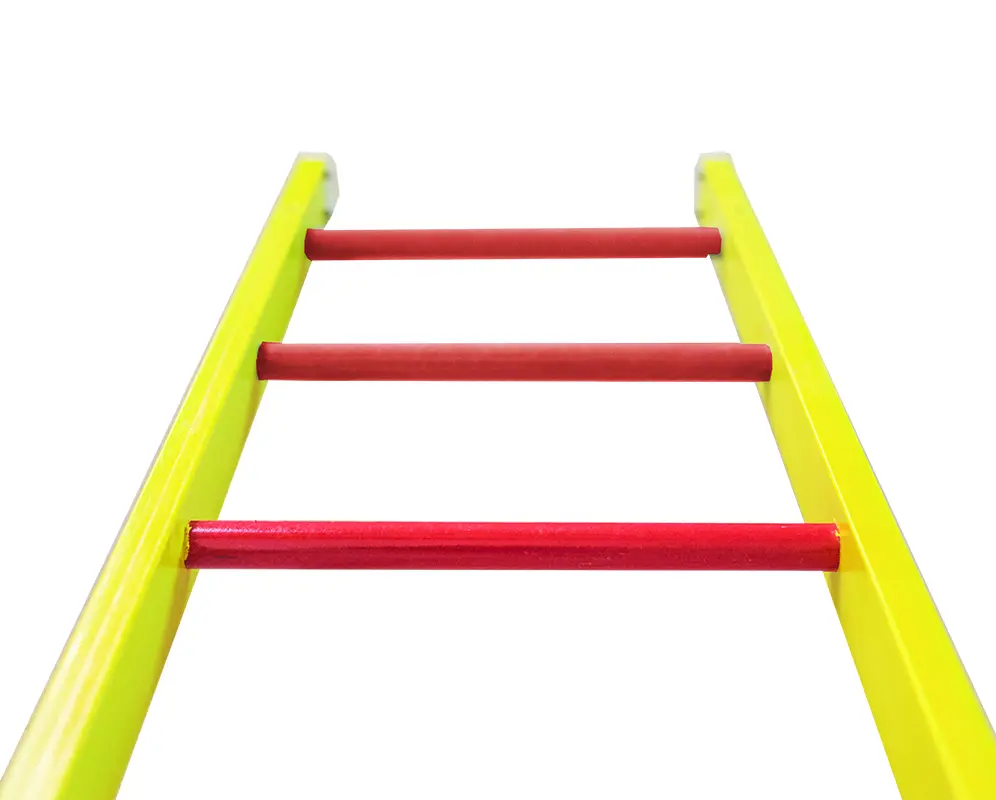

Its non-slip rungs are slightly inclined so that the tread is perfectly horizontal with respect to the ground for maximum operator safety.
Its profiles and rungs are sealed at both ends by special plugs.

EUROPEAN STANDARDS

Manufactured in compliance with the EN 131 standard
EN 50528 for insulating ladders.
Insulation tests 100 KV according to the EN 61478 standard for ladders in insulating material.

STANDARD EQUIPMENT

Feet in non-slip rubber
Use and maintenance manual
Certified according to the EN131 standard
Identification label

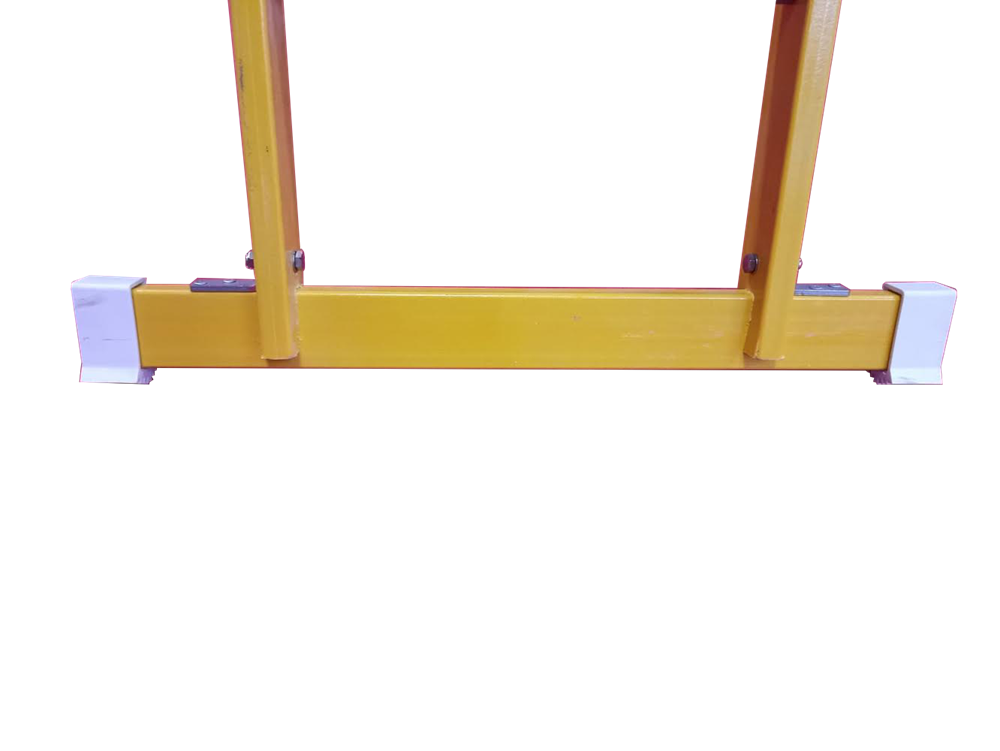

Stabilizer
Capacity 150kg

TECHNICAL FEATURES

Model	Max height	Max height	Weight Kg.	Max w/height	Max w/height
Model	lean to wall m.	A frame m.	Weight Kg.	lean to wall m.	A frame m.
FHT3	1.74	0.90	6.5	2.56	1.64
FHT4	2.30	1.18	8.0	3.12	1.92
FHT5	2.86	1.46	9.5	3.68	2.20
FHT6	3.42	1.74	11.0	4.24	2.50
