Castellana 100% Fiberglass

Climbing ramp 65°

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

It is the European Standard for ladders

Indicates the tested electrical potential

Suitable for heavy duty

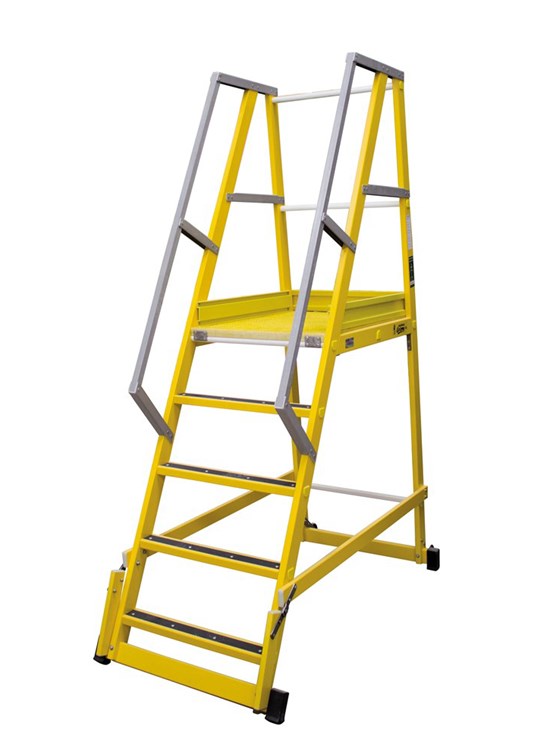

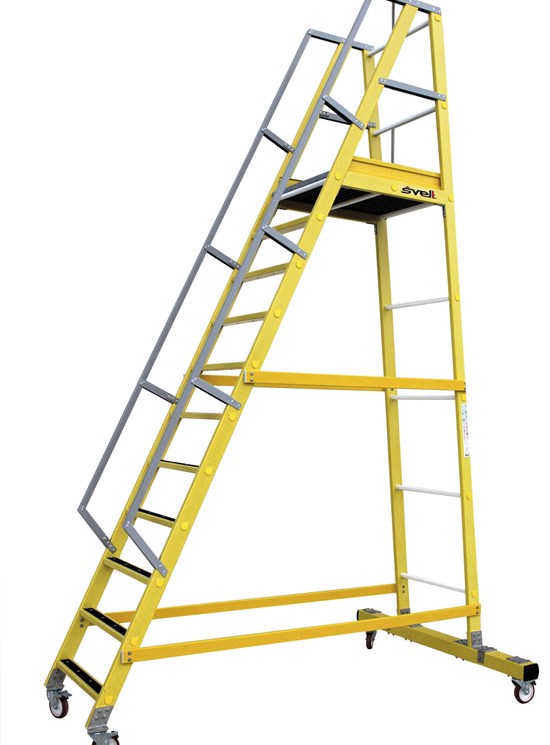

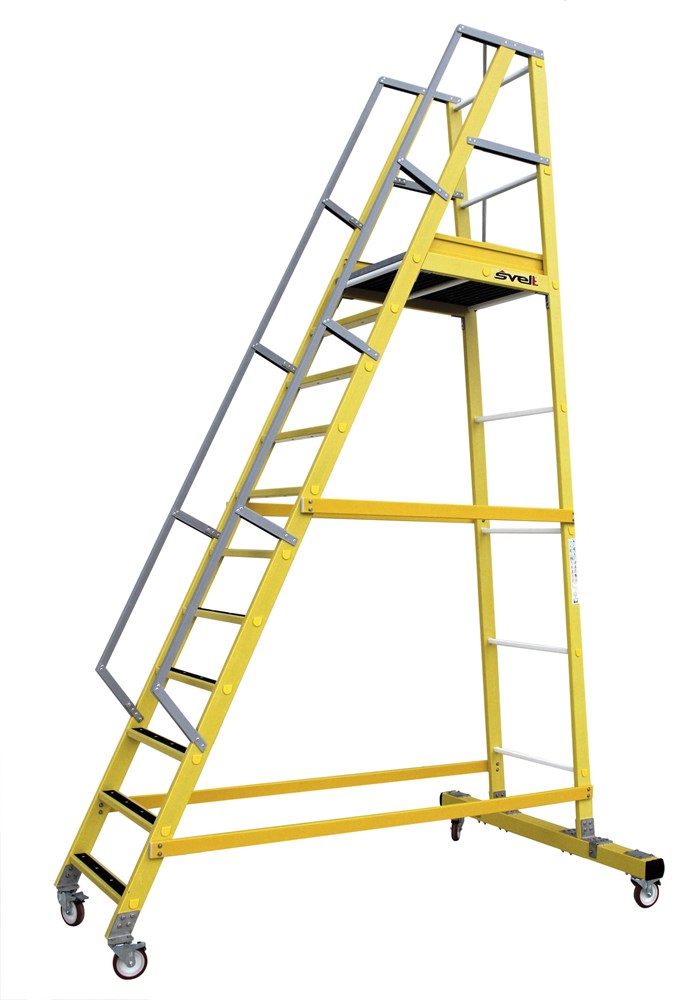

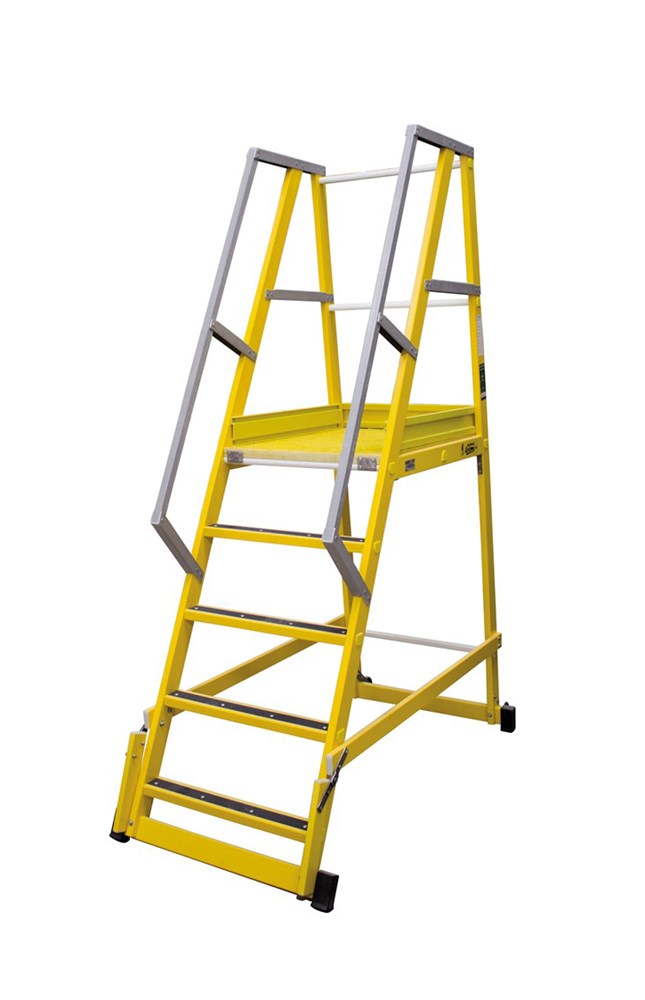

Mobile platforms ladders in fiberglass - 65°ramp

Single-sided warehouse stepladder with platform, handrails a guardrail.

Made entirely of fiberglass.

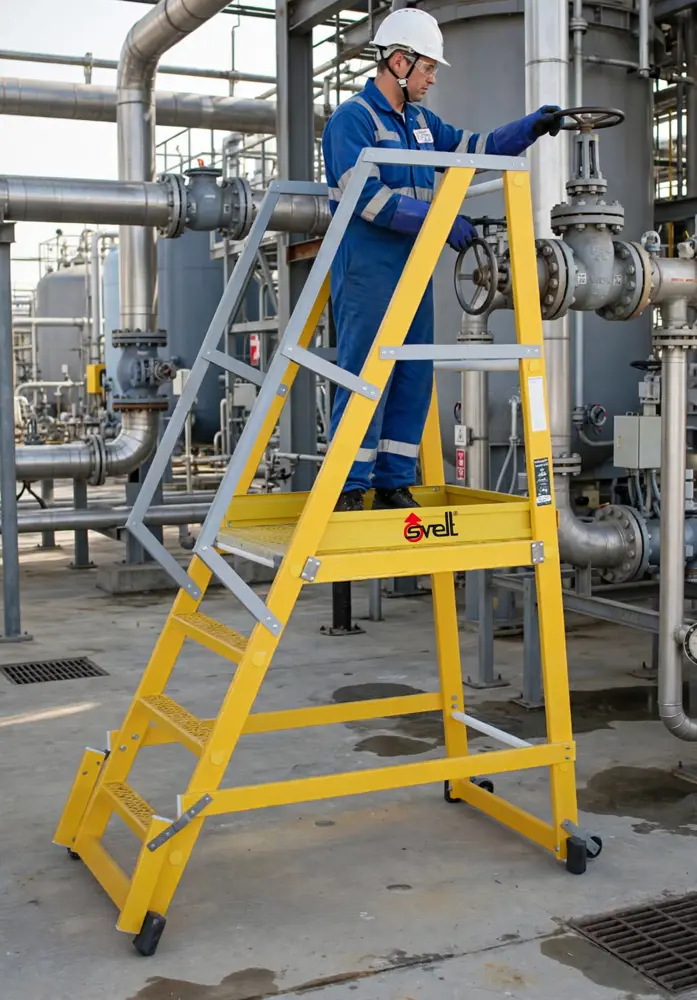

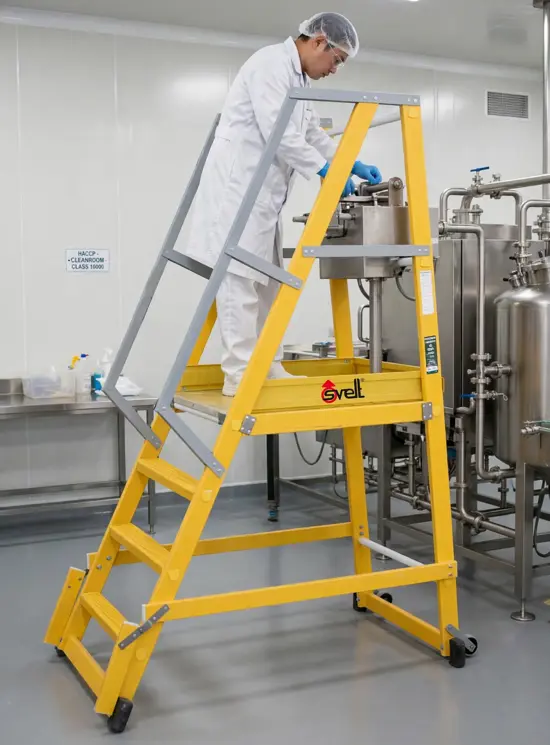

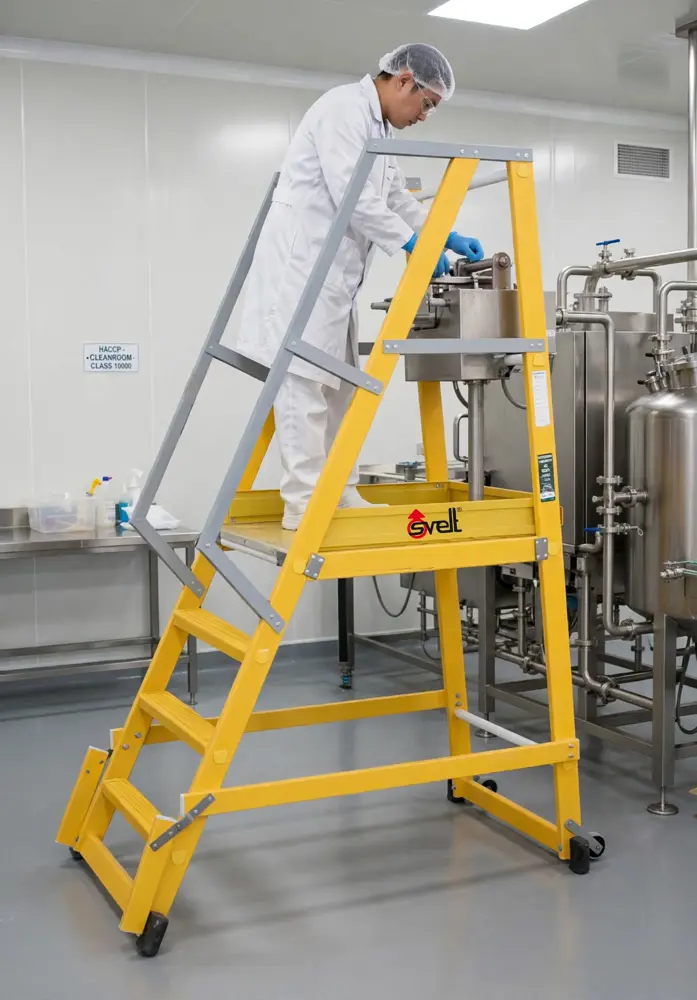

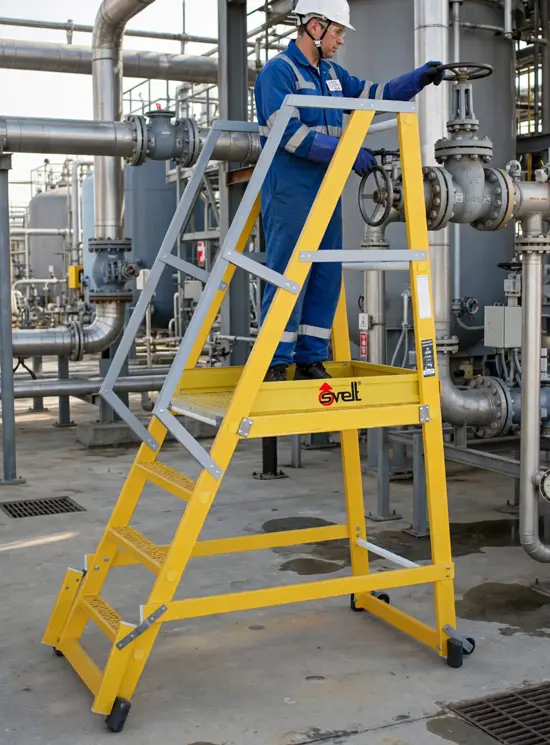

Suitable for applications in chemical and food companies and in situations where metal stairs are not usable.

It is supplied completely assembled

Electrical and thermal insulation
Antimagnetic and highly resistant to humidity, acids, corrosion and ultraviolet rays

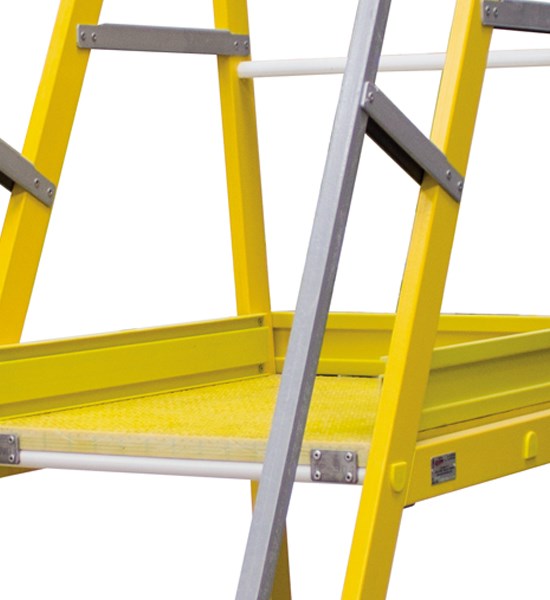

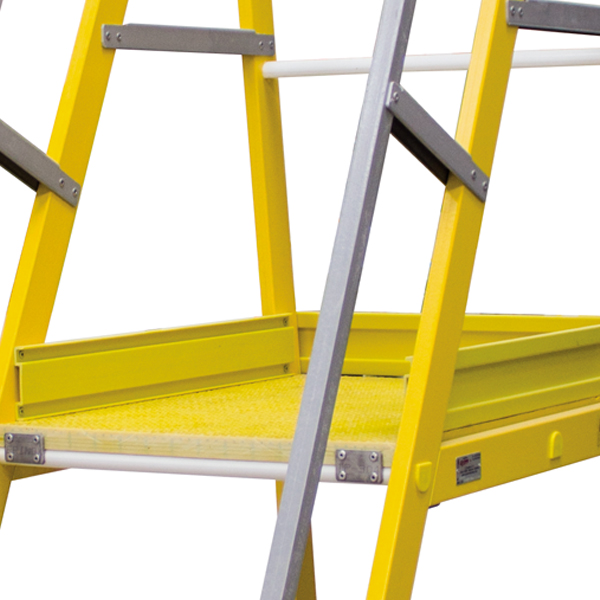

605x805 mm fiberglass tramex platform
Distance steps 28 cm
Depth of fiberglass steps 82 mm
Climbing ramp inclination angle 65º
Guardrail m 1

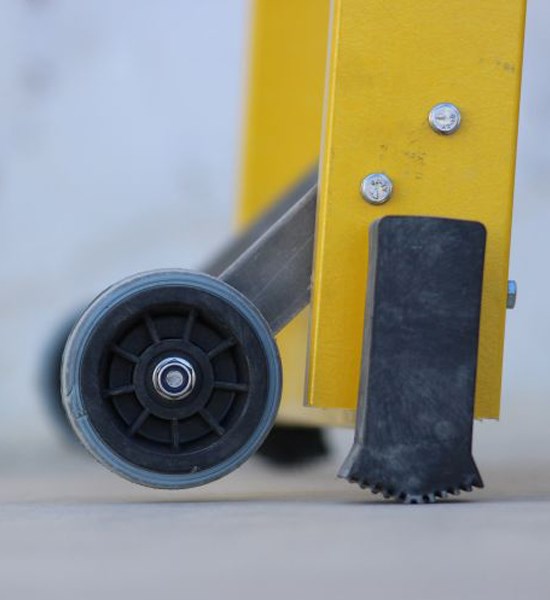

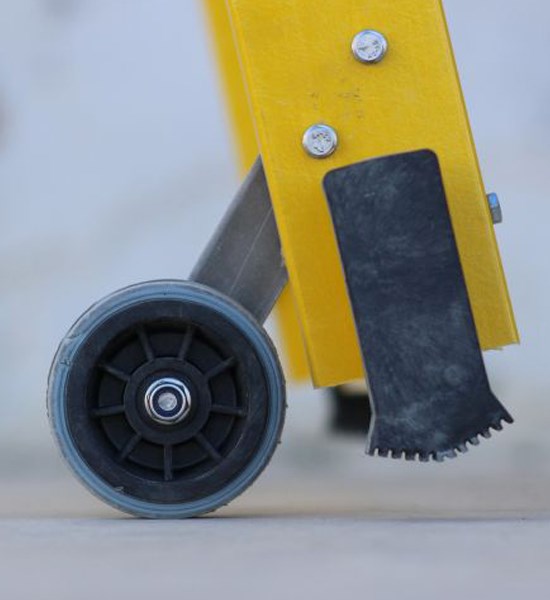

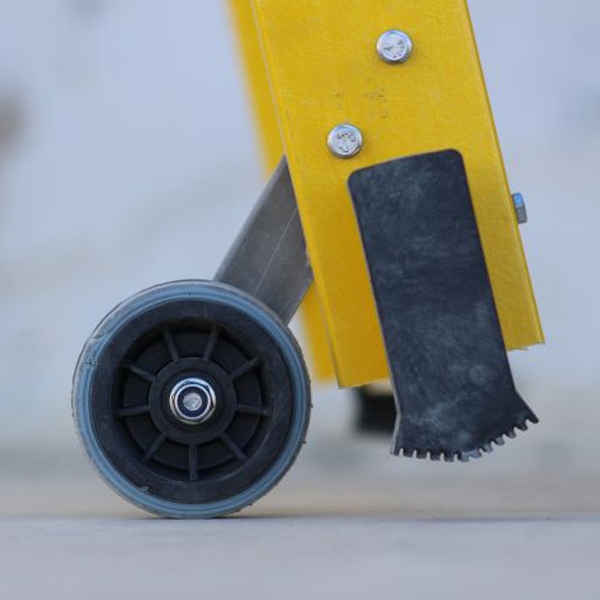

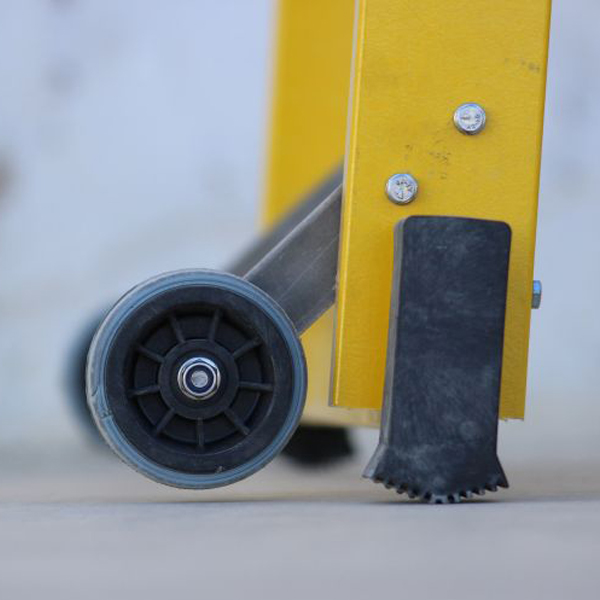

Equipped with 2 or 4 anti-fingerprint wheels diam. 125 mm with foot brake
Steps with non-slip rubber inserts
Fasteners / accessories in stainless steel
Insulation tests performed at 100 KV according to European Standard UNE-EN 61478

Dimensions:

steps plat. hight tot. hight w. hight Base weight

    n.           m           m            m           m          Kg
    3           0,74      1,80   2,74   1,00x1,30    45,00
   4           1,00      2,05    3,00   1,00x1,45   36,00
   5           1,25         2,31      3,25   1,00x1,60    38,00
   6           1,50      2,56         3,50   1,20x1,73    41,00
   7           1,76         2,82         3,76   1,40x1,88 46,00
   8           2,01          3,07         4,00   1,50x2,02 52,00

CASTELLANA FIBRA INTERNATIONAL.pdf (1.1 MB)
