V6

Max height m 3,00

Producted in compliance with the European standard for dielectric fiberglass ladders for voltages up to1000V AC and 1500V C.C. It defines the tests and sizing

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Indicates the tested electrical potential

It is shown on products tested by TÜV SÜD PRODUCT SERVICE, the German Quality Standard organization, and certify they conform to EN131 for ladders and UNIEN14183 for stools.

Suitable for heavy duty

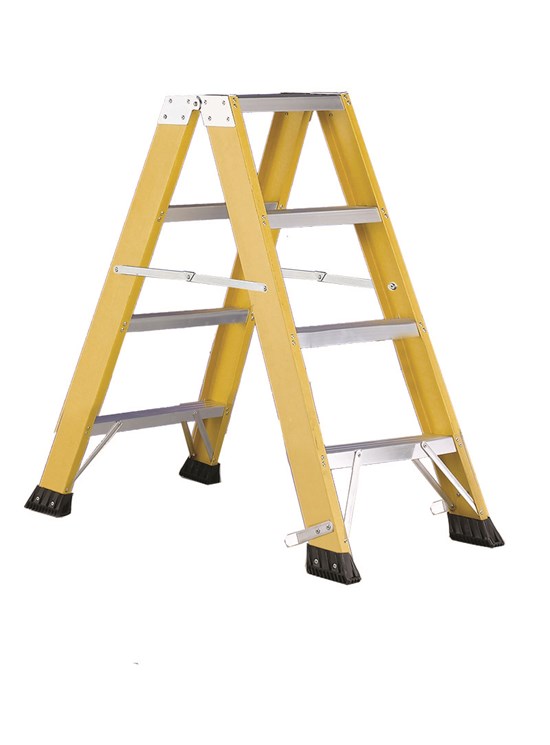

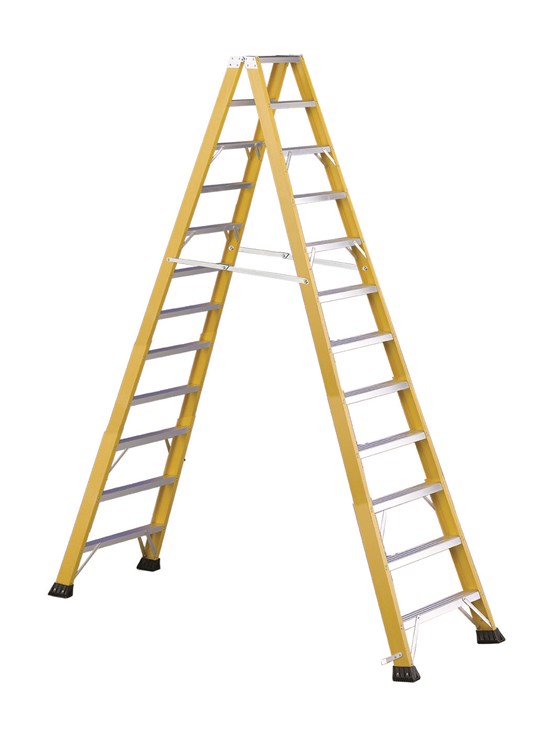

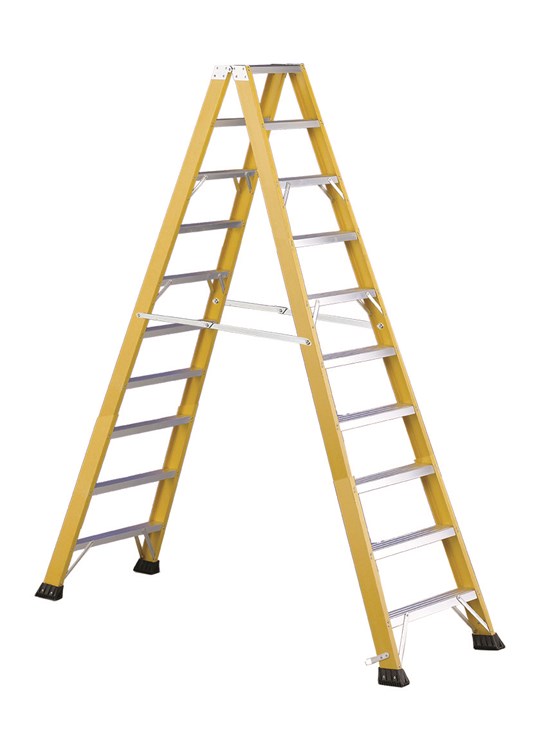

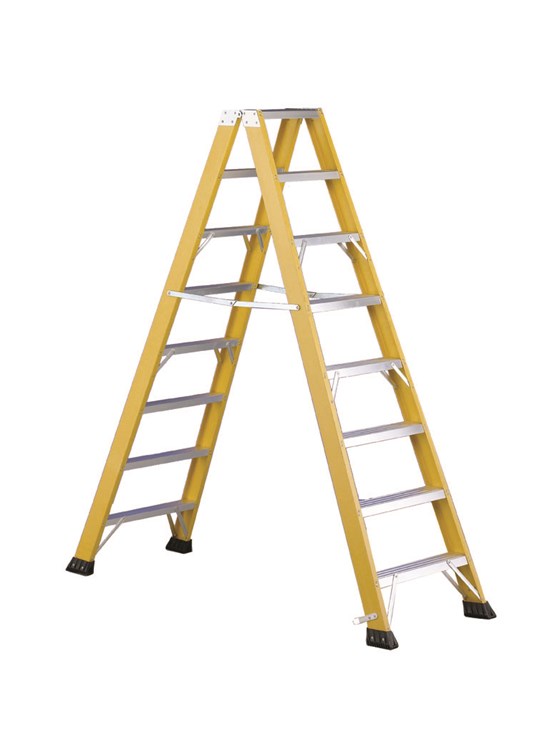

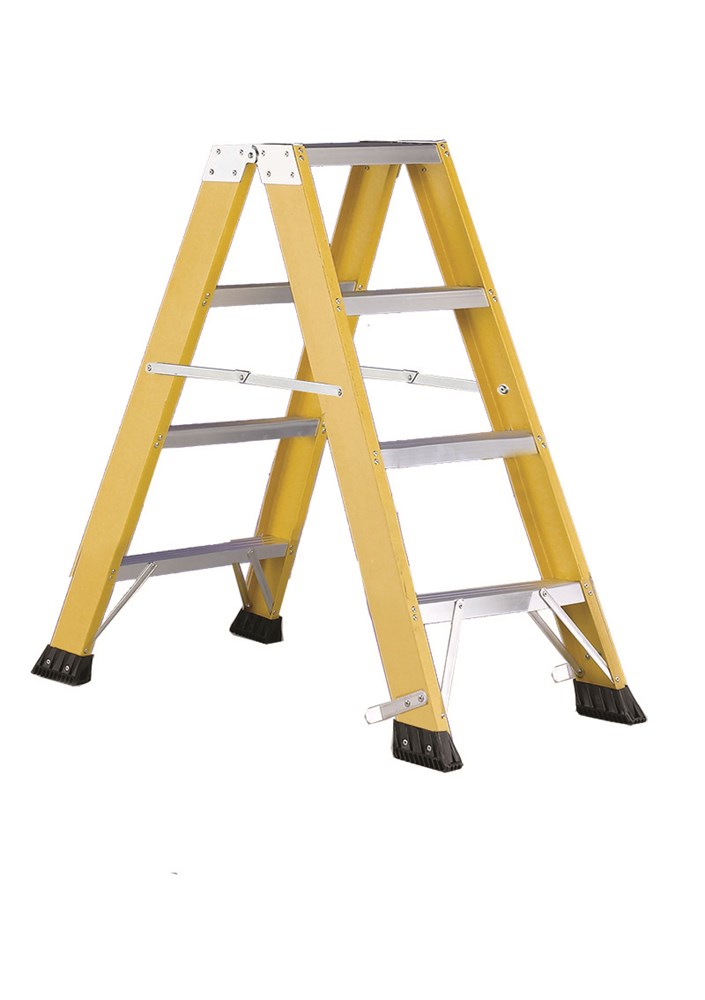

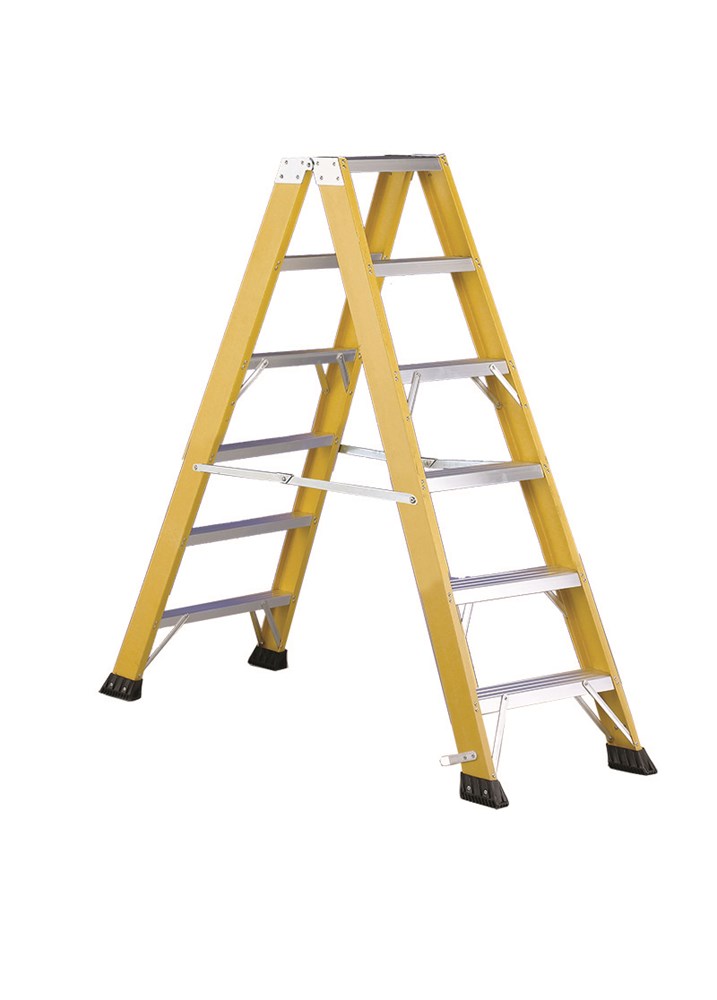

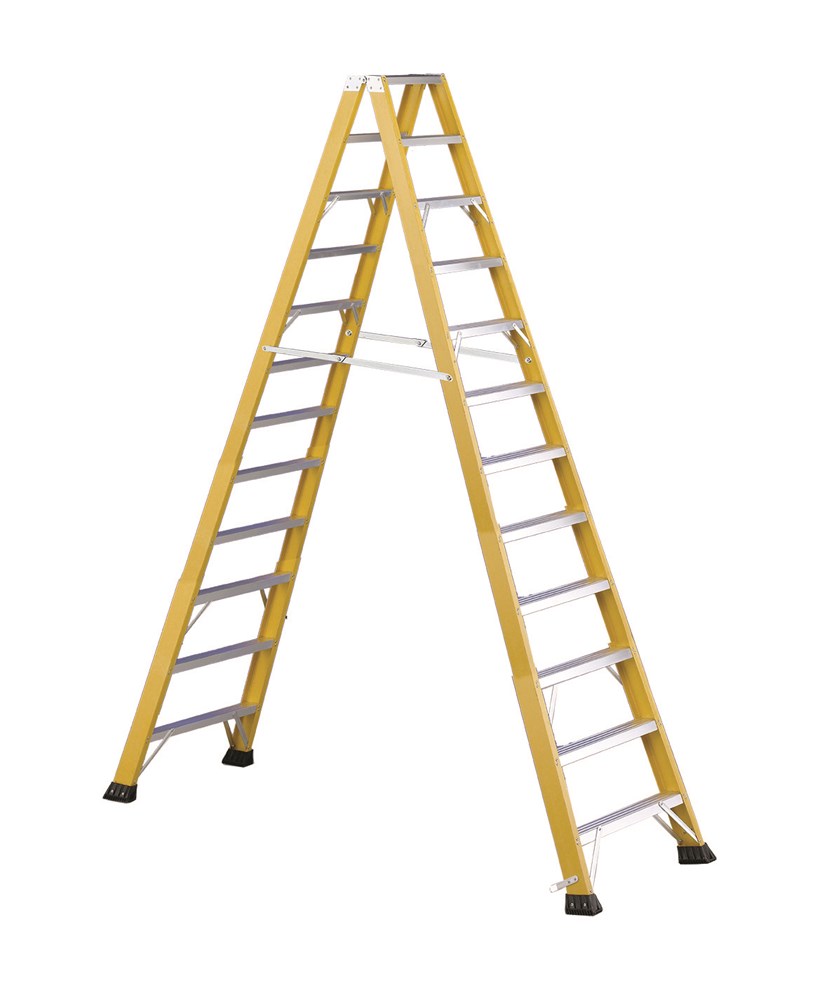

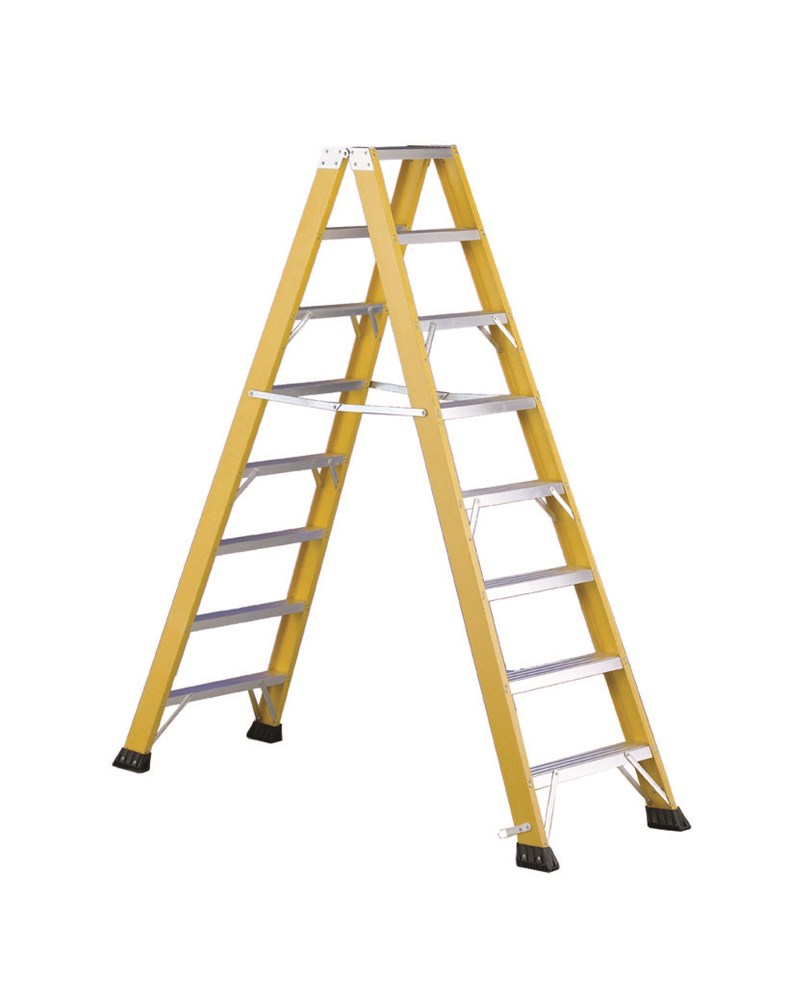

Double sided electrically isolated fiberglass stepladder

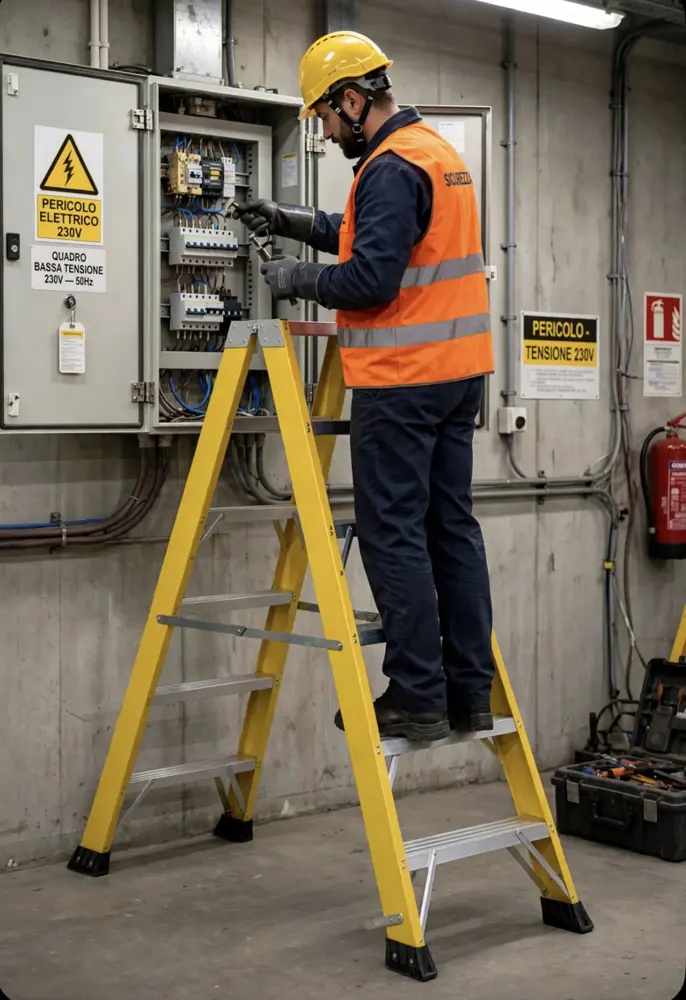

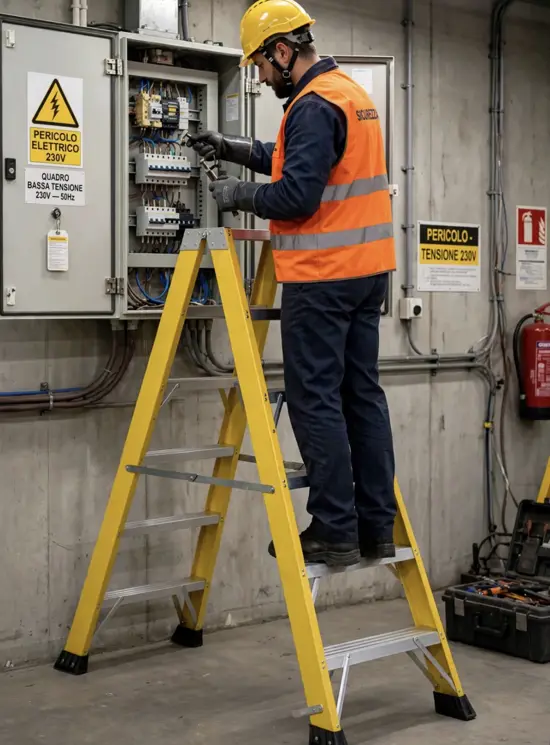

Professional fiberglass ladders suitable for those operators who work next to cables, outlets or other electric energy sources.

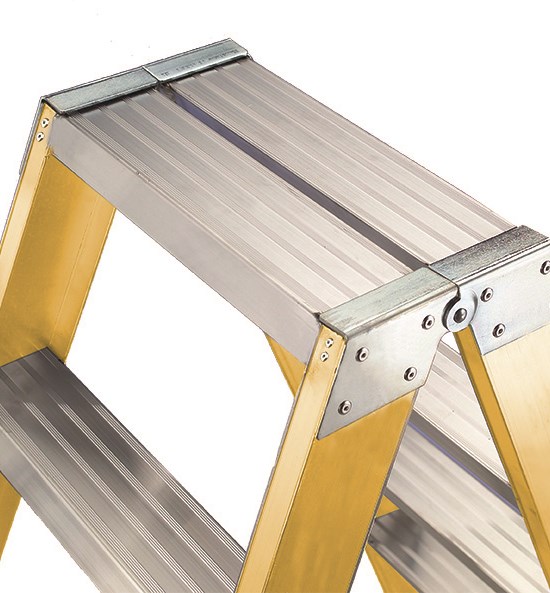

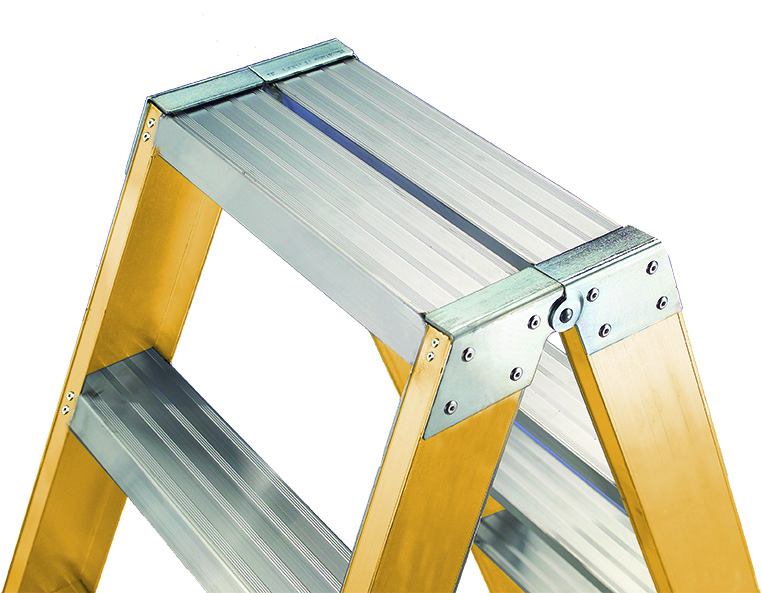

The fiberglass frames assure electric insulation but our ladders are also light and easy to manage thanks to the non-skid knurled aluminium rungs.

TECHNICAL FEATURES

Distance between step 25 cm
Non-skid steps cm 8
“C” stiles 82 x 30 mm
Capacity 150 kg
No. of rungs: 6 to 12
Stepladder height: m 1,50 to m 3,00

STANDARD PARTS

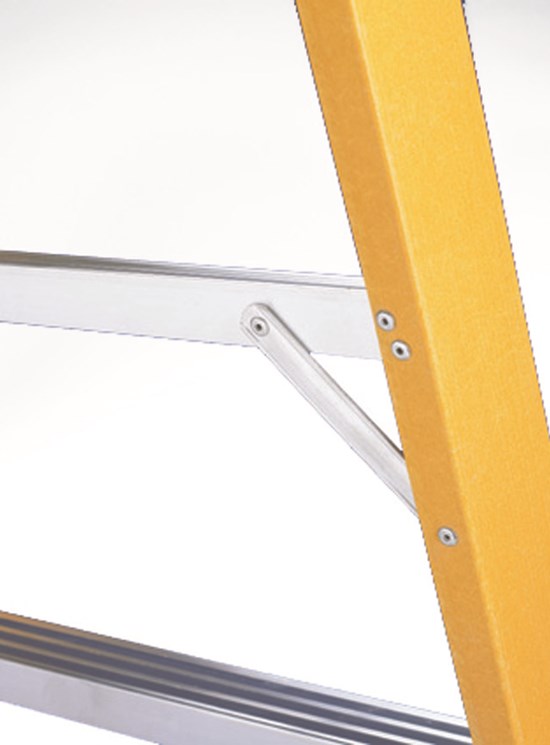

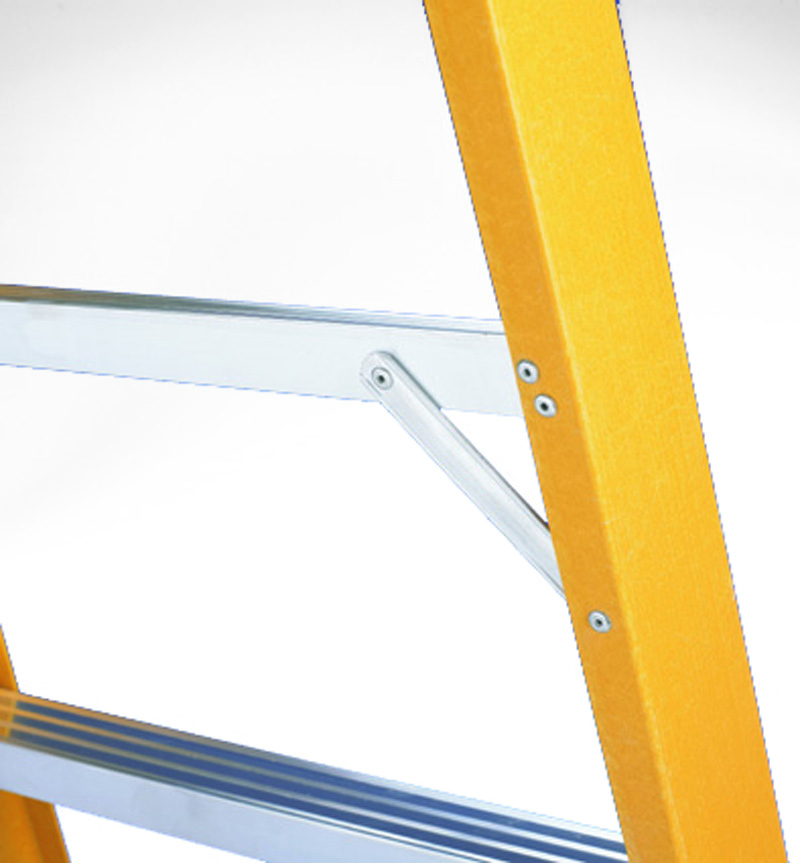

Steel bars preventing accidental opening/closure

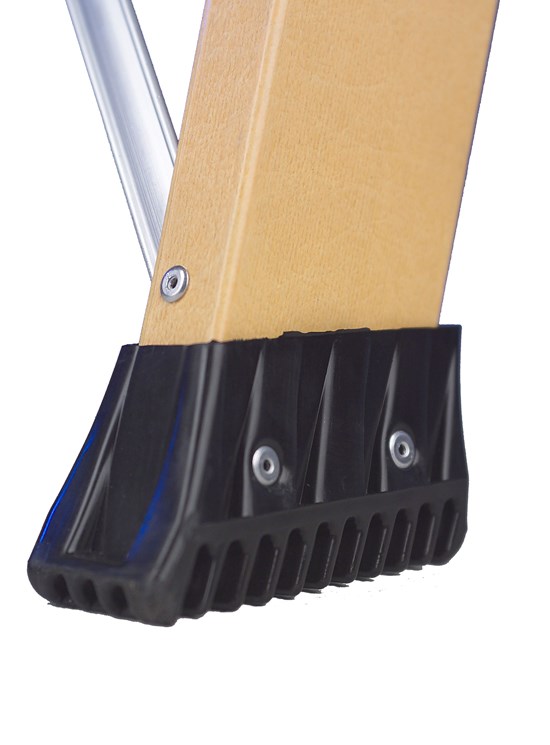

Reinforced ergonomic rubber feet
Reinforcements under the steps
Label and instructions for assembly and use
Thermo-shrinkable plastic package with showcard

According to the European standard EN131 it is forbidden to climb the last 2 steps when there are no platform and guardrail.

On request on V6

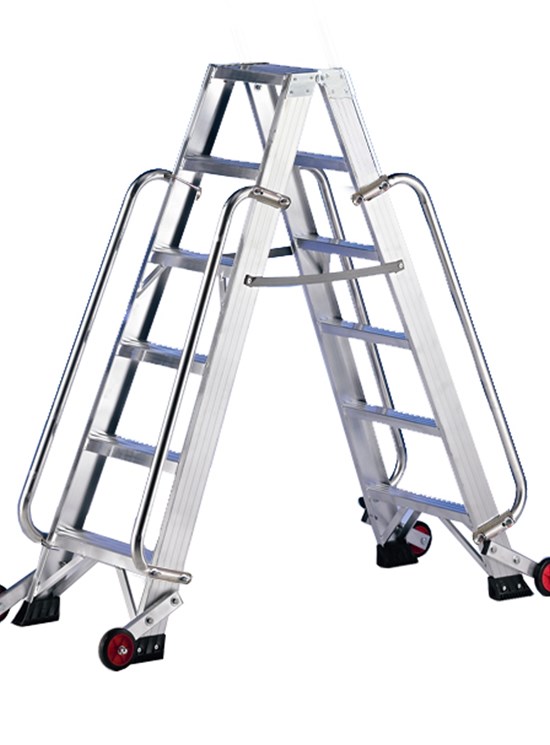

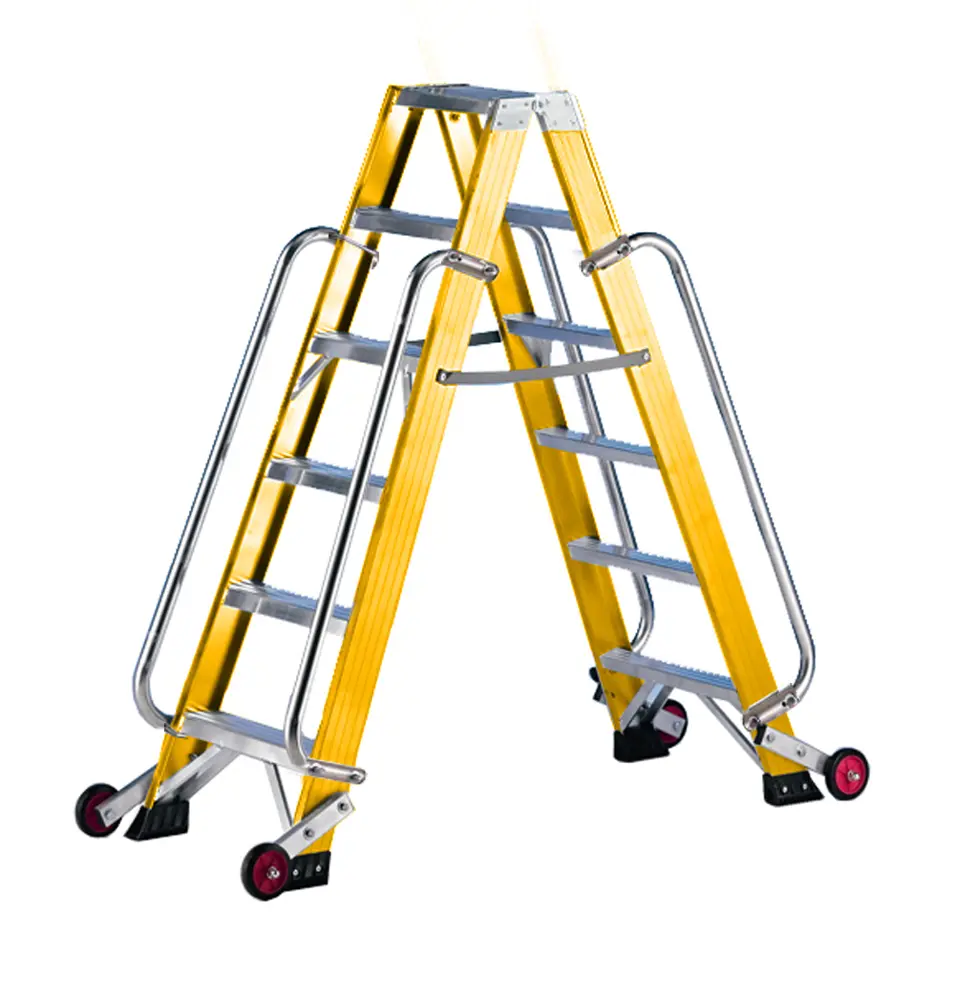

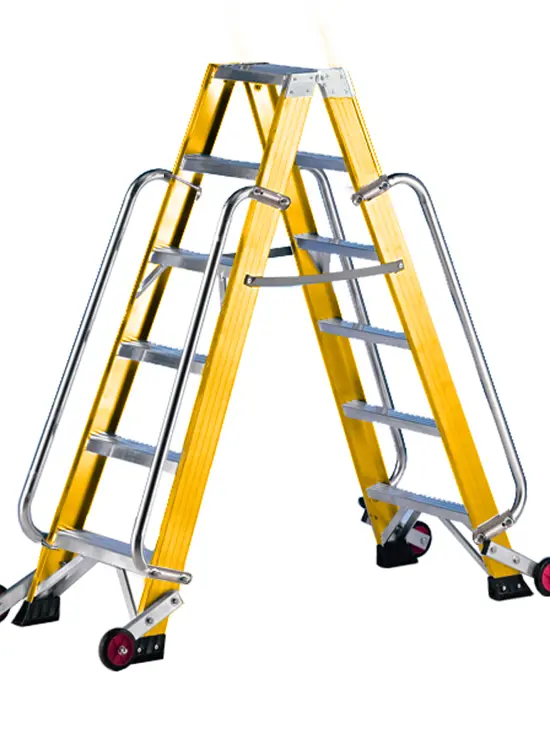

Guardrail combined with n°2 60 cm handrails (5 steps) (SPPLUS07/C)
Guardrail combined with n°2 150 cm handrails (6-9 steps) (SPPLUS07/C1)
Guardrail combined with n°2 200 cm handrails (11-13 steps) (SPPLUS07/C2)
Two wheels kit
Standard guardrail
Standard handrails

These accessories allow a comfortable and safe professional use:

With the optional aluminum guardrail it is possible to use the ladder up to the penultimate step with a valid support and a feeling of safety and comfort that increase productivity.
The shift wheels (2 or 4) allow you to move even the heaviest ladders quickly in order to save time and effort.
The handrails allow a comfortable grip during the climb.

These accessories are supplied in kits to be mounted on the ladder.
These accessories are universal for ladders with profile 80 x 20 mm.
There is no need for ladders to be prepared with holes.
The accessories are mounted with screws and nuts without drilling the ladder profile.
It is therefore not necessary to order the accessories together with the ladder but they can also be ordered later.
Anyone can apply the accessories on products already in their possession.

EUROPEAN STANDARD CEI EN 50528:

The V6 fiberglass ladder complies with Standard EN 50528 which concerns ladders used for work on low voltage live parts such as making connections, work on supports and switching operations.
These ladders are also used for preliminary operations for live work such as checking the voltage, earthing and short-circuiting, etc.
The purpose of this Standard is to provide ladders that have two main functions: access to the parts of the system on which work must be done and protect the worker from electrical risks by providing the level of insulation and maintaining a safety distance between the operator and the potentially live parts of the system.
It concerns insulating ladders for use on low voltage systems or in their proximity.
This Standard, which complies with EN 61477, must be used in accordance with Standards EN 50110-1 and EN 50110-2.
This Standard is published by CEI in English only as it is particularly aimed at specialized sectors.
This Standard remains applicable until 29-04-2027.
The tests are carried out with an electric charge of 36,000 Volts for one minute.
