Castellana

max height m 3,90

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

It is shown on products tested by TÜV SÜD PRODUCT SERVICE, the German Quality Standard organization, and certify they conform to EN131 for ladders and UNIEN14183 for stools.

Suitable for heavy duty

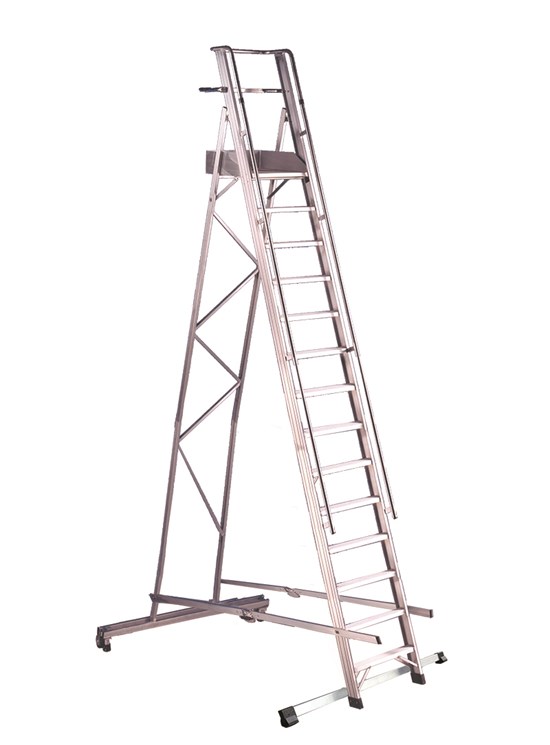

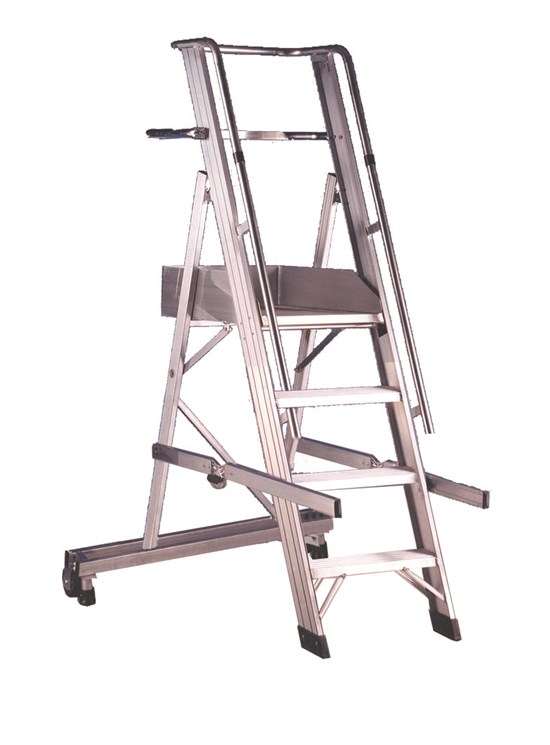

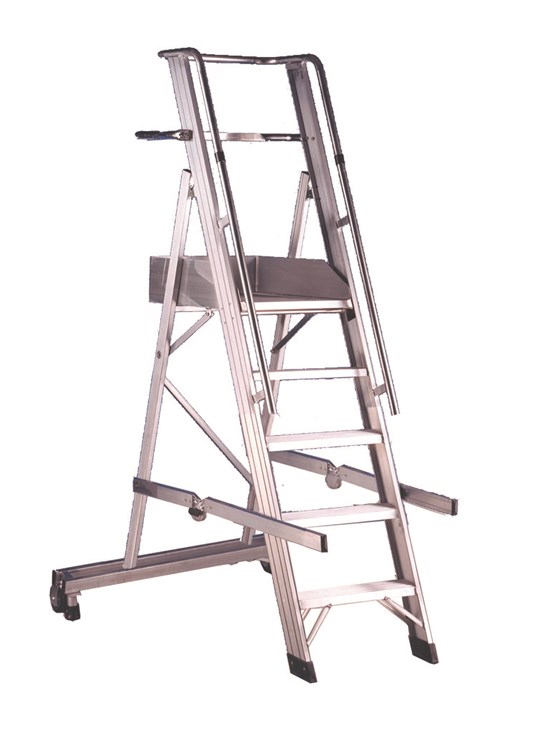

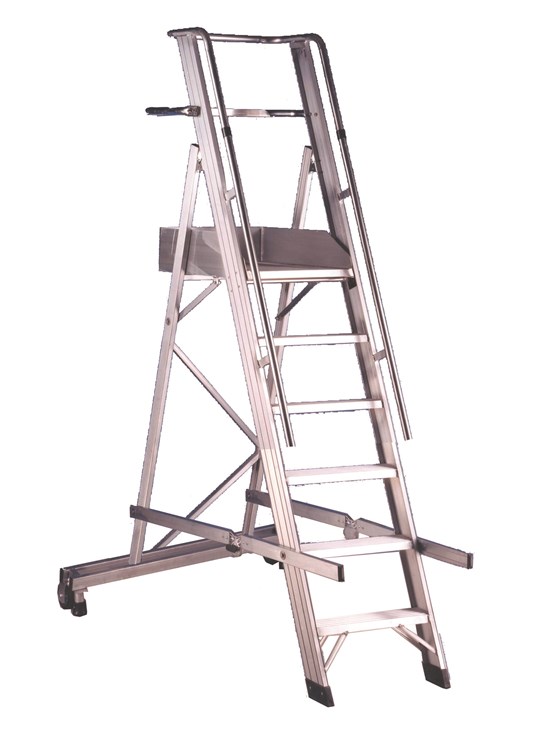

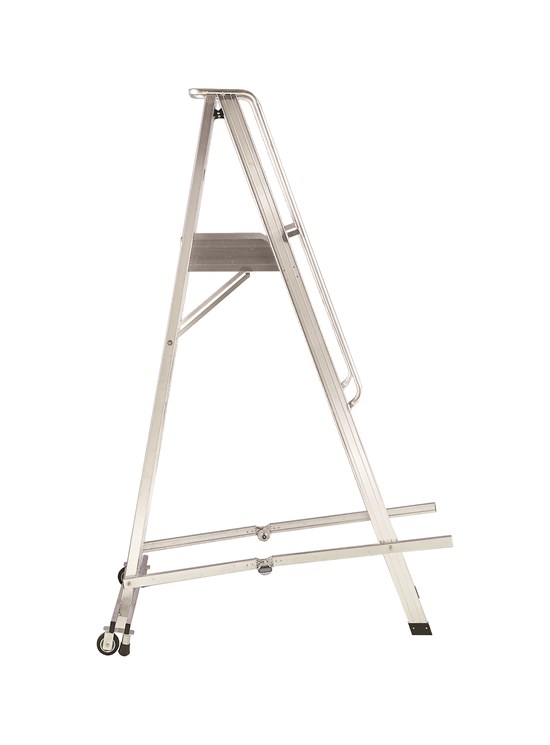

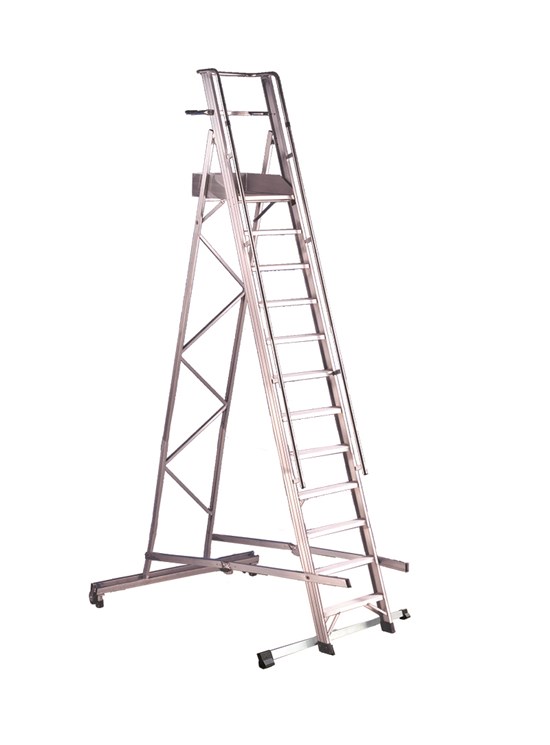

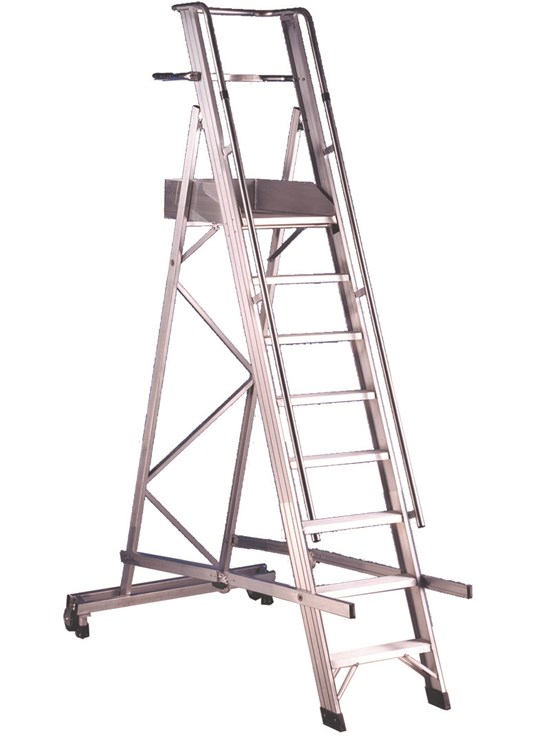

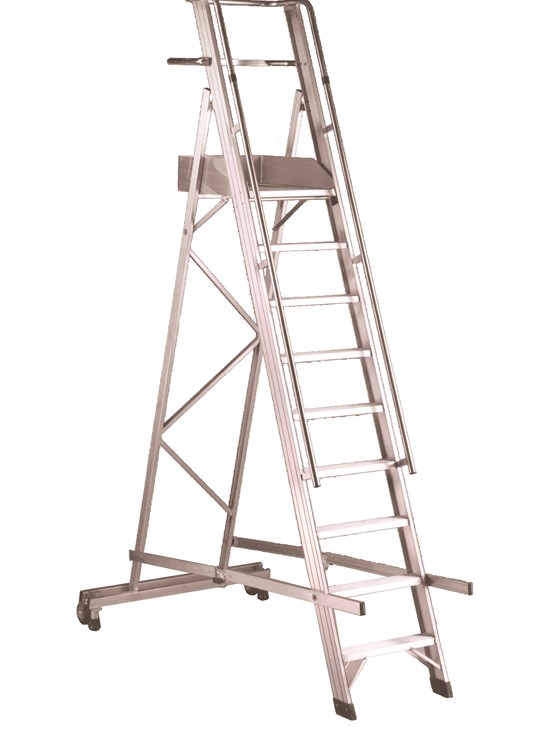

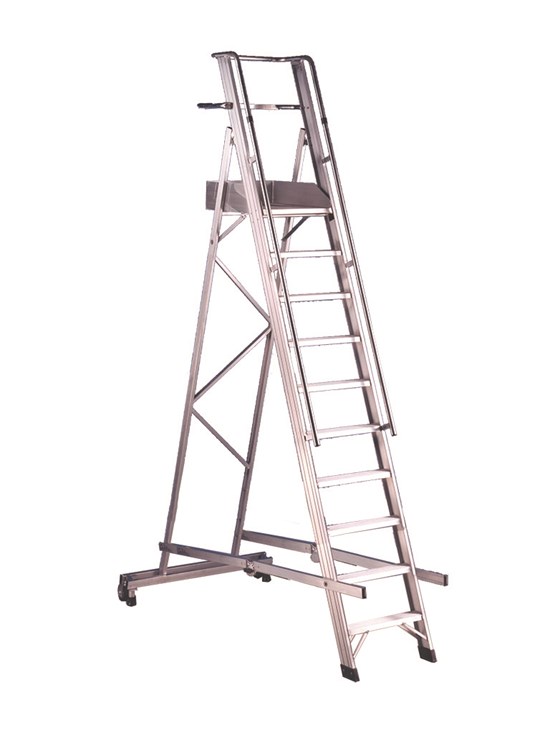

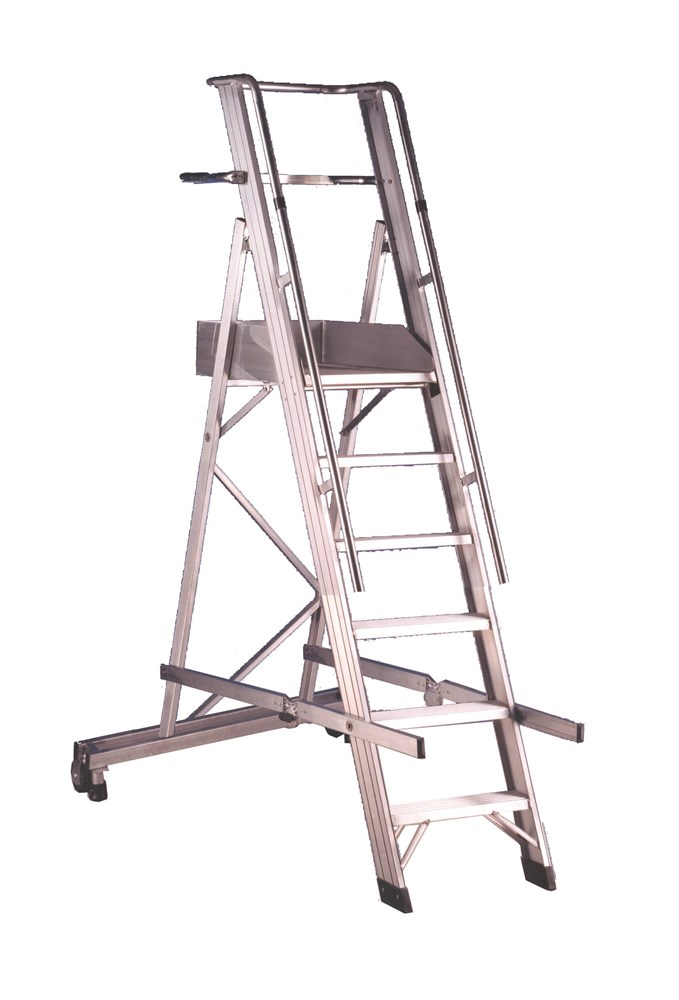

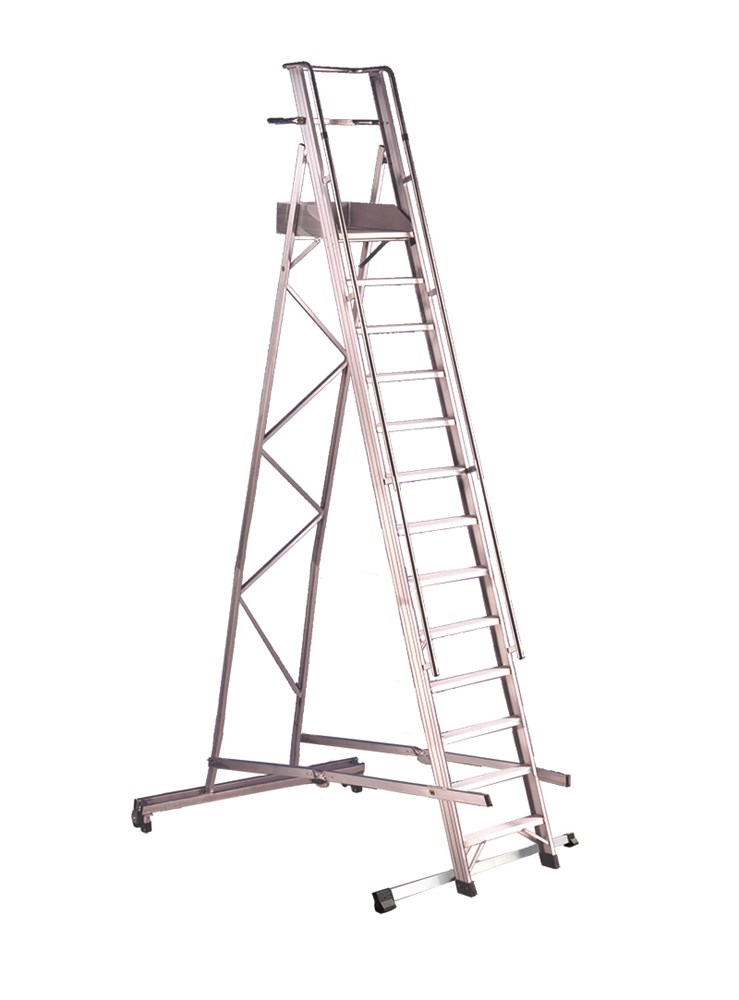

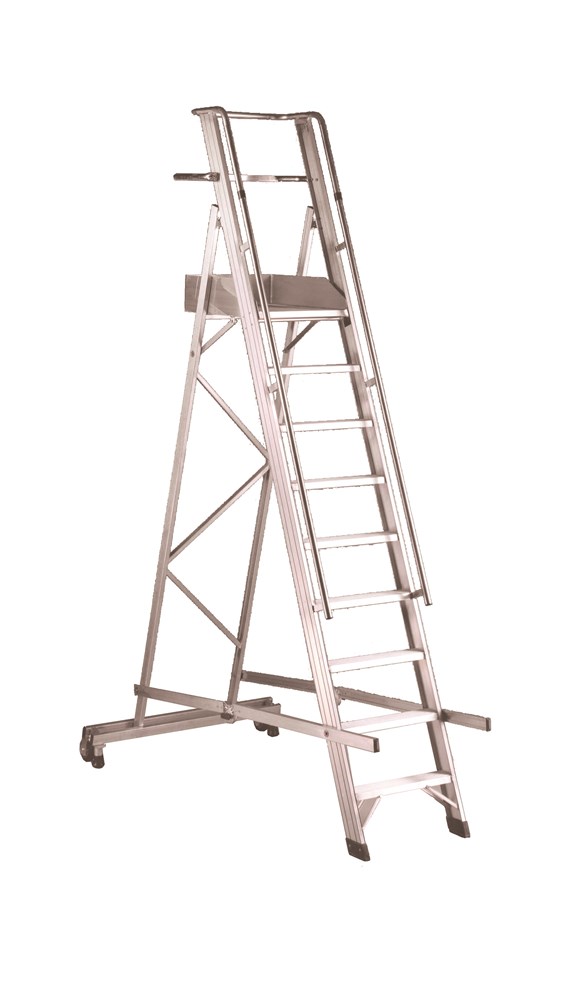

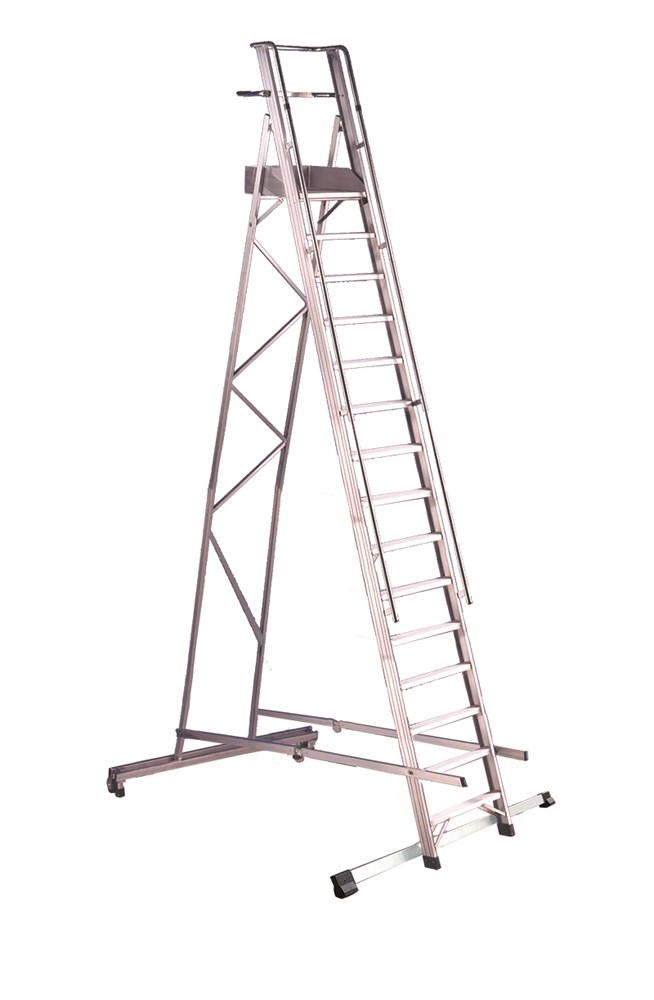

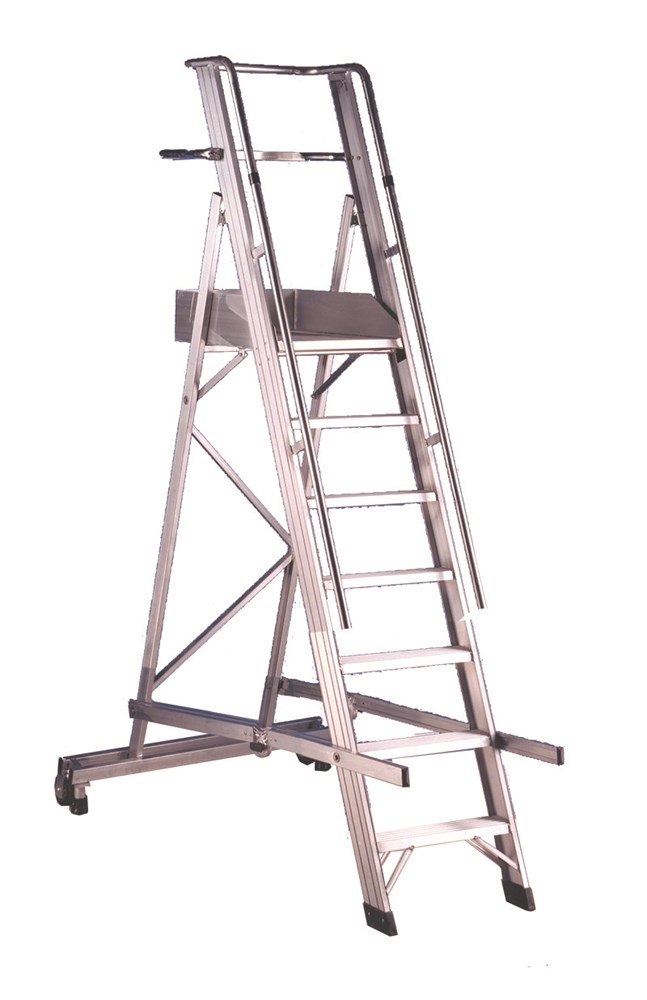

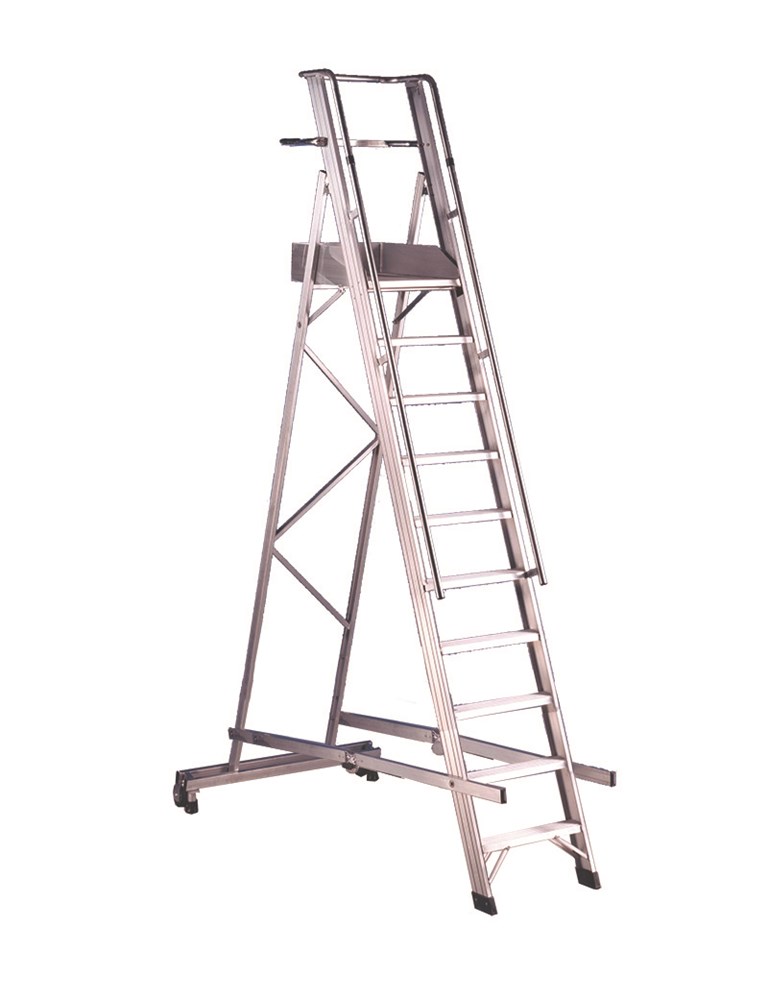

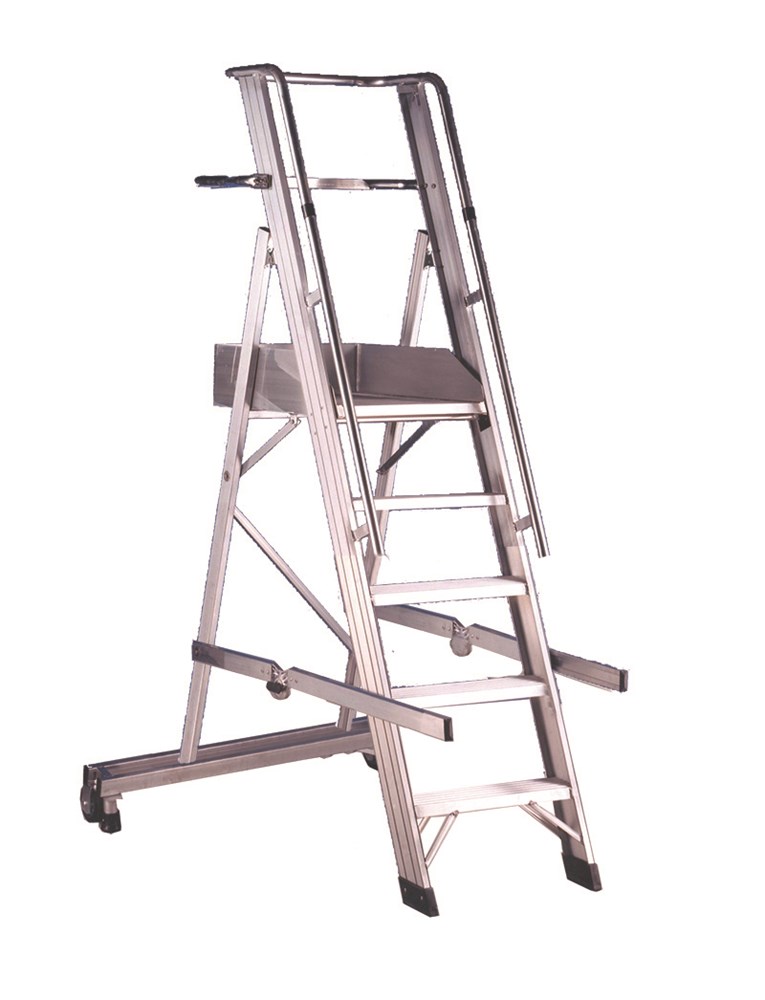

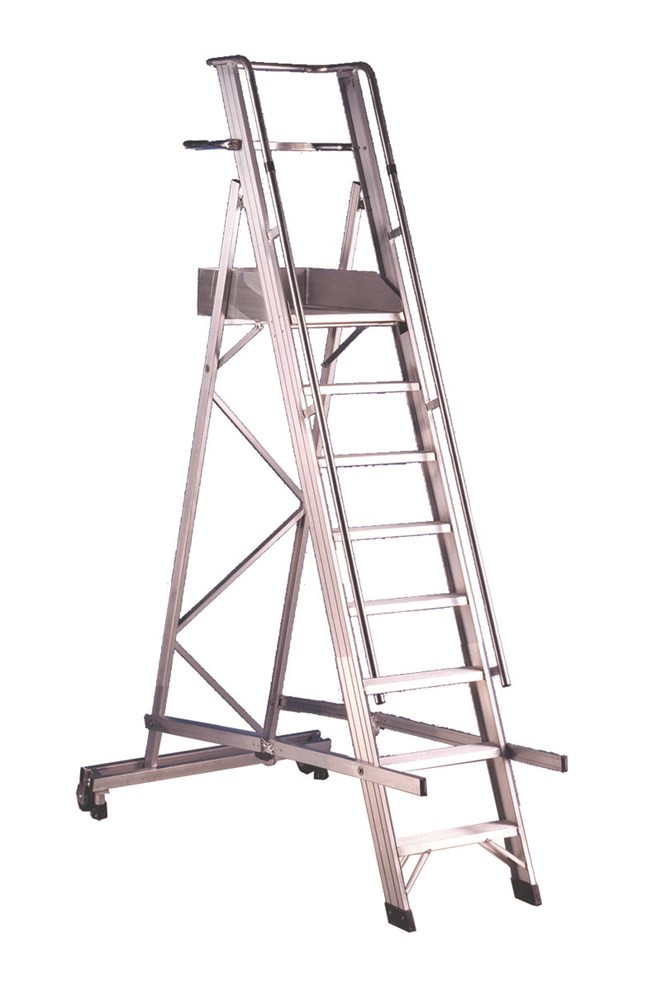

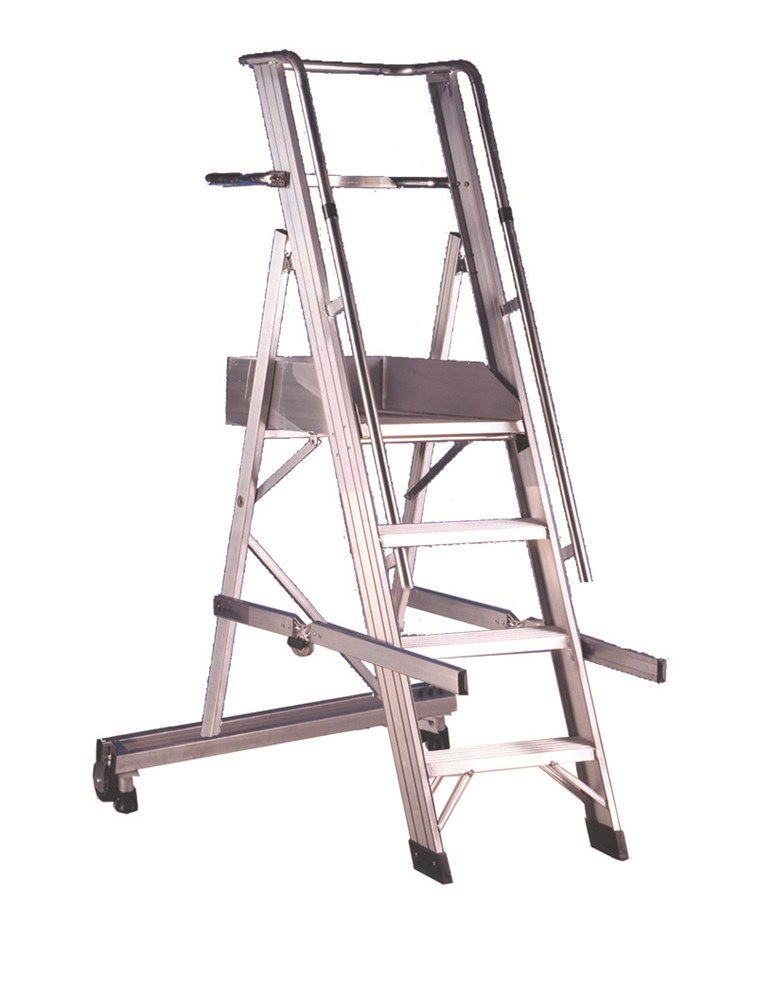

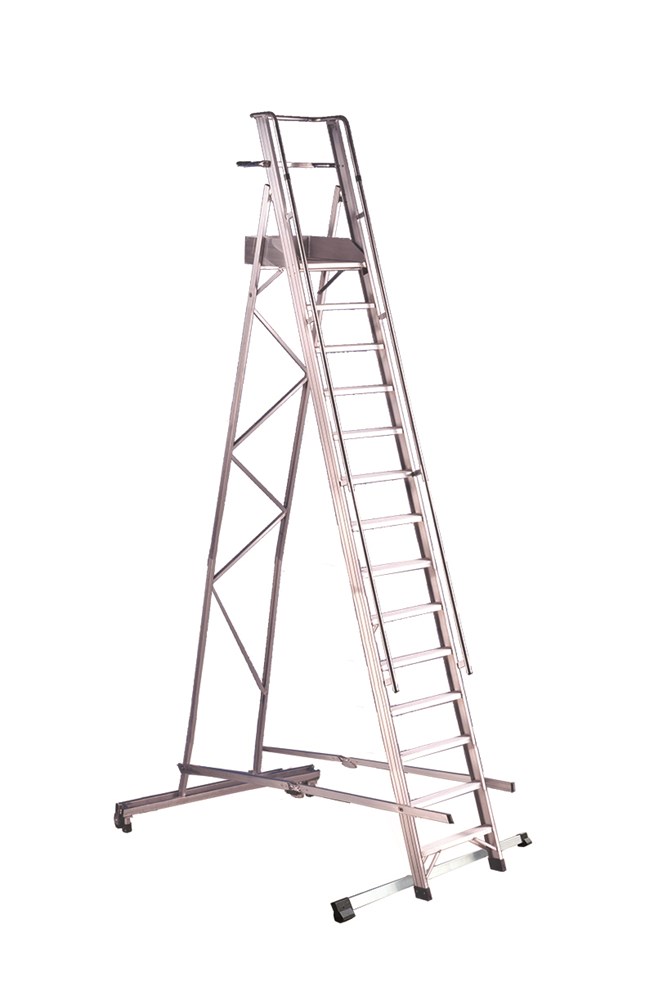

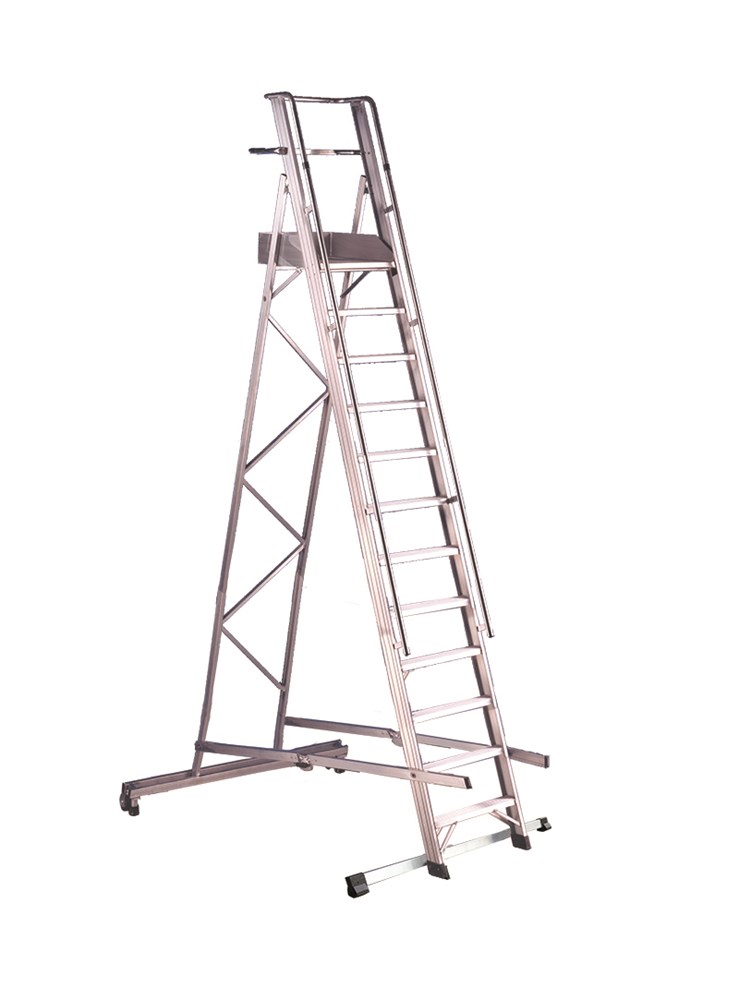

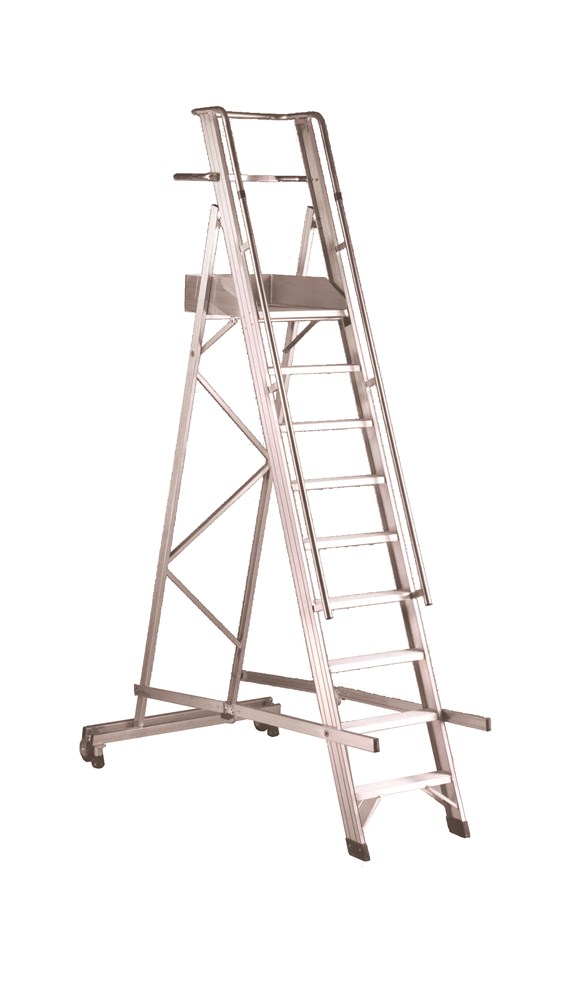

One-sided heavy duty stepladder with 2 wheels, No. of rungs: 4 to 15, 1 m guardrail and large platform, distance between steps 24 cm

Aluminium heavy duty folding ladder with platform, guardrail and handrail. Each step is firmly welded to the frame.

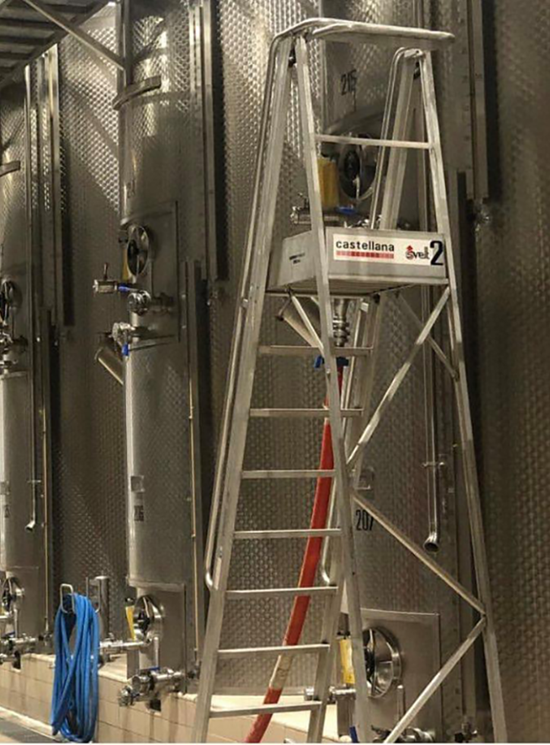

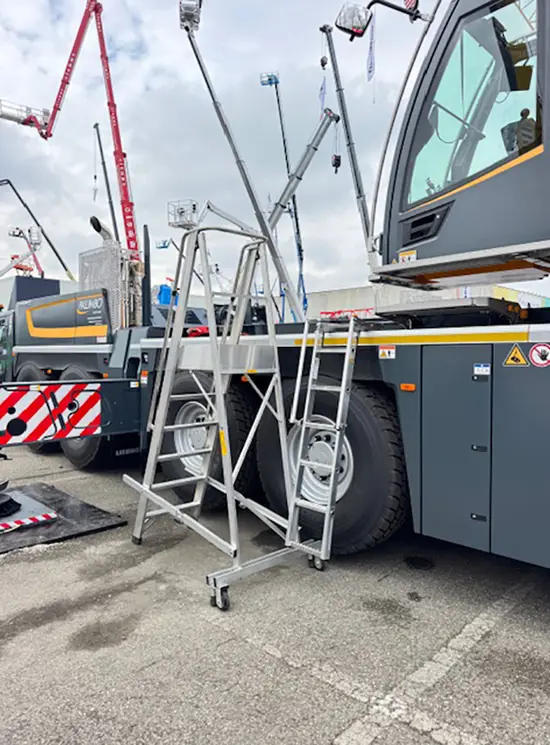

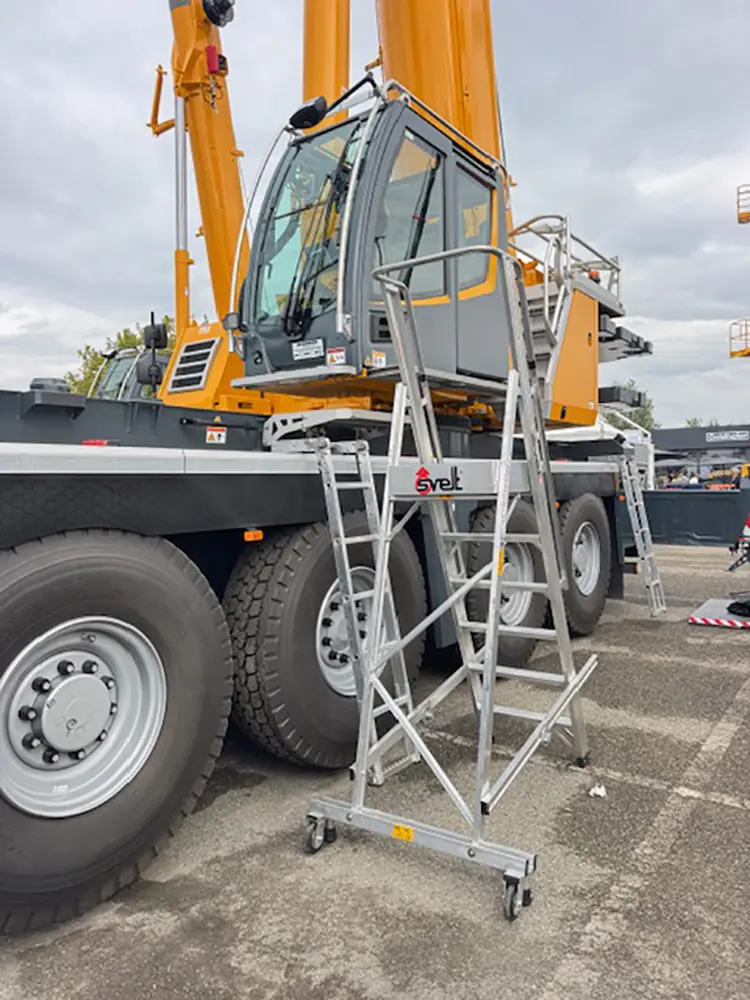

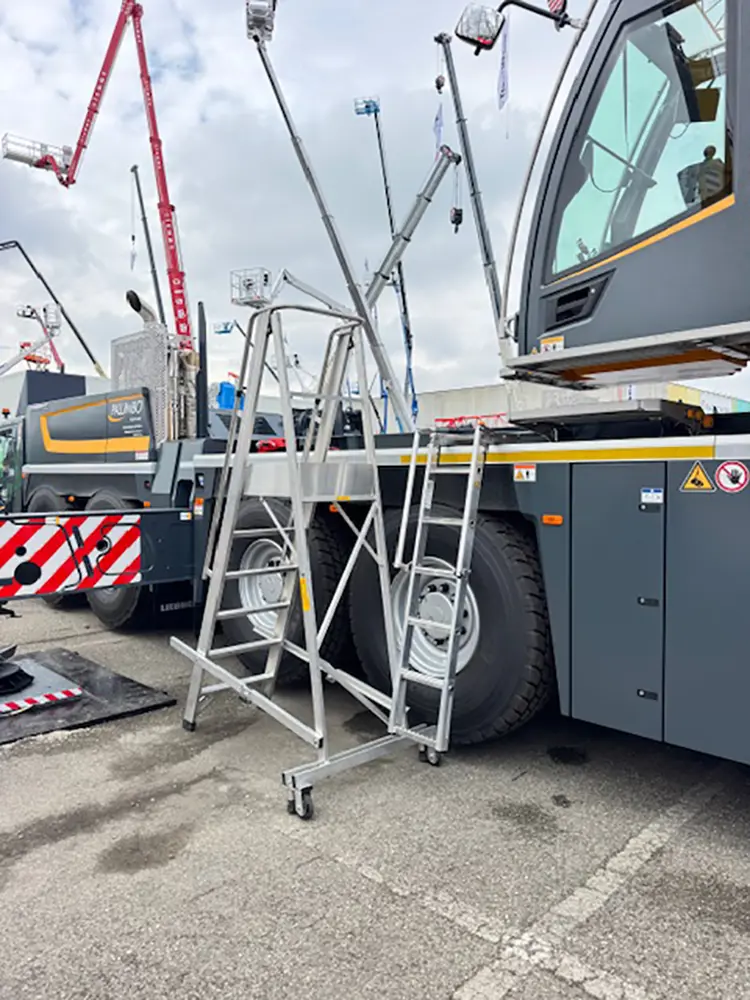

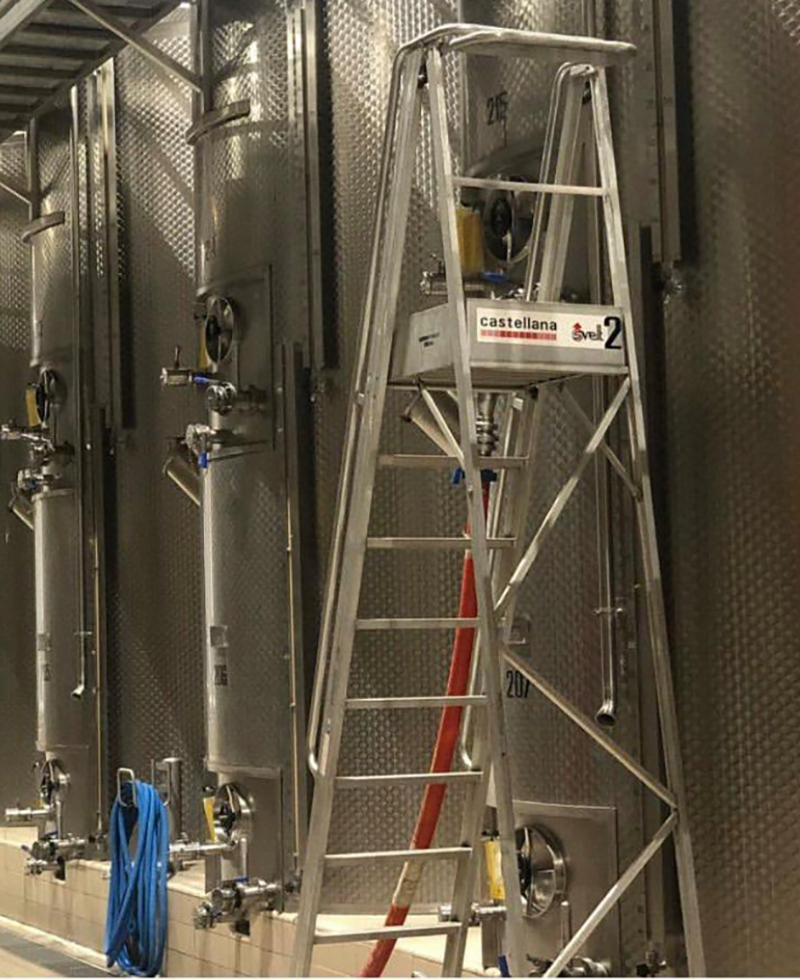

It is particularly suitable for use in warehouses, stock rooms, high access points with machinery, airports, gymnasiums and other areas where safe, guarded high level access is required.
Its wide steps, its 100-cm guardrail and its large aluminium working platform permit to work in a comfortable, safe way.

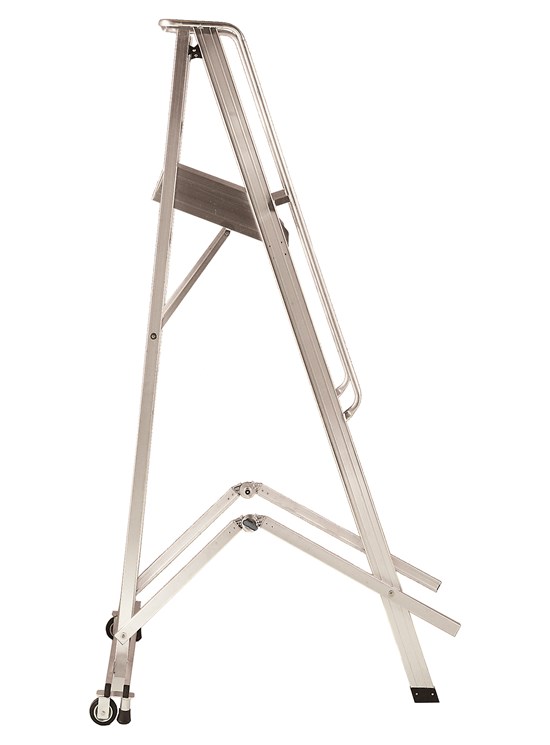

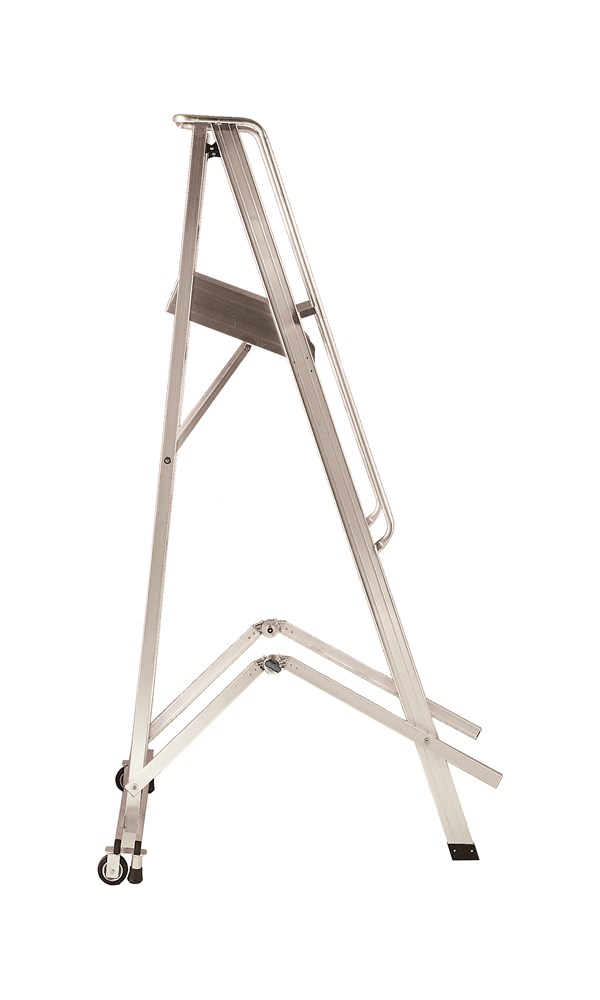

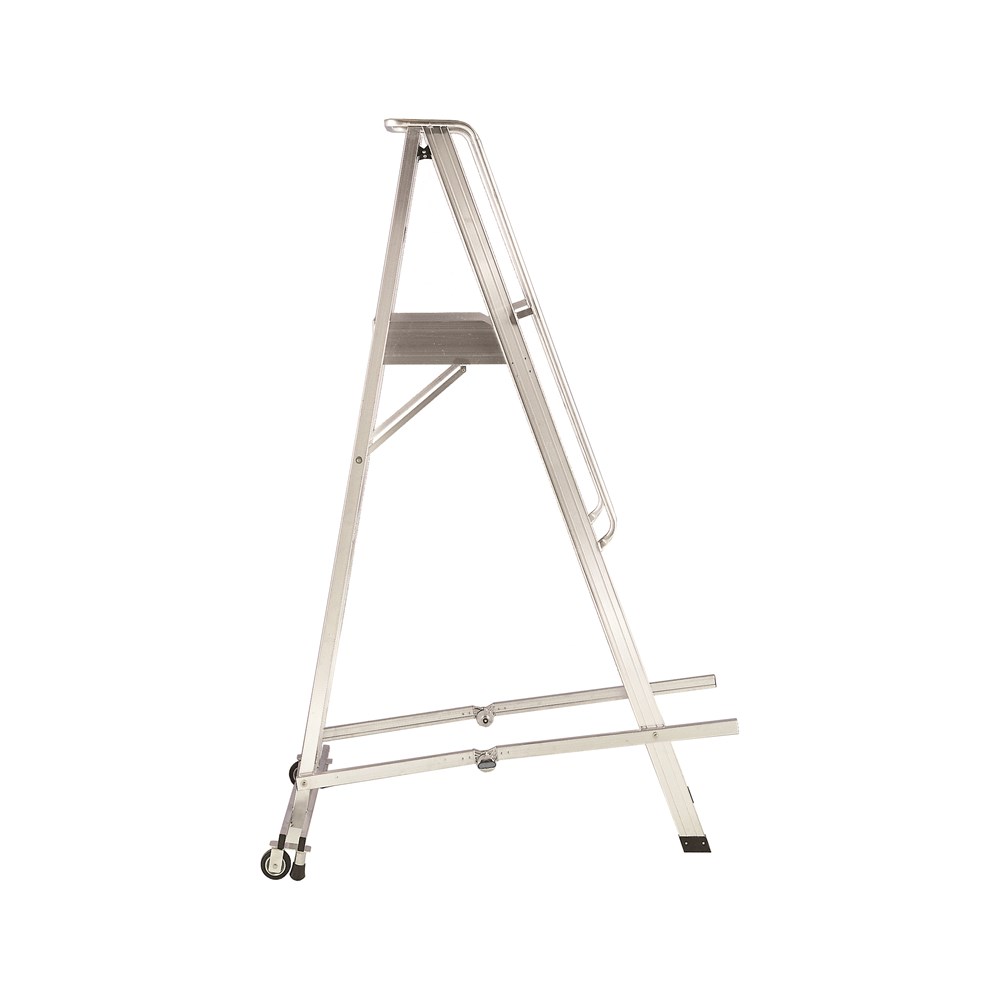

The quick positioning aluminium hinges grant total folding and compact thickness for transportation.

The braking system is automatic when the ladder is open for use and the operator climbs.

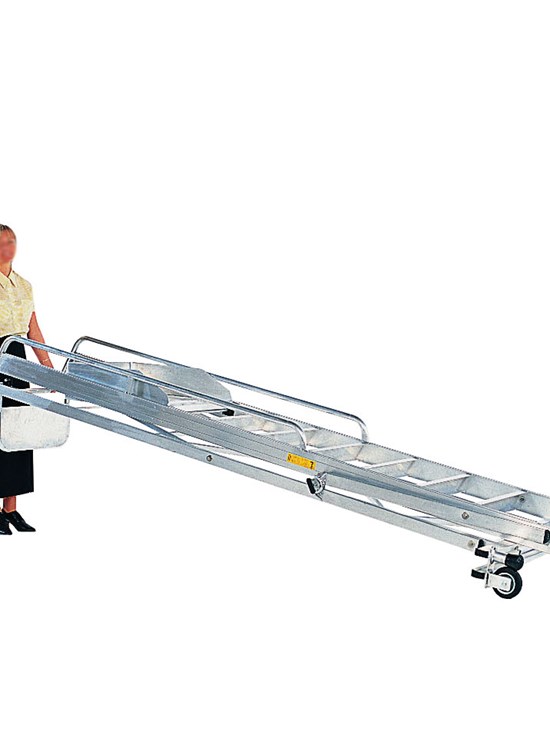

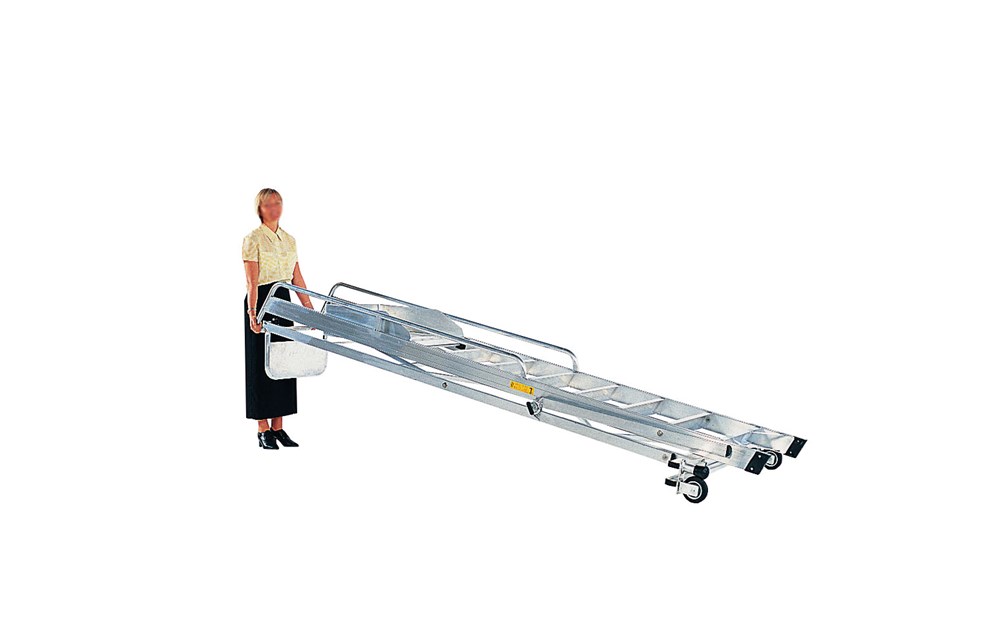

When the ladder is moved with the raising arms, the rubber feet rise allowing the two wheels (ø 125 mm) to move effortlessly on the ground.
It is tested and produced according to the European Standard EN131.

TECHNICAL FEATURES

Frame profile 100x30 mm
Platform capacity 150 kg
Toeboard height 15 cm
Platform dimensions cm 54x54 cm
Front width 60 cm
Guardrail height 100 cm
Distance between steps 24 cm

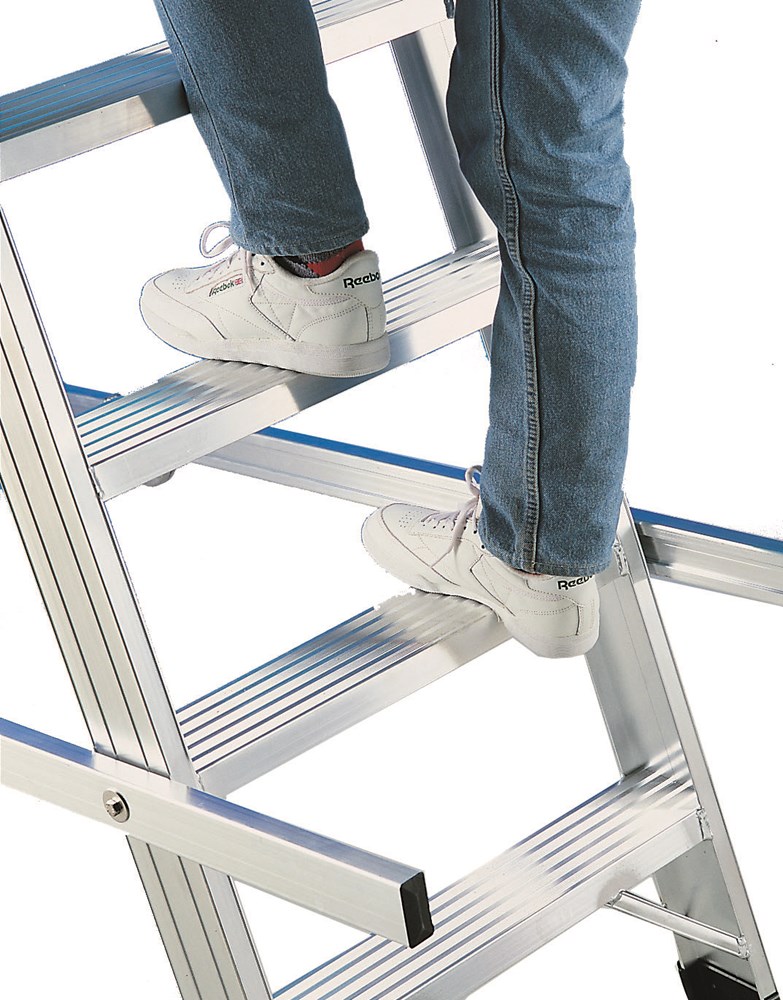

Non-skid step 10 cm
Sliding wheels ø 125 mm
No. of rungs: 4 to 15
Platform height: 1,00 m to 3,90 m

STANDARD PARTS

Stainless steel screws with self-locking nuts
Reinforced anti-opening/closure arms which also raise the ladder

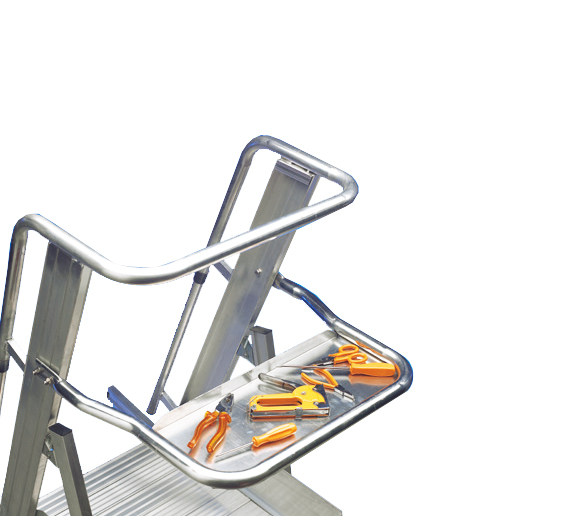

Tool-tray with capacity 15 kg
Ribbed frame and supports under the longest steps

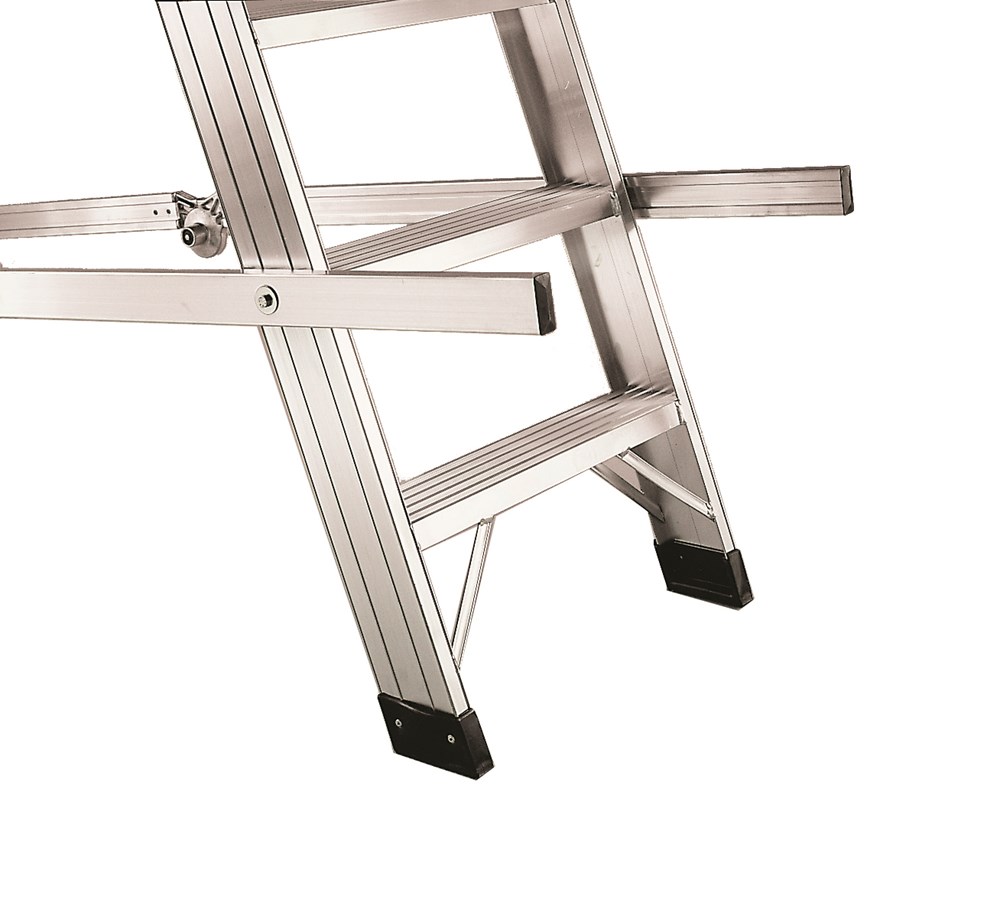

Ergonomic reinforced non-skid rubber feet
Label and instructions for assembly and use
Thermo-shrinkable plastic package with showcard

On request:

Short stabiliser (75 cm long) for use in narrow corridors
Castellana 4WD: kit of 4 blocking pivoting wheels Ø 80 mm
Non-closing fixed ladder
Protection chain
Special sizes and structures
