Castellana 4WD

max height m 3,90

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

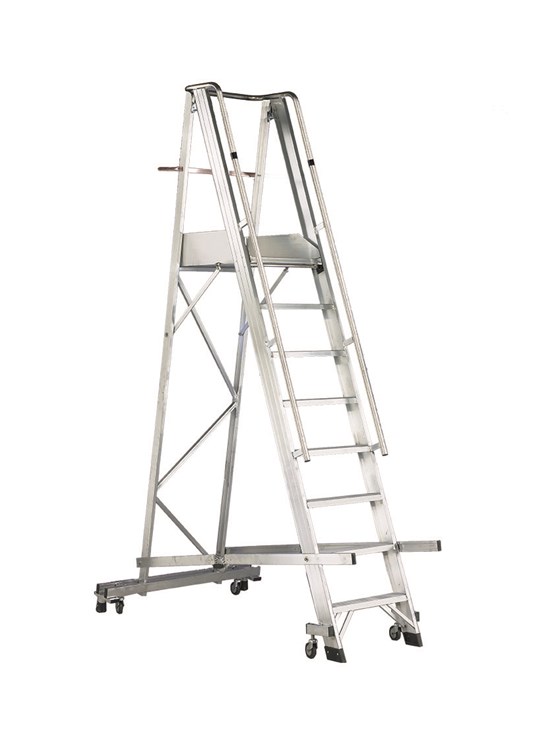

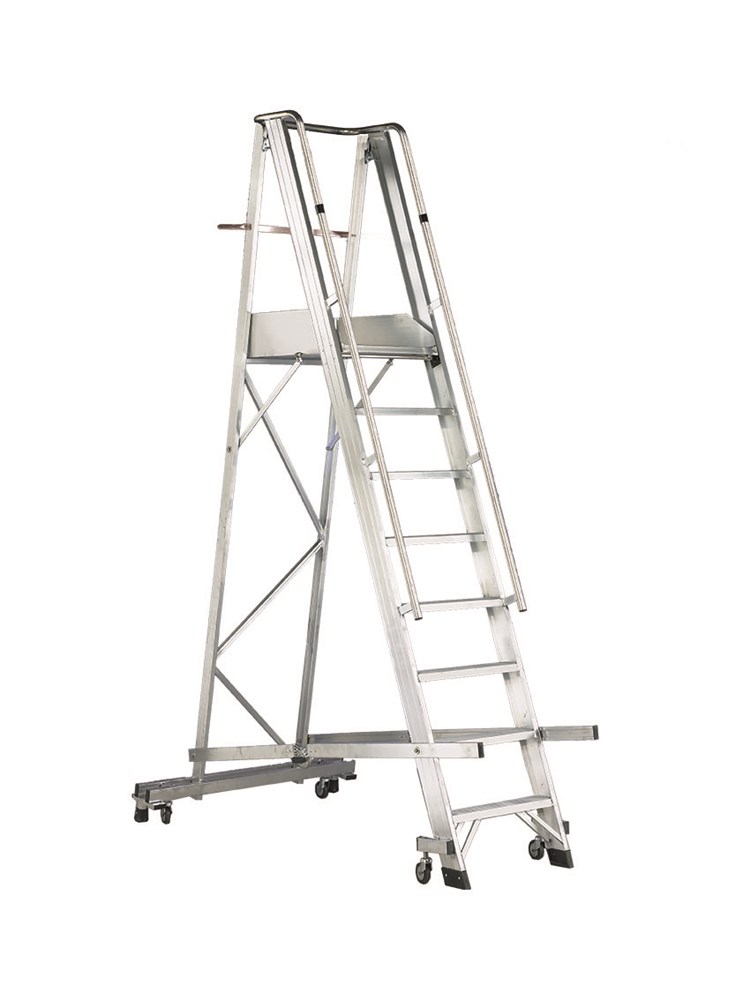

One-sided heavy duty stepladder with 4 self braking wheels, 1 m guardrail and large platform, toeboard height 15 cm, platform height: 1,00 m to 3,90 m

Aluminium ladder with 4 self-blocking wheels, 2 arms, platform, tool-tray, guardrail and handrail. It is equipped with reinforced anti-opening/closure bars.

It is particularly suitable for use in warehouses, stock rooms, high access points with machinery, airports, gymnasiums and other areas where safe, guarded high level access is required.
Its wide steps, its 100-cm guardrail and its large aluminium working platform permit to work in a comfortable, safe way.
The quick positioning aluminium hinges grant total folding and compact thickness for transportation.

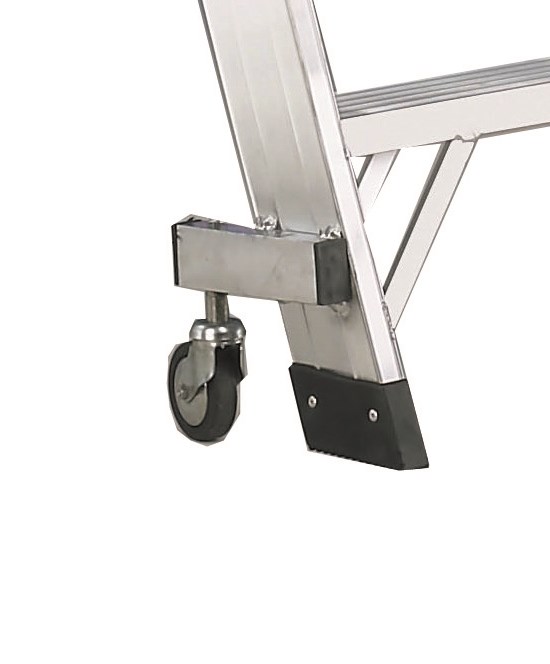

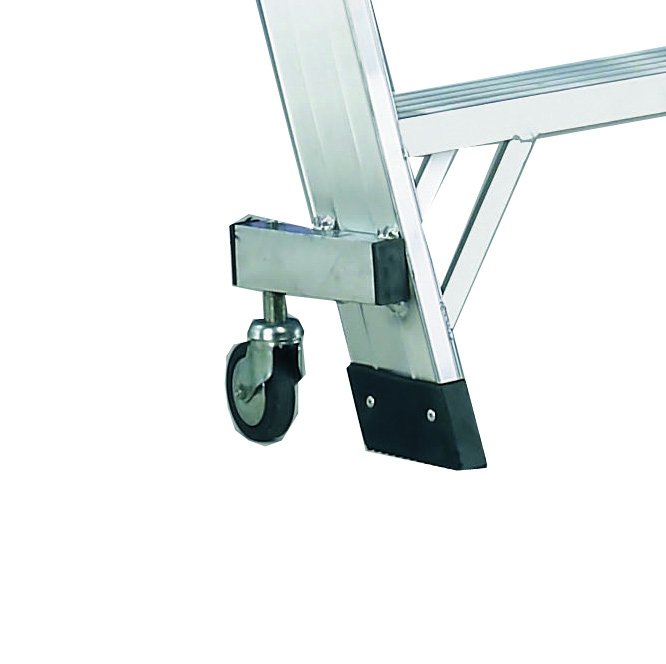

4 wheels ø 80 mm allow moving the ladder simply pushing it.

The braking system is automatic when the ladder is open for use and the operator climbs.

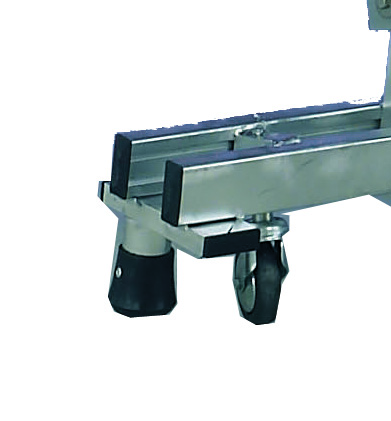

When the ladder is moved with the raising arms, the rubber feet rise allowing the wheels to move effortlessly on the ground.
It is tested and produced according to the European Standard EN131.

TECHNICAL FEATURES

4 wheels ø mm 80
Capacity: Kg 150
Guardrail height 100 cm
Toeboard height 15 cm
Frame profile 100x30 mm
Front width 60 cm
Platform dimensions 53x67 cm
Distance between steps 24 cm
Non-skid step 10 cm
No. of rungs: 4 to 15
Platform height: 1,00 m to 3,90 m

STANDARD PARTS

Reinforced anti-opening/closure arms which also raise the ladder
Tool-tray with capacity 15 kg
Ribbed frame and supports under the longest steps
Ergonomic reinforced non-skid rubber feet
Label and instructions for assembly and use
Thermo-shrinkable plastic package with showcard

On request:

Short stabiliser (75 cm long) for use in narrow corridors
Special sizes and structures
