Adjustable Platform

max height m 1,92

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

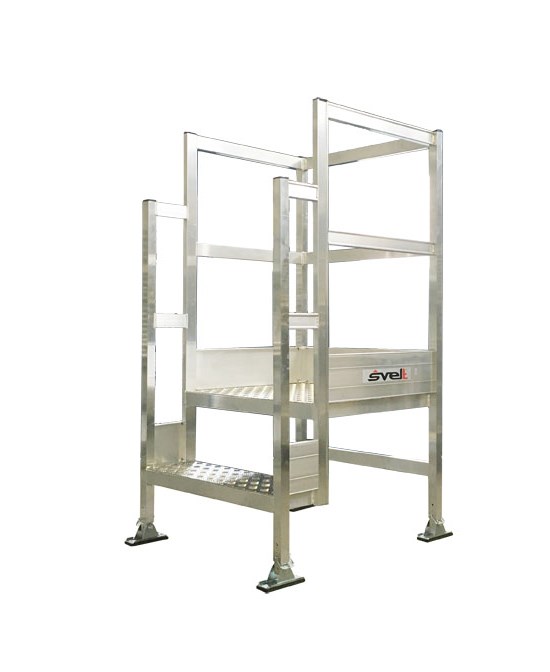

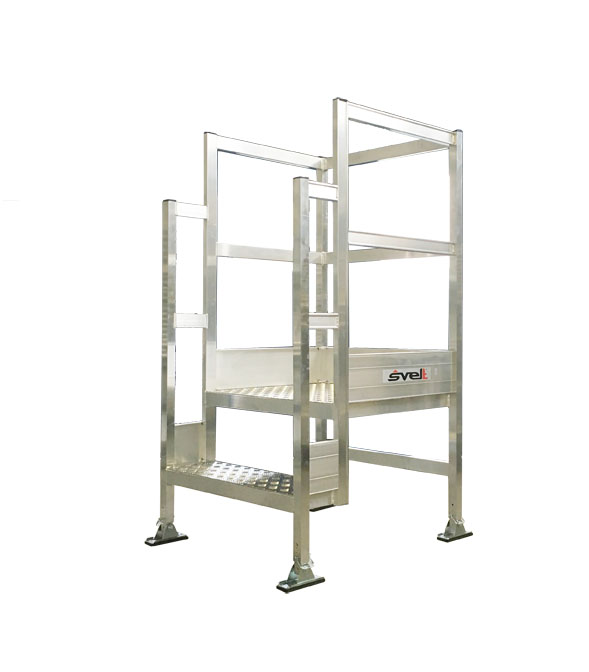

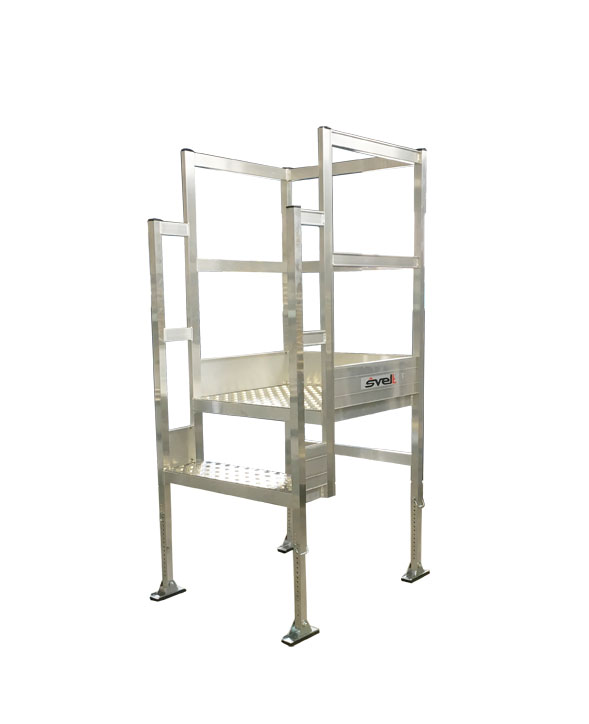

Telescopic stage platform with adjustable height

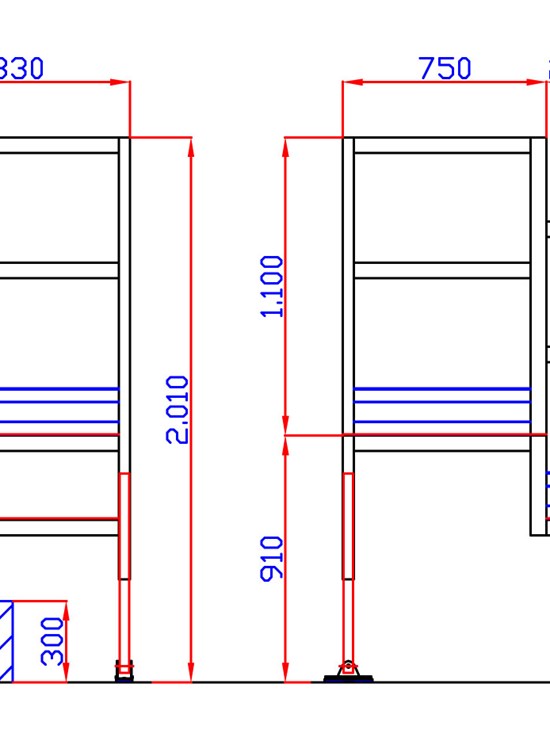

Platform ladder with steps 20 cm deep and provided with a 75x75 cm platform to work comfortably and safely on machines. Equipped with adjustable telescopic legs every 5 mm that allow to work precisely at the variable height of special machinery or to work on stairs, sidewalks, slopes or even in the presence of any obstacles near the production lines. Designed for professional use, it is made of extruded ribbed aluminum by welding the steps to the profiles, obtaining an ultra-resistant and stable monolith.

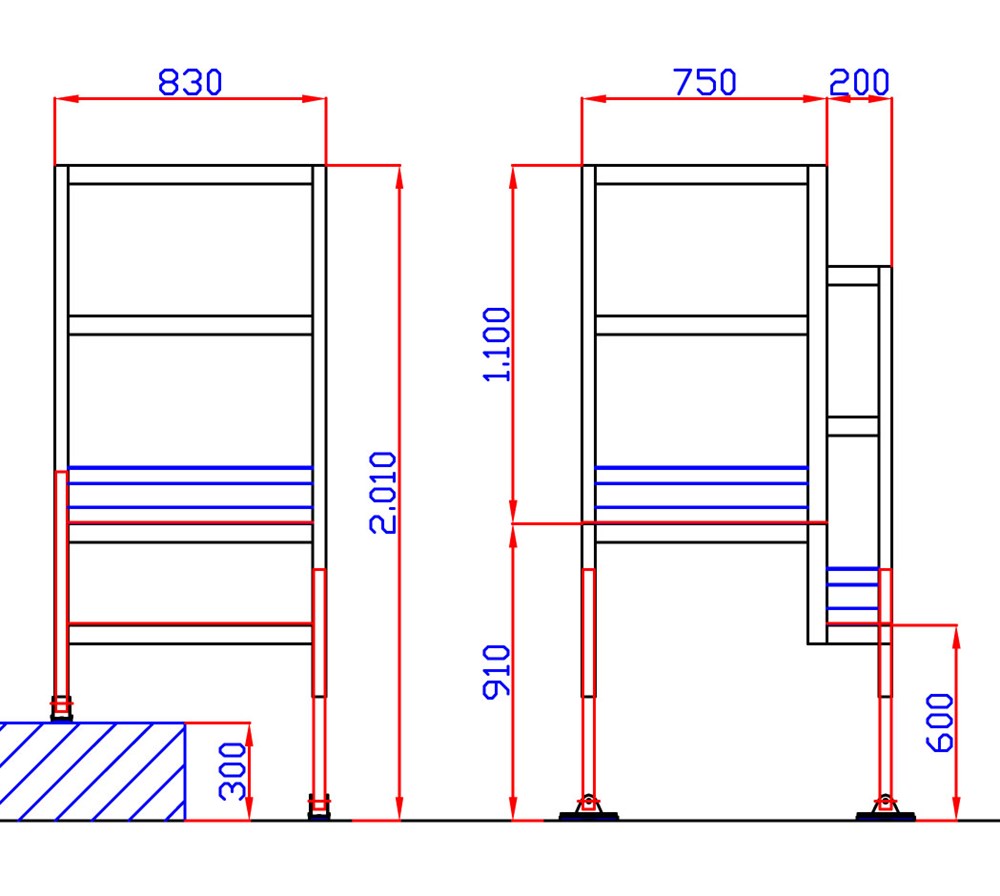

Number of steps	2 to 4
Platform height	from 61/91 to 121/151 cm
Open height	from cm 171/201 to 261/291
Protection guardrail	m 1

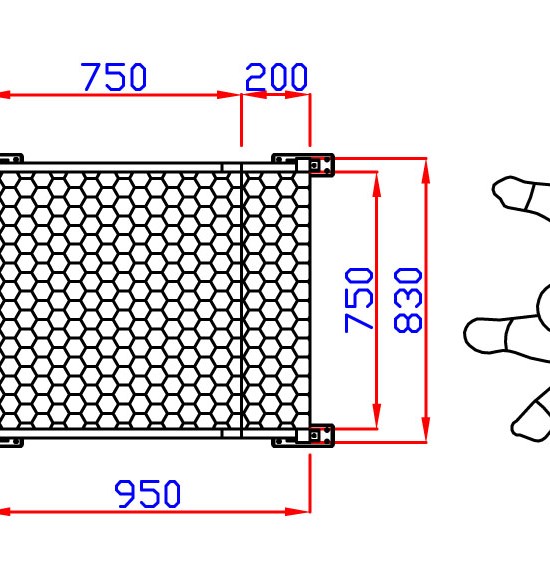

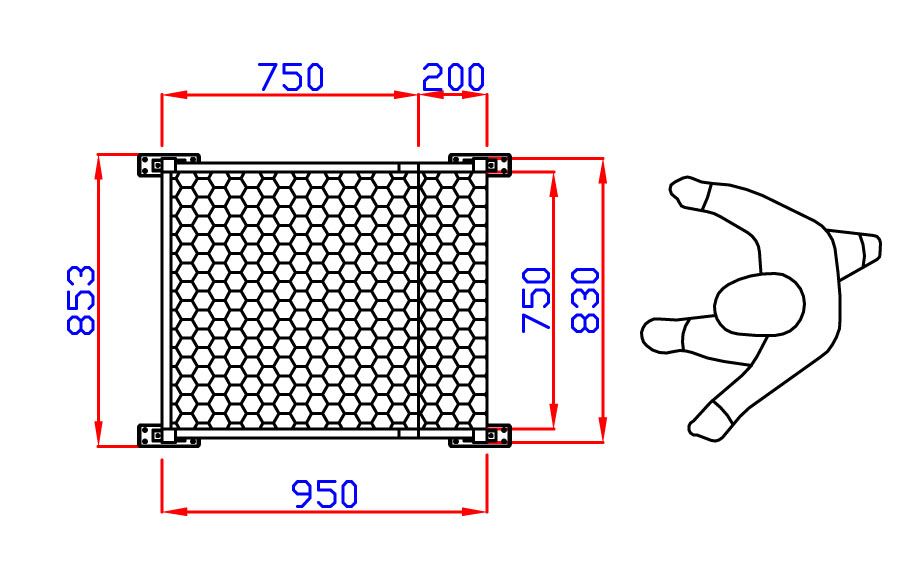

Platform mm 750x750

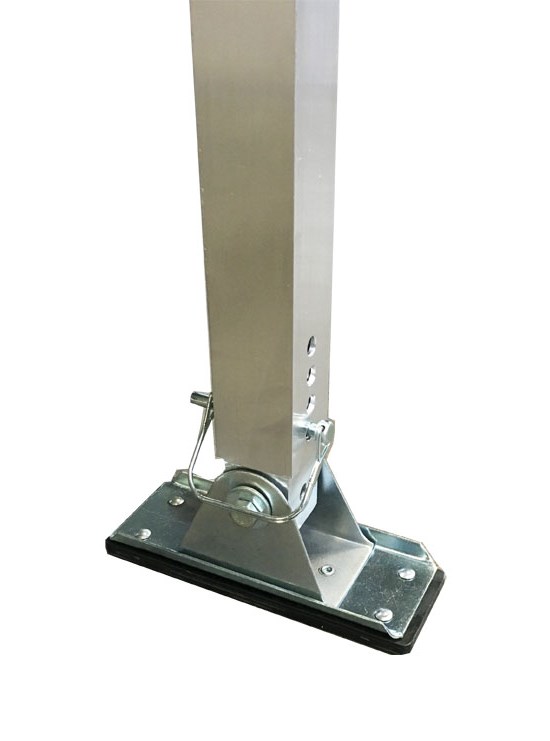

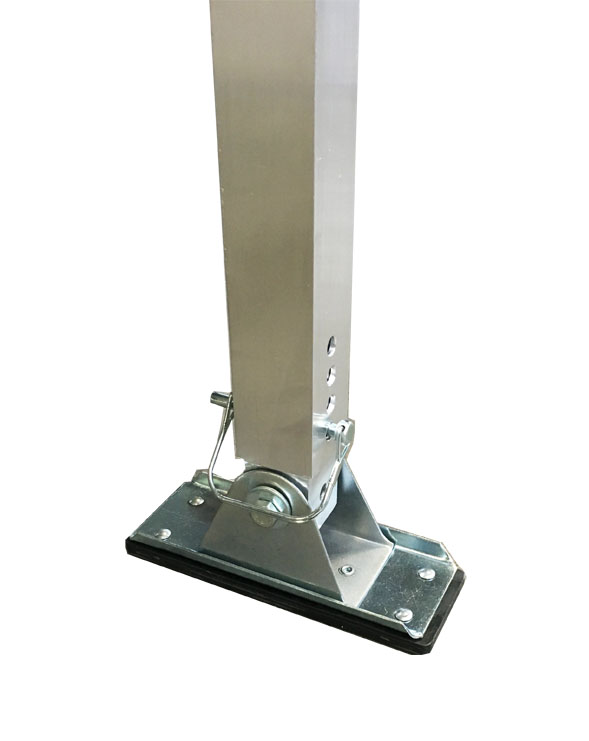

Articulated ergonomic feet adapt to the ground with anti-skid PVC support
Flat steps in non-slip aluminum 20 cm
Steps (distance) 30 cm

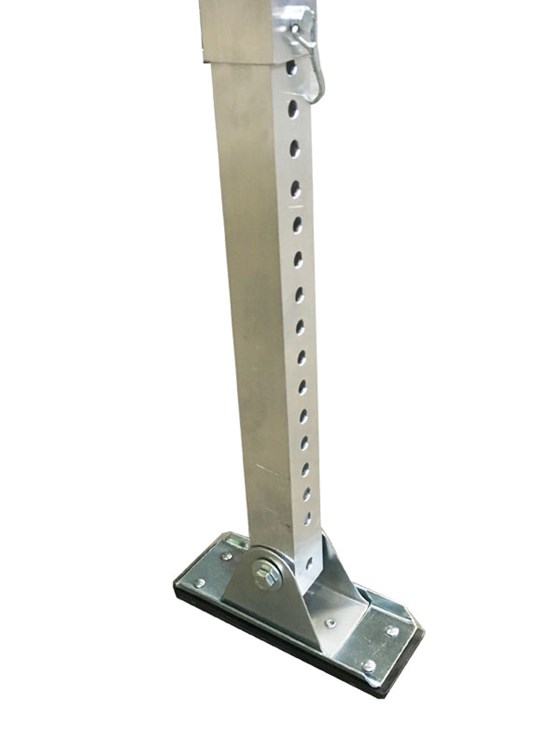

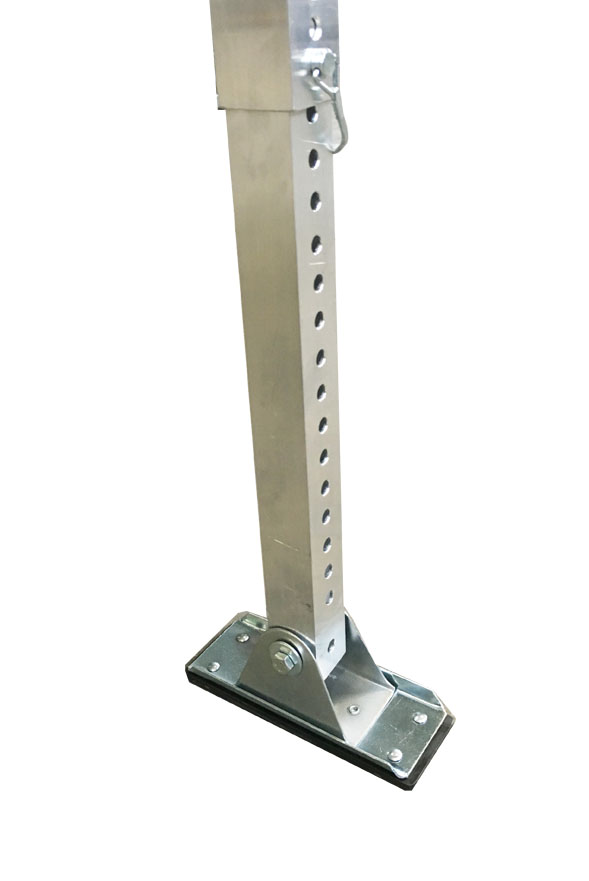

Legs adjustable every 5 mm up to a maximum excursion of 30 cm equipped with steel pins

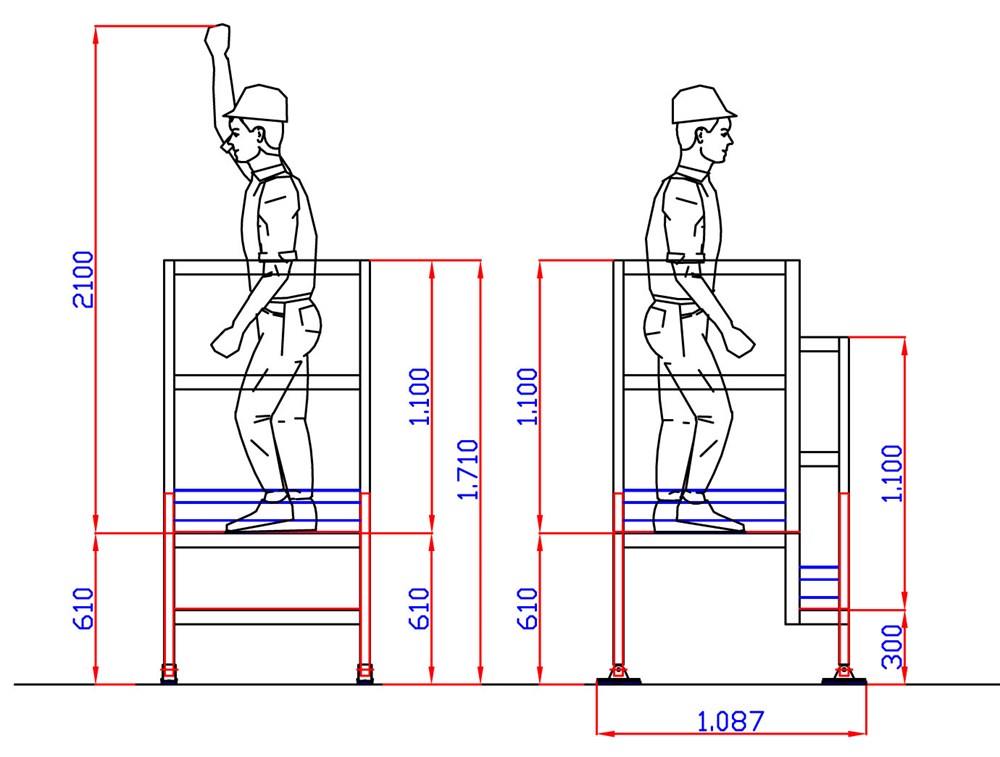

110 cm protection guardrail
20 cm aluminum toeboard
Manual and use and maintenance
