Palco

max height m 1,92

Producted in compliance with the European Standard for mobile platform ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

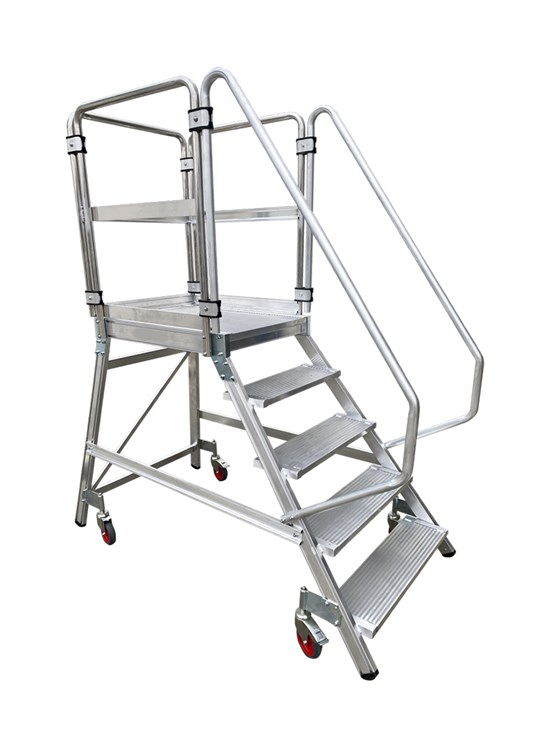

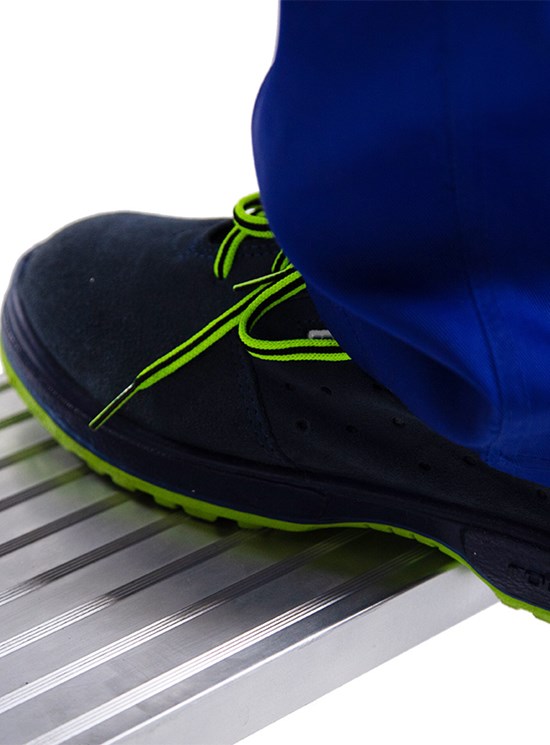

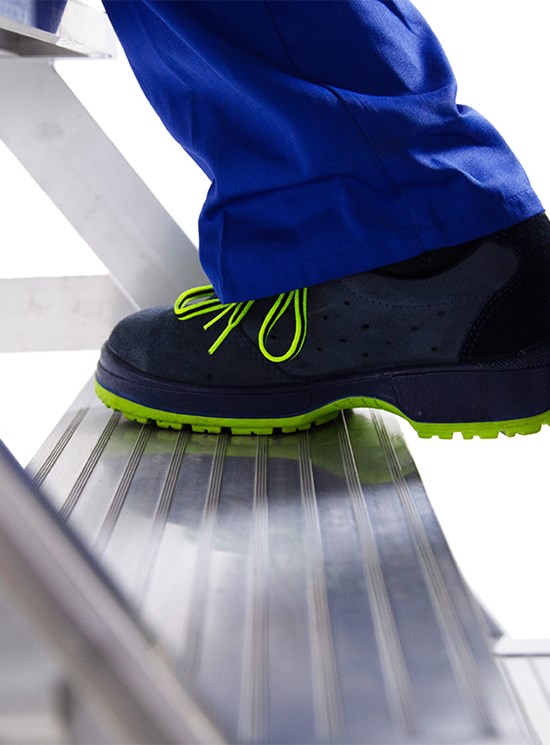

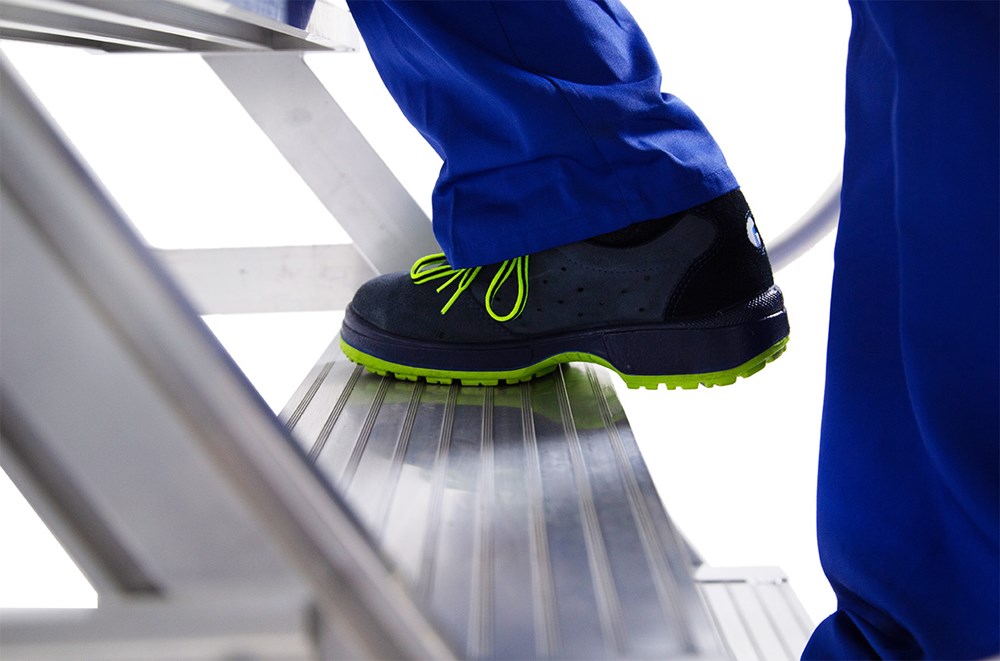

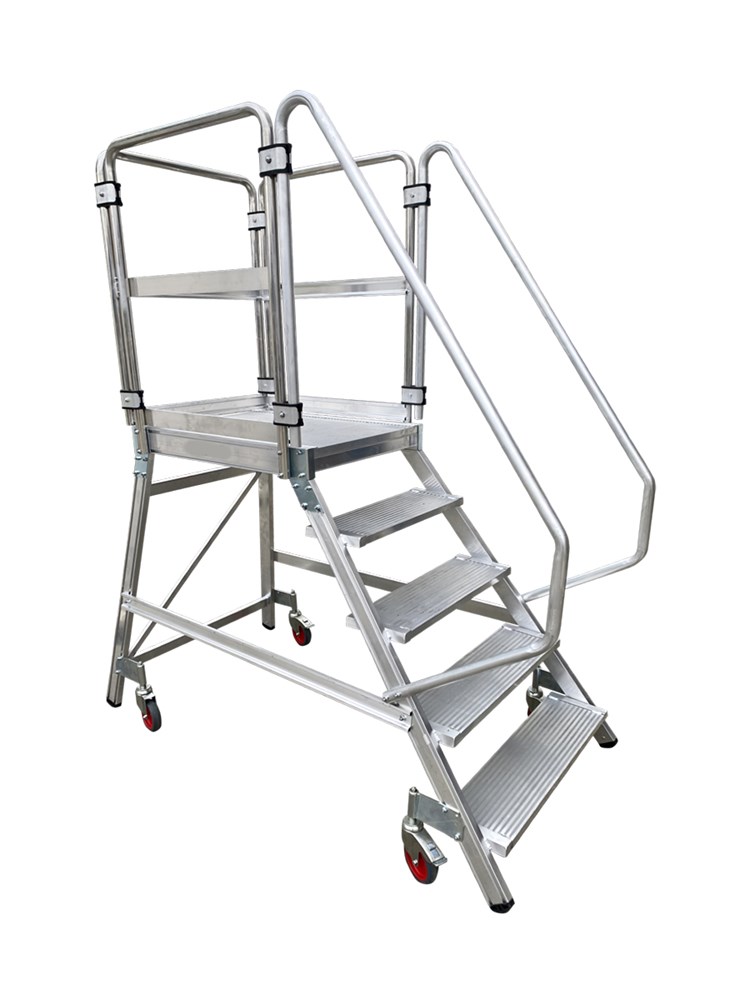

Single-sided platform ladder with reinforced steps and 4 wheels

Single sided ladder with platform (60x80 cm), guardrail and handrail (option).

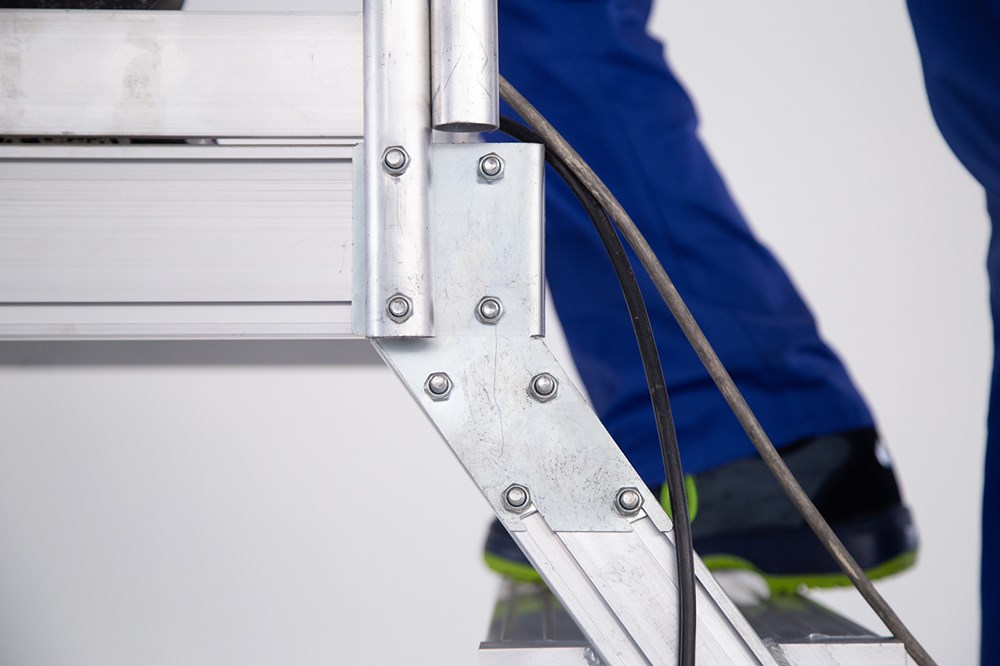

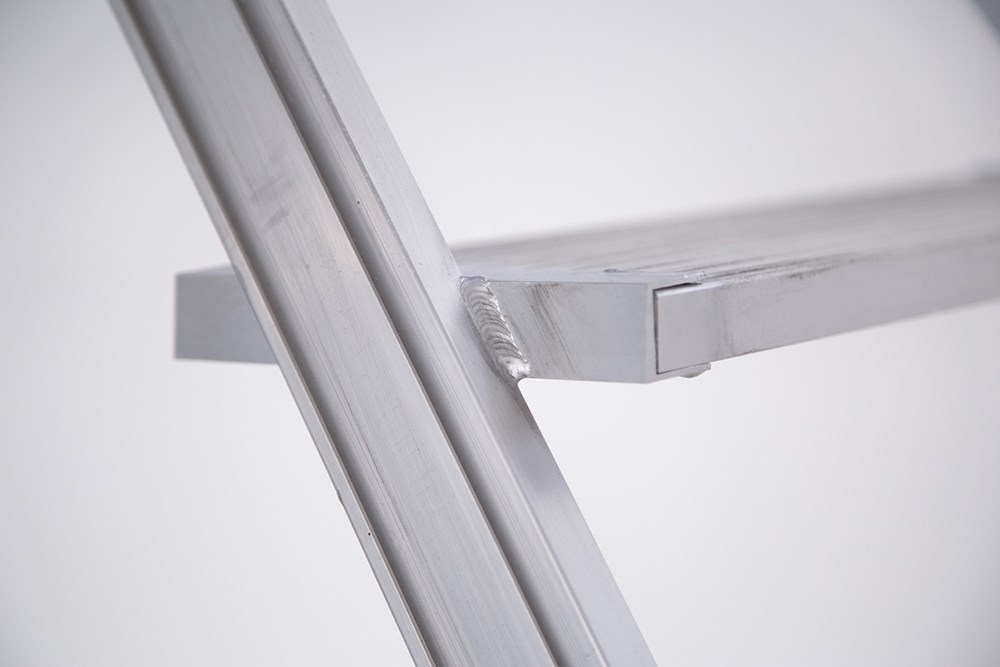

It is made of extruded ribbed aluminium rectangular tube side-rails.

The ladders come in disassembled parts and it can be easily assembled thanks to the detailed instructions manual.
The guardrail is almost perpendicular to the floor and this allows the user to stay near the wall or the machinery.

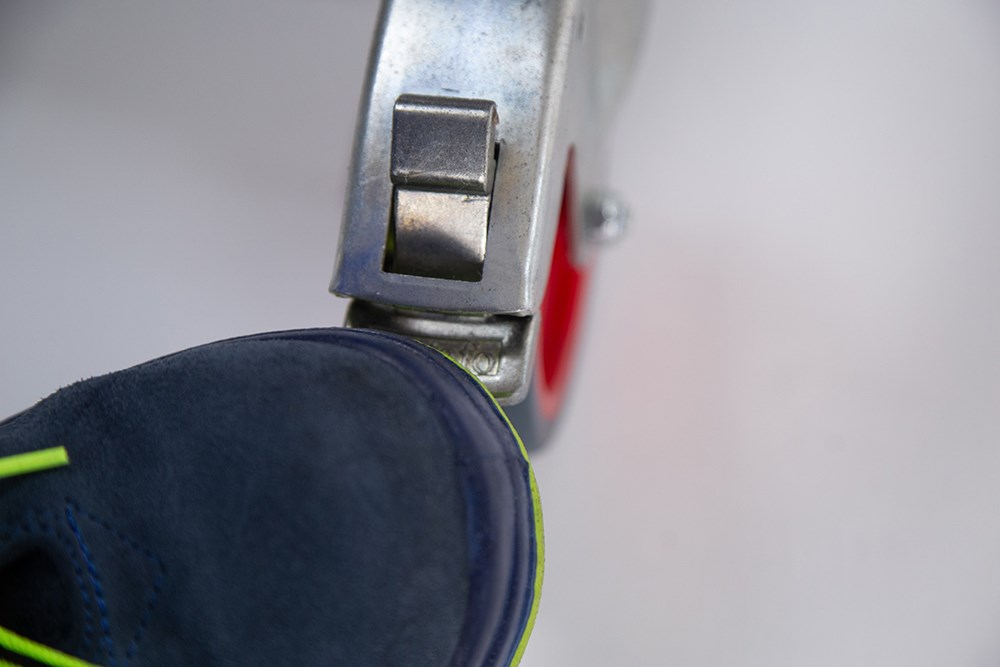

BRAKING SYSTEM
It is active when the operator is on the ladder in the working position.
It is deactivated as soon as the operator descends the ladder and stay on the floor.
The ladder must be braked before climbing for additional safety (2 wheels are with brake)
However, the ladder must not be handled with people, objects and / or material on board.

TECHNICAL FEATURES

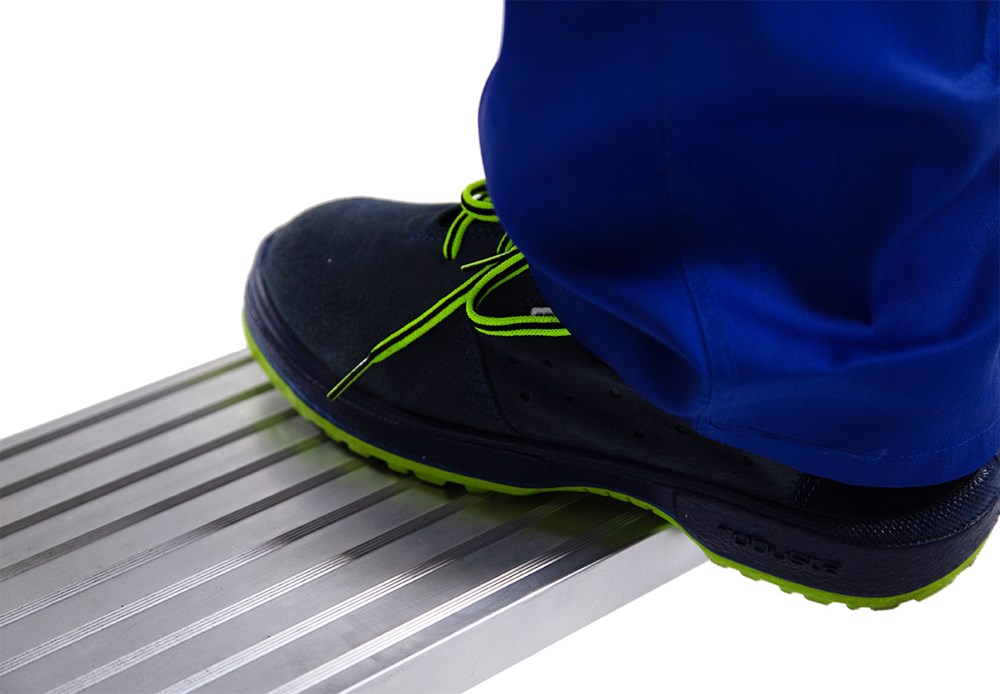

Rung depth: 20 cm
Capacity 150 kg
Ramp profile: 58x25 mm
Distance between steps: 23 cm
Guardrail height 100 cm
Toeboard height 6 cm
Large platform 60x80 cm
Ramp width: 60 cm
Ramp inclination: 55°

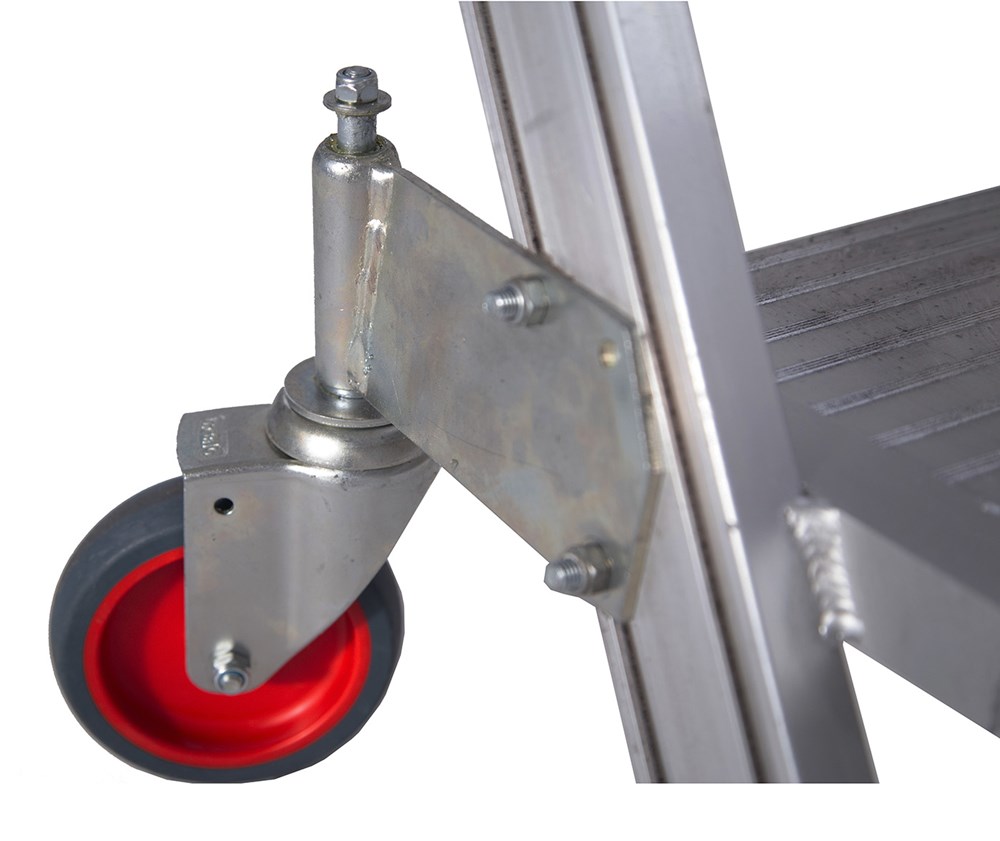

Self braking castors Ø 125 mm
No. of rungs: 3 to 8
Platform height: 0,72 m to 1,92 m

STANDARD PARTS

Guardrail on the two free sides
Toeboards
2 wheels with brake + 2 self-braking+
Label and instructions for assembly and use

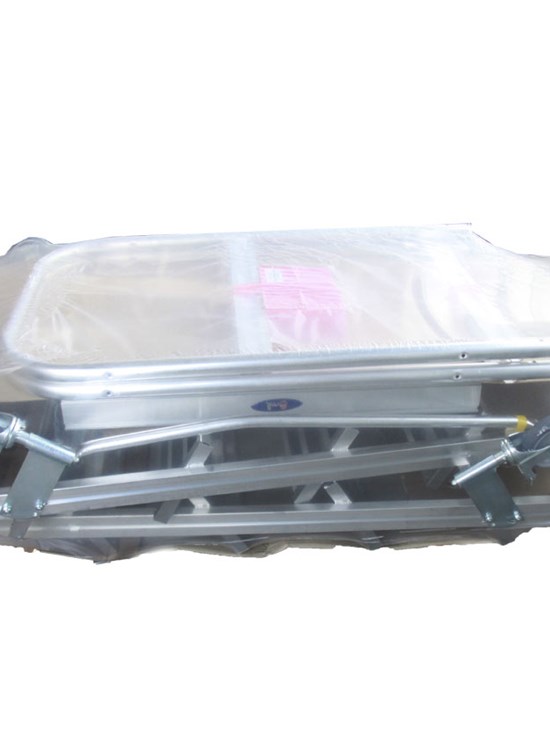

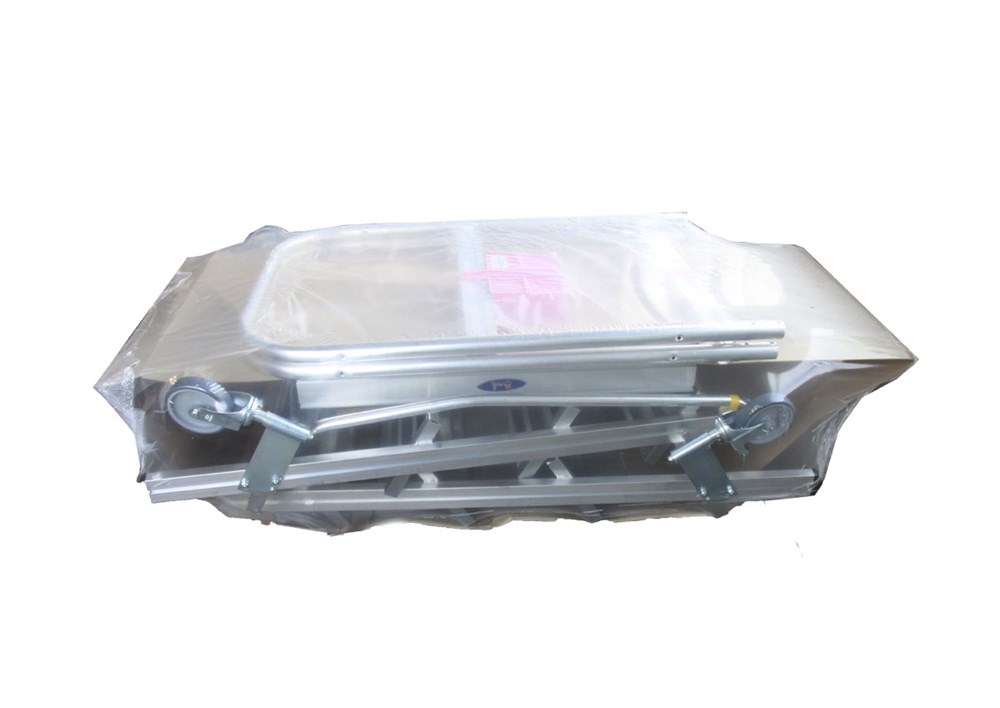

Thermo-shrinkable plastic package with showcard

On request:

Additional ramp handrail
Pre-assembled ladder
Palco with front exit and safety gate

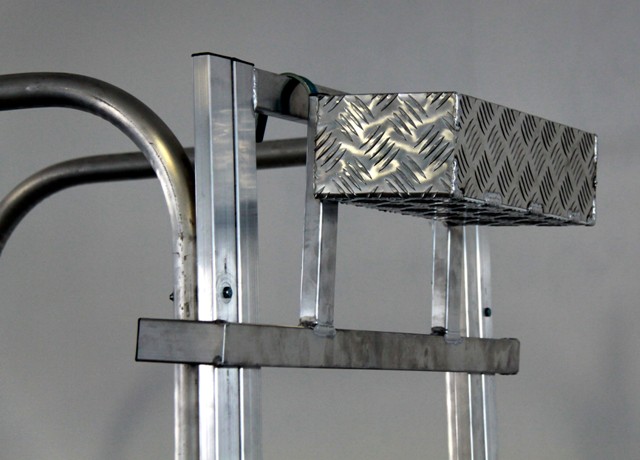

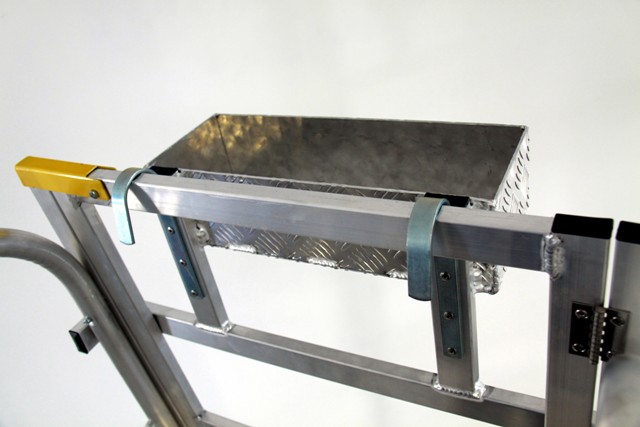

Tools holder

IMPORTANT: If working platform height is more than 1 m, handrail is compulsory on each side.
