Abyss Access ladder for ditches

Max landing height 2.32 m

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

Suitable for heavy duty

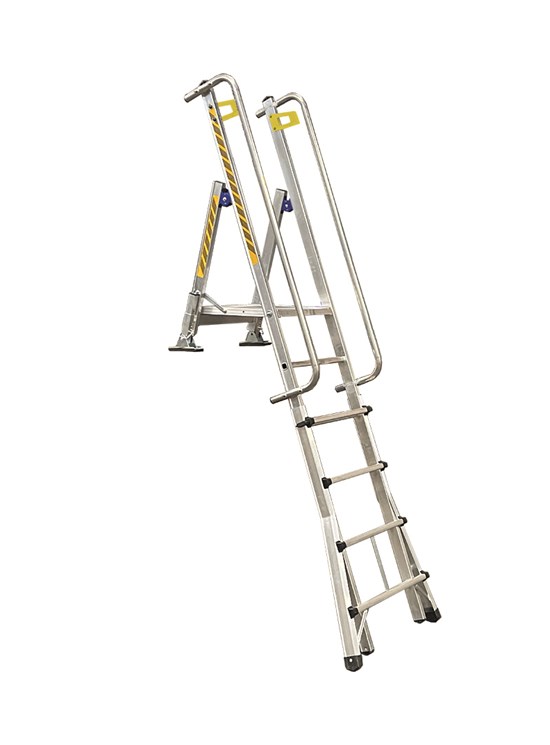

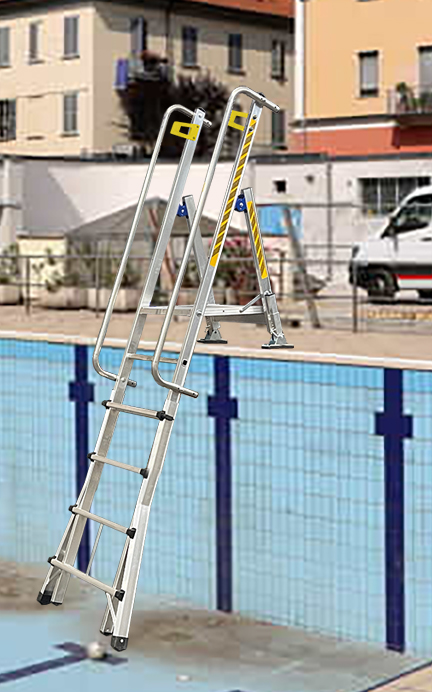

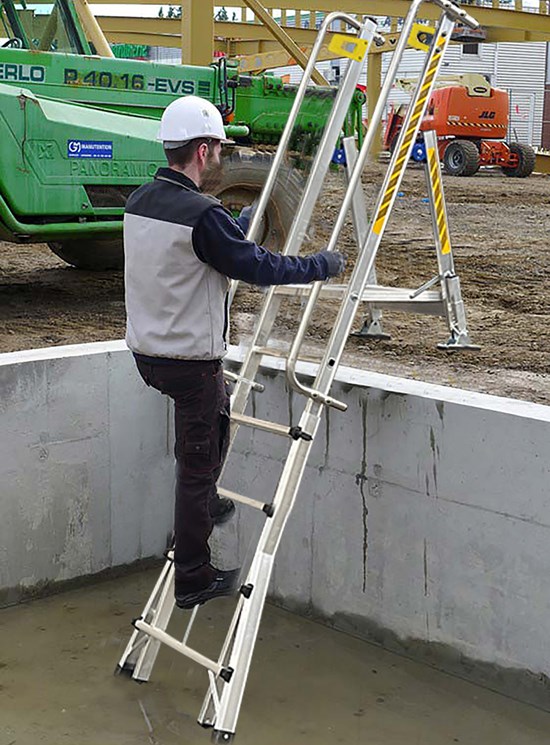

Adjustable telescopic platform ladder for access to trucks, excavations, ditches, lift holes, tanks

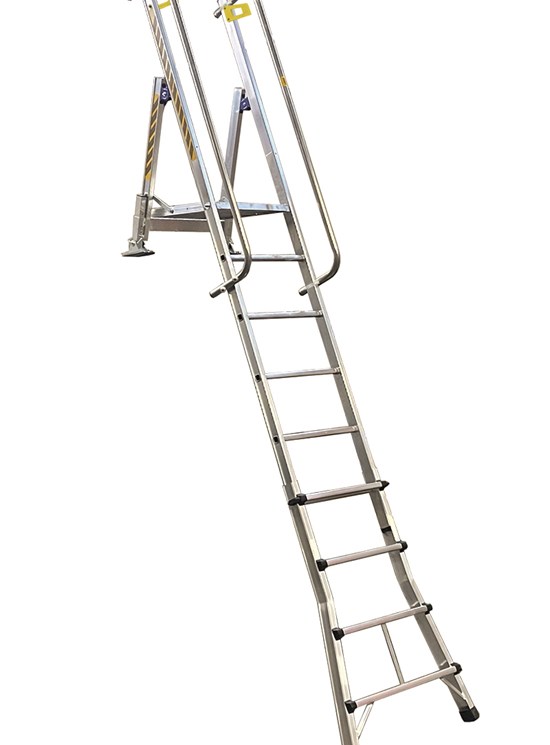

Professional telescopic ladder in ribbed aluminum for access to excavations, tanks, ditches, holes for lifts.
It is adjustable in height every 28 cm.

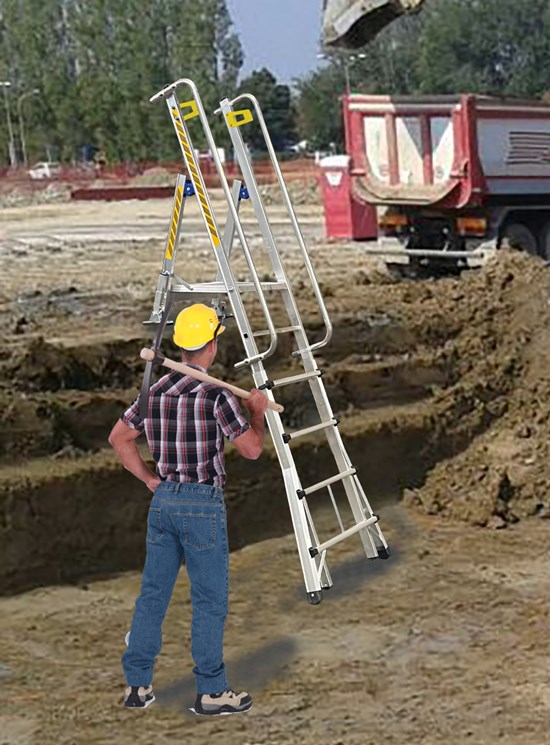

Lightweight and easy to transport to the construction site, this ladder is ideal for use on construction sites where theft can be avoided by leaving it hanging on the crane hooks.

Supplied with 2 hooks to lift the ladder with the crane and prevent it from being stolen on site or to lock the ladder or secure it for transport.
Supplied with 2 adjustable telesciopic legs of 28 cm in aluminum with jointed support foot.

Codes	Steps number	truck platform height minimum m	truck platform height max m	Ladder platform height minimum m	Ladder platform height max m	Transport dimensions cm	Closed height m	Weight Kg
SABYSS7	4+3	0,45	1,27	1,00	1,52	215x58x23	2,15	12
SABYSS10	6+4	0,99	2,07	1,52	2,32	273x58x23	2,73	15

Solid aluminum structure for use on construction site
Vertical adjustment every 28 cm.
Position locking by safety pins
Quick and easy installation
Equipped with non-slip pvc feet
Ascent and descent facilitated by 2 handrails equipped

with screws, packed in packaging, to be screwed on the

first time by the customer (profile Ø 32 mm.)

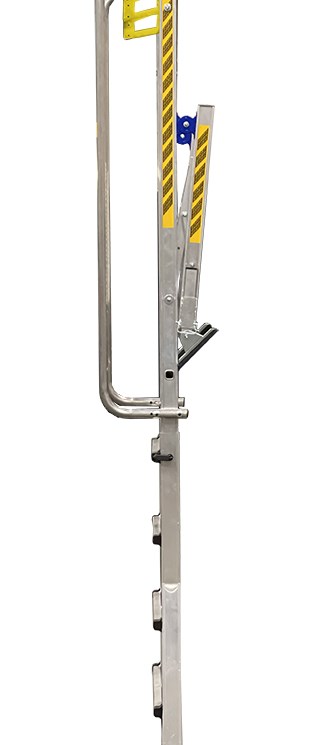

Foldable and light for transport

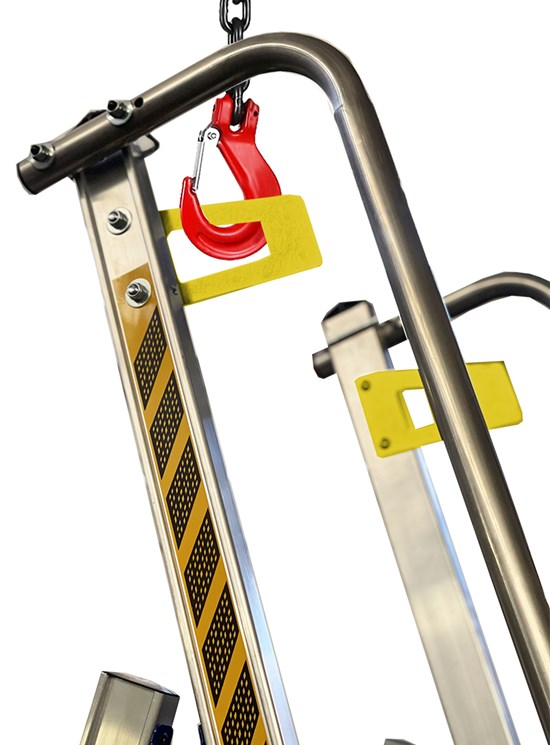

Dedicated crane hooks

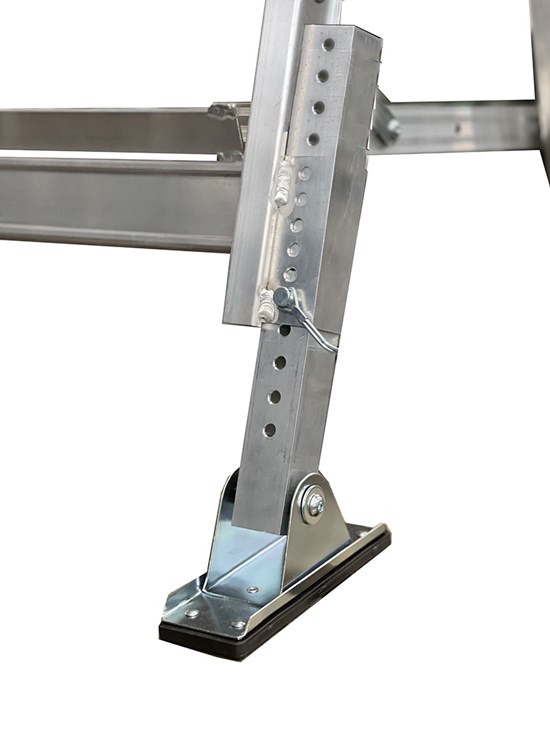

Millimeter adjustment of the support feet of the platform from 0 to 28 cm. The ladder is always levelled.
Platform: width 45 cm., length 50 cm.
Ramp width: cm. 52 (with handrails cm. 58)
Non-slip rungs 28x28 mm.
Base width cm. 76

ABYSS INTERNATIONAL.pdf (1.6 MB)
