OPTIMA self-levelling stariway

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

Suitable for heavy duty

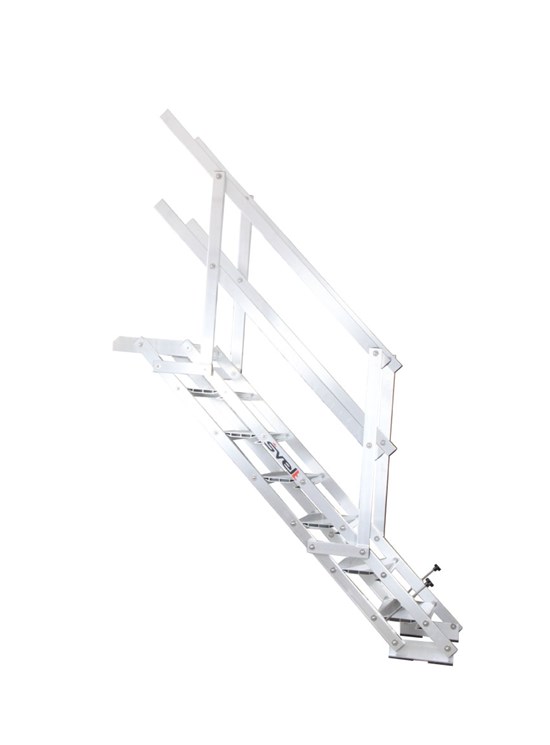

Access ladder with wide steps, which fits to different heights in yards or on machineries, it is made of extruded ribbed aluminium with self-leveling steps

Single-sided ladder with large steps, which fits to different exit heights in construction sites, on machinery and covers.
Made in extruded reinforced aluminium with self-levelling steps. It is suitable to access different levels in construction sites with excellent stability both on the ground and to the exit point.

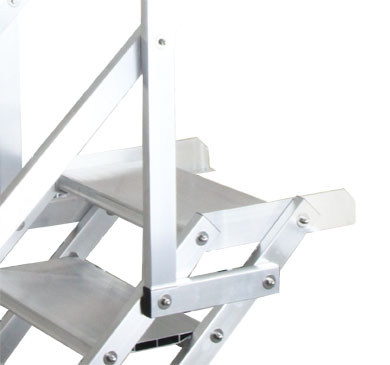

It is equipped with left and right handrail and guardrail to protect the operator during climbing and descending that, up to a slope of 45°, can be hands-free and facing the ladder.

The PVC non-skid adjustable feet adapt to the ground and grant great stability.

According to the height of the exit point, the climbing ramp angle changes, always keeping the steps in a horizontal position.
Lower parts on the ground on both levels have holes to allow the user to secure the ladder to prevent accidental movements.

STANDARD EQUIPMENT

Non-skid adjustable feet adaptable to the ground
The support plates can be dowelled at the ends to fix the ladder to the ground
Rustproof stainless steel screws

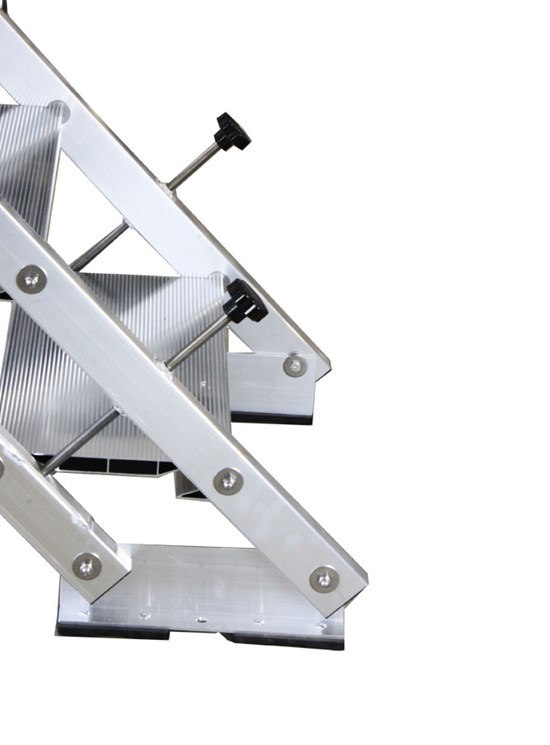

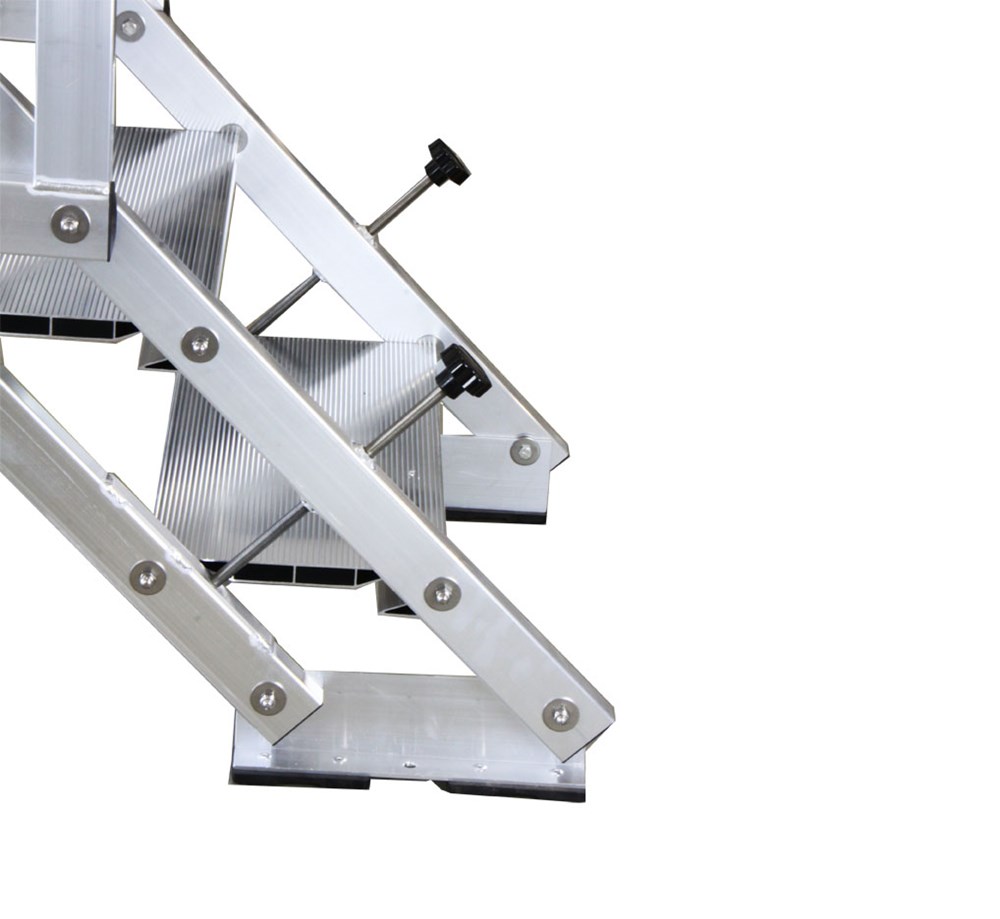

Safety anti-opening device (screw knob)
Standard width mm 600 (other widths on demand)

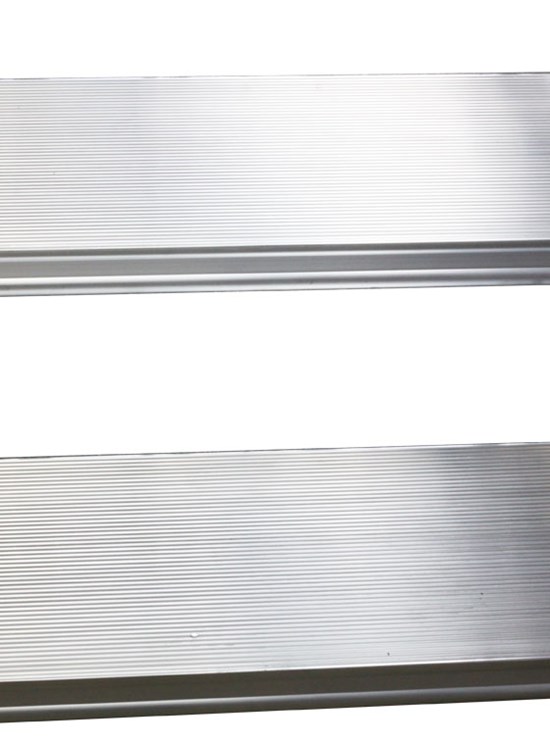

Non-skid knurled steps mm 60x30x2
Left and right handrails m 1,00
Use and maintenance manual

Designed also for walkway on roofs and sloped roofing, to access vehicles, trailers, load floors and flaps (if equipped with suitable hooks).

Minimum height is mm 1200 and the successive ones are multiples of mm 300.

CARATTERISTICHE TECNICHE (larghezza rampa cm 60)

Cod.	Gradini n.	Altezza di sbarco inclinazione minima 19° mm	Altezza di sbarco inclinazione media 45° mm	Altezza di sbarco inclinazione max 71° mm	Ingombro chiusa m	Peso Kg
SOPTIMA60/150	5	477	994	1320	2690x690x750	32,5
SOPTIMA60/180	6	575	1206	1600	2990x690x750	40,0
SOPTIMA60/210	7	673	1418	1884	3290x690x750	44,0
SOPTIMA60/240	8	770	1630	2167	3590x690x750	52,0
SOPTIMA60/270	9	868	1842	2451	3890x690x750	58,5
SOPTIMA60/300	10	966	2055	2735	4190x690x750	65,0
SOPTIMA60/330	11	1063	2266	3018	4490x690x750	71,5
SOPTIMA60/360	12	1161	2479	3302	4790x690x750	78,0
SOPTIMA60/390	13	1259	2690	3586	5090x690x750	84,5
SOPTIMA60/420	14	1356	2902	3869	5390x690x750	91,0
SOPTIMA60/450	15	1454	3114	4153	5690x690x750	97,5
SOPTIMA60/480	16	1552	3326	4437	5990x690x750	104,0
SOPTIMA60/510	17	1649	3538	4702	6290x690x750	110,5
SOPTIMA60/540	18	1747	3750	5004	6590x690x750	117,0
SOPTIMA60/570	19	1845	3963	5288	6890x690x750	123,5
SOPTIMA60/600	20	1942	4176	5571	7190x690x750	130,0
