Ikaro stepstool
max height m 1,00
This product has successfully passed the test of the German quality control body TÜV according to the European Standard on stools
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
It is shown on products which conform to the European Standard on welding
It is the European Standard for ladders
Suitable for heavy duty

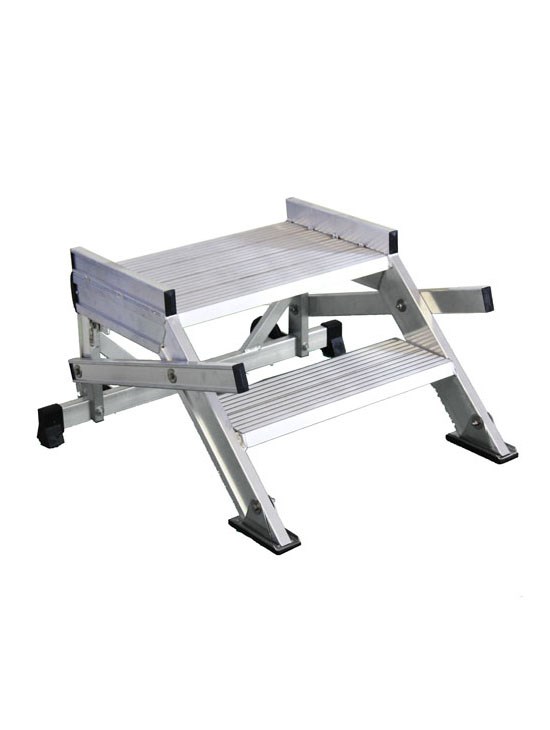

Professional single-sided access stepstool
Stools for industrial maintenance and vehicle access with 2 standard wheels with a diameter of 125 mm
Series of professional stepstools for access and maintenance on vehicles, raised floors or machinery.
Very robust and resistant professional equipment designed for intensive use.

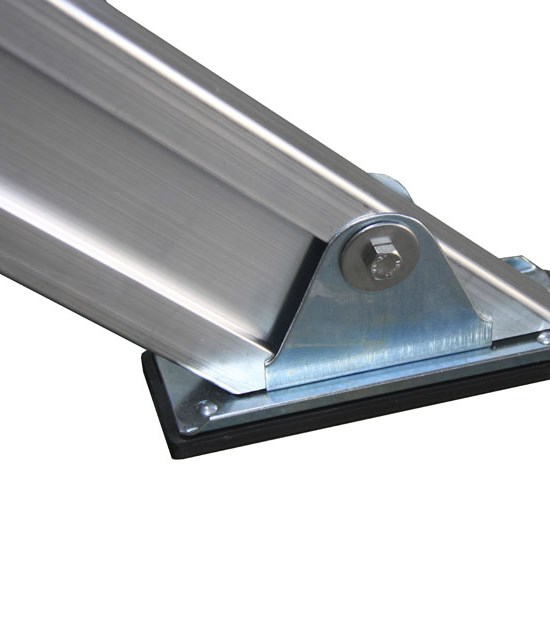

In ribbed extruded aluminum and TIG welded.
The operator can choose the width and height to suit their access needs.
The 20 cm deep flat steps are comfortable, wide and non-slip.
The 45° ascent ramp can be equipped on request with 1 or 2 side handrails.
The platform can be equipped on request with railings on 2 sides (for front landing) or on 3 sides.
The operator can get on "hands free" and get off even with the front facing the landing.

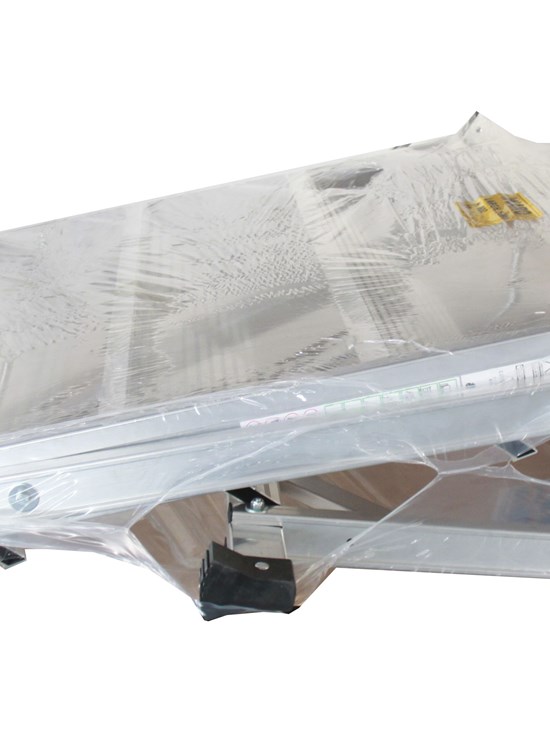

IKARO is packed in shrink wrap.
Very robust and resistant professional equipment designed for intensive use.
In ribbed extruded aluminum and TIG welded.
The operator can choose the width and height to suit their access needs.
The 20 cm deep flat steps are comfortable, wide and non-slip.
The 45° ascent ramp can be equipped on request with 1 or 2 side handrails.
The platform can be equipped on request with railings on 2 sides (for front landing) or on 3 sides.
The operator can get on "hands free" and get off even with the front facing the landing.
IKARO is packed in shrink wrap.
On request (see tables below)
- Models with 2 to 5 steps (platform included) can be chosen for a platform height ranging from 40 to 100 cm from the ground.
- The internal width of the ramp and platform can be requested from 60, 80 or 100 cm.
- The landing platform depth is available from 40 or 60 cm
- All models can be requested without railings or even with railings on all sides of the platform, with front, left or right side landing.
(only if equipped with a 60 cm platform).
- Each version can be requested with steps and platform in aluminum grating (for sand, lime, cement, snow, mud or other materials to drain)
- All models up to 5 steps comply with the European Standard UNIEN14183.
Codes and sizes IKARO with steps and 40 cm deep aluminum platform
IKARO60
WIDTH 60 СМ - PLATFORM DEPTH 40 СМ - 2 WHEELS DIAMETER 125 ММ
WIDTH 60 СМ - PLATFORM DEPTH 40 СМ - 2 WHEELS DIAMETER 125 ММ
| Code | Steps n. | Platform height m |
Total width
m
|
Weight Kg |
Volume
mc
|
Transport dimensions mm |
| SIKARO602 | 2 | 0,40 | 0,90 | 12,30 | 0,32 | 900x404x870 |
| SIKARO603 | 3 | 0,60 | 0,90 | 14,80 | 0,44 | 900x423x1158 |
| SIKARO604 | 4 | 0,80 | 0,90 | 17,80 | 0,55 | 900x426x1442 |
| SIKARO605 | 5 | 1,00 | 0,90 | 20,20 | 0,66 |
900x426x1731
|
IKARO80
WIDTH 80 СМ - PLATFORM DEPTH 40 СМ - 2 WHEELS DIAMETER 125 ММ
| Code | Steps n. | Platform height m |
Total width
m
|
Weight Kg |
Volume
mc
|
Transport dimensions mm |
| SIKARO802 | 2 | 0,40 | 1,10 | 14,00 | 0,39 | 1100x404x870 |
| SIKARO803 | 3 | 0,60 | 1,10 | 16,90 | 0,54 | 1100x423x1158 |
| SIKARO804 | 4 | 0,80 | 1,10 | 20,60 | 0,68 | 1100x426x1442 |
| SIKARO805 | 5 | 1,00 | 1,10 | 23,60 | 0,81 | 1100x426x1731 |
IKARO100
WIDTH 100 СМ - PLATFORM DEPTH 40 СМ - 2 WHEELS DIAMETER 125 ММ
| Code | Steps n. | Platform height m |
Total width
m
|
Weight Kg |
Volume
mc
|
Transport dimensions mm |
| SIKARO1002 | 2 | 0,40 | 1,30 | 15,70 | 0,46 | 1300x404x870 |
| SIKARO1003 | 3 | 0,60 | 1,30 | 19,10 | 0,64 | 1300x423x1158 |
| SIKARO1004 | 4 | 0,80 |
1,30
|
23,50 | 0,80 | 1300x426x1442 |
| SIKARO1005 | 5 | 1,00 | 1,30 | 27,20 | 0,96 | 1300x426x1731 |
Codes and sizes IKARO with steps and 60 cm deep aluminum platform
IKAROG60
WIDTH 60 СМ - PLATFORM DEPTH 40 СМ - 2 WHEELS DIAMETER 125 ММ
| Code | Steps n. | Platform height m |
Total width
m
|
Weight Kg |
Volume
mc
|
Transport dimensions mm |
| SIKAROG602 | 2 | 0,40 | 0,90 | 12,30 | 0,32 | 900x404x870 |
| SIKAROG603 | 3 | 0,60 | 0,90 | 14,80 | 0,44 | 900x423x1158 |
| SIKAROG604 | 4 | 0,80 | 0,90 | 17,80 | 0,55 | 900x426x1442 |
| SIKAROG605 | 5 | 1,00 | 0,90 | 20,20 | 0,66 | 900x426x1731 |
IKAROG80
WIDTH 80 СМ - PLATFORM DEPTH 40 СМ - 2 WHEELS DIAMETER 125 ММ
| Code | Steps n. | Platform height m |
Total width
m
|
Weight Kg |
Volume
mc
|
Transport dimensions mm |
| SIKAROG802 | 2 | 0,40 | 1,10 | 14,00 | 0,39 | 1100x404x870 |
| SIKAROG803 | 3 | 0,60 | 1,10 | 16,90 | 0,54 | 1100x423x1158 |
| SIKAROG804 | 4 | 0,80 | 1,10 | 20,60 | 0,68 | 1100x426x1442 |
| SIKAROG805 | 5 | 1,00 | 1,10 | 23,60 | 0,81 | 1100x426x1731 |
IKAROG100
WIDTH 100 СМ - PLATFORM DEPTH 40 СМ - 2 WHEELS DIAMETER 125 ММ
| Code | Steps n. | Platform height m |
Total width
m
|
Weight Kg |
Volume
mc
|
Transport dimensions mm |
| SIKAROG1002 | 2 | 0,40 | 1,30 | 15,70 | 0,46 | 1300x404x870 |
| SIKAROG1003 | 3 | 0,60 | 1,30 | 19,10 | 0,64 | 1300x423x1158 |
| SIKAROG1004 | 4 | 0,80 |
1,30
|
23,50 | 0,80 | 1300x426x1442 |
| SIKAROG1005 | 5 | 1,00 | 1,30 | 27,20 | 0,96 | 1300x426x1731 |
Ask for Codes and sizes of IKARO with GRID steps.
