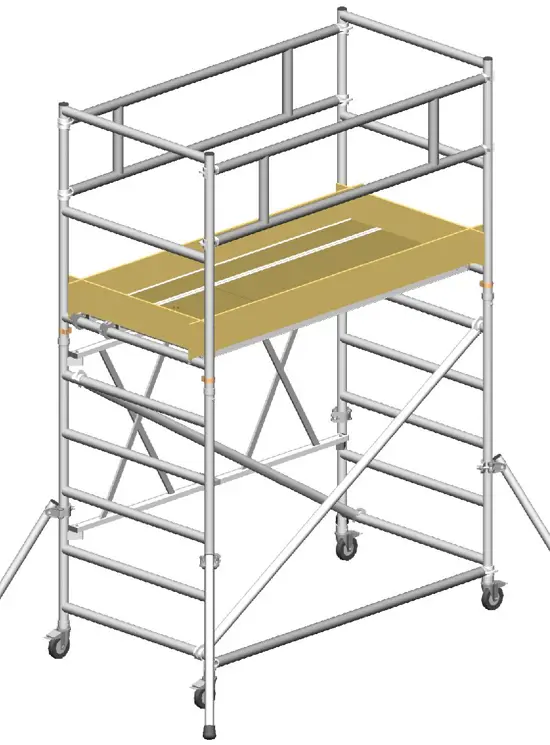

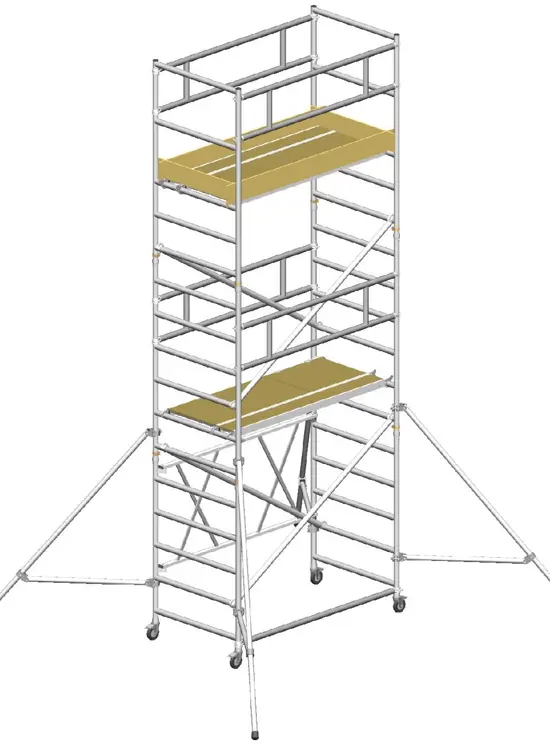

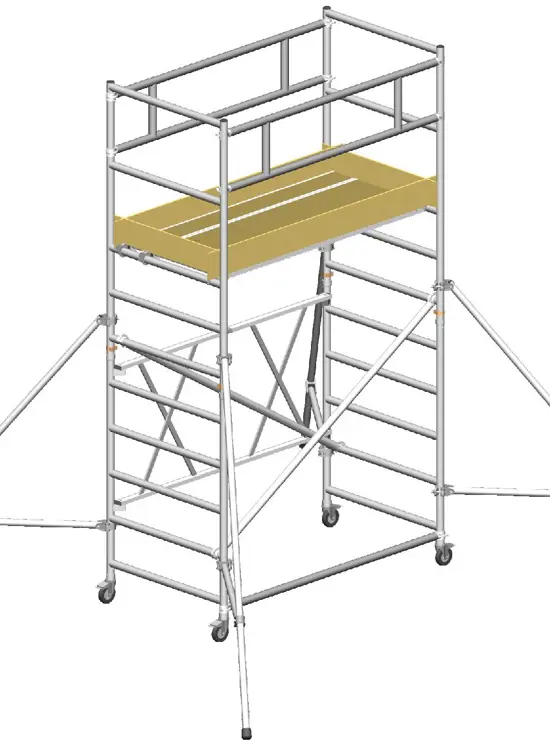

Scaffolding Roller Plus L

m 2,00x1,05 - max height m 6,76

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is shown on products which conform to the European Standard on welding

It is the European Standard for ladders

It shows that the Politecnico di Milano (Applied-Science Faculty in Milan) has tested a product and certified that it conforms to UNI EN131-1-2-3-4 (ladders), UNIEN14183 (step-stools), UNIEN1004 (scaffolds)

Suitable for heavy duty

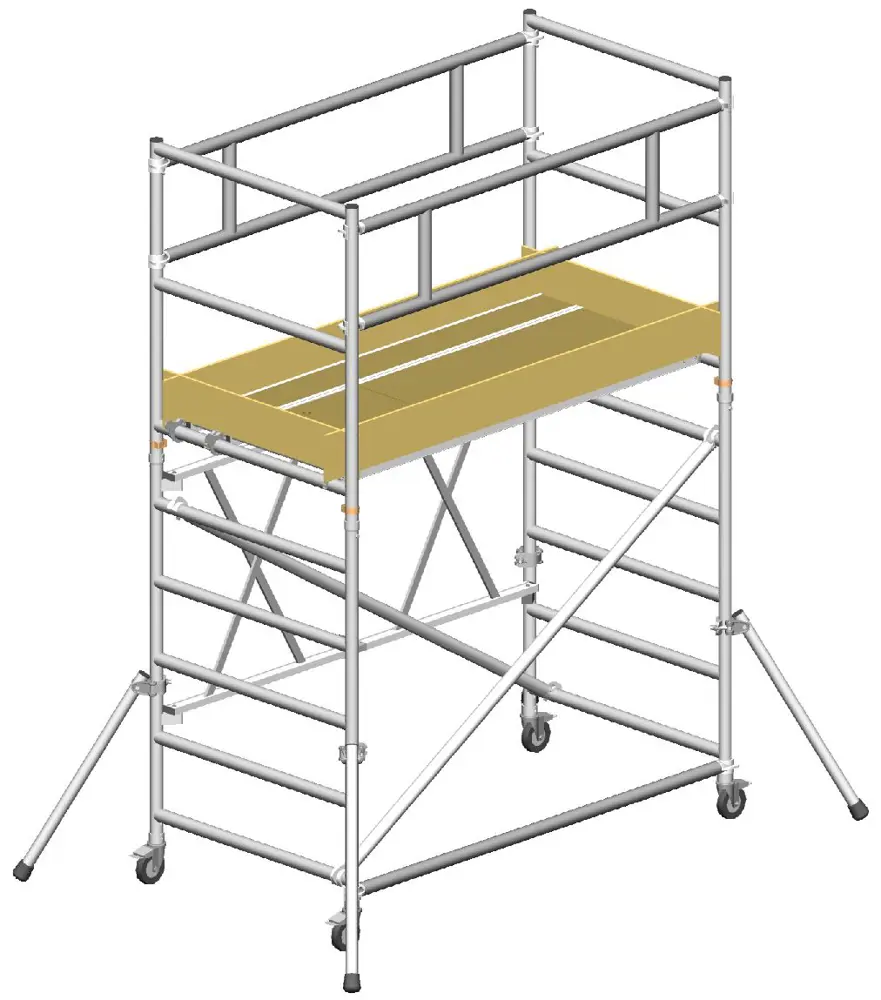

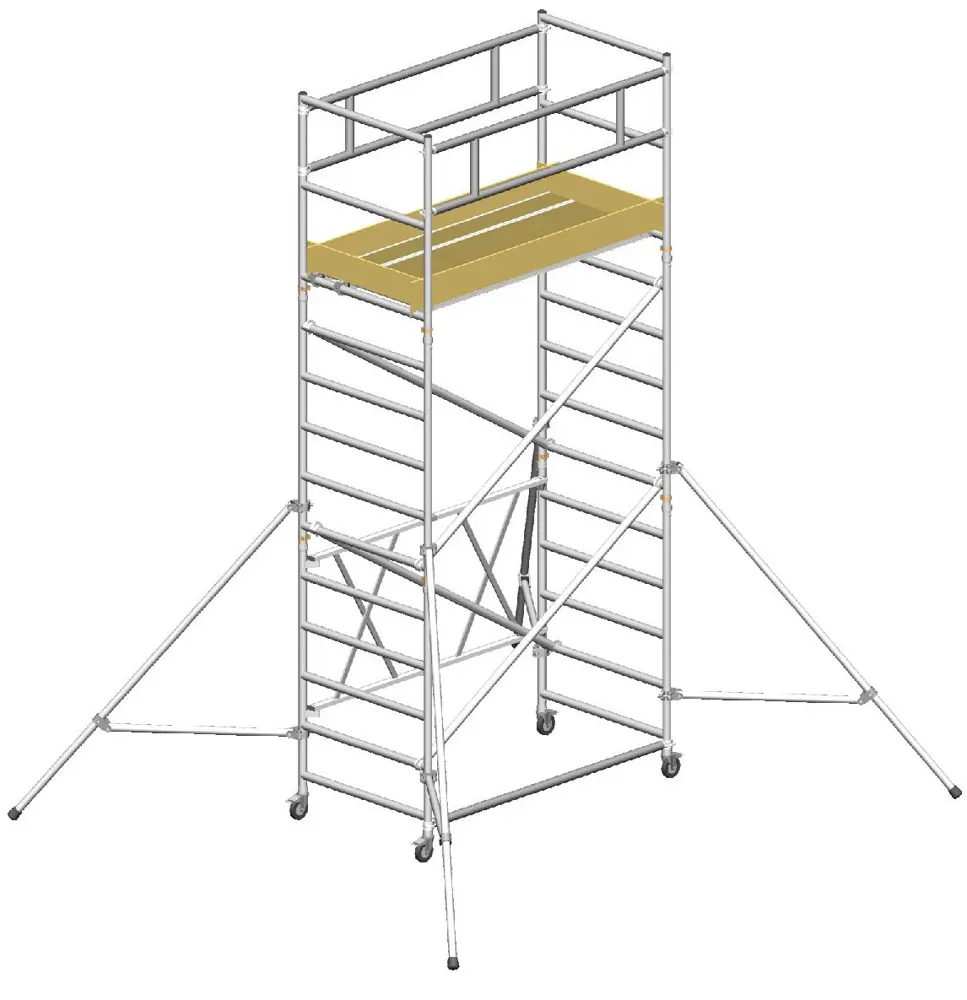

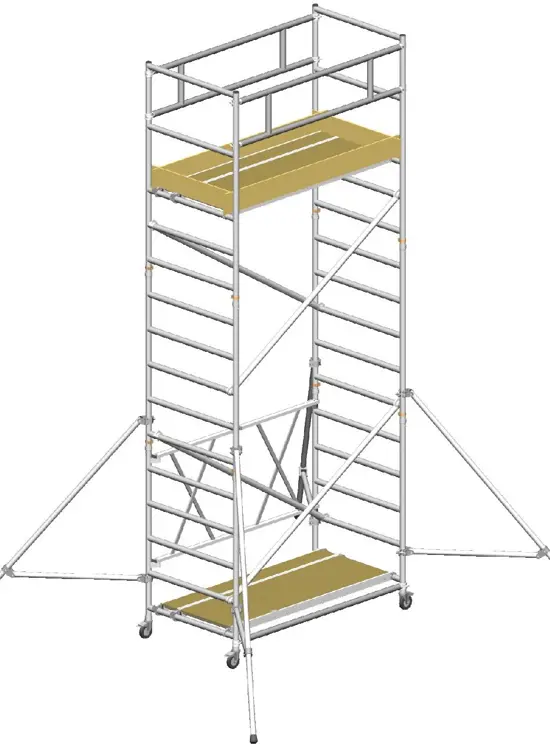

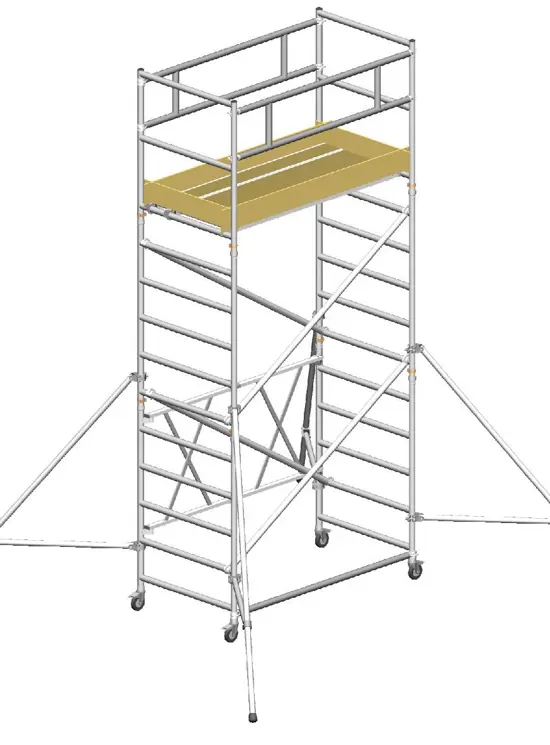

Roller Plus is an aluminium quick-opening foldable tower which can be assembled very quickly, it is composed by a base module measuring 1,70 m in height, an ending span measuring of 1,84 m and 2 intermediate spans of 1,5 and 1,8 m for a total height of 6,76 m.

Roller Plus is an aluminium quick-opening foldable tower which can be assembled very quickly.
It is composed by a base module measuring 1,70 m in height, an ending span measuring of 1,84 m and 2 intermediate spans of 1,5 and 1,8 m for a total height of 6,76 m.

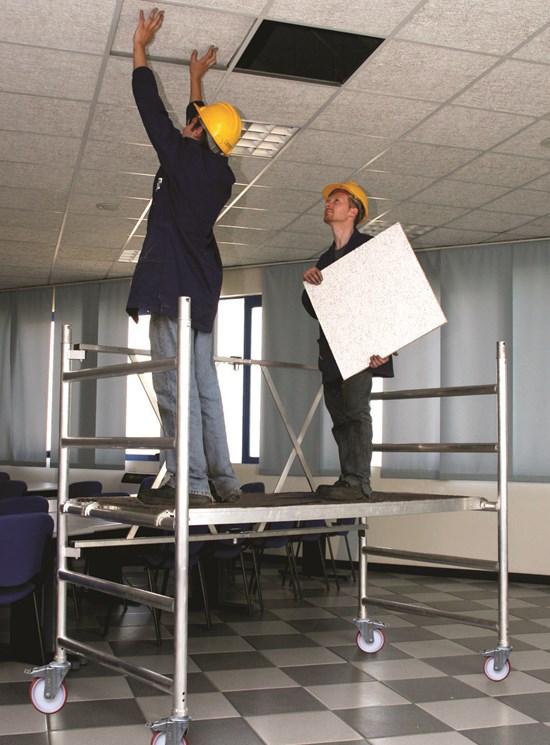

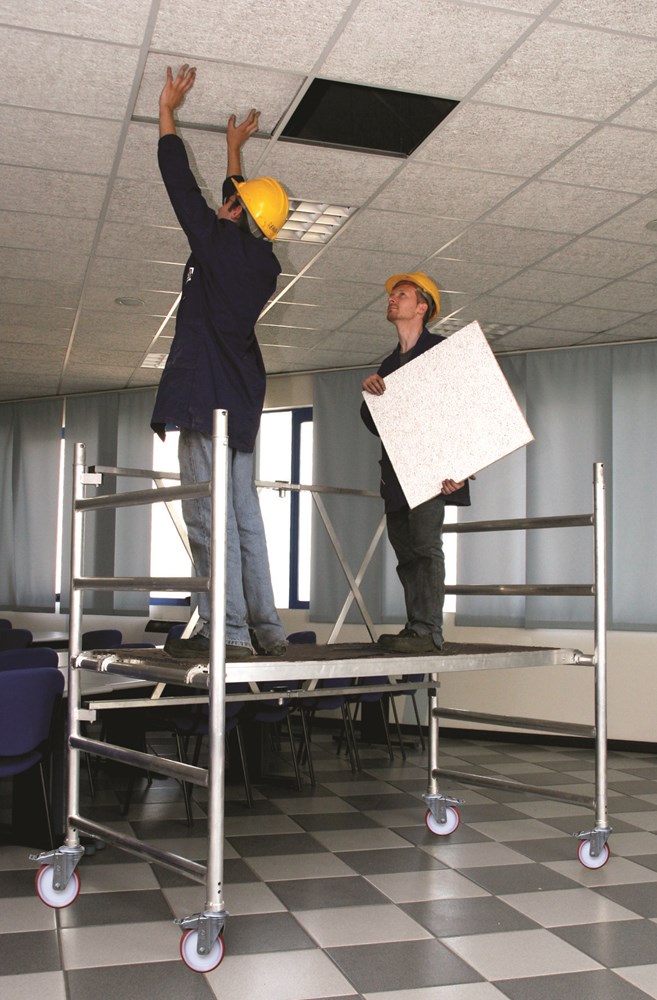

It is suitable for maintenance and walls whitening works.

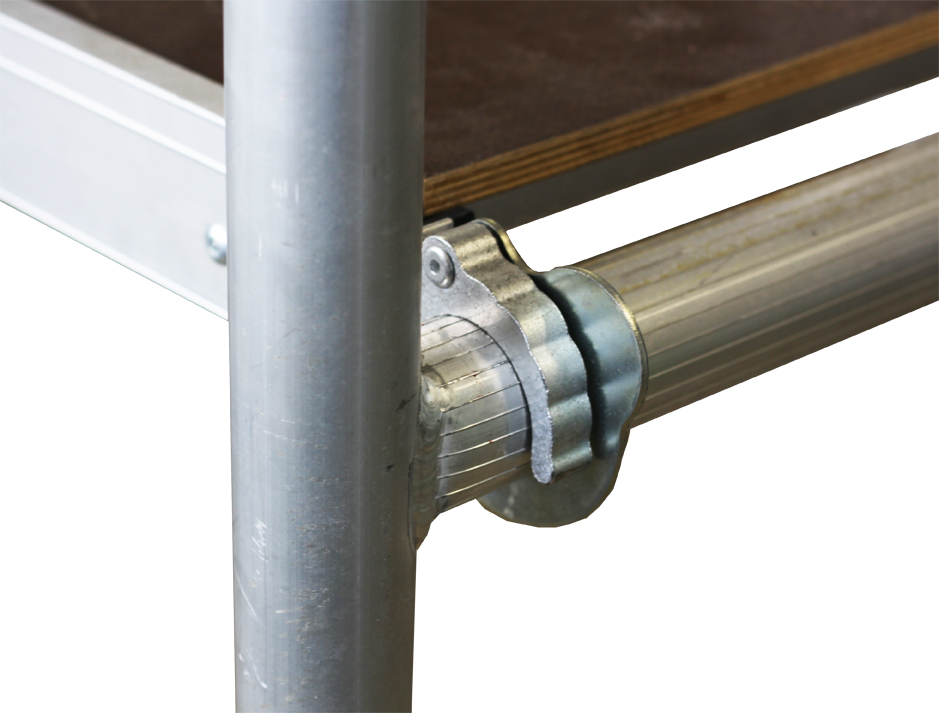

It is made of lightweight aluminium tubular alloy (Ø 50 mm) with non skid knurled rungs.

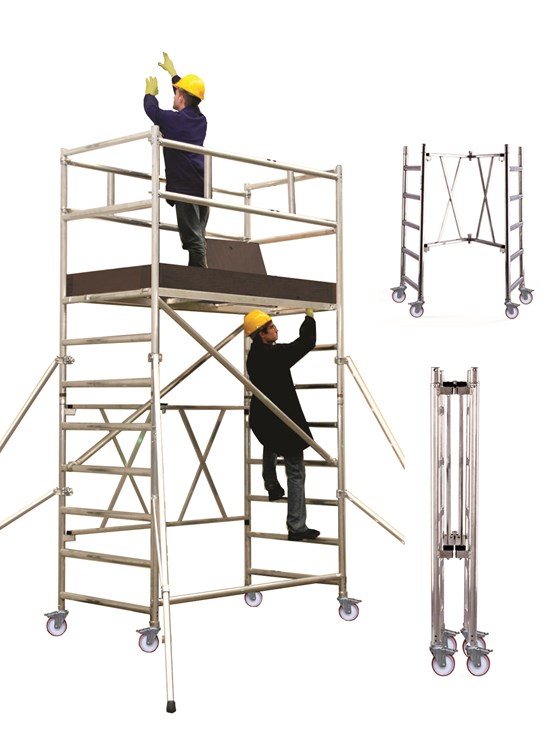

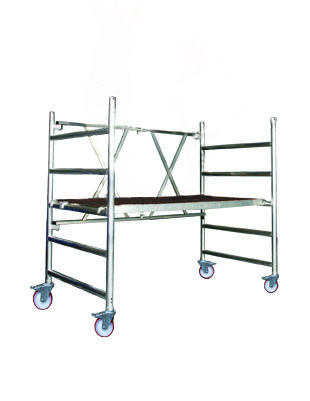

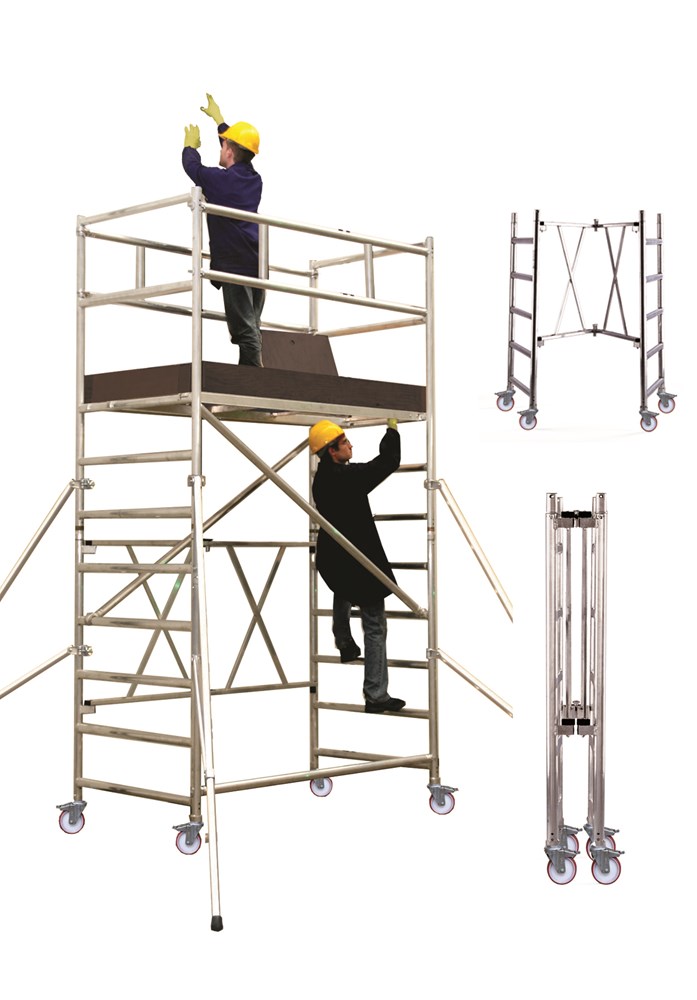

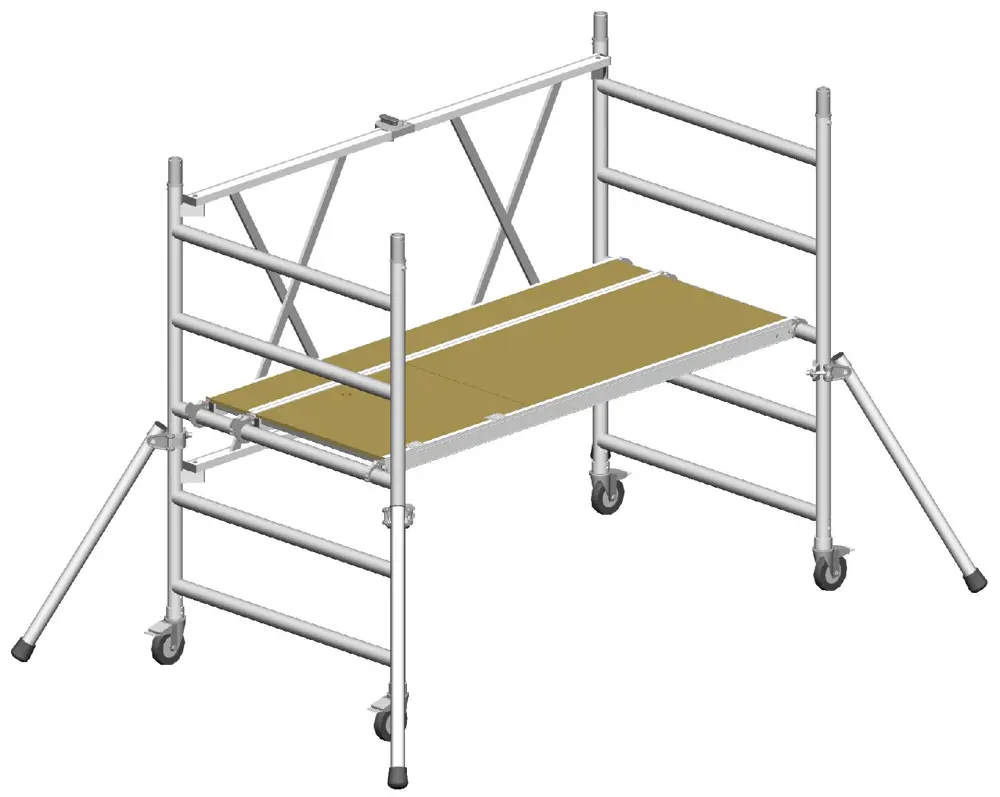

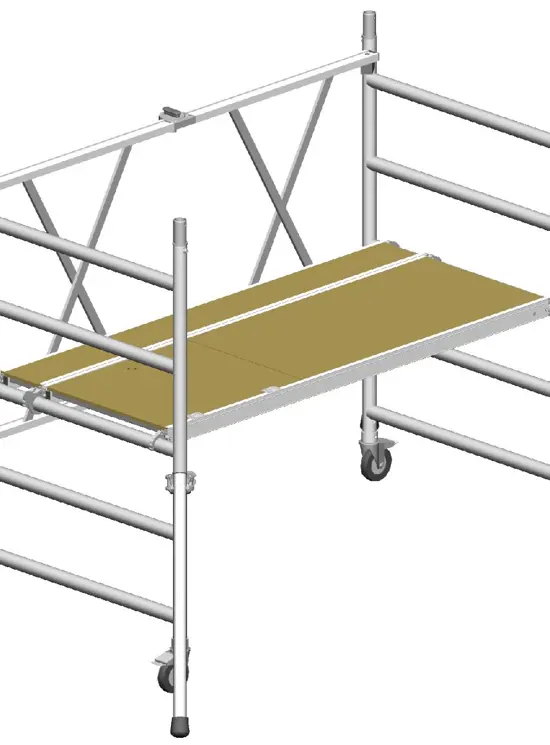

Base module is pre-assembled and can be opened very quickly to obtain working position.

Few components makes the scaffold light and very easy to be transported and to be assembled in few minutes without using tools.

Rust cannot corrode this material which is long lasting.

Packaging

The packaging of Roller Plus has been designed to allow trade distri¬bution easy and convenient storage.
Each module is separately packaged as a single item, showing clearly the content an the detailed position of it in the overall tower system.
The distributor can immediately identify and deliver the module correspon¬ding to the requested height without difficulty, allowing easy counting and checking of all required

components.

TECHNICAL FEATURES

Weight: 40 kg (base)
Height: 1,70 m (folding base)
Working height: 2,90 m (base)
Overall dimensions: 2,00 x 1,05 m
Working platform with trapdoor: 1,86 x 0,80 m (16,5 kg)
Non skid rung distance: 30 cm
4 braked castors: ø 125 mm
Capacity: 200 kg/m² (including 2 people)
Roller Plus is equipped with instruction manual and labels
All components are marked with year of production and Svelt logo.

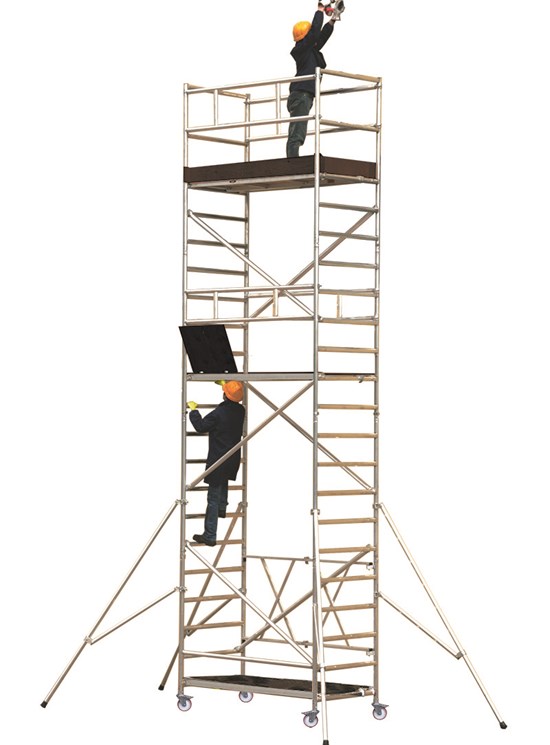

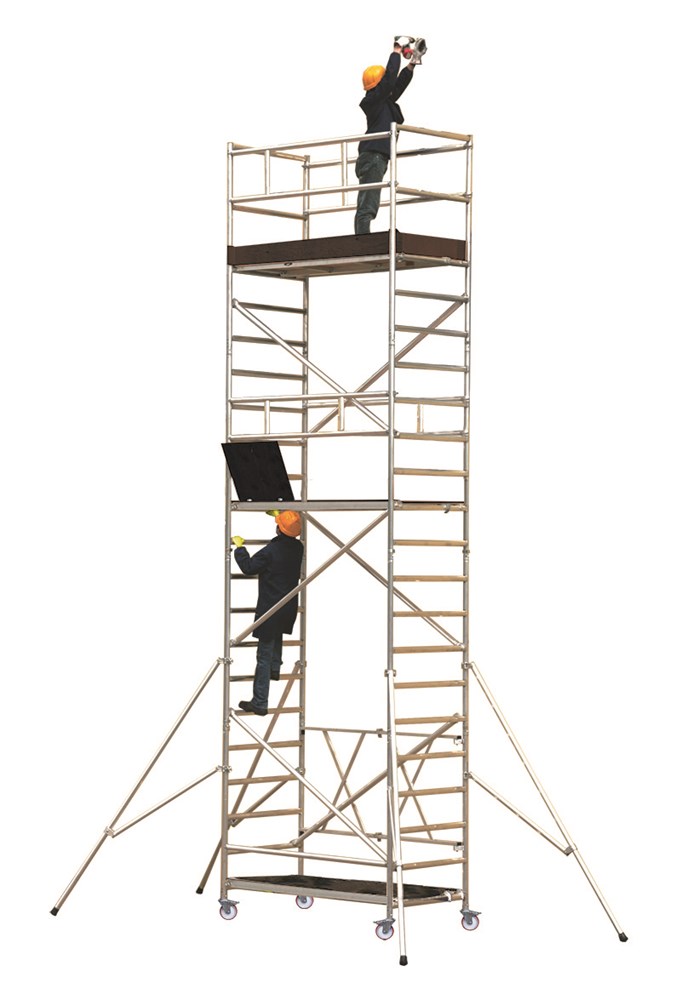

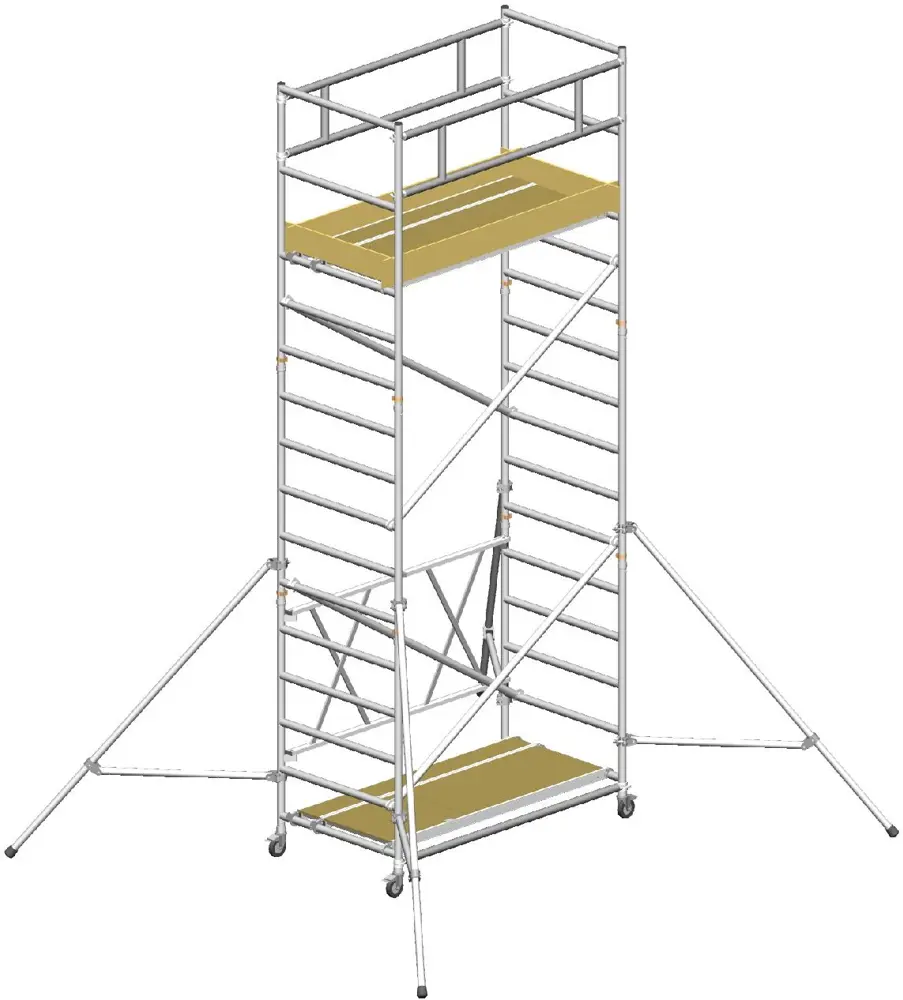

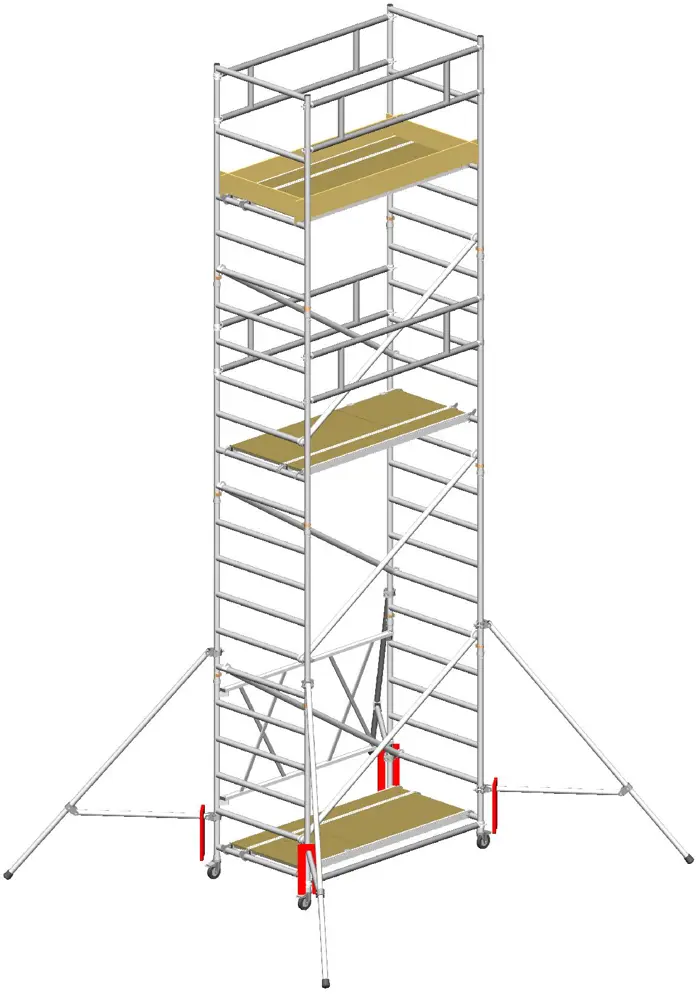

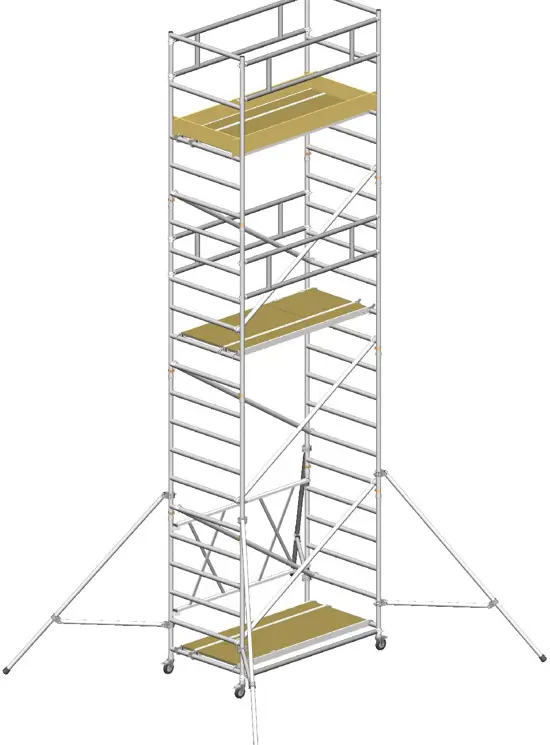

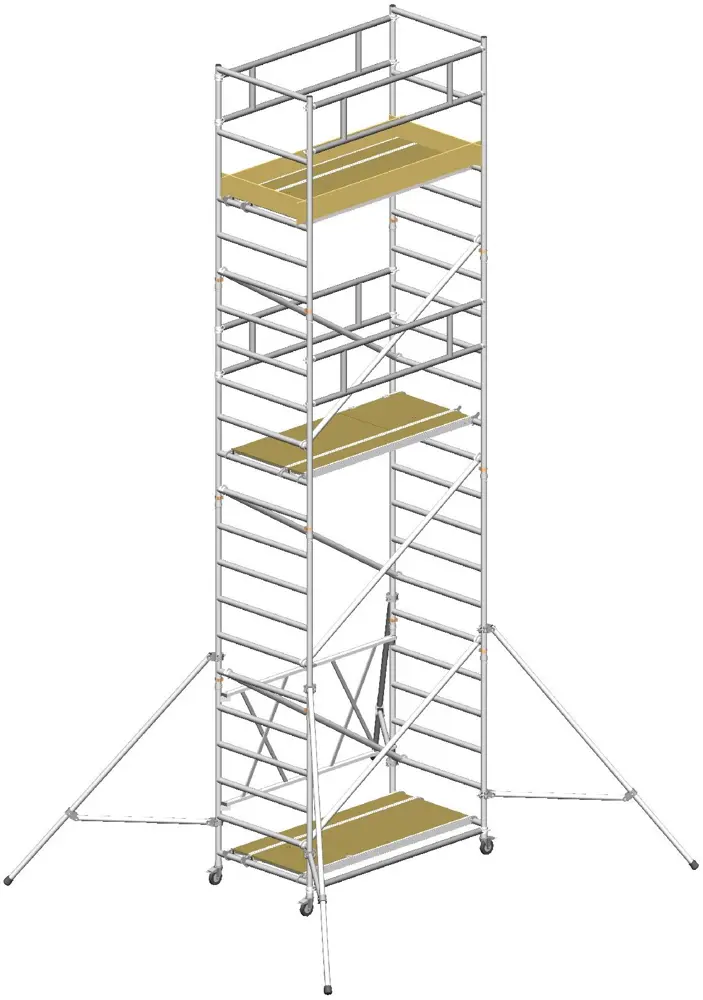

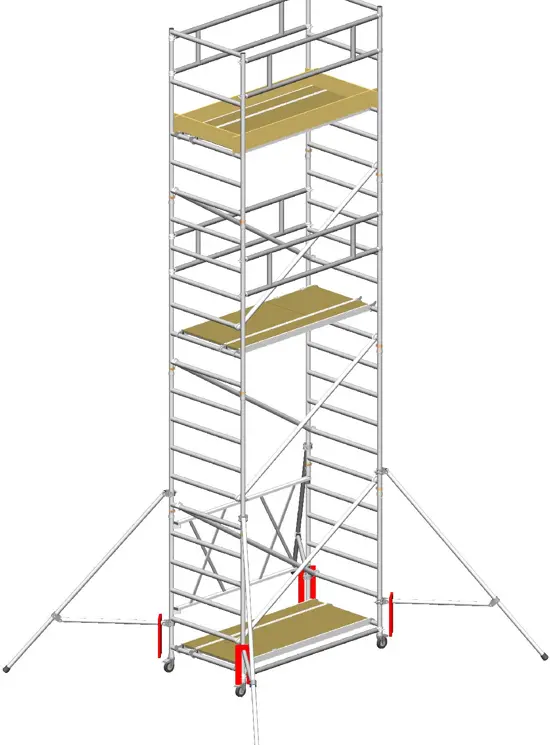

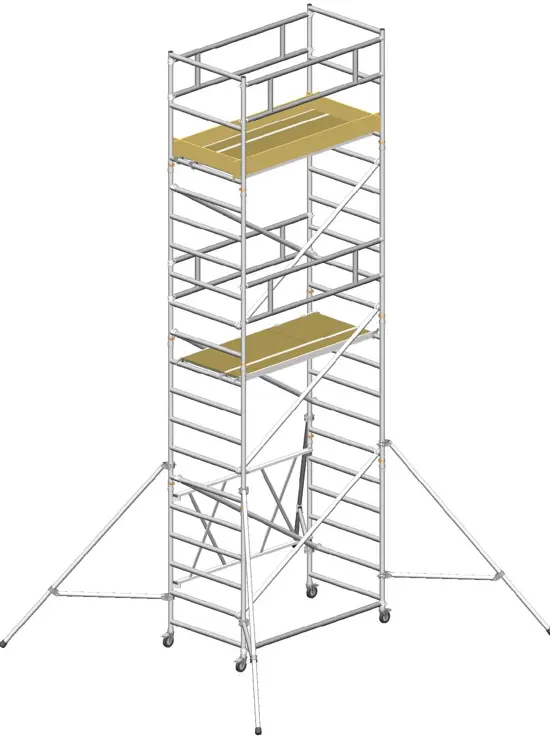

Roller Plus can be extended up to a maximum height of 6,76 m.

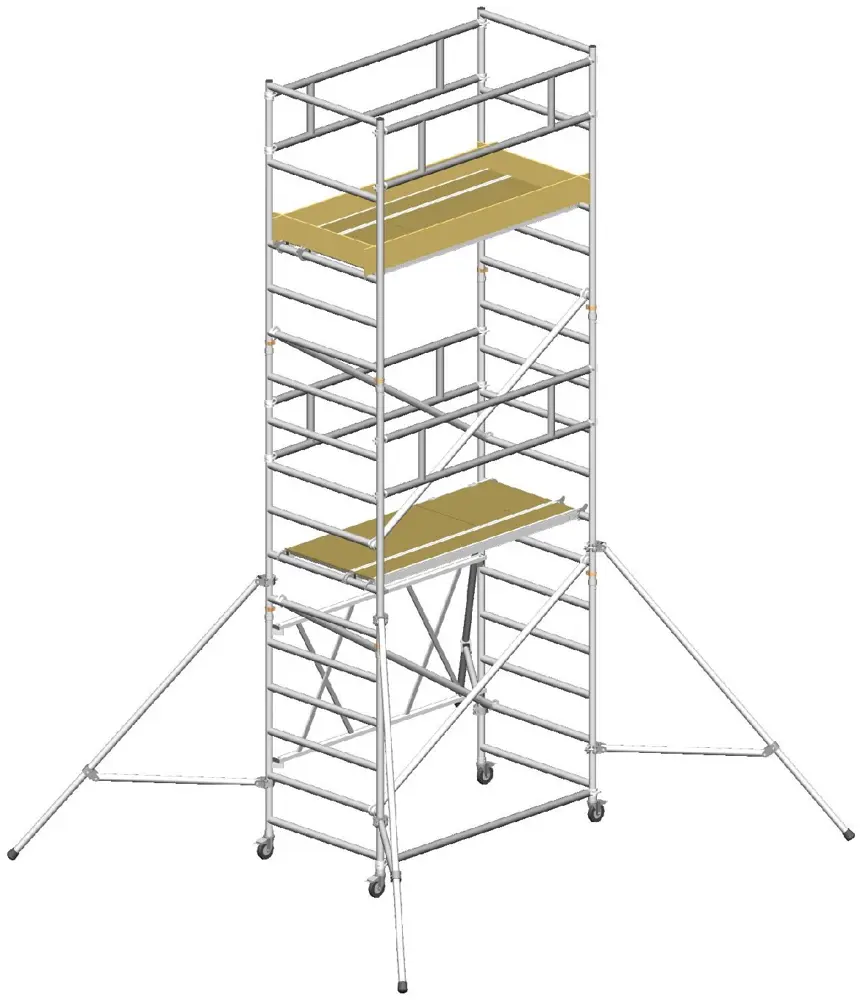

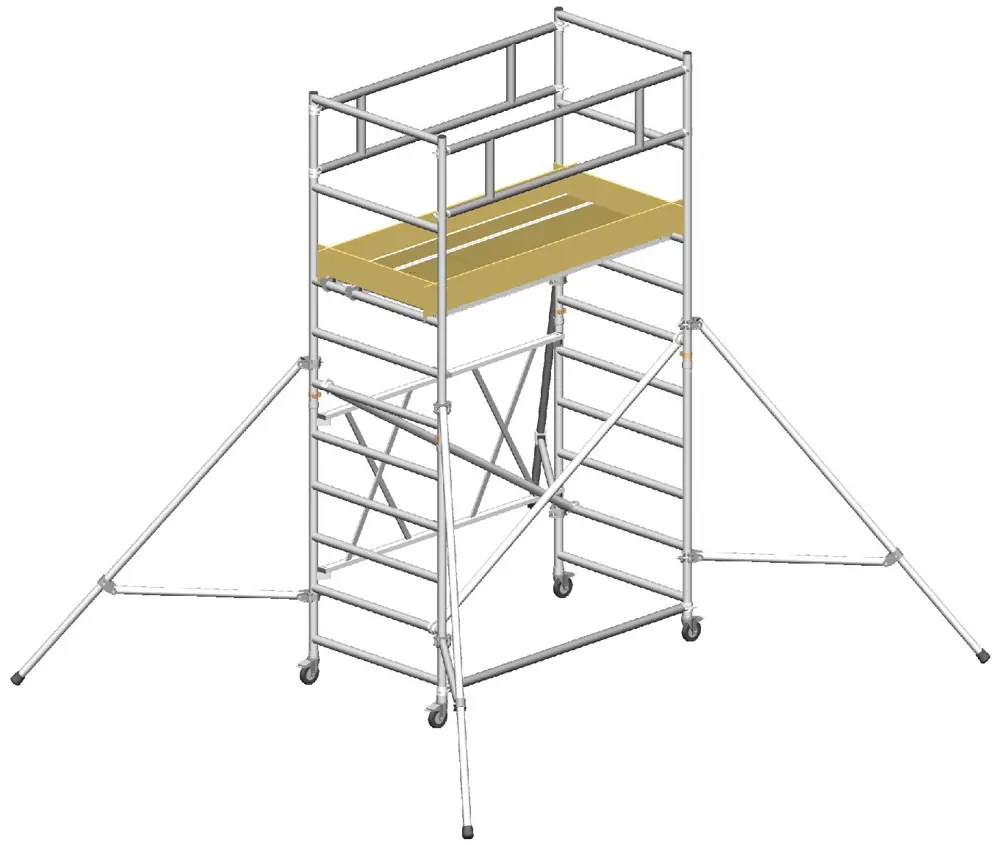

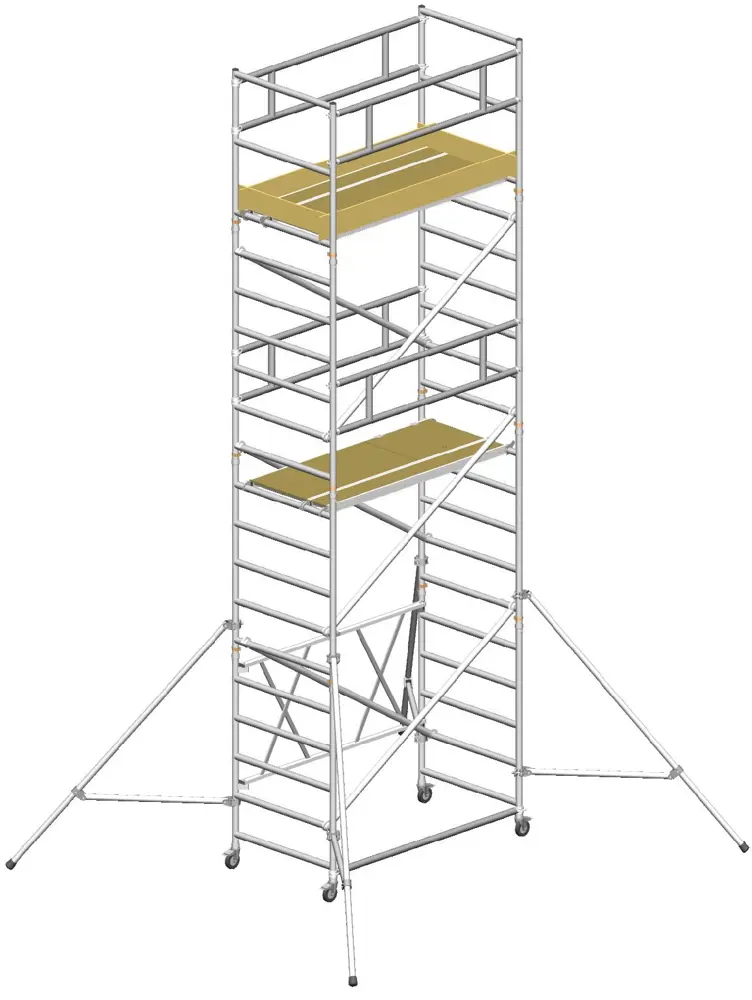

After the module C which brings Roller Plus to 4,96 m it is possible to add the last module D starting from 1,80 m to finish to the maximum height of 6,76 m (working height of 7,76 m). Frames with rung distance of 30 cm allow the safe passage of the user onto each working platform (conforming to European Standards), without using any inner ladder.
