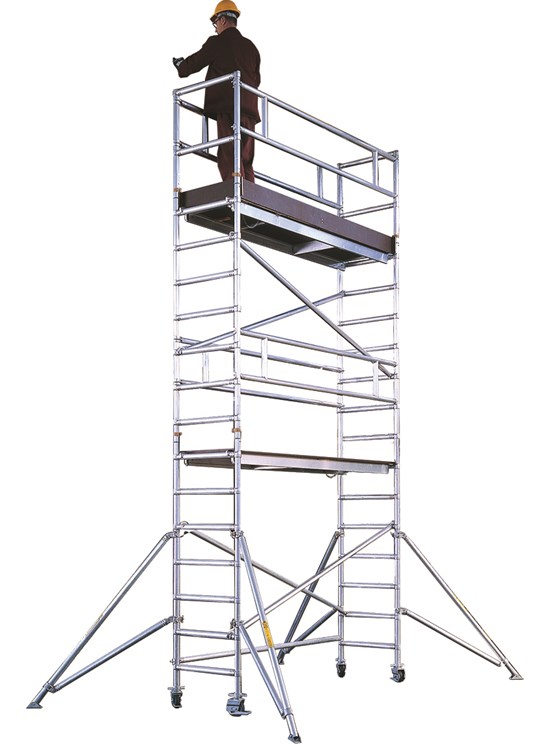

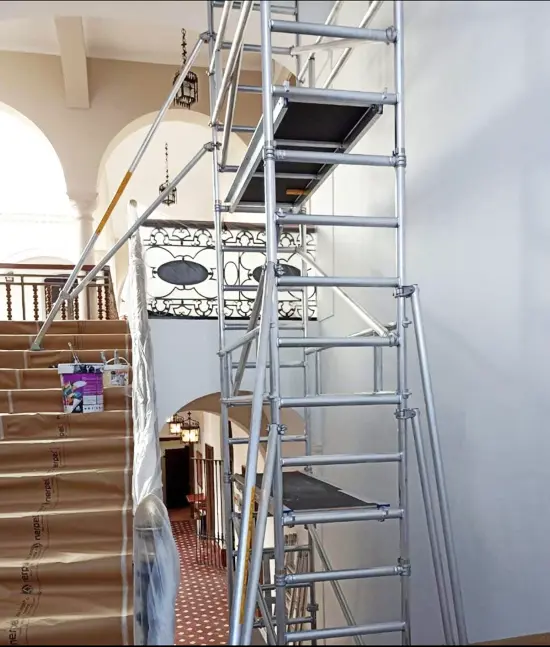

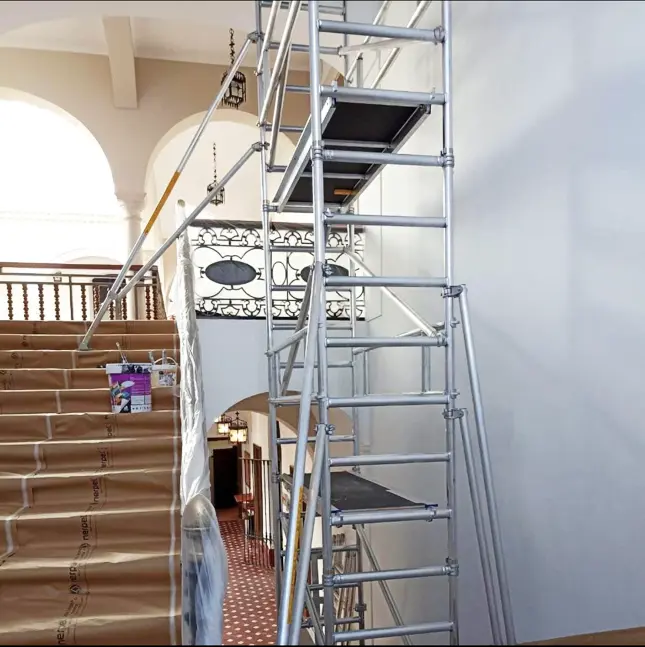

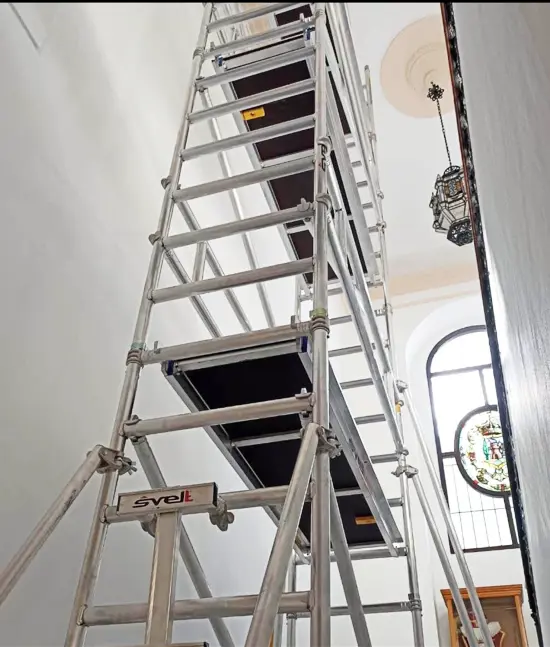

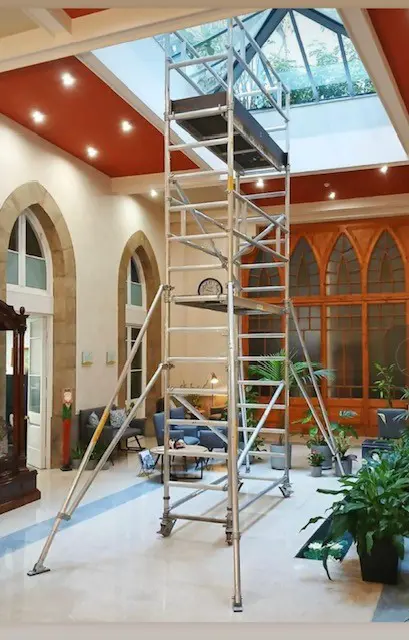

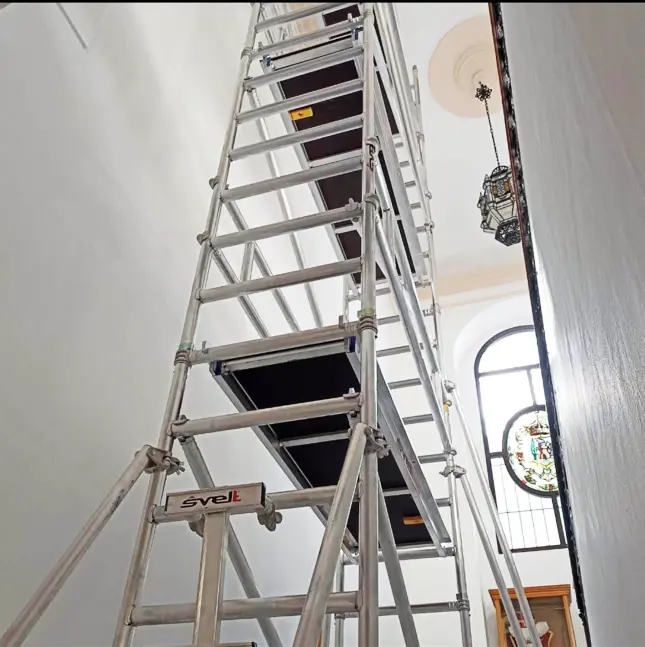

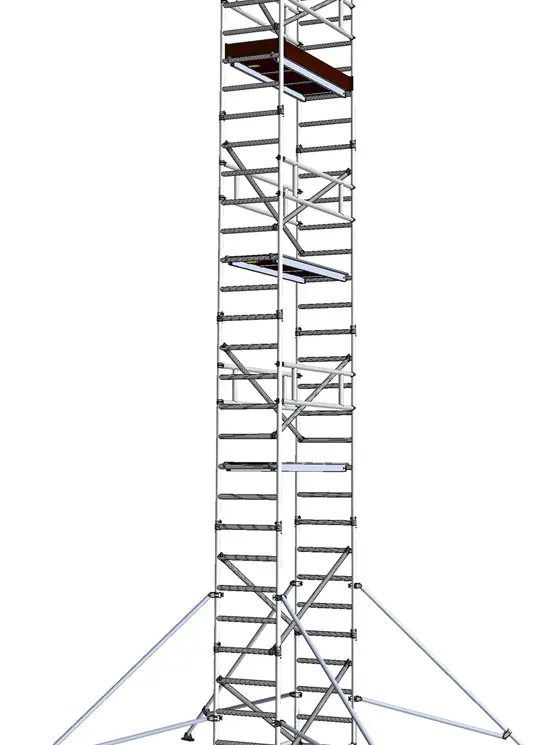

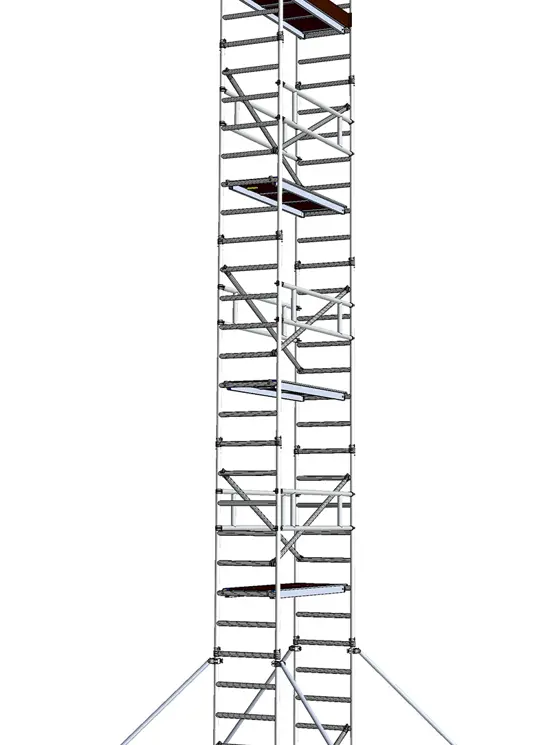

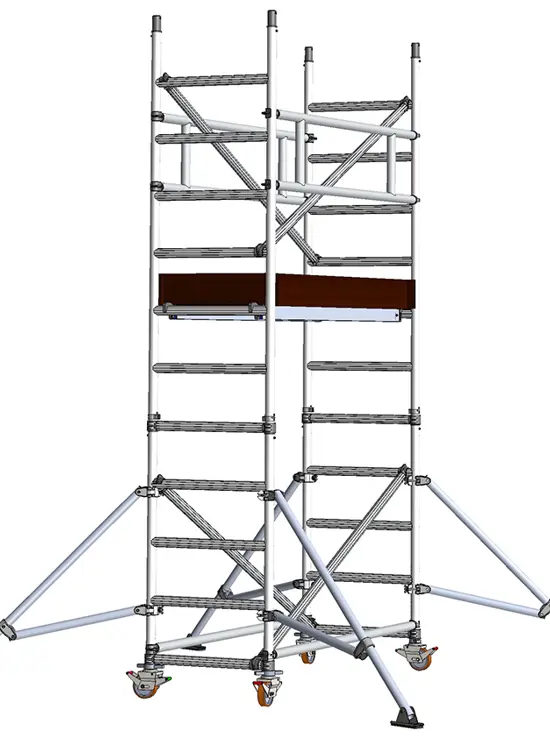

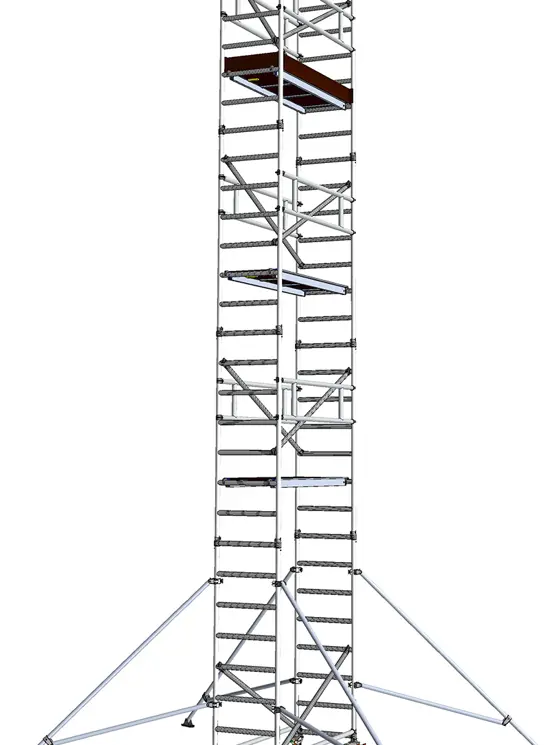

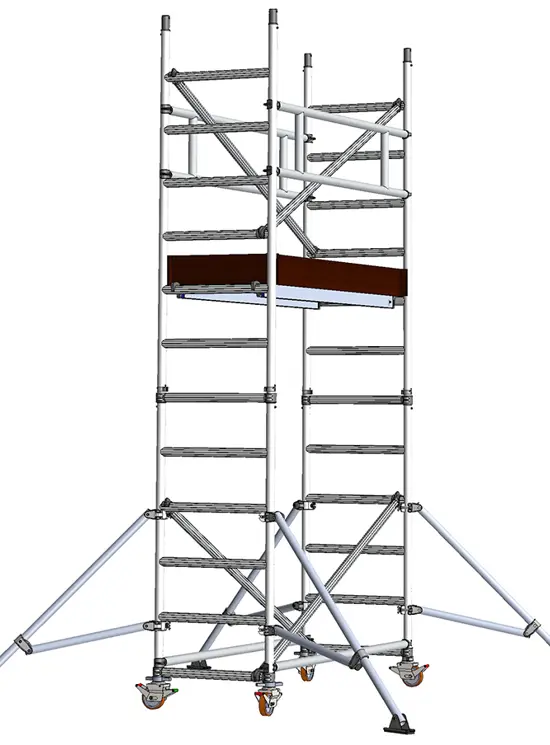

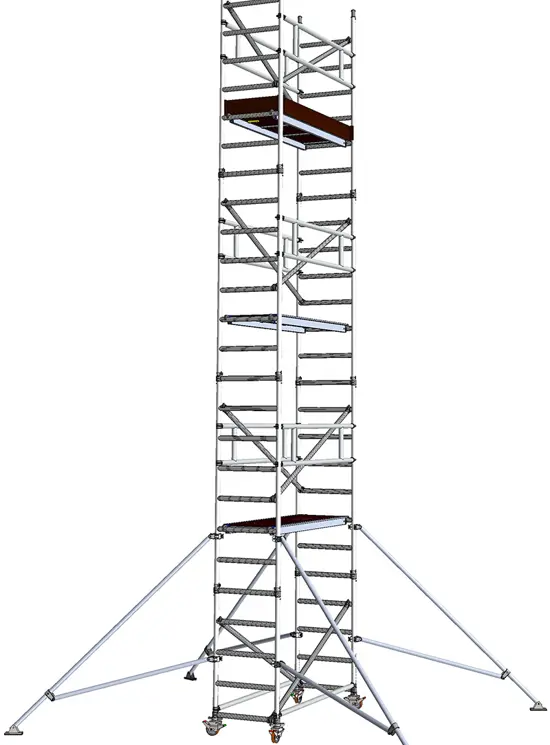

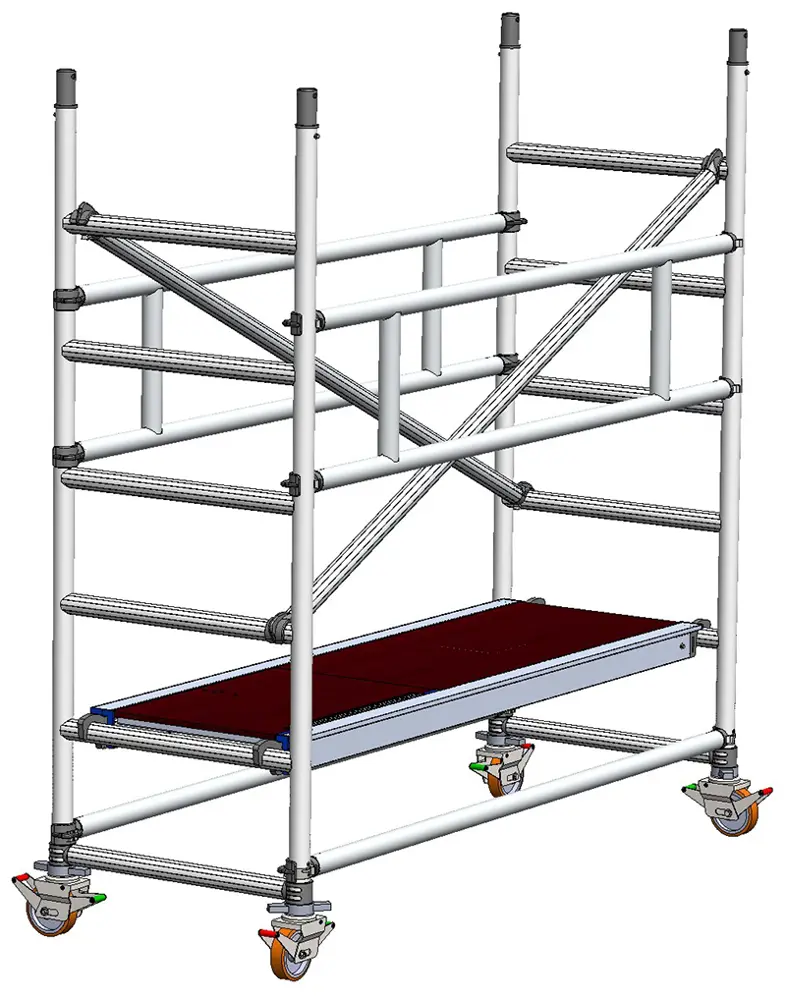

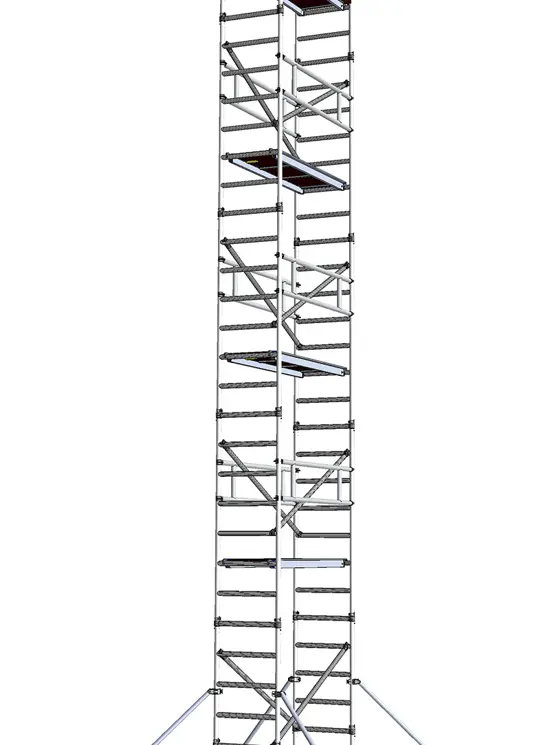

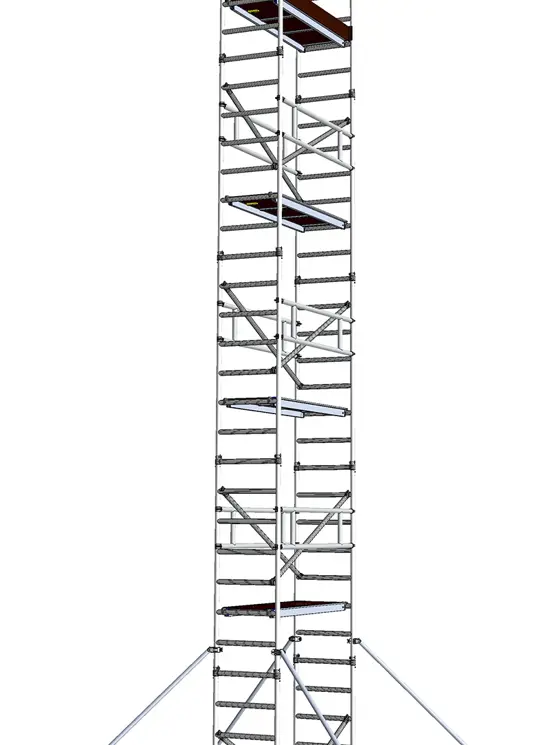

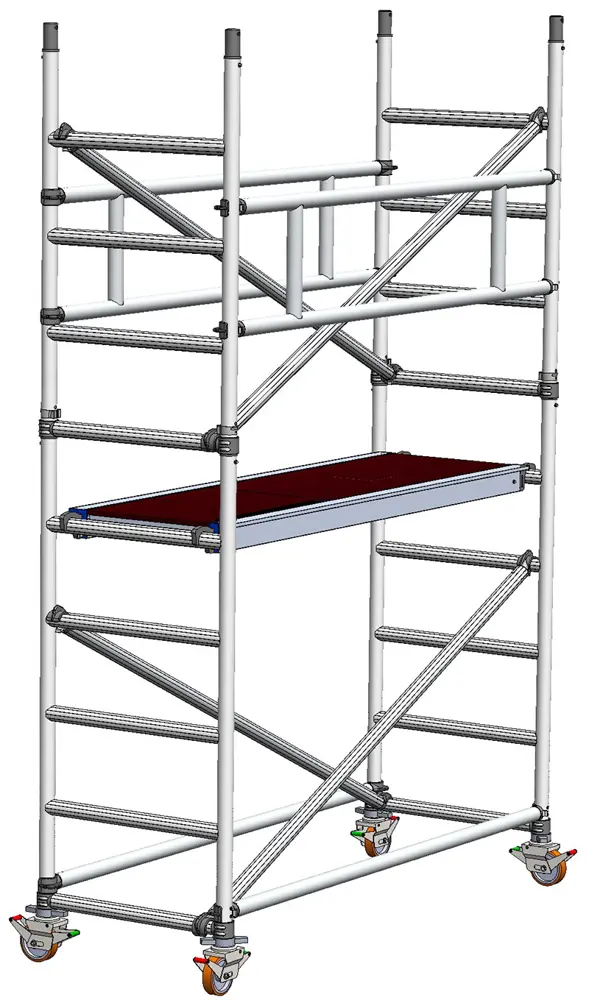

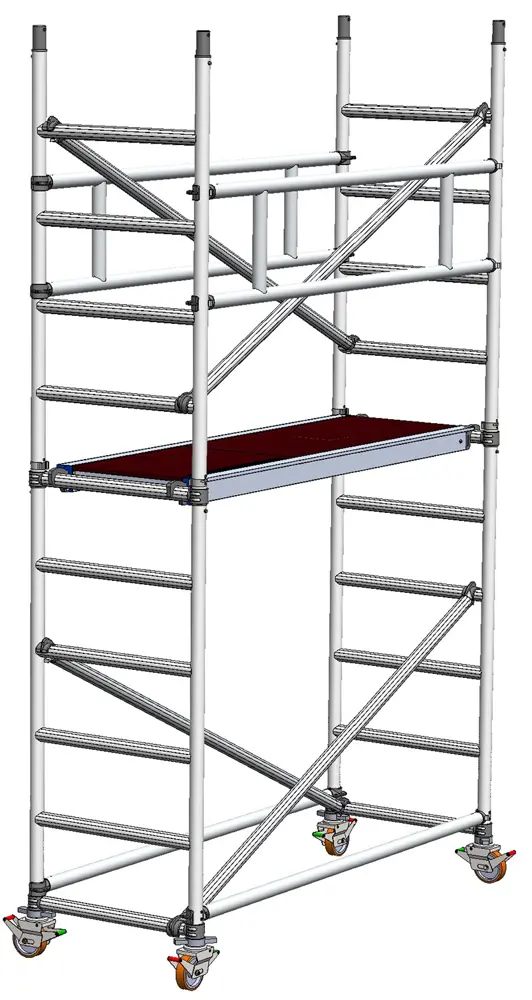

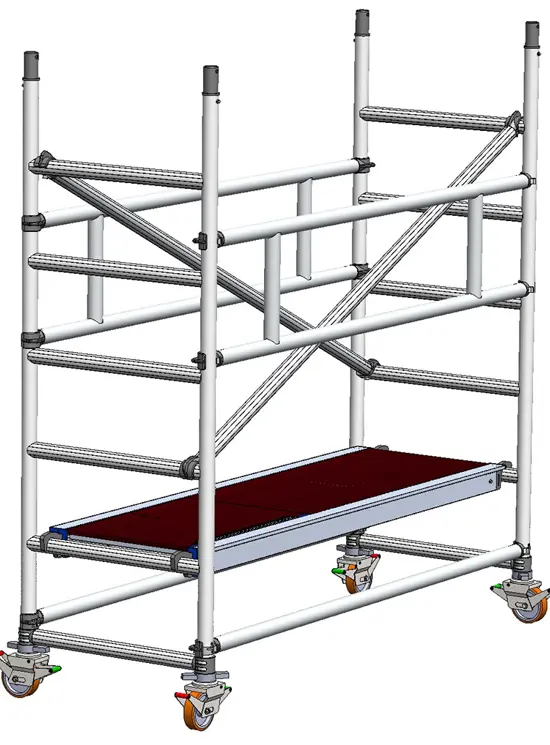

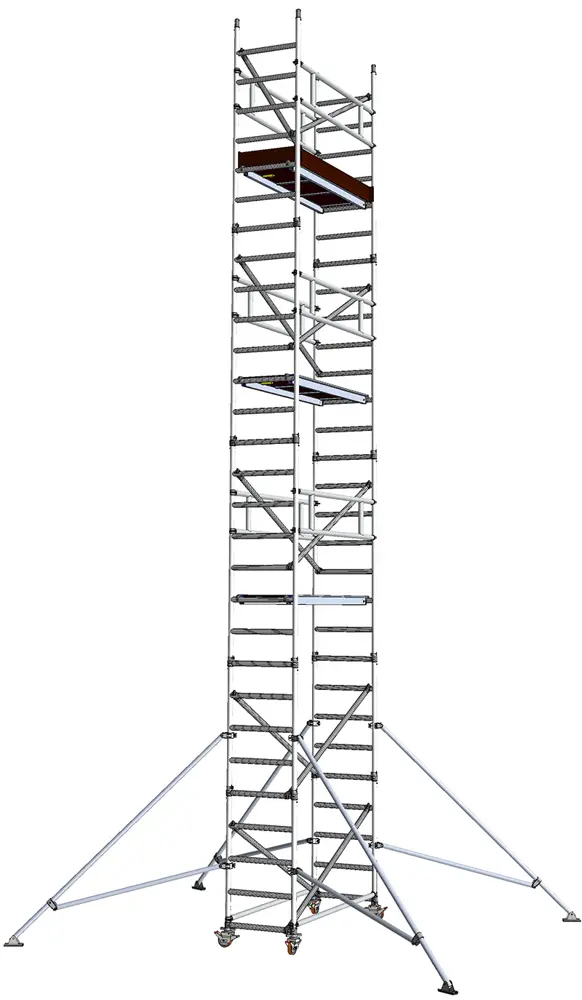

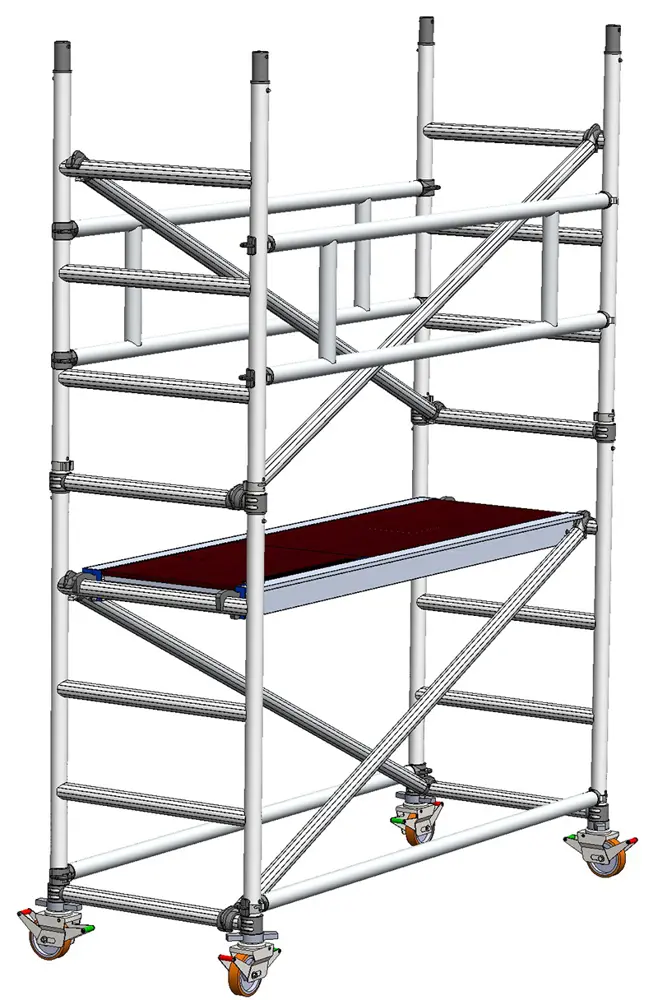

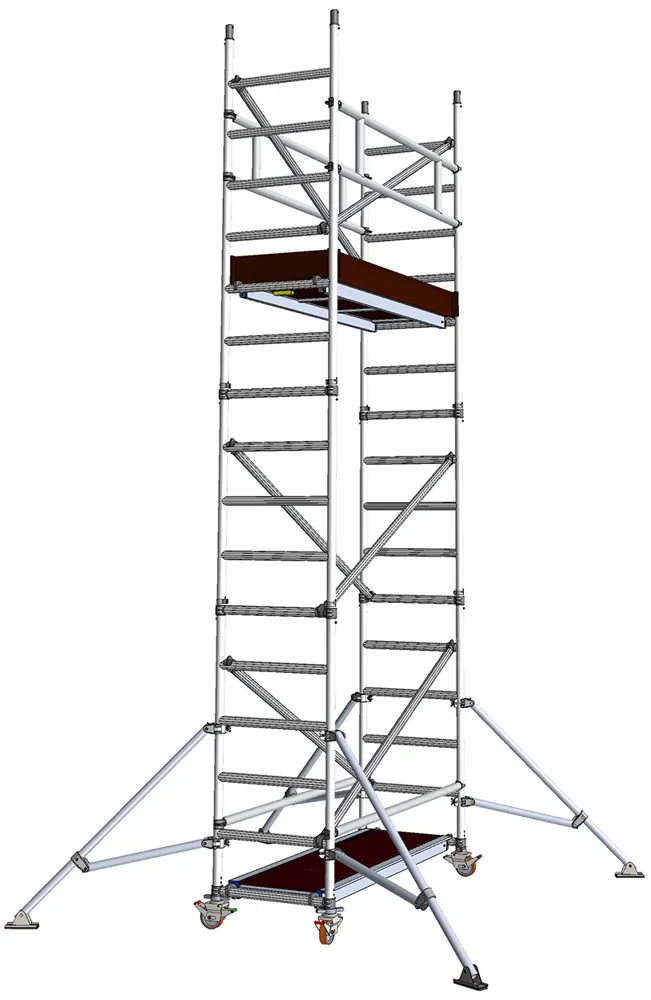

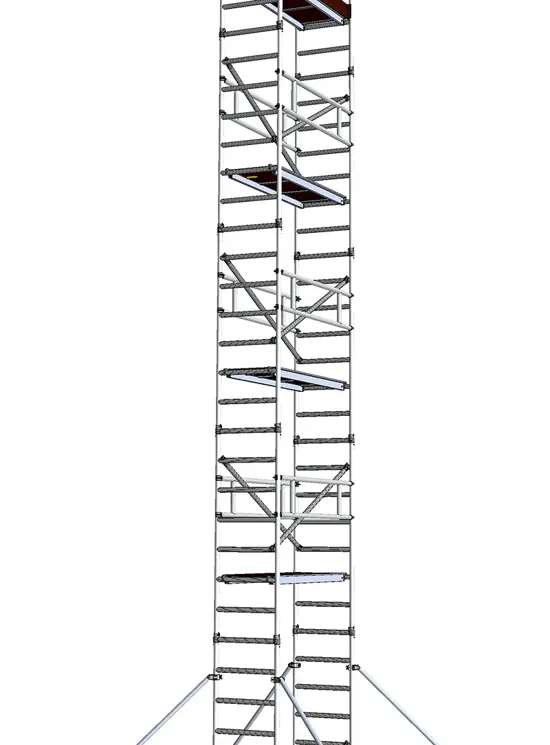

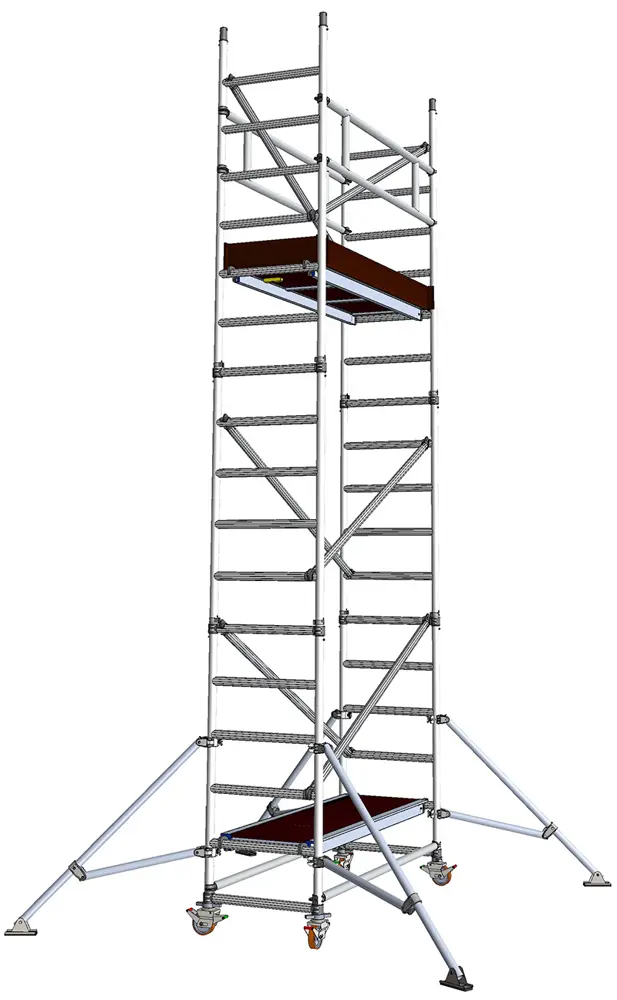

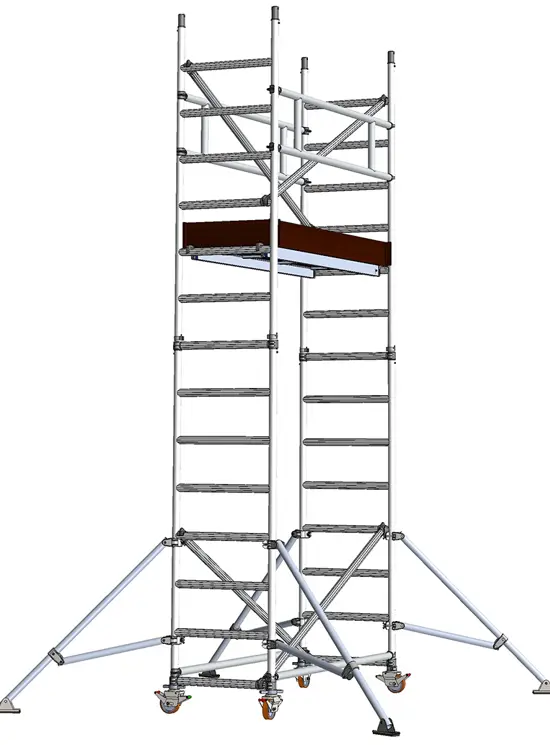

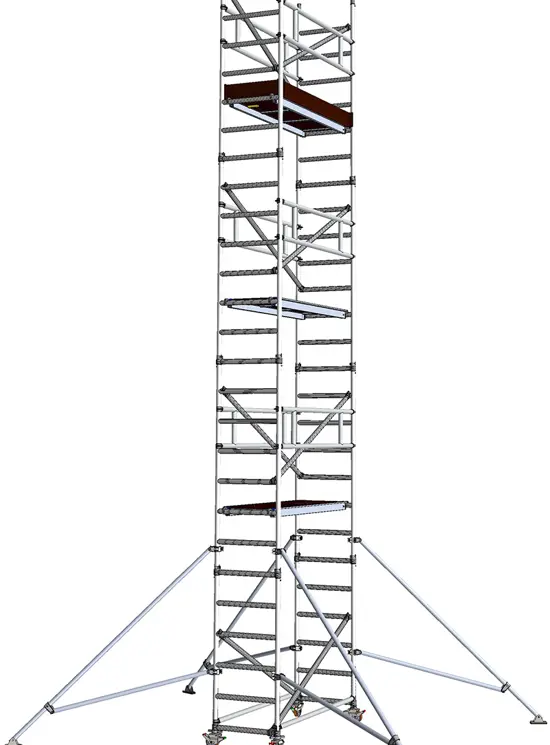

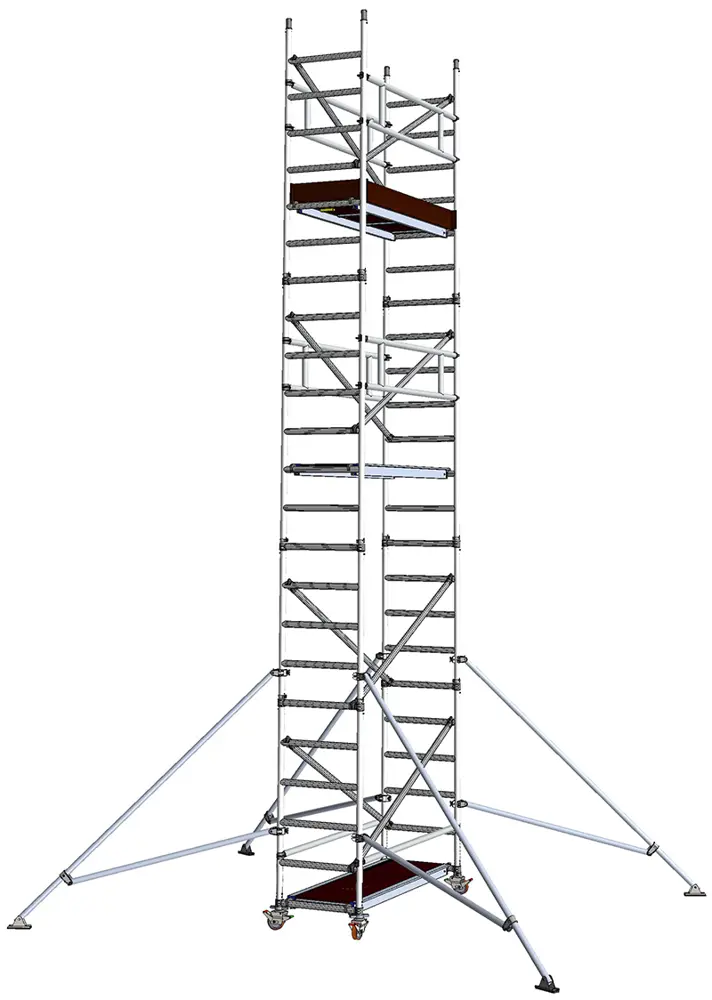

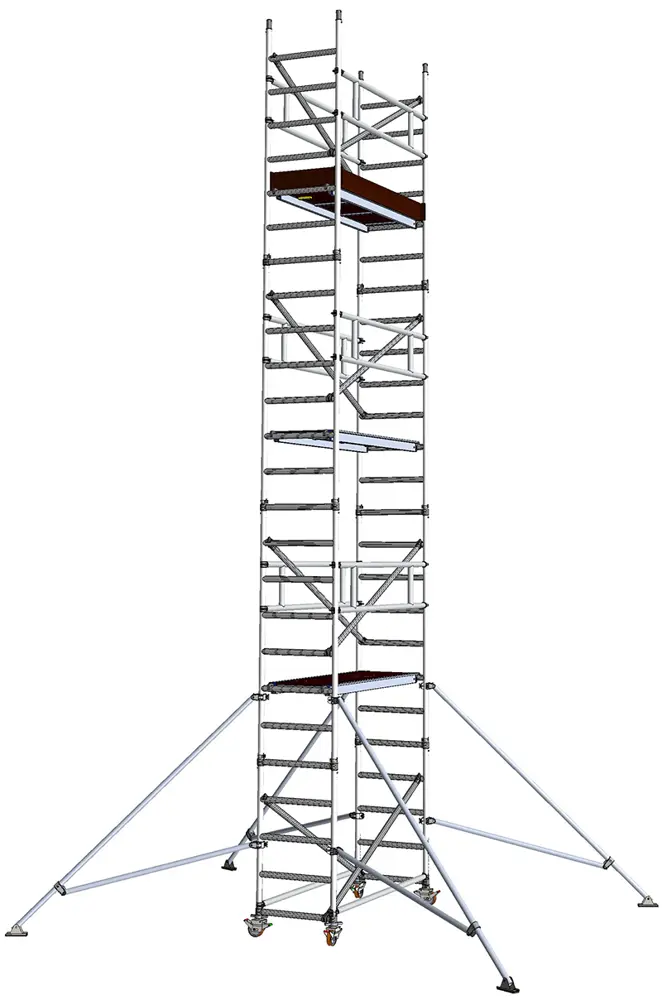

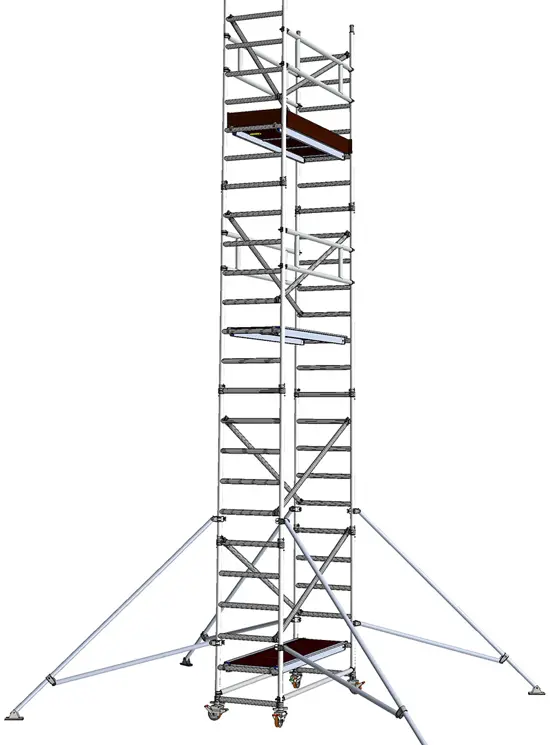

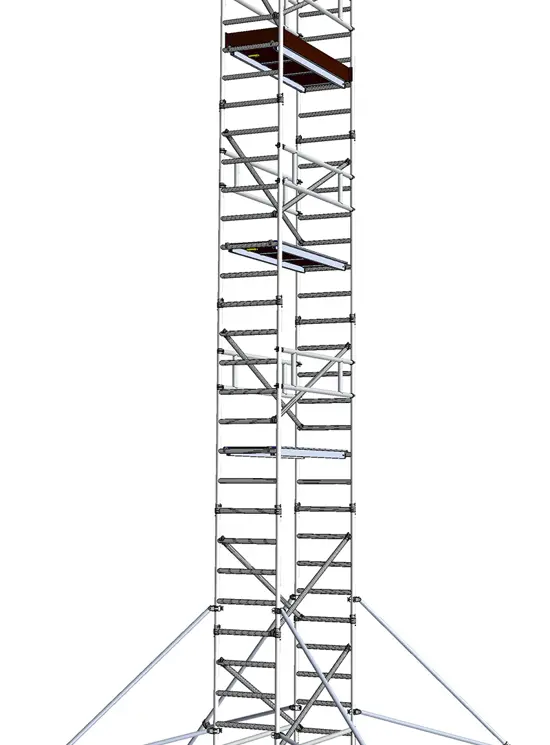

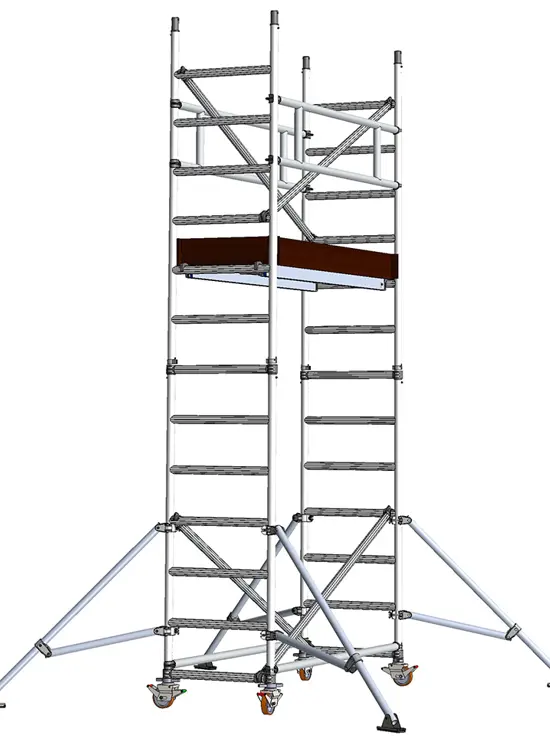

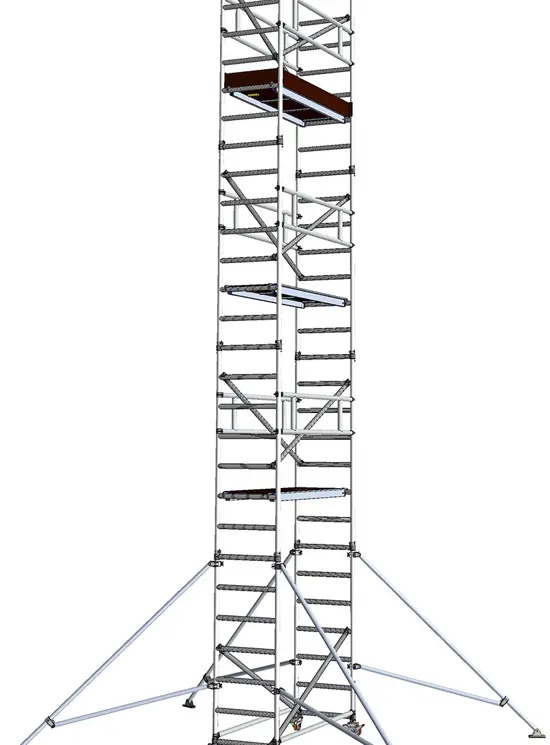

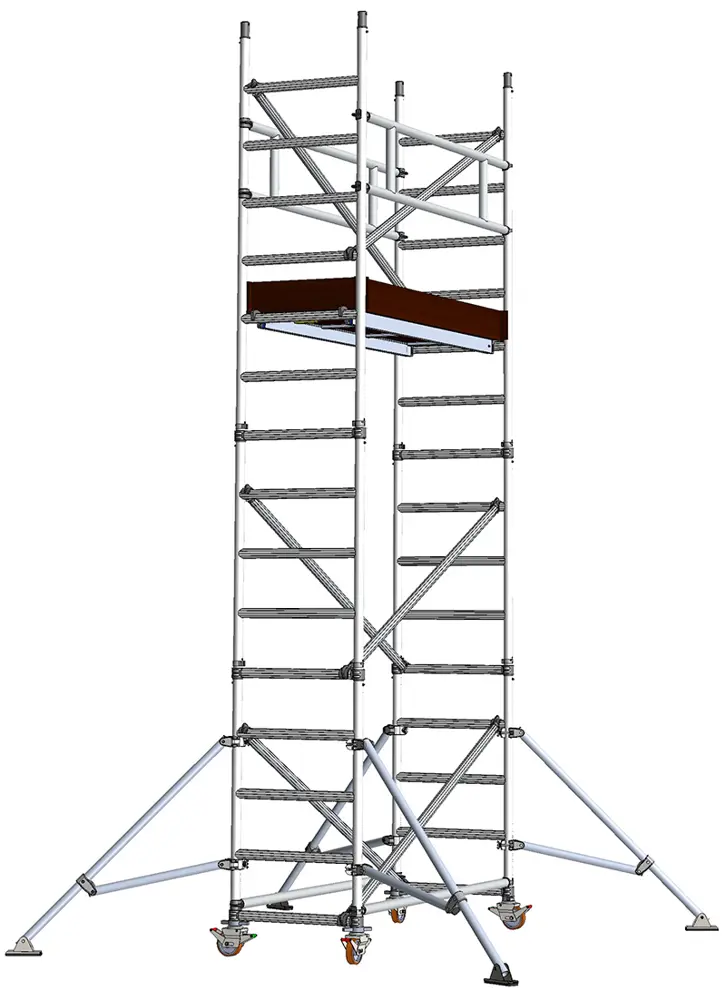

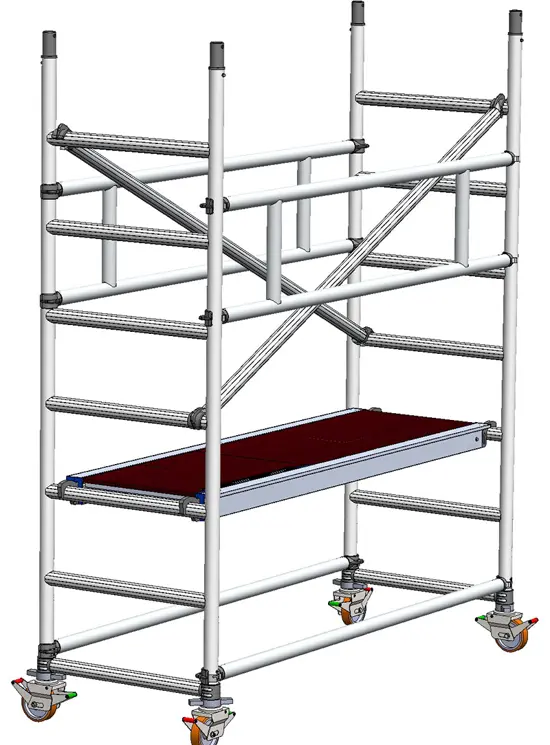

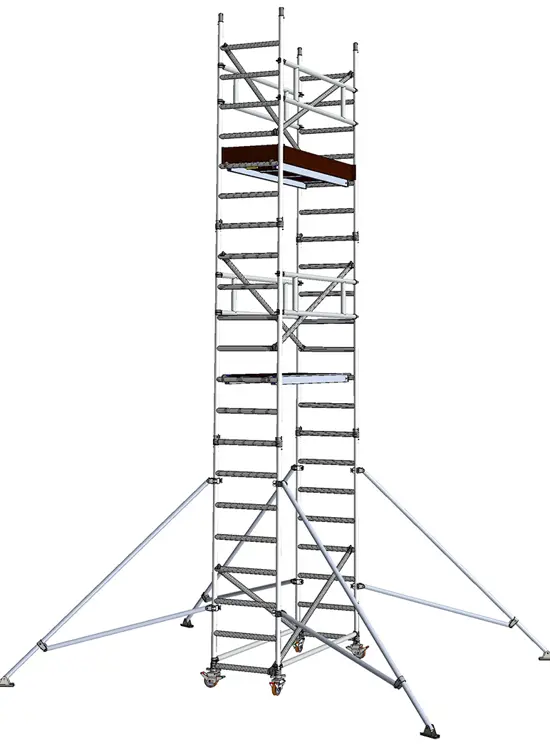

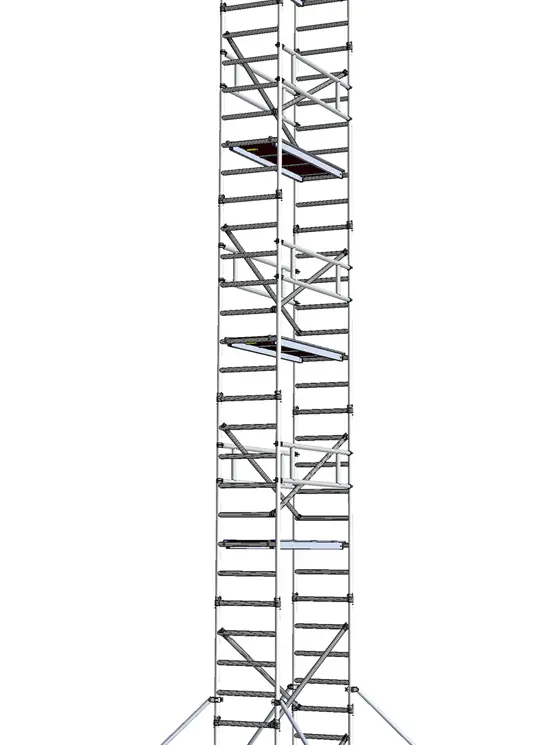

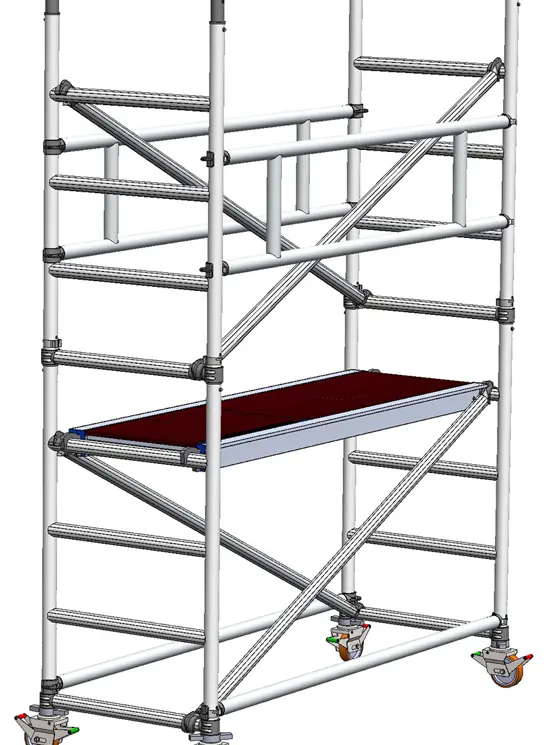

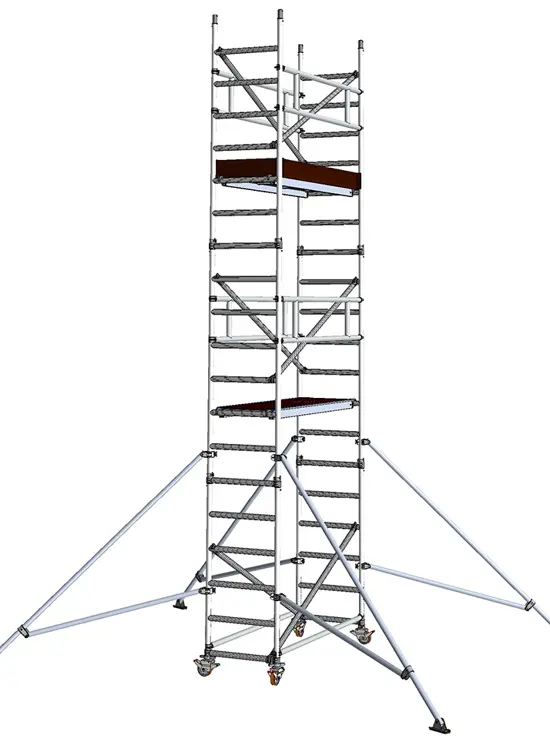

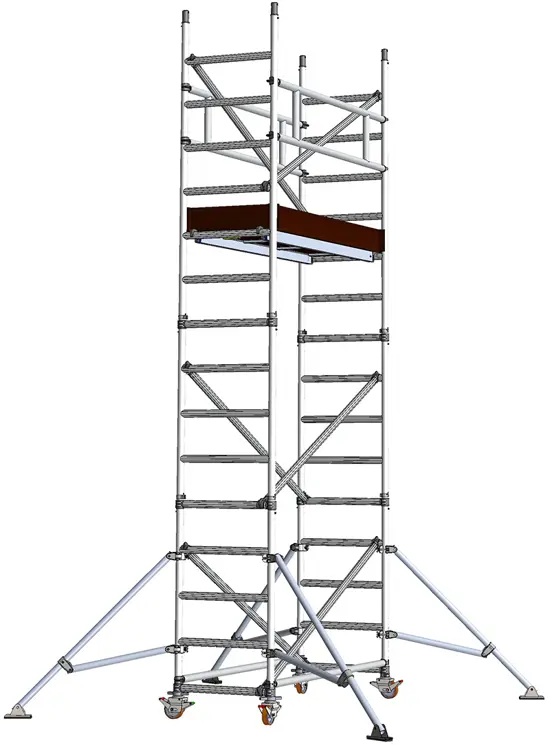

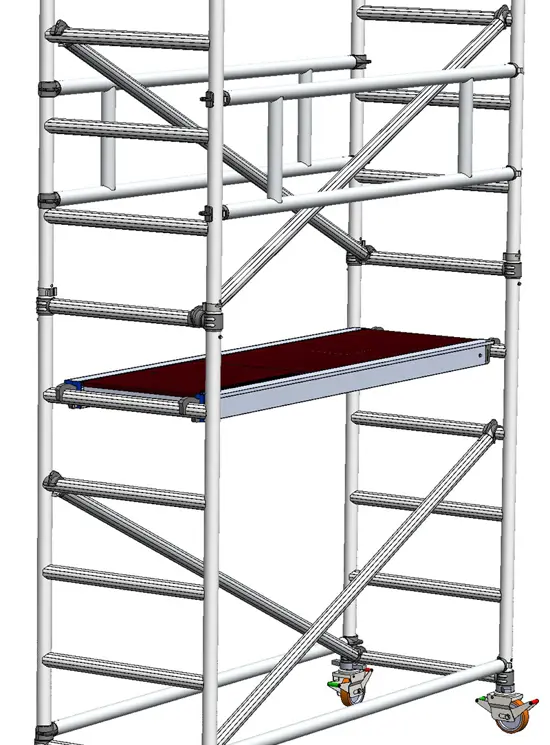

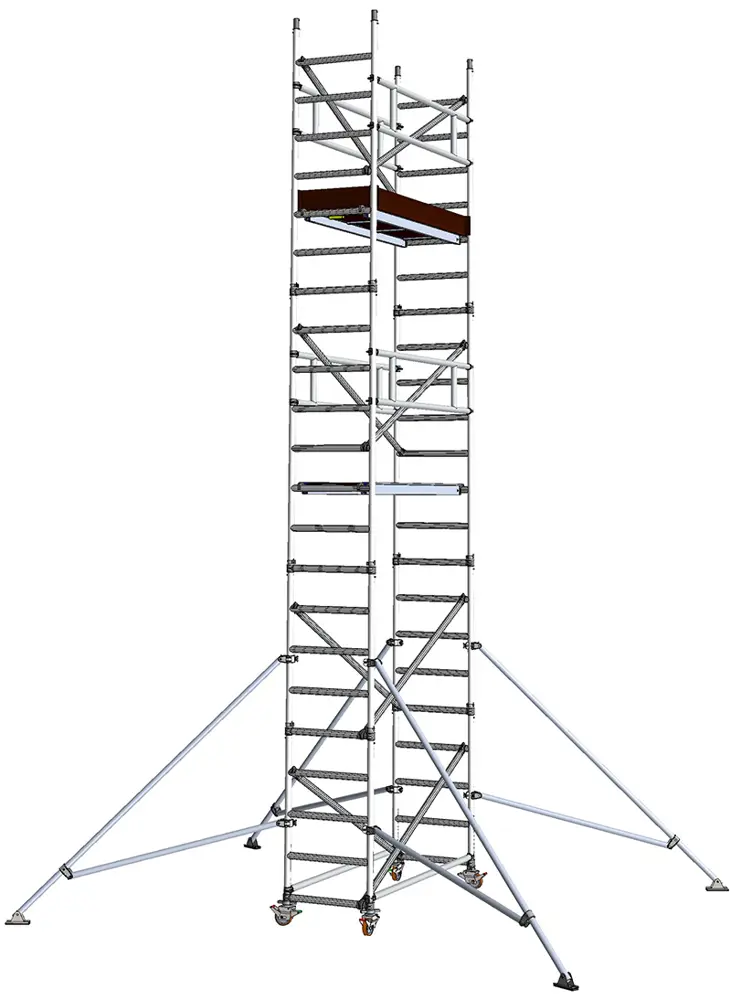

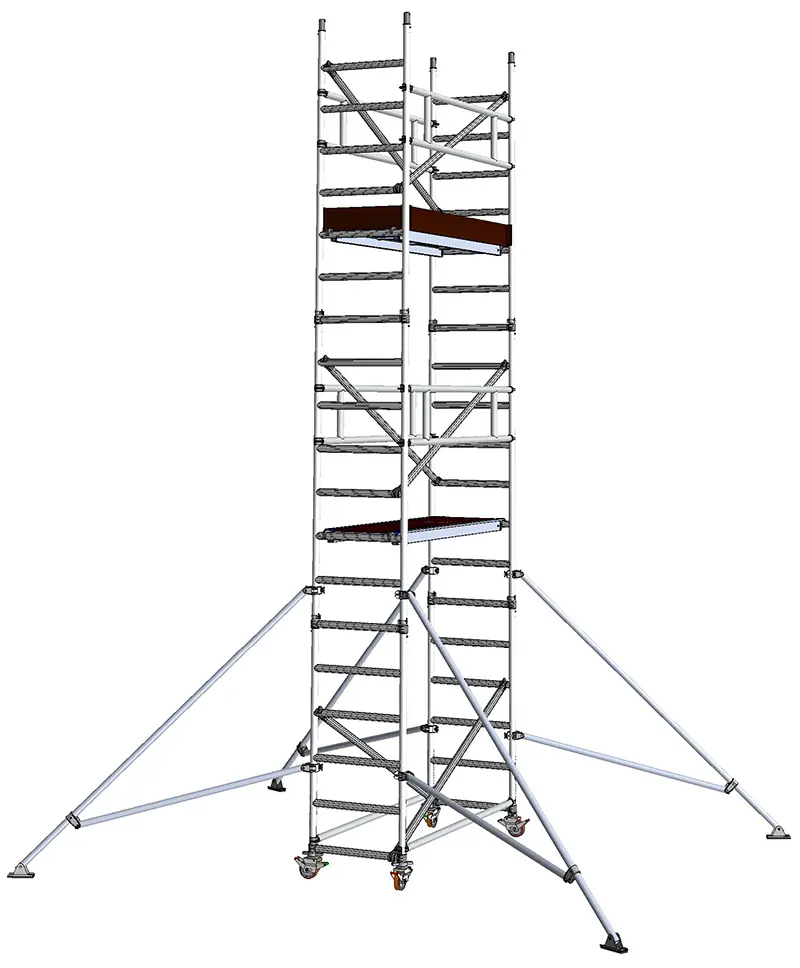

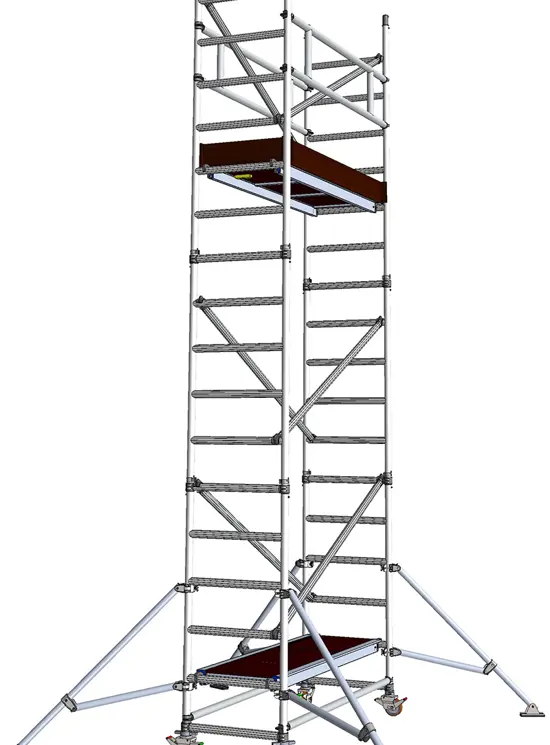

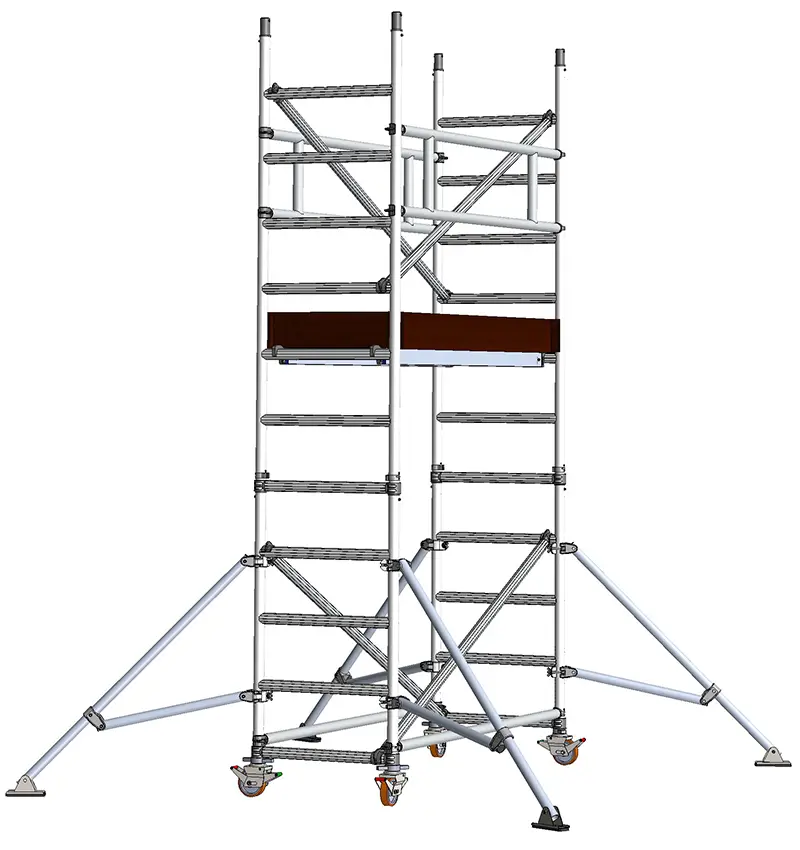

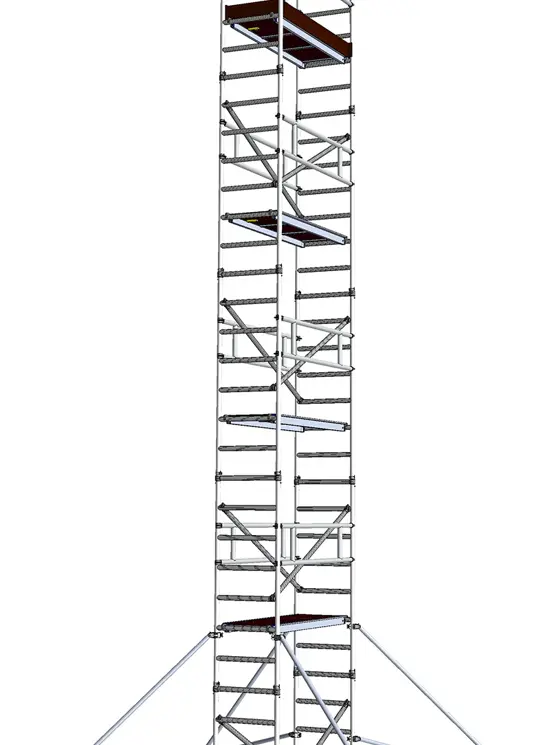

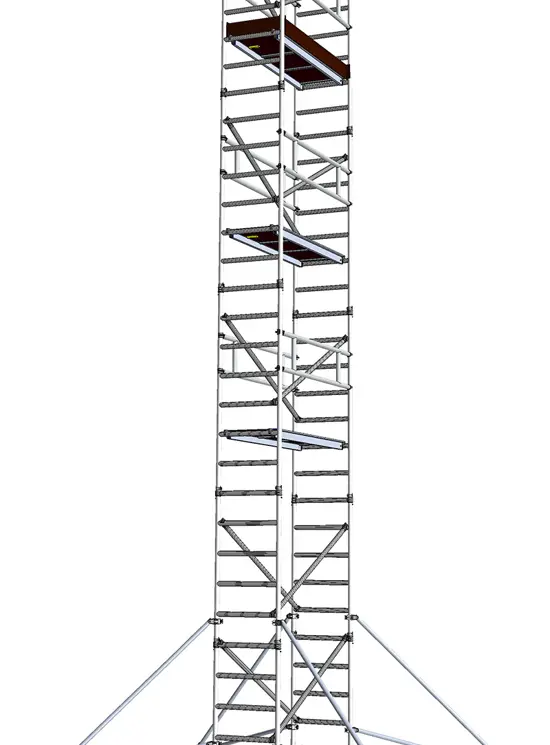

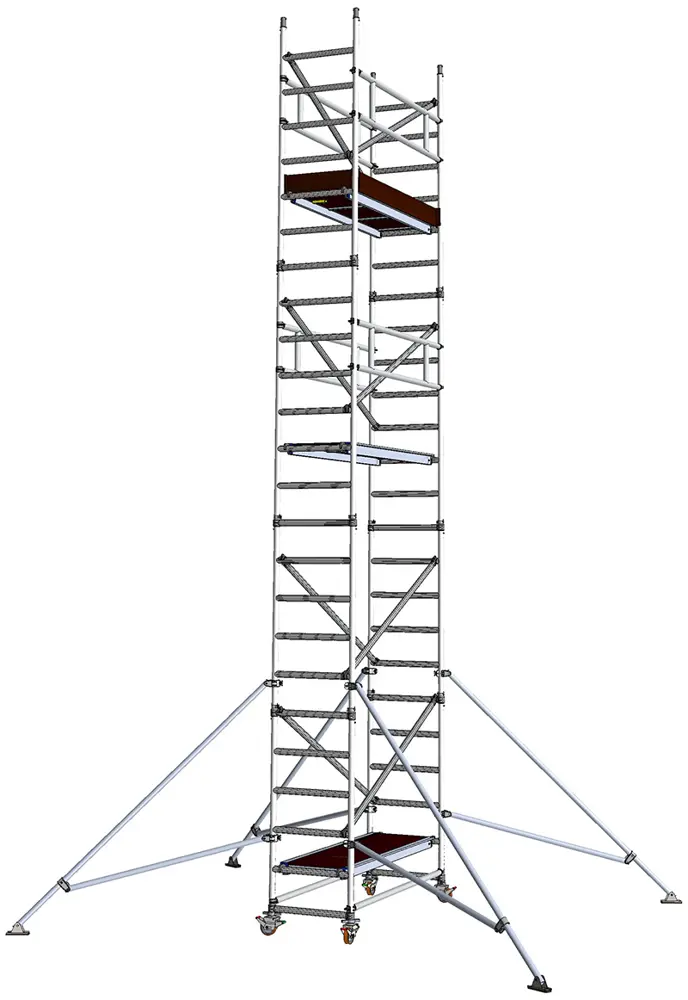

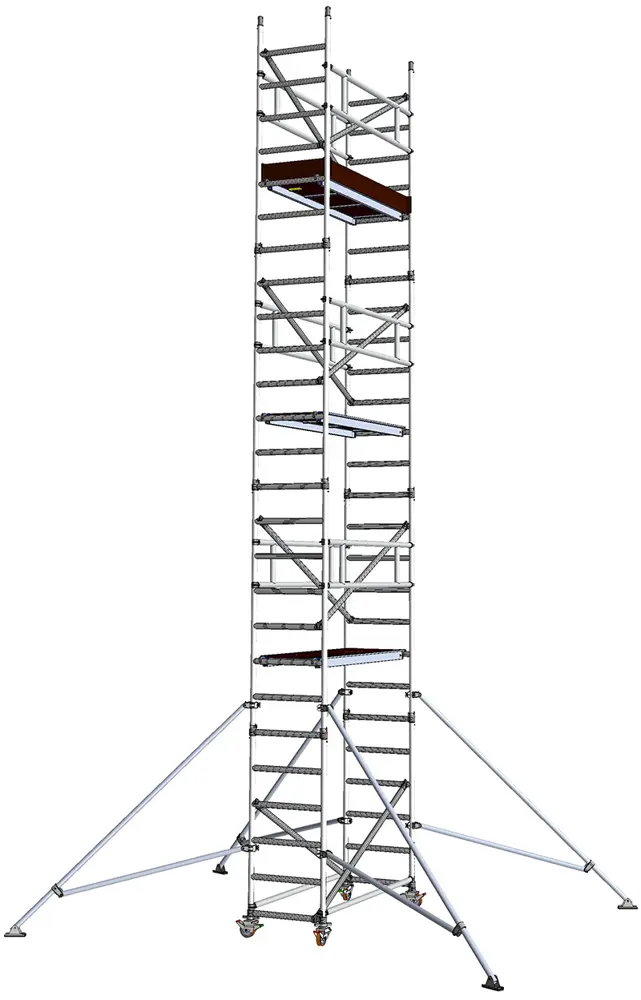

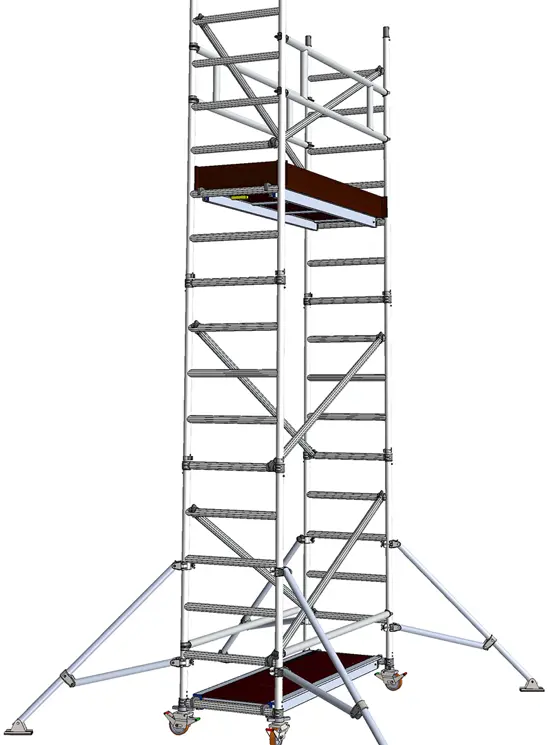

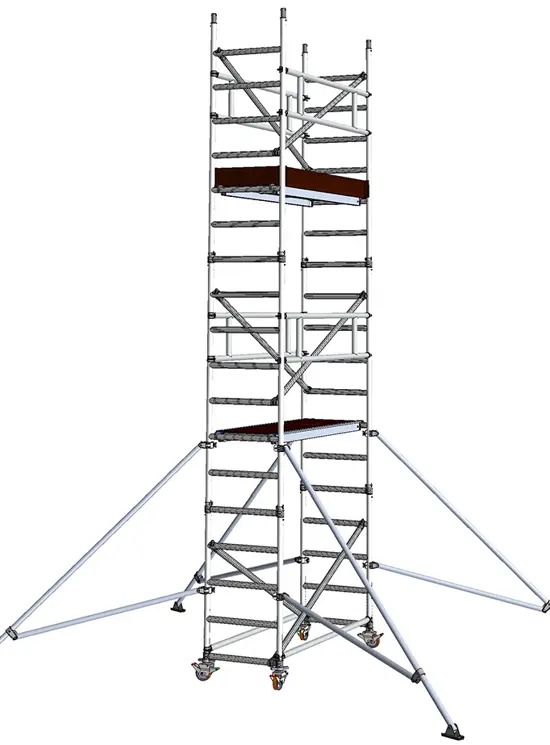

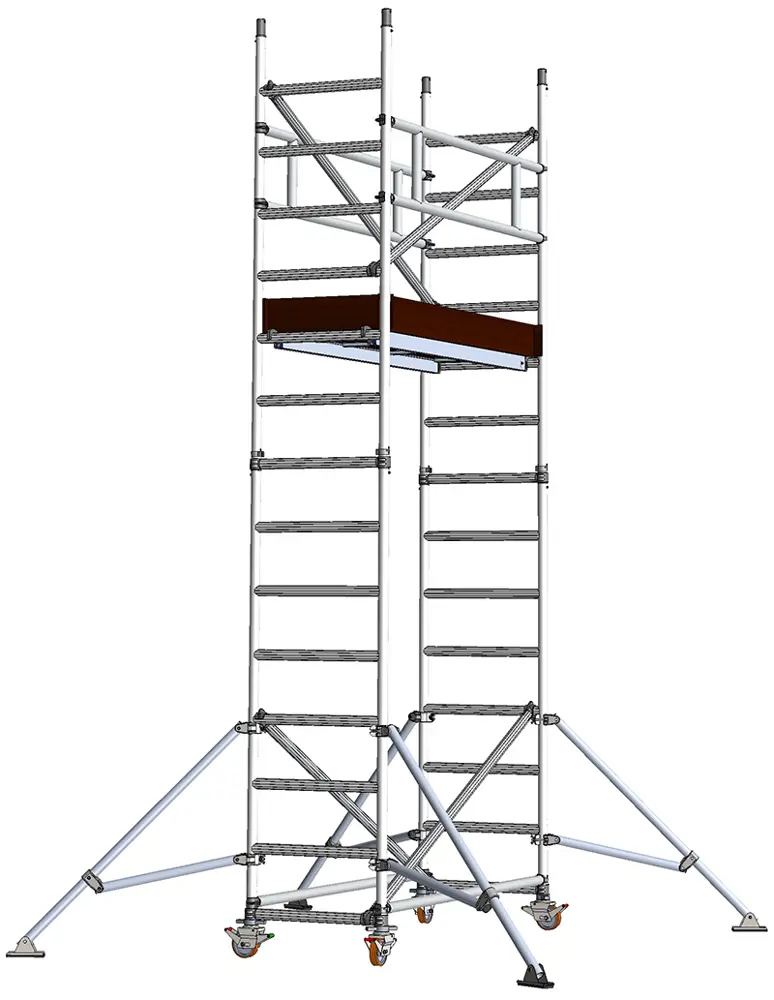

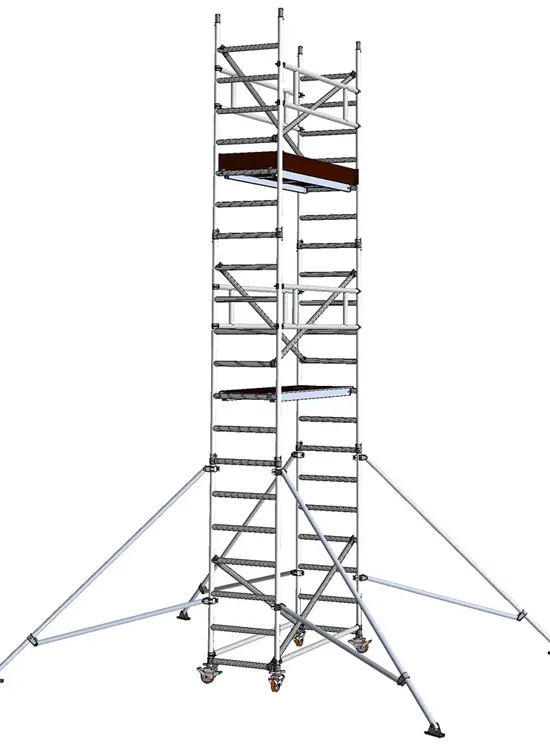

Scaffolding Tempo Tech S

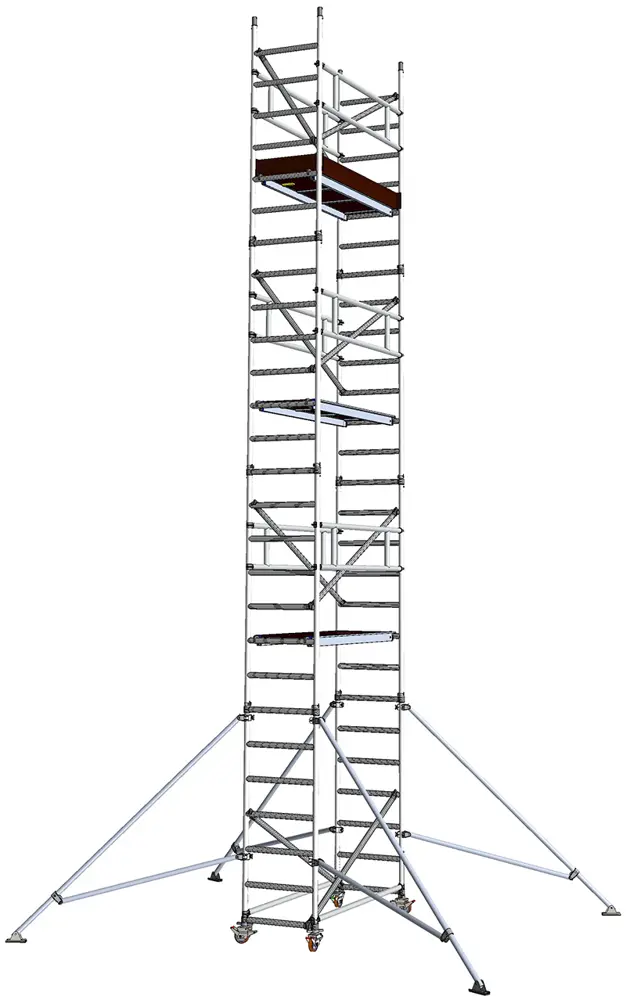

m 2/2,5/3 x 0,74 - height max m 11,00

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

It is shown on products which conform to the European Standard on welding

It is the European Standard for ladders

It shows that the Politecnico di Milano (Applied-Science Faculty in Milan) has tested a product and certified that it conforms to UNI EN131-1-2-3-4 (ladders), UNIEN14183 (step-stools), UNIEN1004 (scaffolds)

Suitable for heavy duty

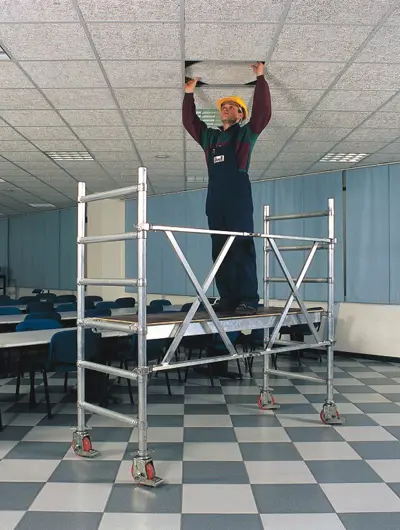

Scaffolding system with amazing access applications - Quick assembling system - Perfect for indoor use

Tempo Tech is constructed by welding the rung directly to the frame.

It can be assembled very quickly as it is made of an extremely resistant lightweight aluminium alloy: rust cannot corrode this material which is long-lasting (guaranteed for 5 years).

It is safe and suitable for heavy duty use.

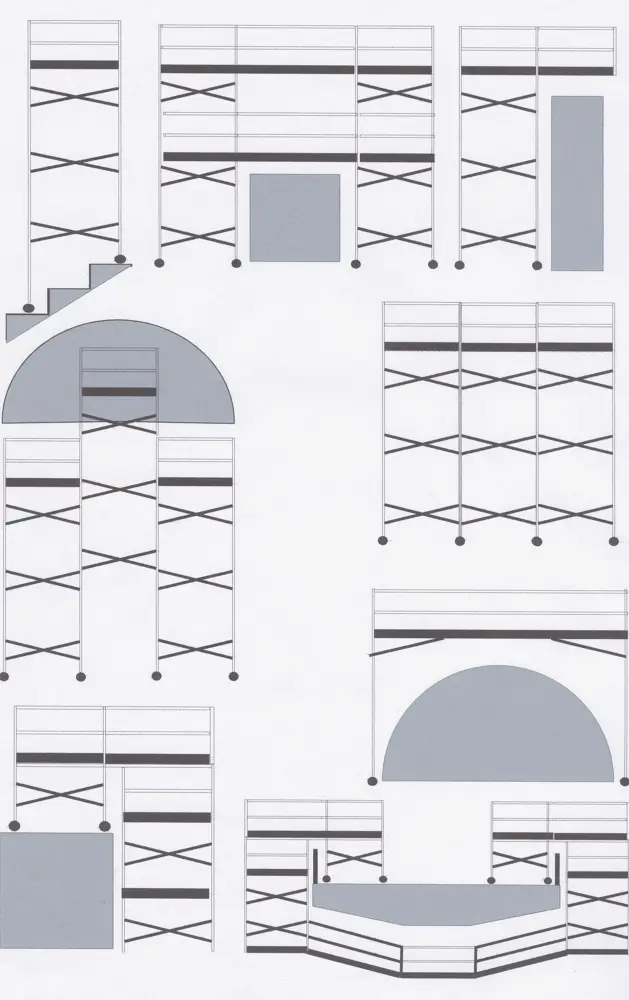

Tempo Tech is modular to allow the user to adapt the scaffold for almost any job.

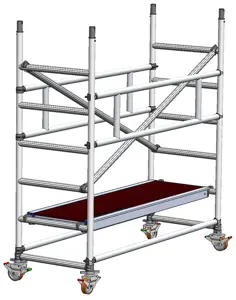

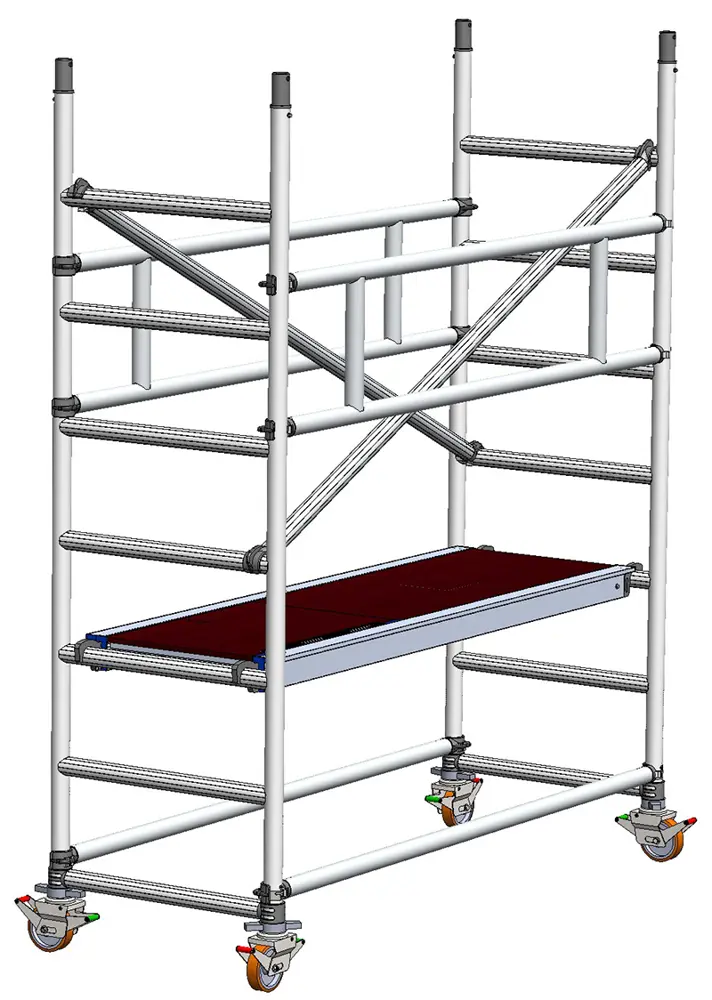

On request, the base can be a pre-assembled one-piece package (Folding Base) for easy use, storage and transportation which can reach a working height of 4 m.
Tempo Tech S is available in three lengths, 2,0/2,5/3,0 m.
Frame profiles Ø 50 mm.

TECHNICAL FEATURES

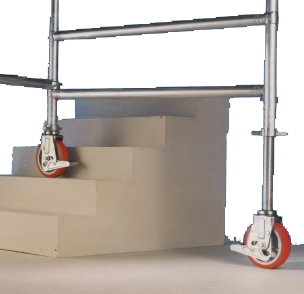

4 braked castors Ø 150 mm (Tempo Tech S)
4 adjustable legs 400 mm

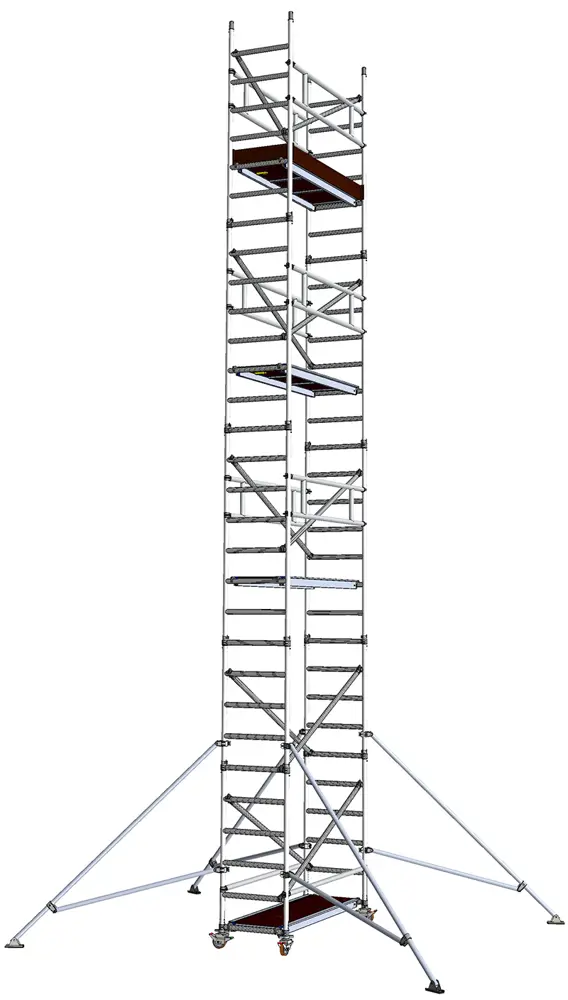

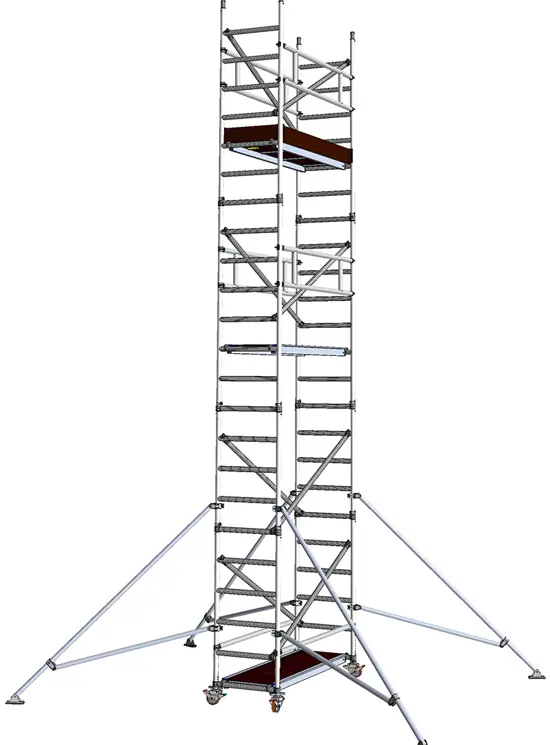

4 stabilisers
2 base horizontal braces
4 diagonal braces for each span with the corresponding frames (Tempo Tech L)
1 protection railing

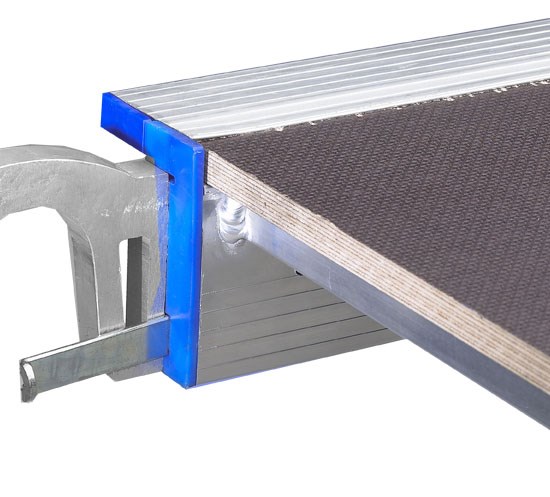

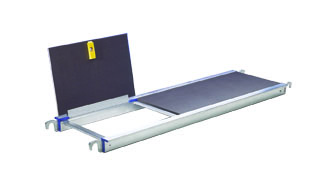

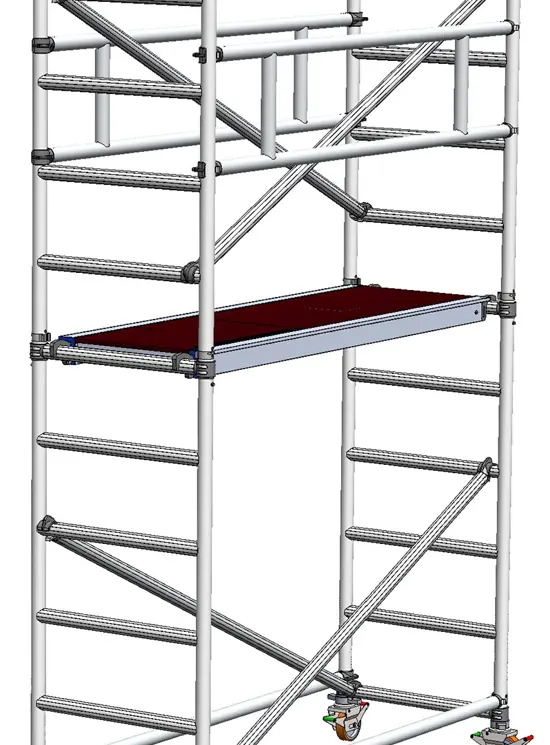

Working platforms
Lightweight and extremely strong, it is made up of an aluminium frame and a wooden board which is non-skid and weatherproof painted.
There are 2 models, standard and with trapdoor with opening hook, and both have four toeboards to prevent tools falling during working.

A wind-lock clip fastens the platform to the structure.
All components can be repaired.

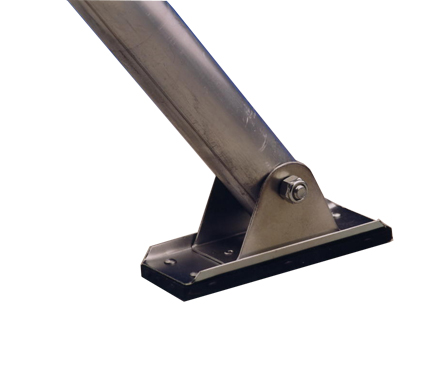

Stabilisers

4 strong stabilizers widen the base and are hooked into it through easy assembling clamps with washer.
There are two models standard (small, medium or large) or telescopic.
A non-skid knurled PVC foot grants grip to the ground. A label shows how to position the stabilizer.

Self-locking hooks

Aluminium self-locking hooks that snap automatically onto the rungs.
Its design grants more than 225° contact area for a perfectly steady tower.
The hooking edge is reinforced to make it shockproof.
The model and the length of the brace are printed on the hook for immediate identification.

Diagonal and horizontal braces

Braces of Ø 50 mm prevent the tower from bending or twisting.
Three models available: 2,0, 2,5 and 3,0 m depending on the tower length.
On each brace the model and the length are printed.
Diagonal braces can also be distin¬guished because they are knurled.

Blocking clamp

The blocking steel clamps fix each frame to the one below.

All components are marked with year of production and Svelt logo.
