Sveltower

m 0,74x1,10/1,60 - height max m. 7,77

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

It is the European Standard for ladders

Suitable for heavy duty

Ultra-compact professional scaffolding, quick assembly by just 1 operator. European standards UNIEN1004-1-2

PATENTED!!!

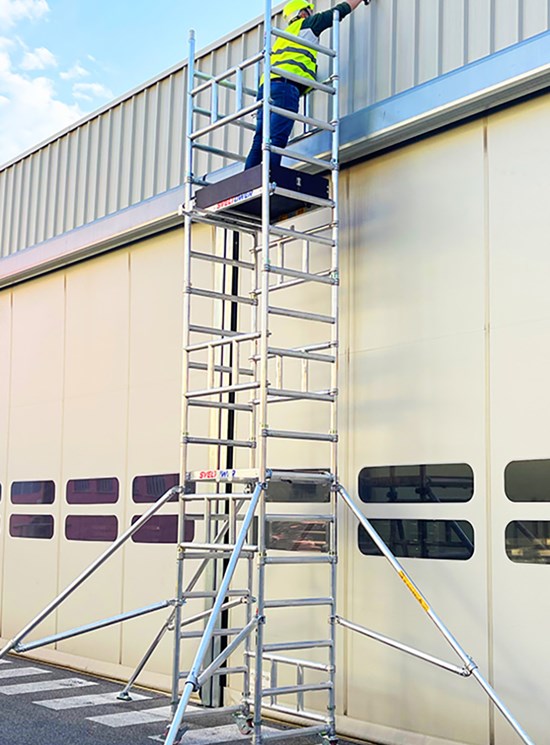

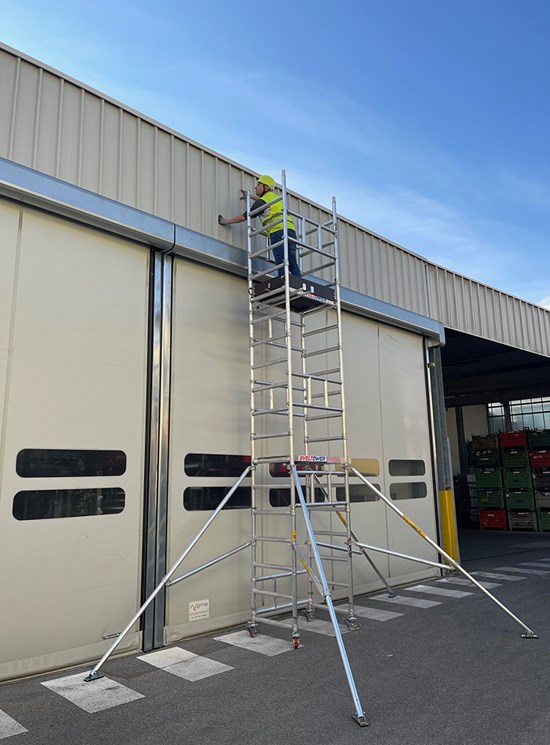

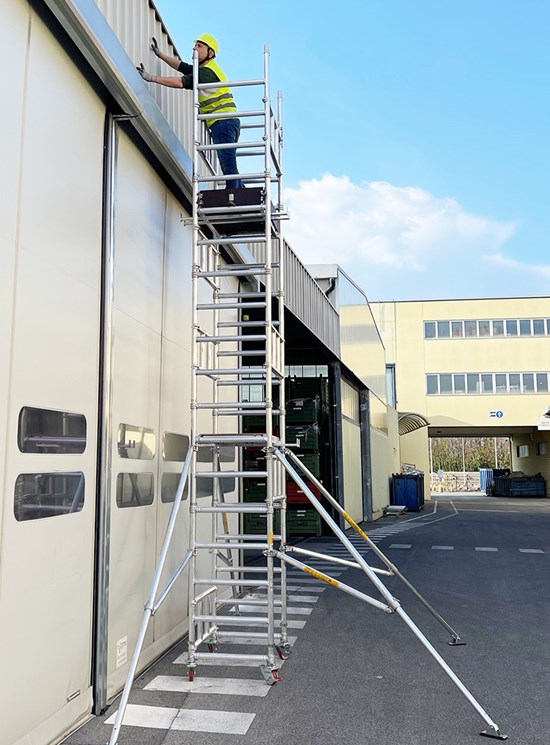

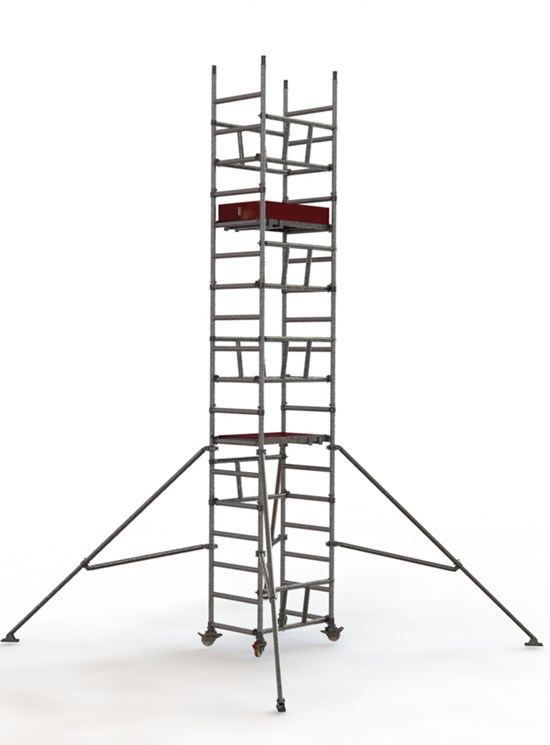

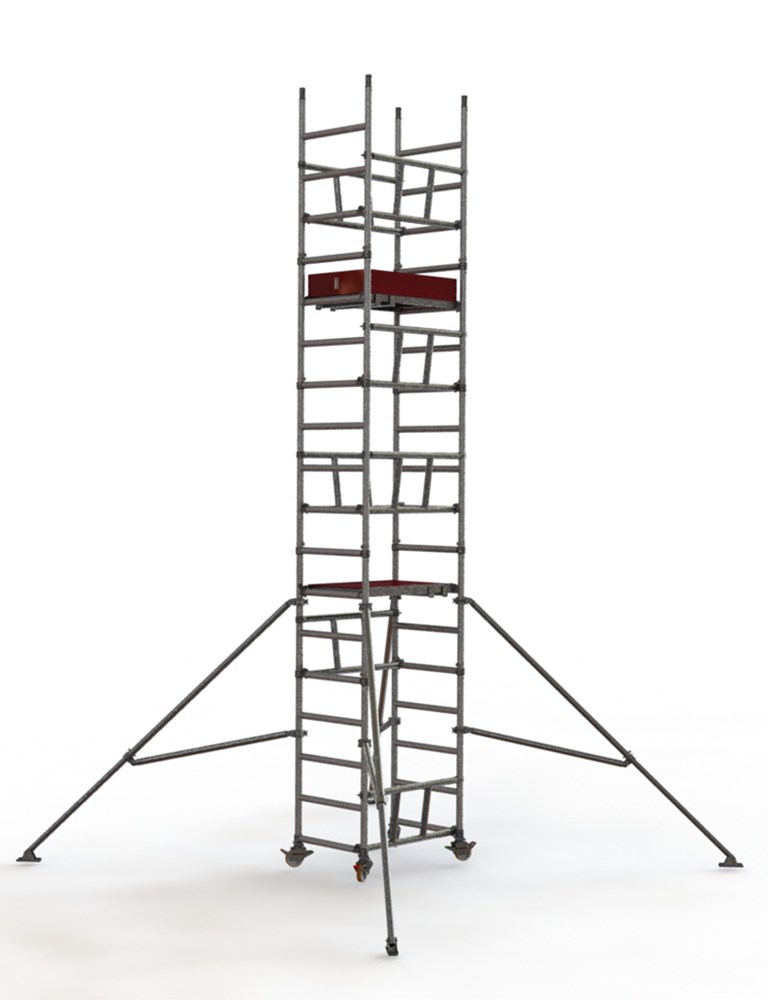

Ultra-compact professional scaffolding in aluminum that can be assembled quickly by a single operator.
Sveltower allows you to work at different heights.
Its characteristic is that it is so compact that a single operator can assemble it safely in less than 10 minutes without having to get down to the ground during assembly.

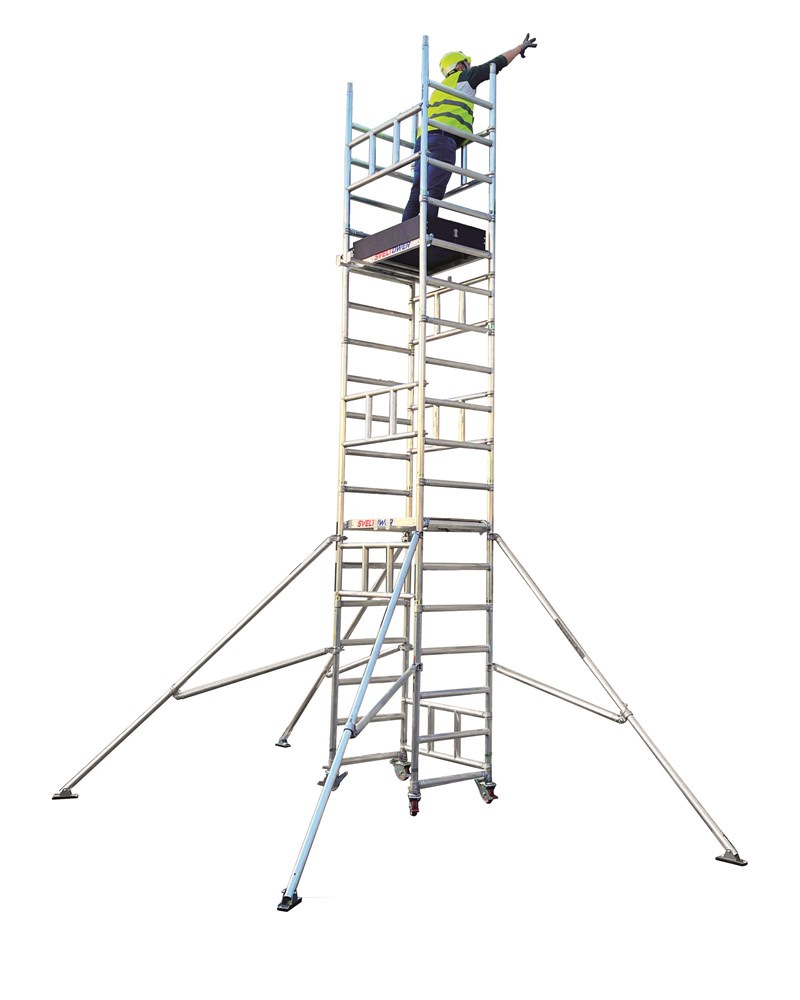

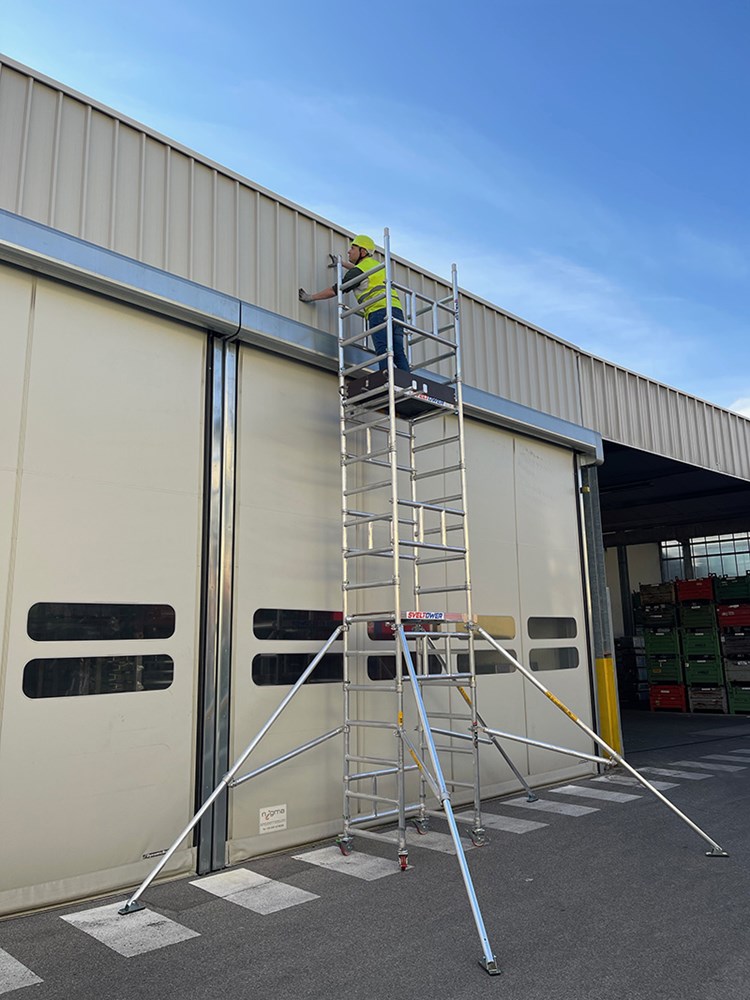

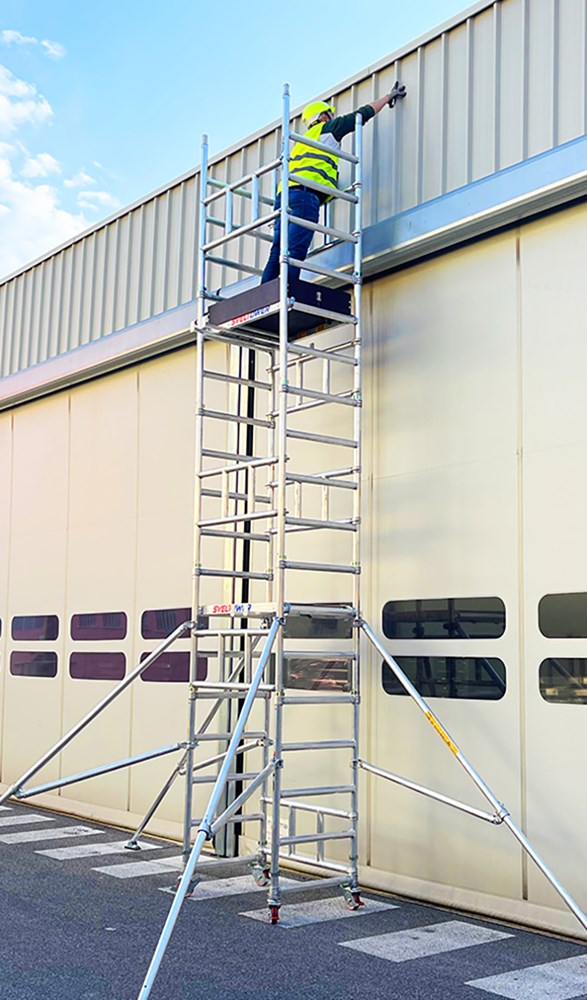

It is ideal for painting and maintenance work up to a working height of 6.00 m (8.00 m Plus model).

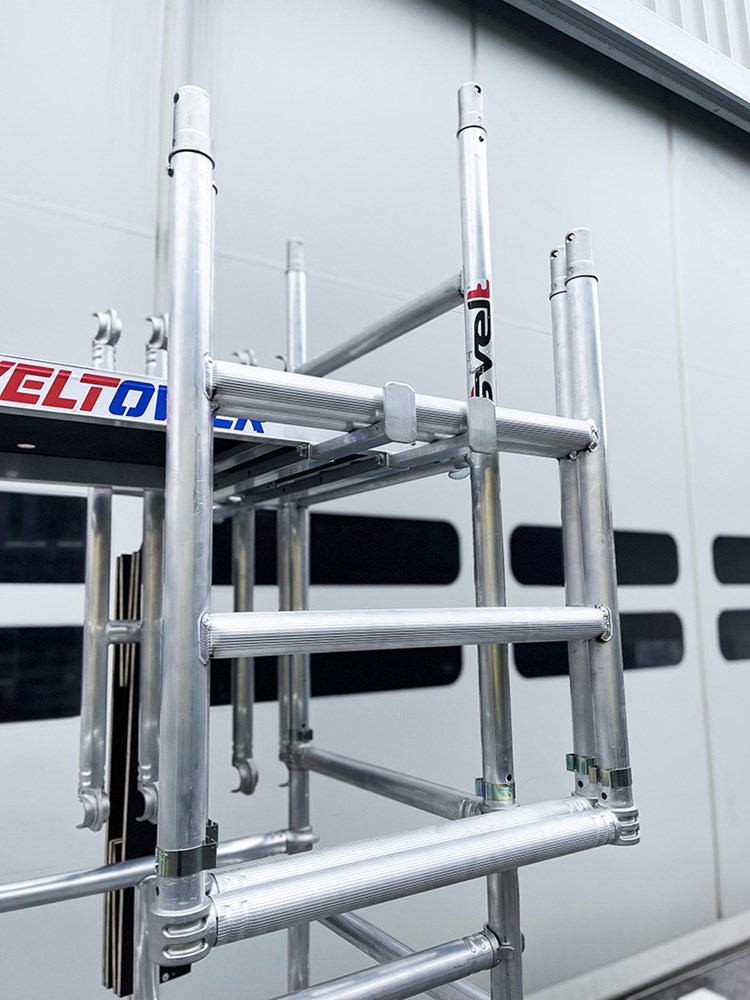

It is built in a very light aluminum profile (Ø mm 50x1.2 thick).
Few components make it light, compact to transport and easy to assemble in a few minutes.
It is rustproof.

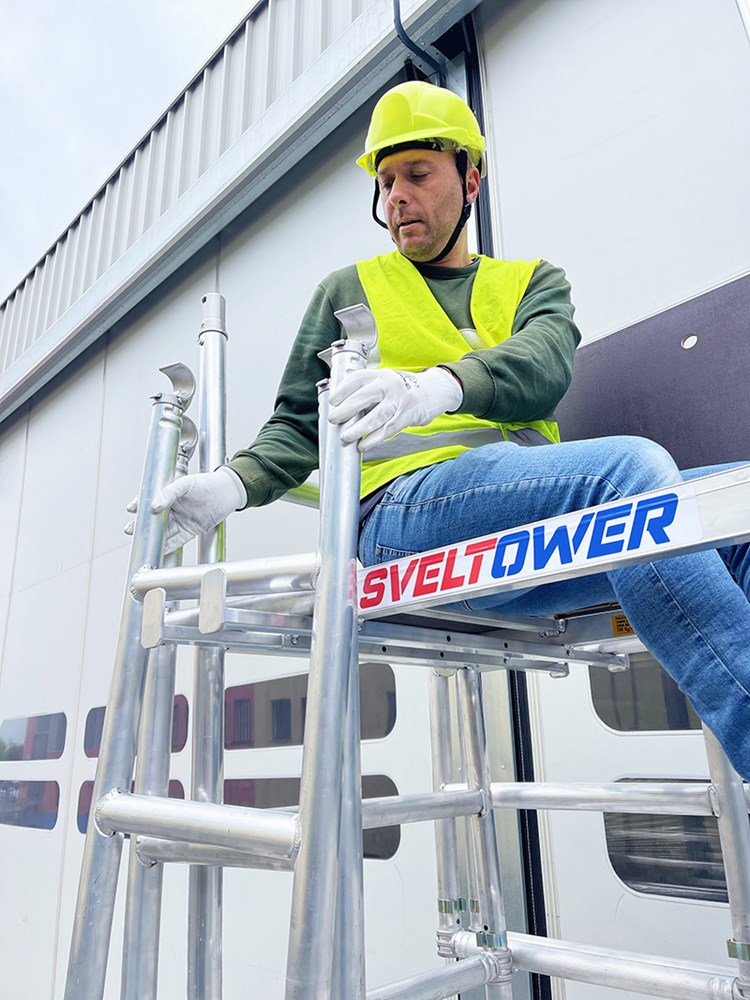

It can be assembled by yourself (see video): the operator assembles the first modules from the ground.

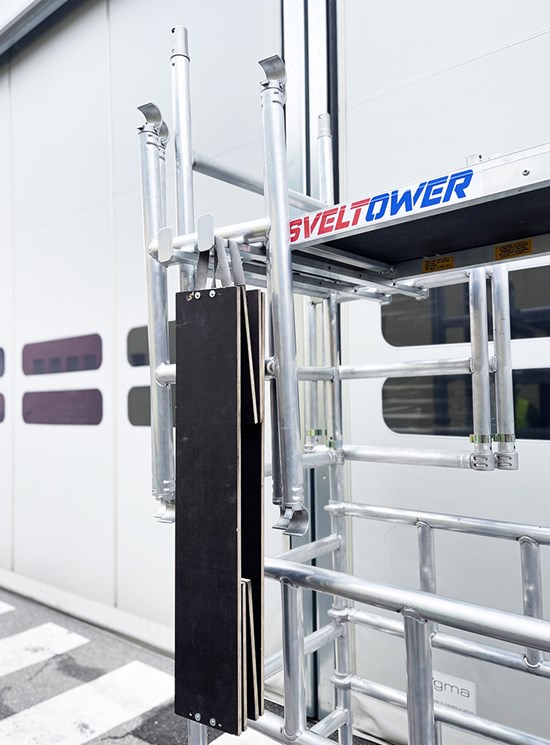

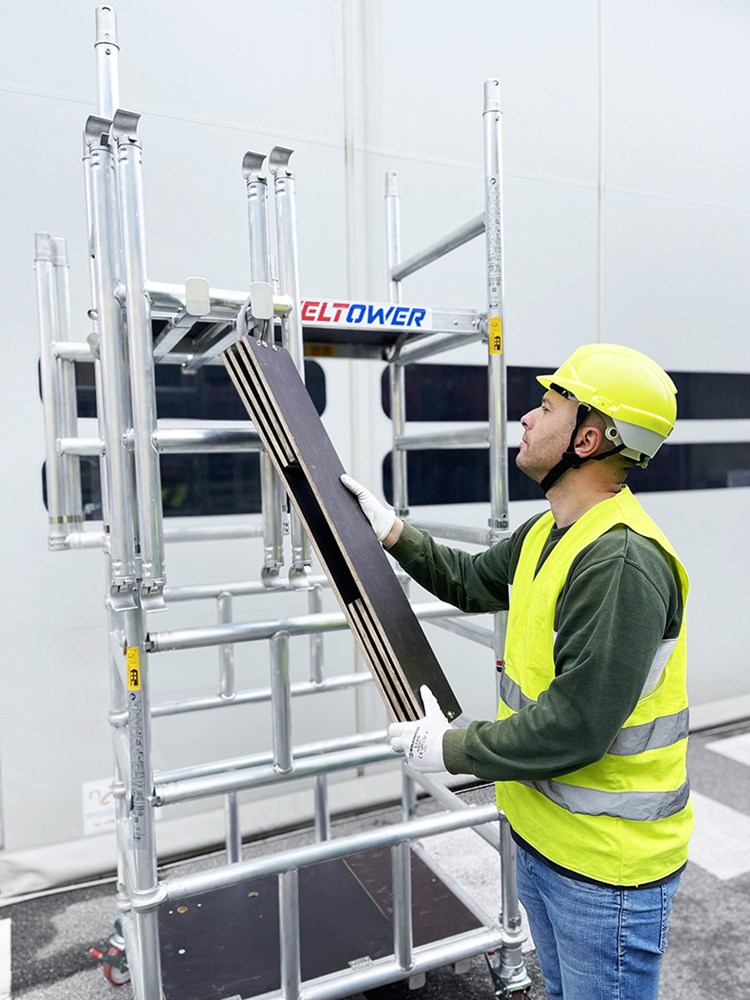

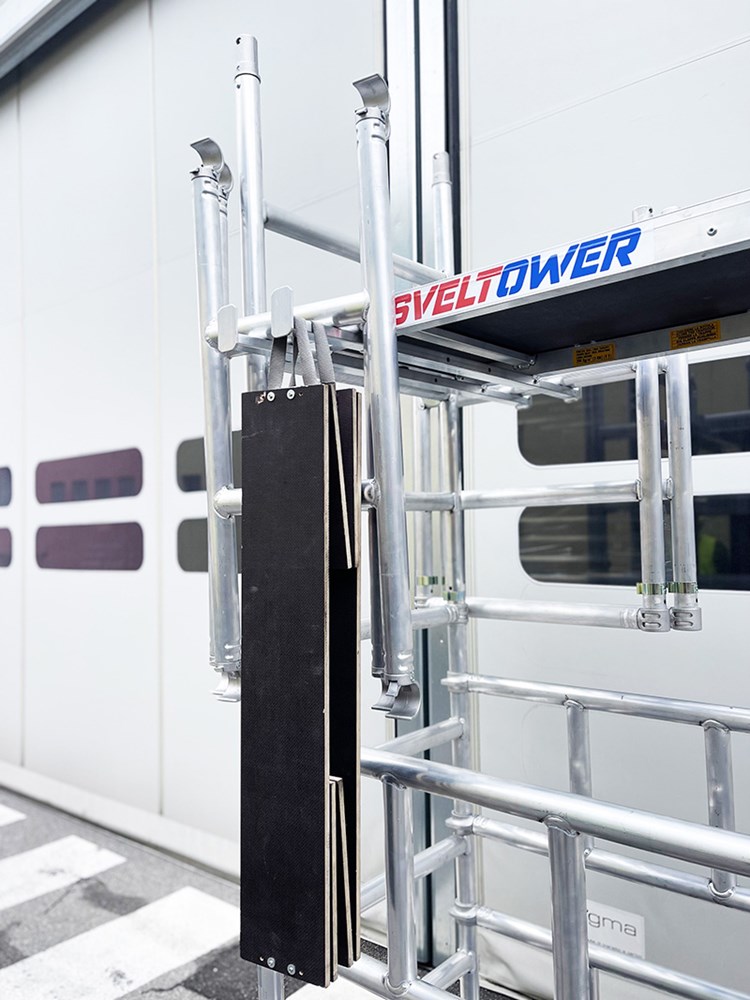

Before climbing onto the platform to assemble the subsequent modules, he hangs all the components in the special extractable hooks inserted in the platform above.
This way, when you go up for assembly, you will find all the components within reach and you will not have to continuously go down to get more.

TECHNICAL FEATURES

DISTANCE BETWEEN THE KNURLED RUNGS: cm 30
4 WHEELS: ø mm 125 (each Kg 2.25)
4 ADJUSTABLE LEGS: mm 150 (each Kg 0.85)
PROTECTION RAILING m 1.00

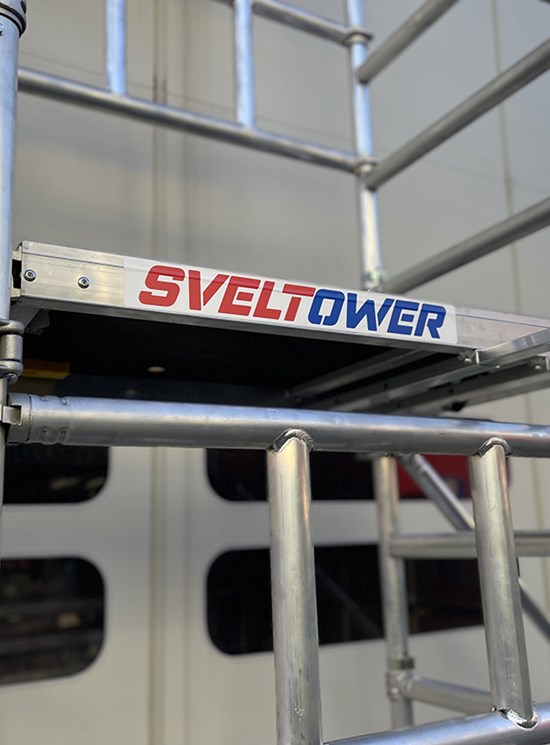

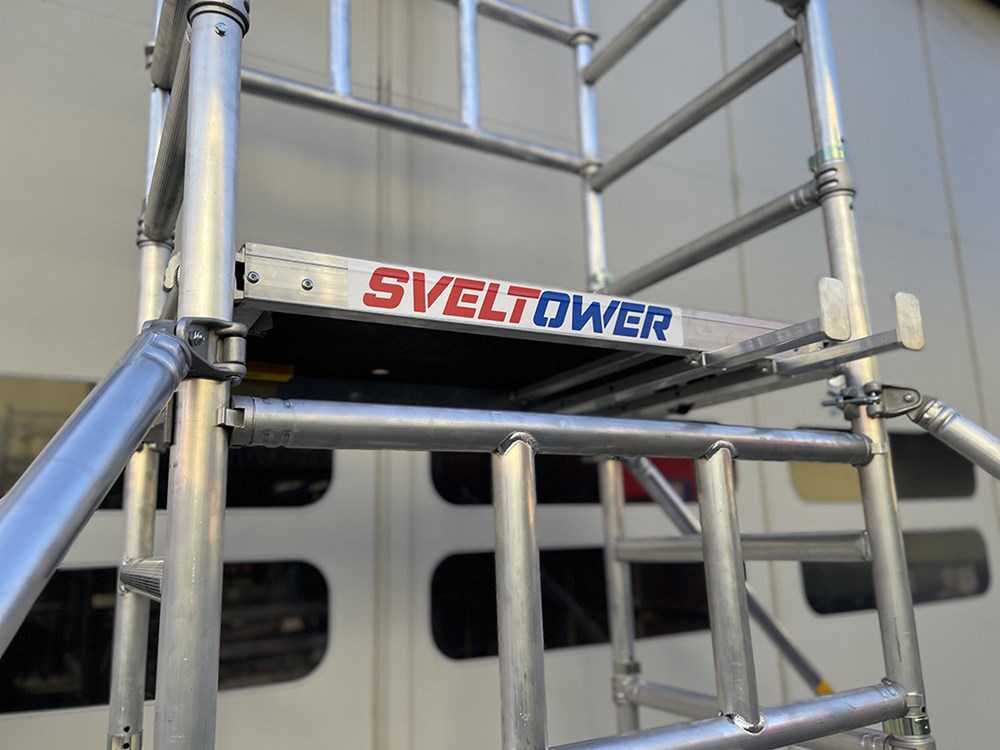

PLATFORMS: aluminum structure, painted wooden surface
TOEBOARDS KIT: wooden, quick-assembly opening
EQUIPMENT: manual and instruction labels.
All elements are Svelt branded

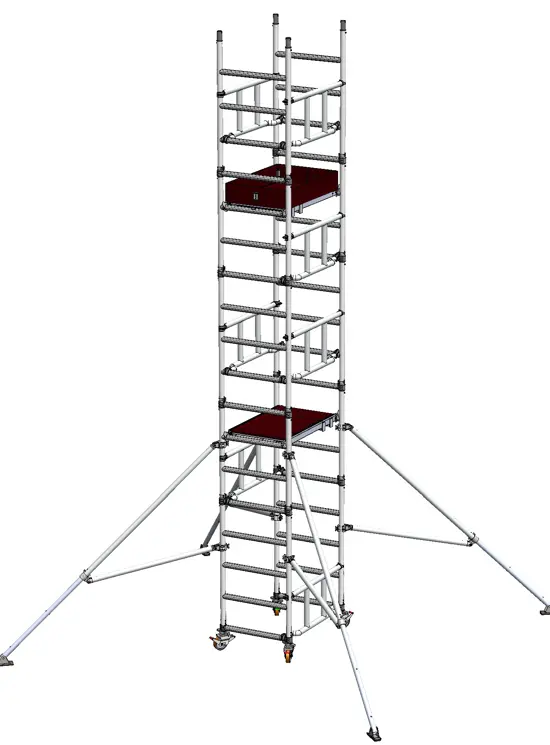

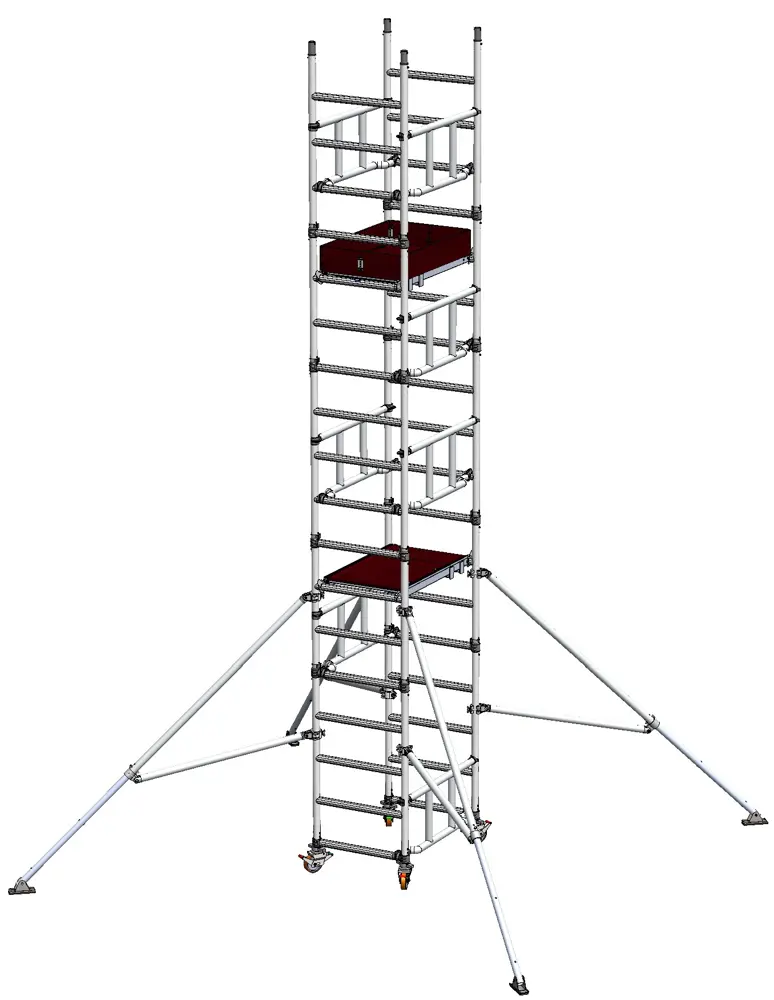

SPECIFIC TECHNICAL CHARACTERISTICS SVELTOWER

Total height: 5.67 m (111 kg)
Maximum height of the platform: 4.17 m
Maximum working height: 6.17 m
Structure dimensions: 74x110 cm
Transport dimensions of the container trolley: 80x125 cm
Platform: 1.00x0.60 m (8.56 kg)
Toeboards kit 4.5 kg
Maximum capacity: 200 kg/m2 (1 operator)

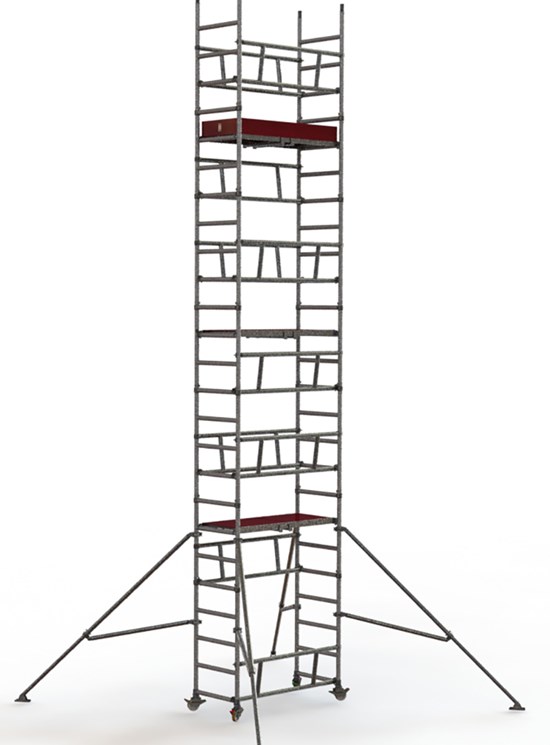

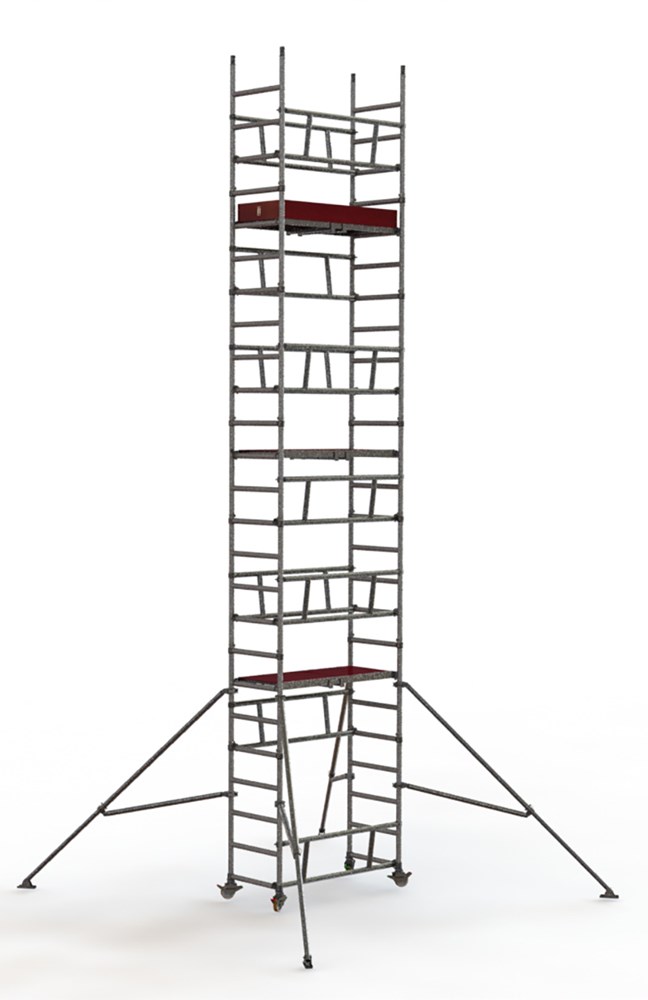

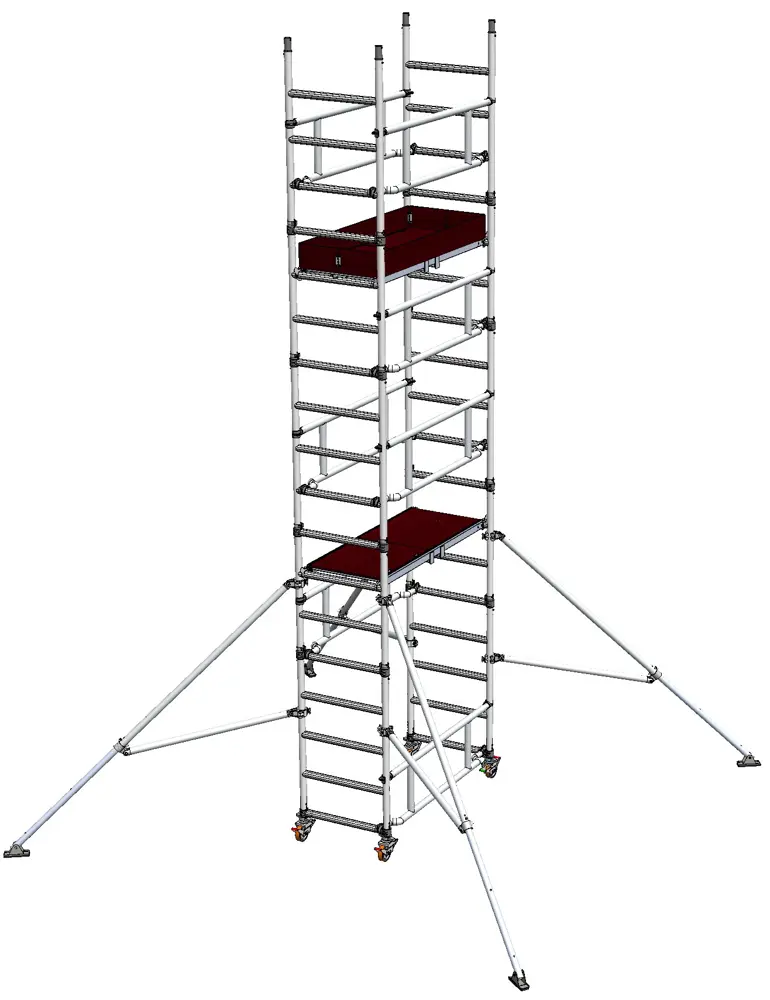

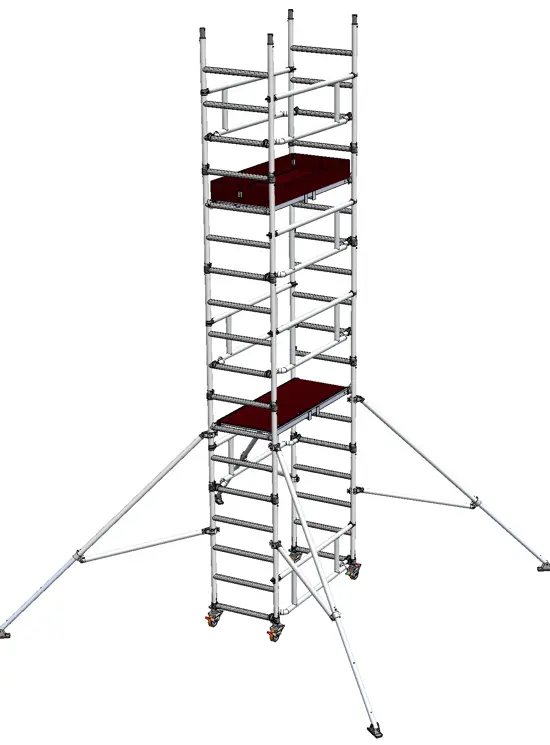

SPECIFIC TECHNICAL CHARACTERISTICS SVELTOWER PLUS

Total height: 7,77 (Kg 160)
Maximum height of the platform: 6,27 m
Maximum working height: 8,27 m
Structure dimensions: 74x160 cm
Transport dimensions of the container trolley: 80x175 cm
Platform: 1,60x0,60 (Kg 12,2)
Toeboards kit 6 kg
Maximum capacity: 200 kg/m2 (1 operator)

Comfortable

The operator assembles the first modules from the ground. Before climbing onto the platform to assemble the next modules, he hangs all the components on the special extractable hooks inserted in the upper platform. In this way, when he climbs up for assembly, he will find all the components within reach and will never have to go down to get more.

Compact

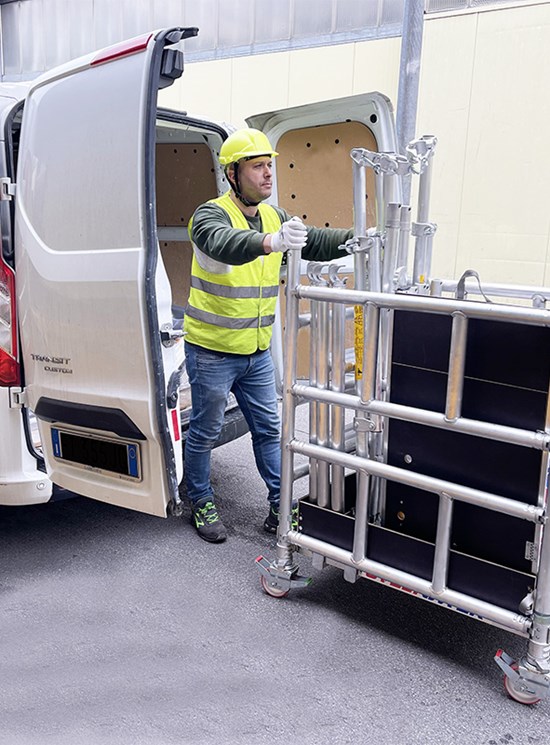

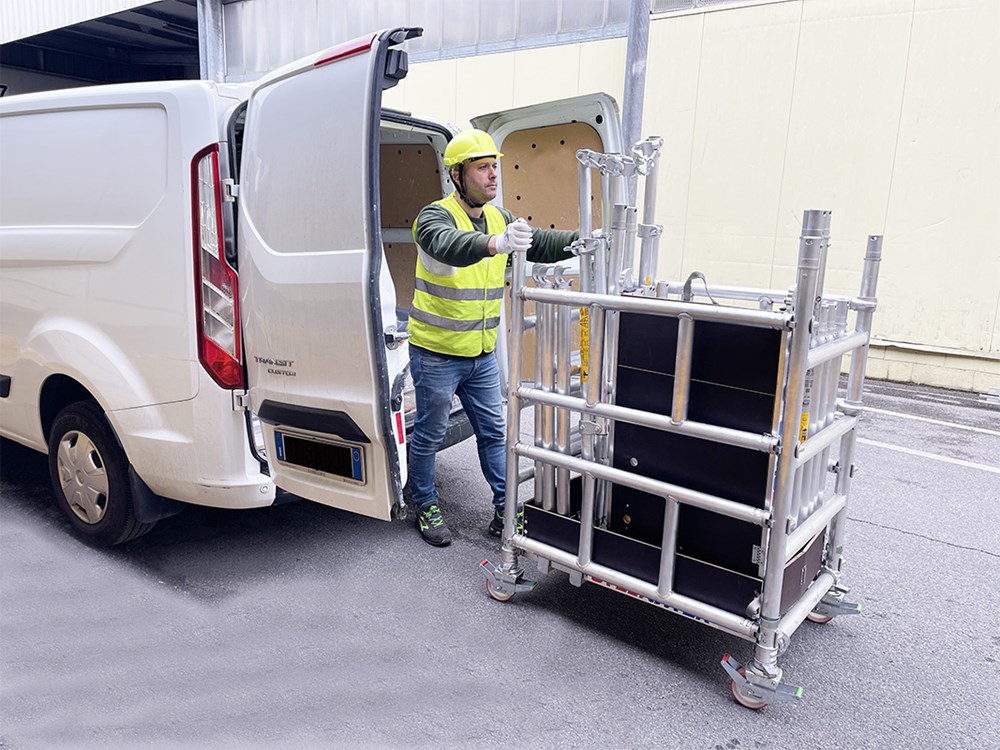

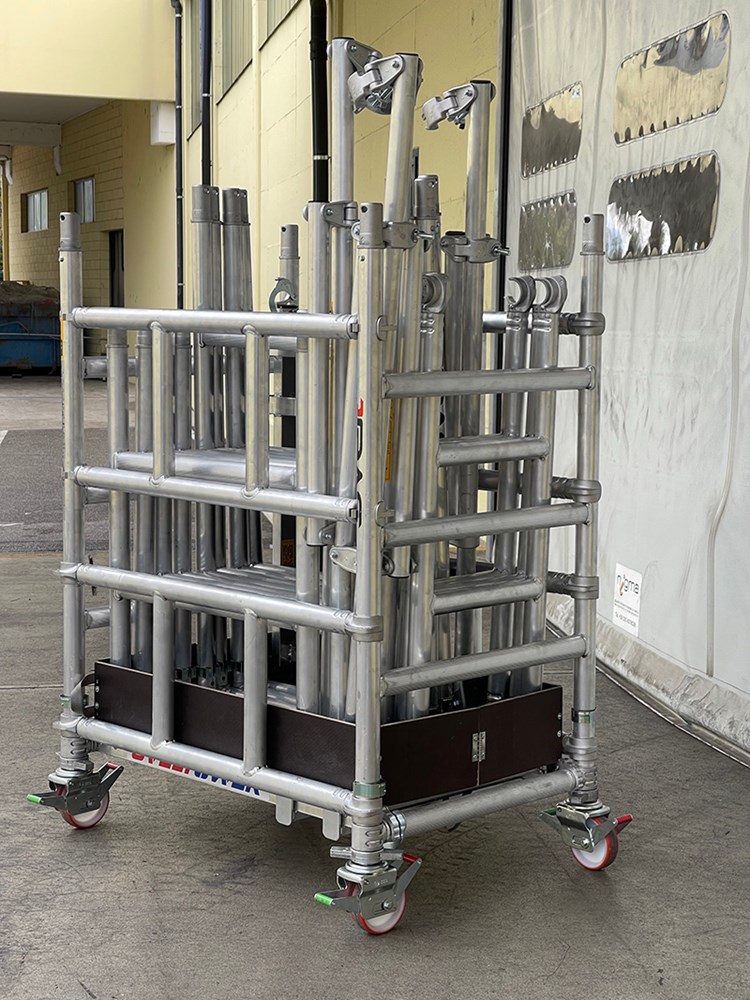

Once unloaded, the basic Sveltower module becomes a trolley capable of transporting all the components needed for assembly to the workplace at its maximum height.
The trolley forms the basis of the scaffolding to be assembled.

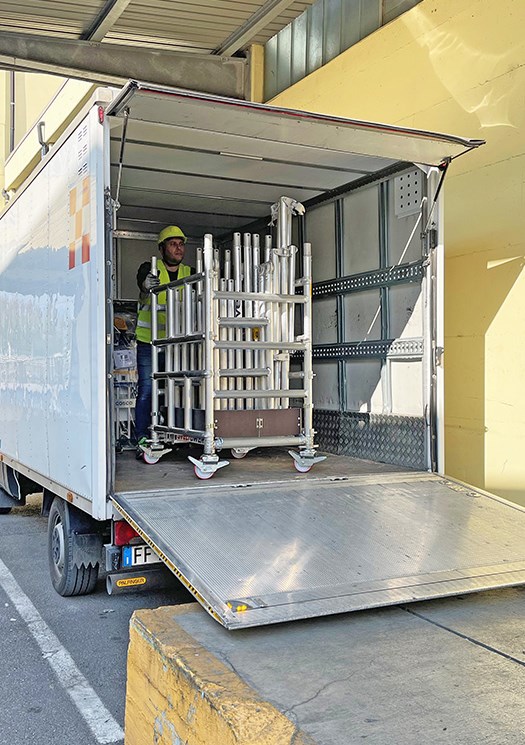

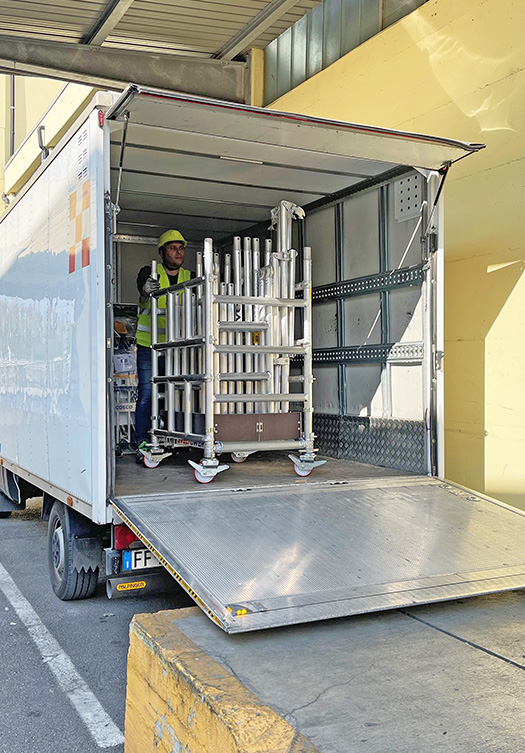

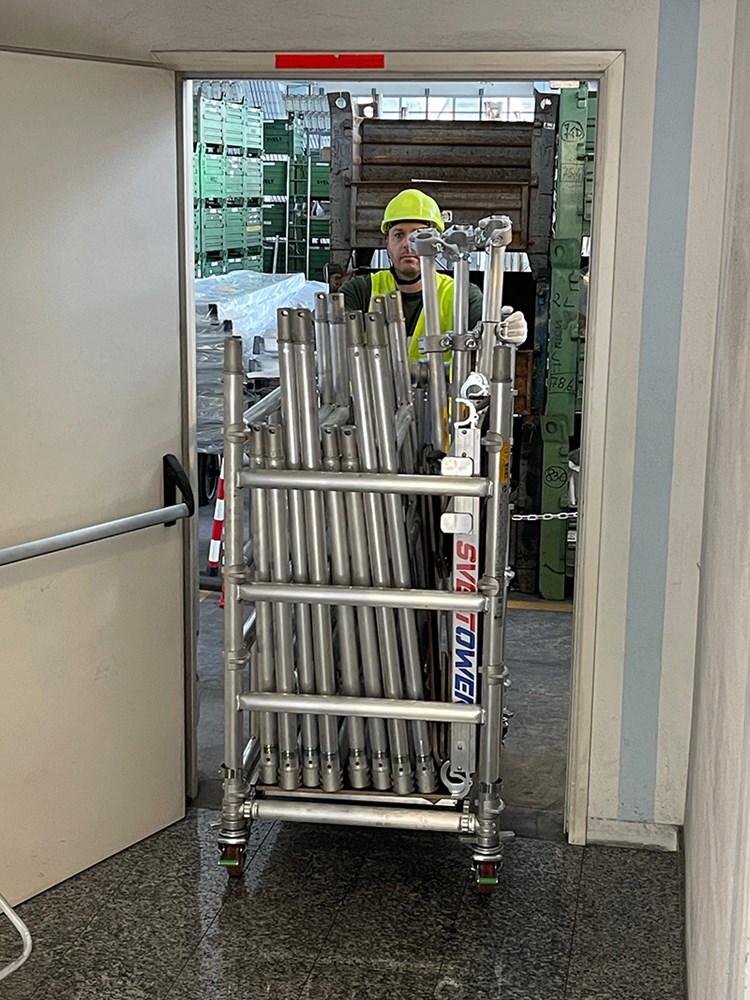

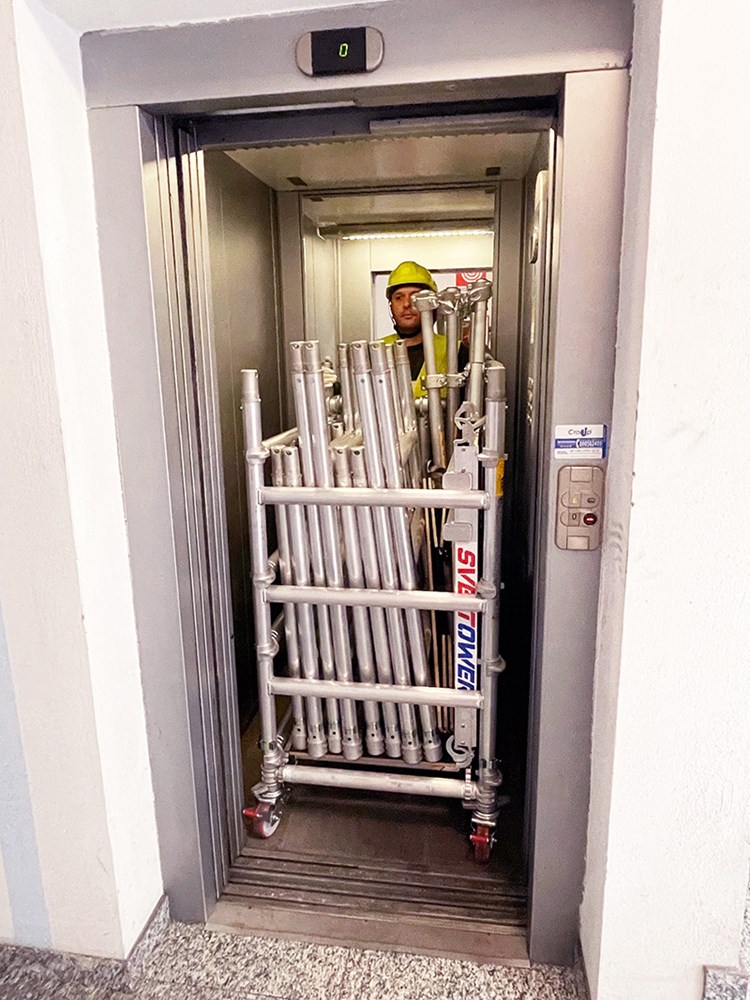

Only 74 cm wide, it passes through doors and corridors and enters standard elevators and vans.

Plus

Can be assembled/disassembled by a single person
Quick and safe assembly (5 meters in less than 10 minutes)
Rigid, lightweight, robust and resistant

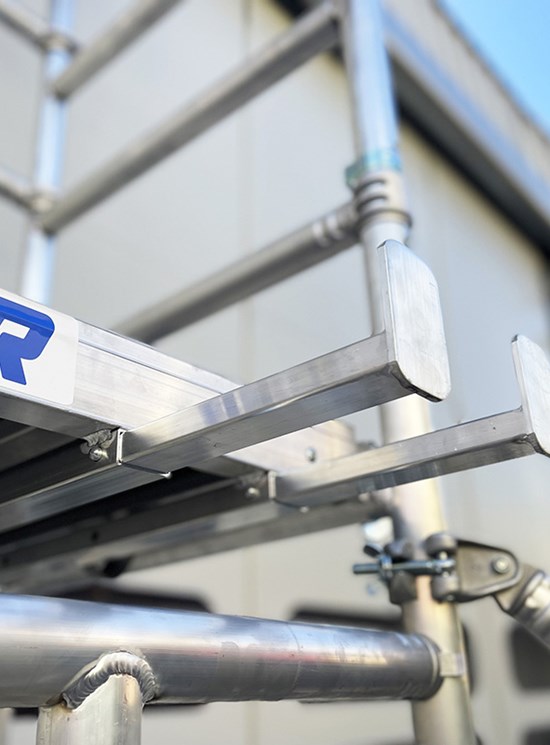

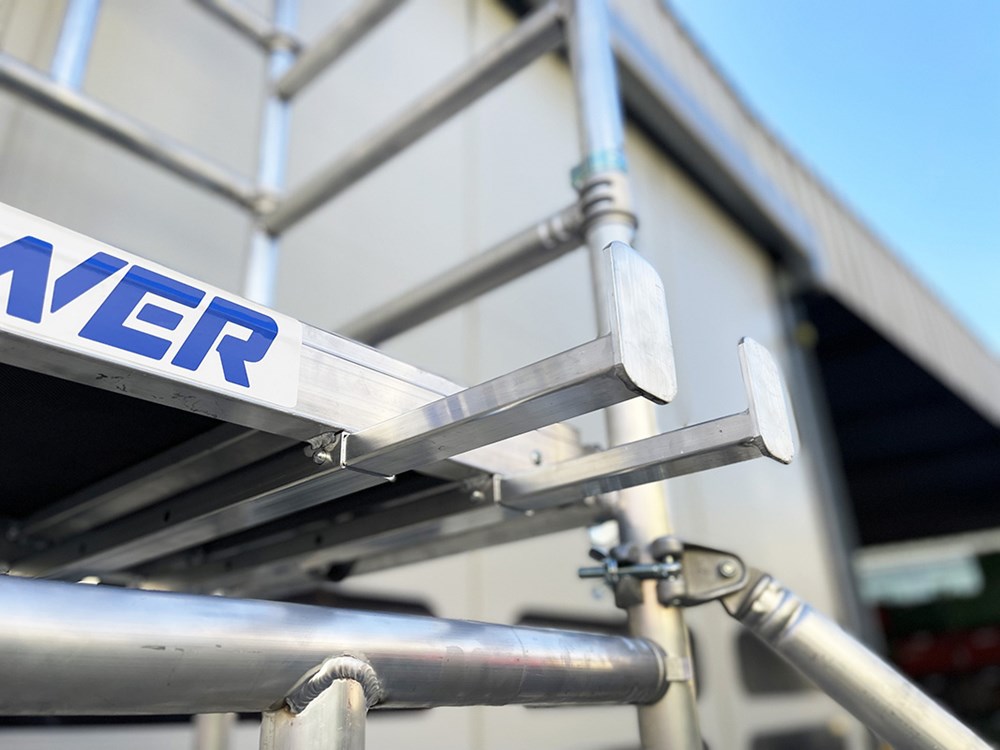

Platforms equipped with extractable hooks to support the components
The operator never has to get down to the ground to retrieve the components during assembly
The base constitutes a trolley that contains all the components
Comfortable and compact to transport (always ready in the trolley)
Minimum footprint on the ground during use even in small spaces
For demanding rental companies it is possible to customize the colors

Accessories on request

TANCORAGGIO Adjustable aluminum quick anchor hook

Aluminum container that can be mounted at face height with the appropriate clamp. Perfectly suited for mounting on a 50 mm profile.
Lightweight and resistant, it allows you to keep the manual and any construction site documents that always remain available and within reach of the operator and any competent control bodies, avoiding heavy fines or reprimands for having lost or forgotten it. The manual does not get ruined even in bad weather as the container does not allow rain to penetrate inside.
It is also resistant to impacts when loading and unloading from a vehicle. Weight 1.3 kg
Cod: TCONTENITORE050

Rentals

The renter can store and deliver the scaffolding to his customers directly in the cart.
This allows you to not have to count and transport by hand every time all the components that will be returned in the cart itself.
