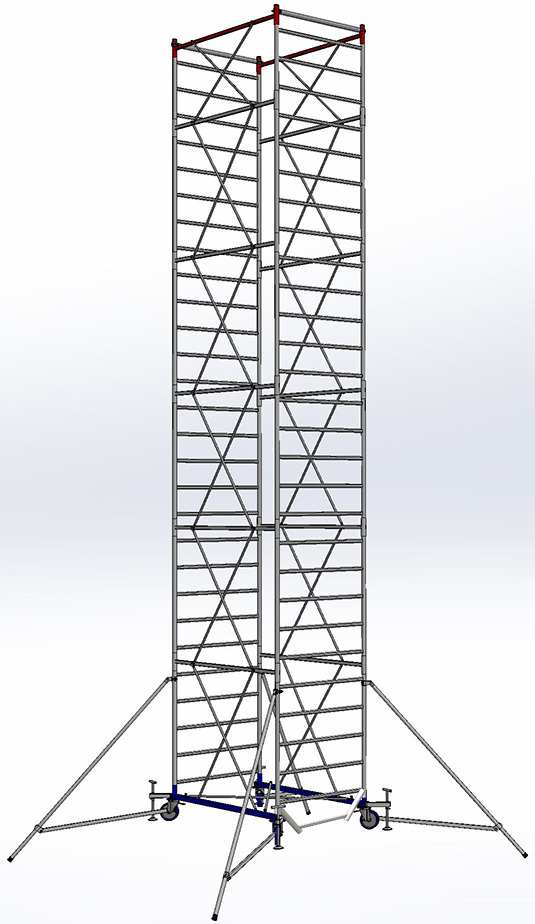

Scaffolding Eurotech 1

m 2,00x1,20 - max height m 13,90

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is shown on products which conform to the European Standard on welding

It is the European Standard for ladders

It shows that the Politecnico di Milano (Applied-Science Faculty in Milan) has tested a product and certified that it conforms to UNI EN131-1-2-3-4 (ladders), UNIEN14183 (step-stools), UNIEN1004 (scaffolds)

Suitable for heavy duty

Perfect for rental companies, it is designed according to the new EN1004.1.2 2021

PLUS:

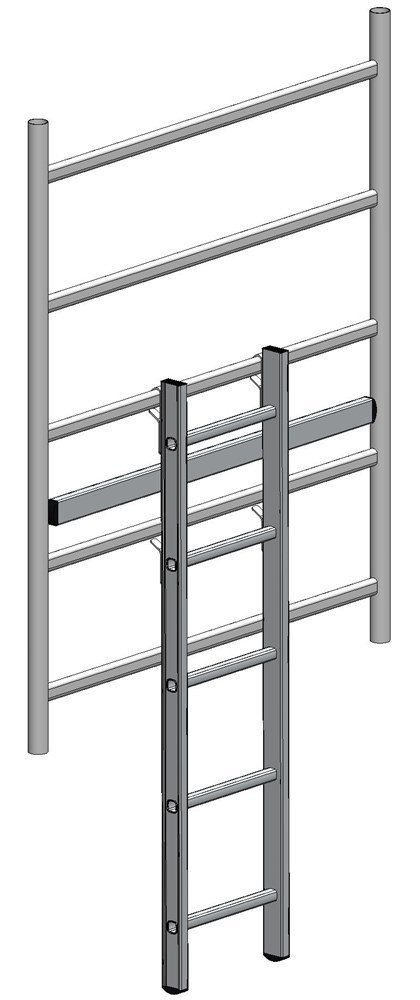

LADDERS ARE INTEGRATED IN THE SPAN FRAMES
LESS COMPONENTS FOR A FASTER ASSEMBLY
BASE WITH 4 ADJUSTABLE REMOVABLE LEVELLERS
DESIGNED ON THE NEW EUROPEAN STANDARDS EN1004.1.2 2021
42 WORKING HEIGHTS AVAILABLE

Eurotech has many innovations:

CONSTRUCTION ELEMENTS

SVELT is a leading company in the manufacturing of tower-scaffolding systems for industrial and heavy duty use with perfect static structures, resistant and easy to assemble.

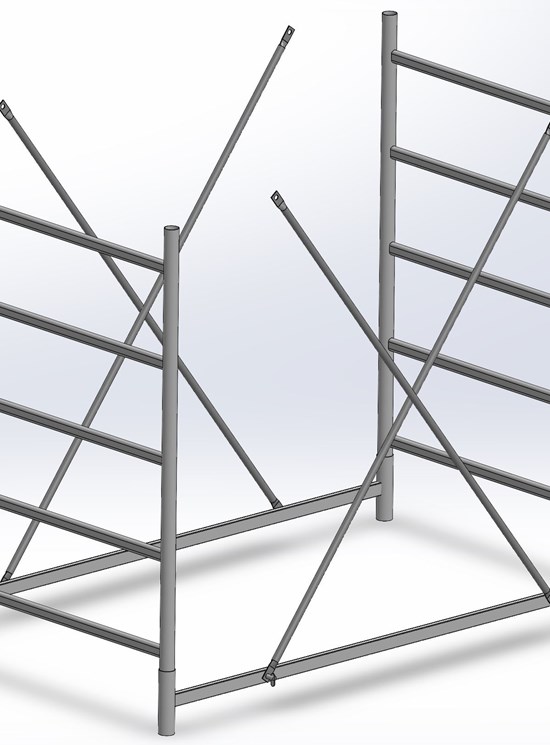

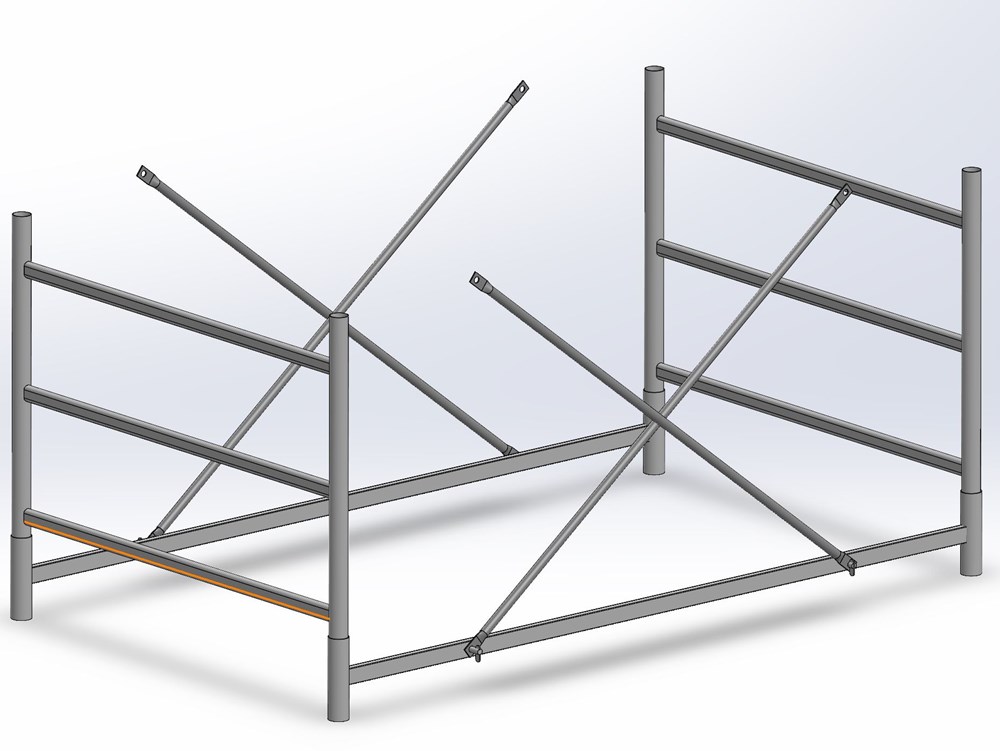

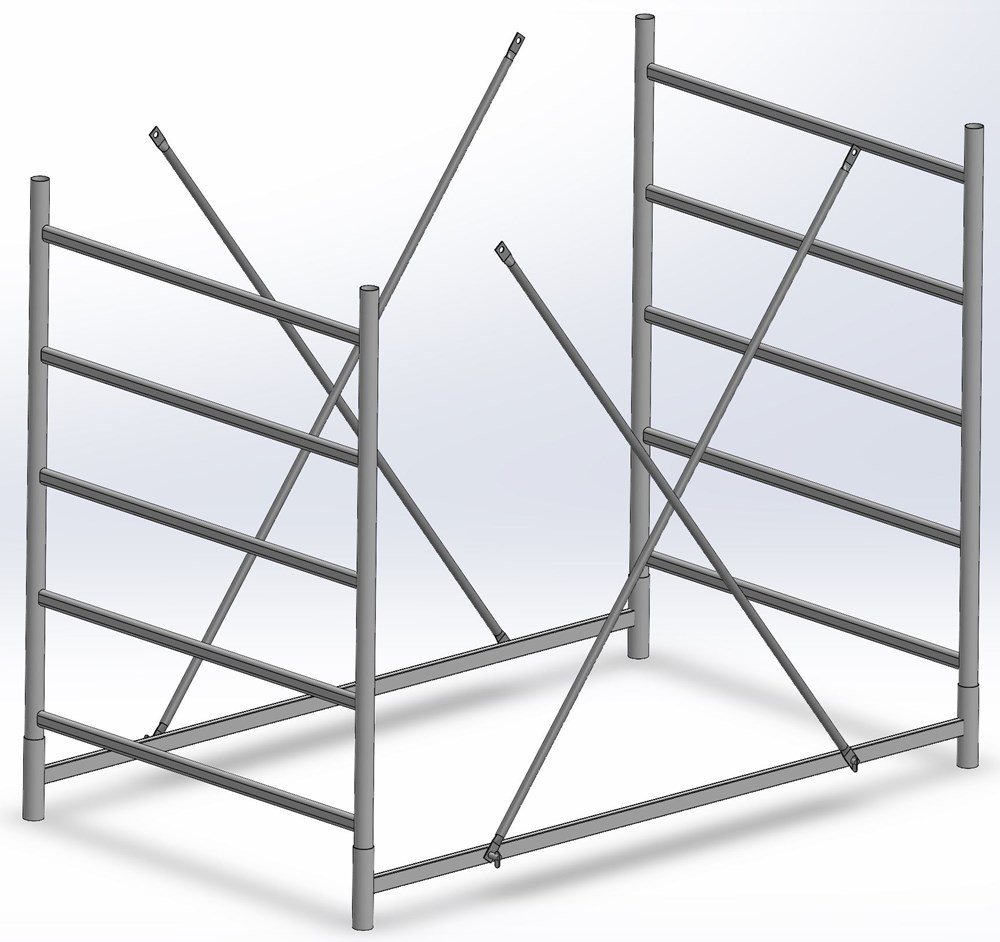

1) Special crossbar position creates in each span 4 isostatic and non-deformable triangles which prevent the scaffolding from swaying even when used at great heights.

An optional device allow to take 2 crossbars away in order to leave a wide-side working space.

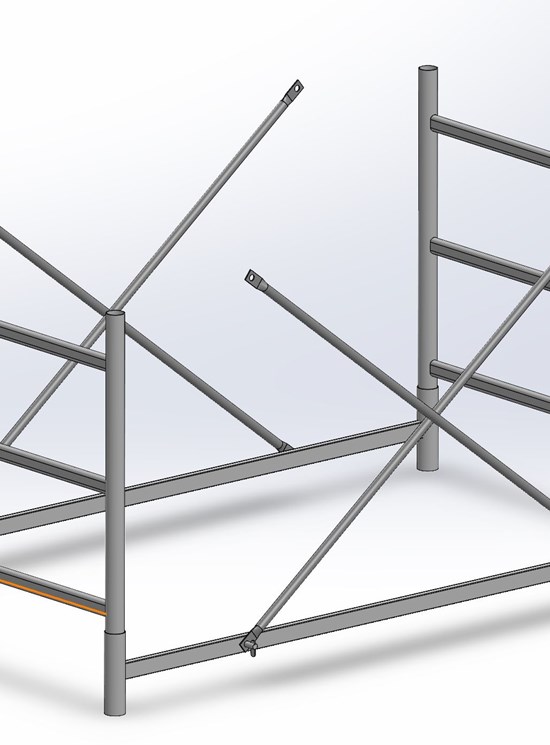

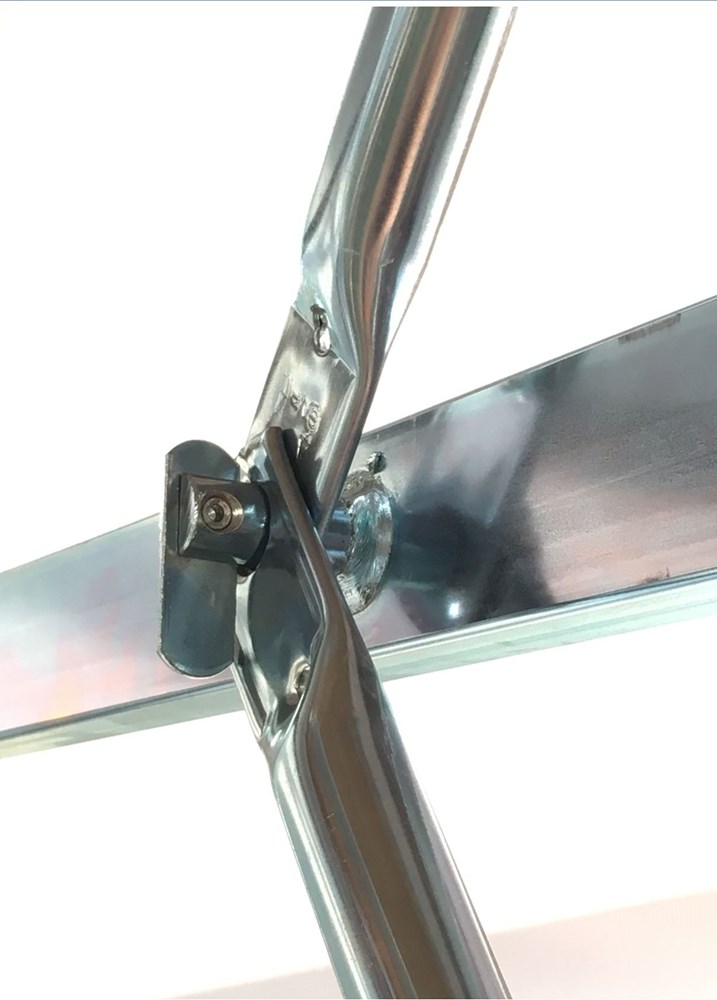

2) The crossbars fixing is made through the quick pin system

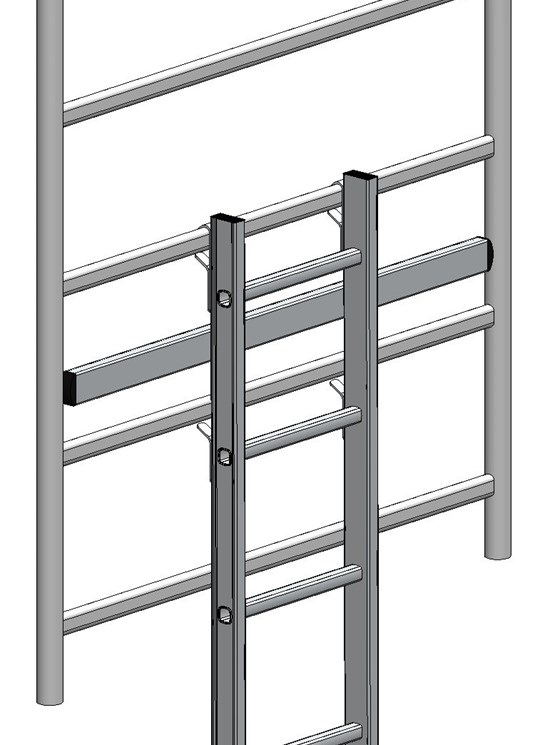

3) The new non-skid rungs allow a stable step when climbing

4) Frames A fit into tube of guardrails B pressing down on them.

The scaffold becomes firmer the higher it is raised (because compression is distributed on the whole structure).

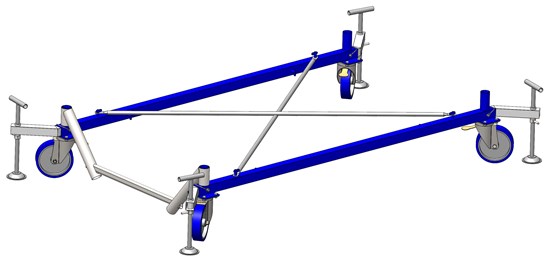

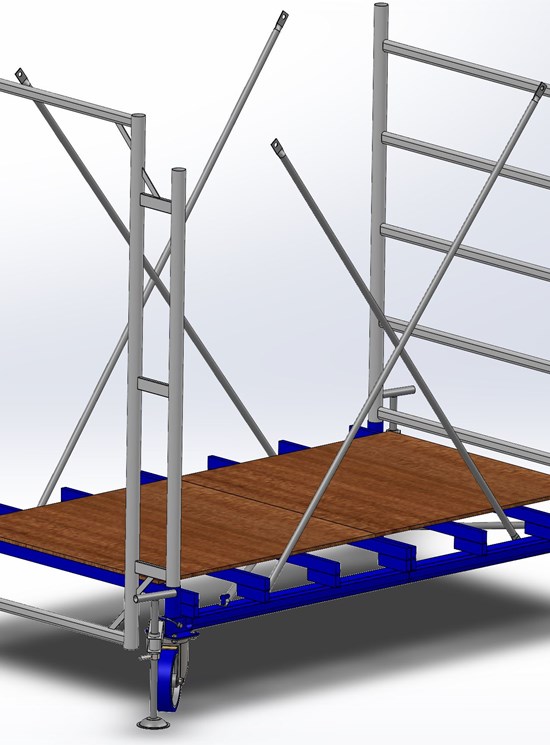

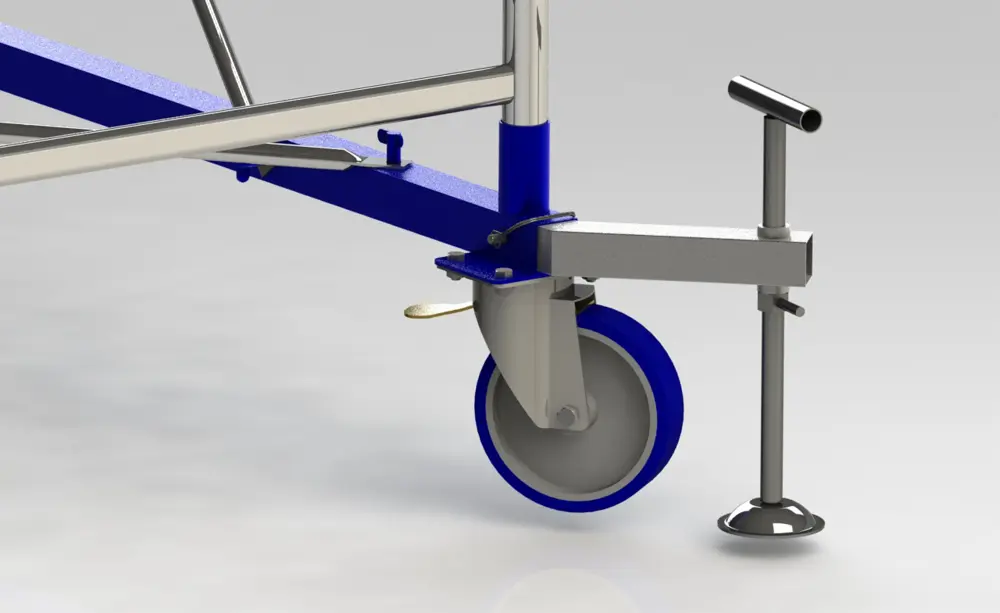

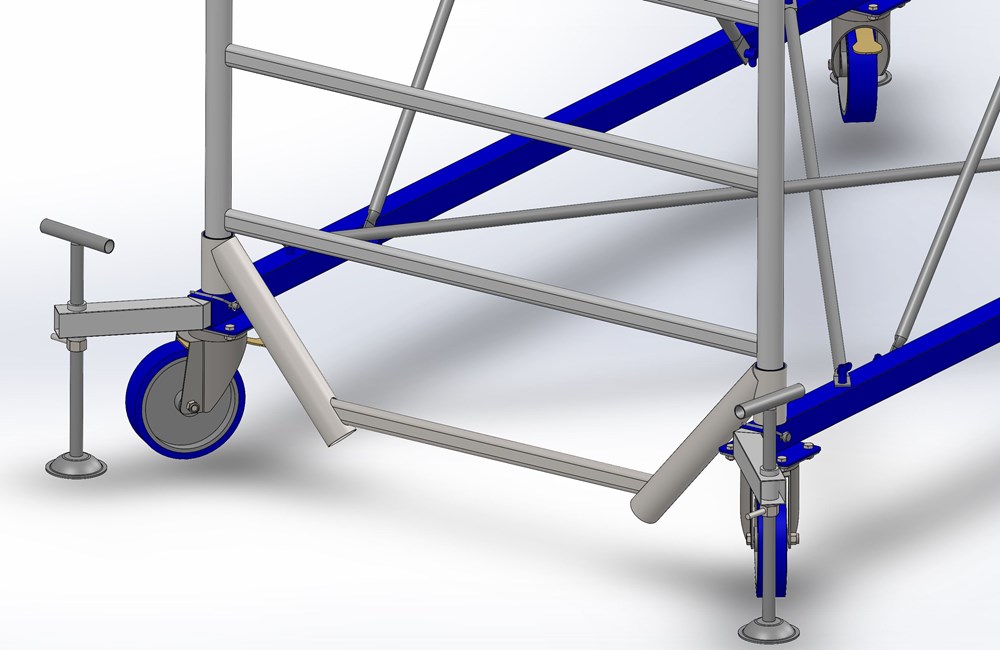

5) The Base is modular, equipped with 4 removable and adjustable levellers, 200 mm diameter wheels with brakes and requires neither screws nor tools to be assembled.

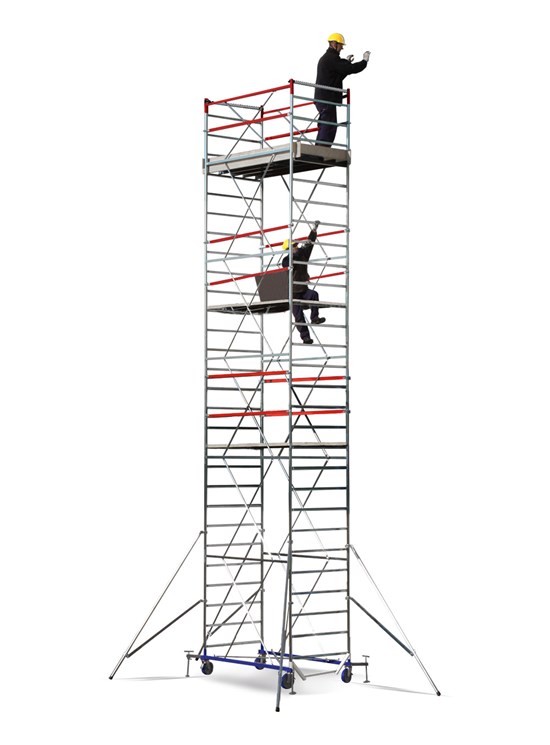

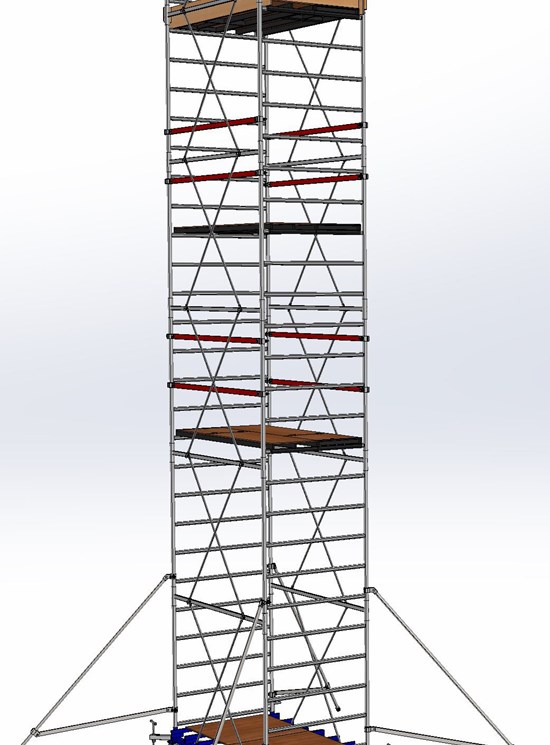

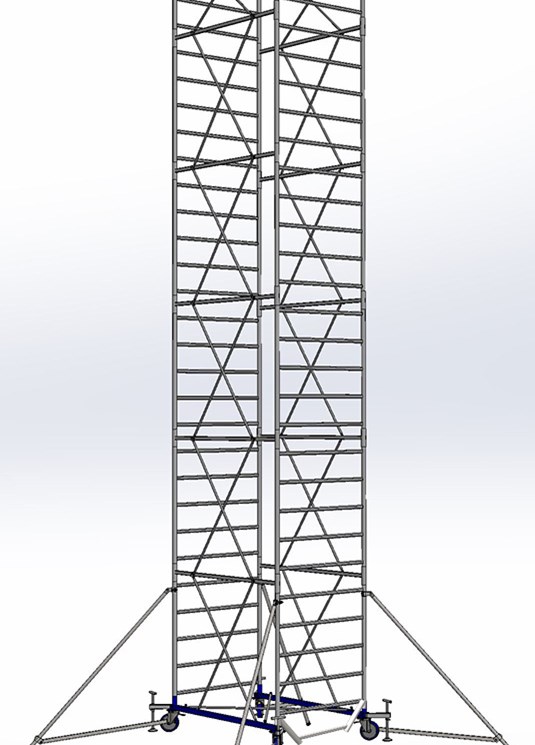

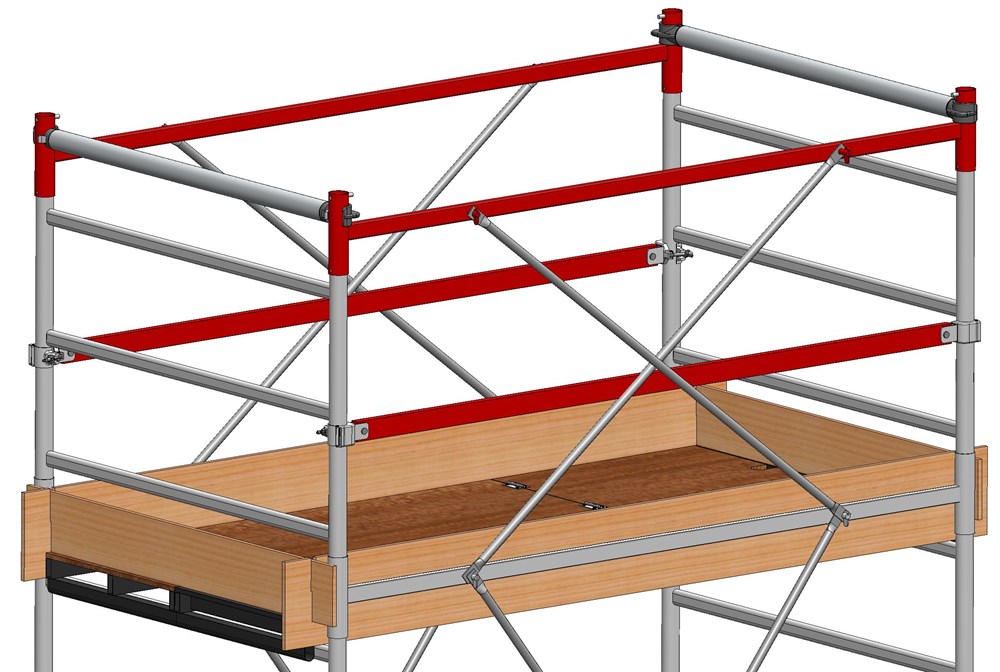

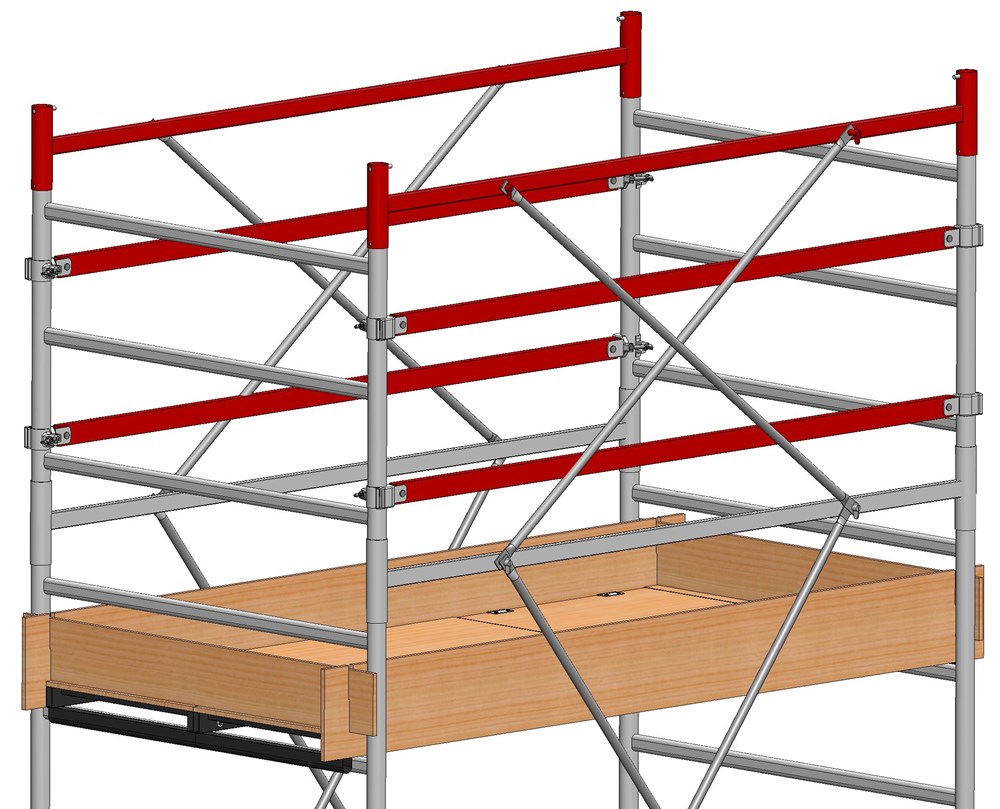

6) Names of components and example of an assembled scaffold with working platforms

Components have different colours to understand easily where to place them (blue base, silver spans, red protection railing and guard-rails).

DESCRIPTION

Eurotech is made in steel FE360 galvanised against rust. It is safe to use and easy to assemble.
The crossbars create a perfectly static structure with no swaying at all even at great heights.
According to European Standards the operator can climb to the working platforms by using the frame rungs.
The distance between rungs is just 30 cm so it is not necessary to add ladders inside the scaffolding.
The base crossbars are the same as the span ones.

ACCESSORIES

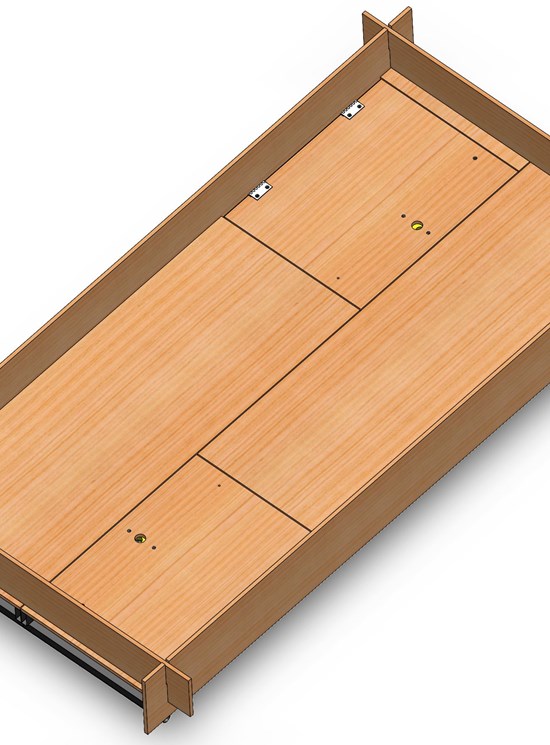

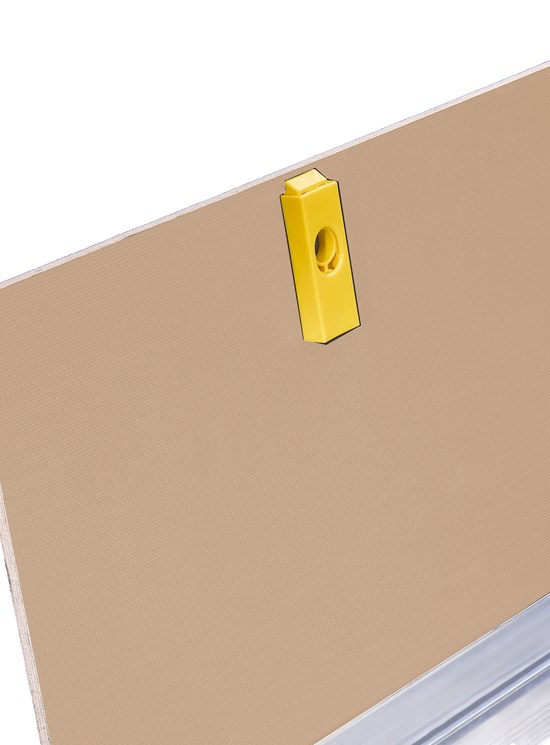

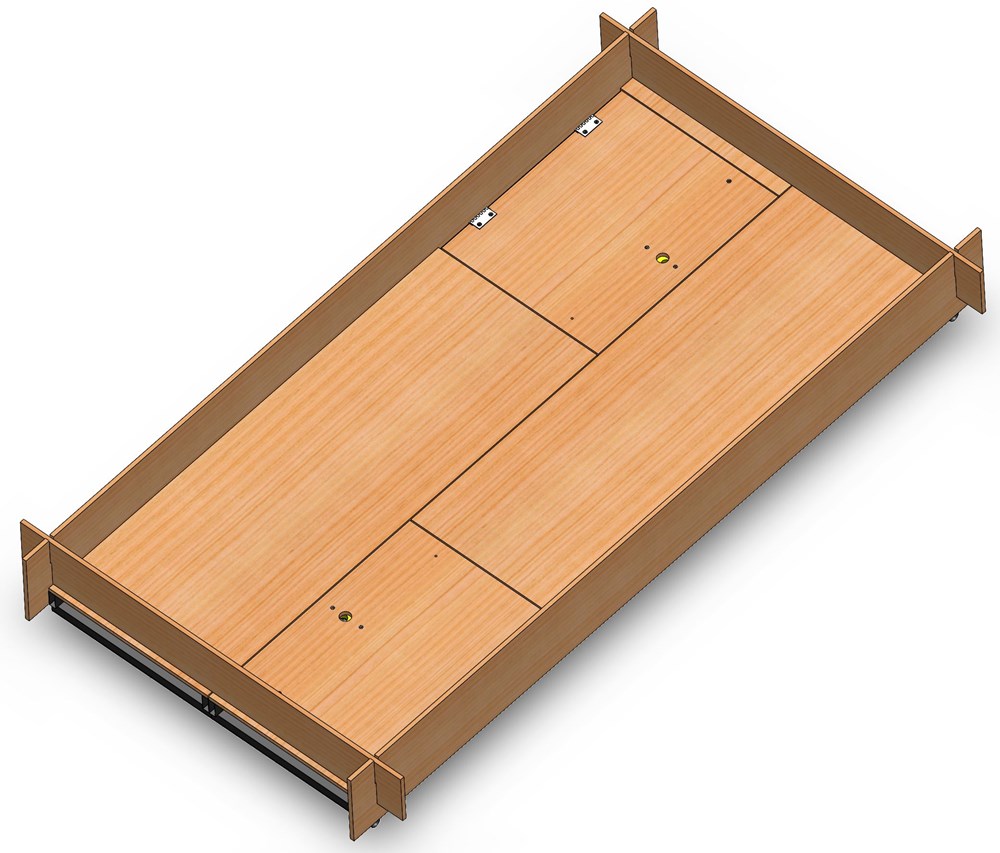

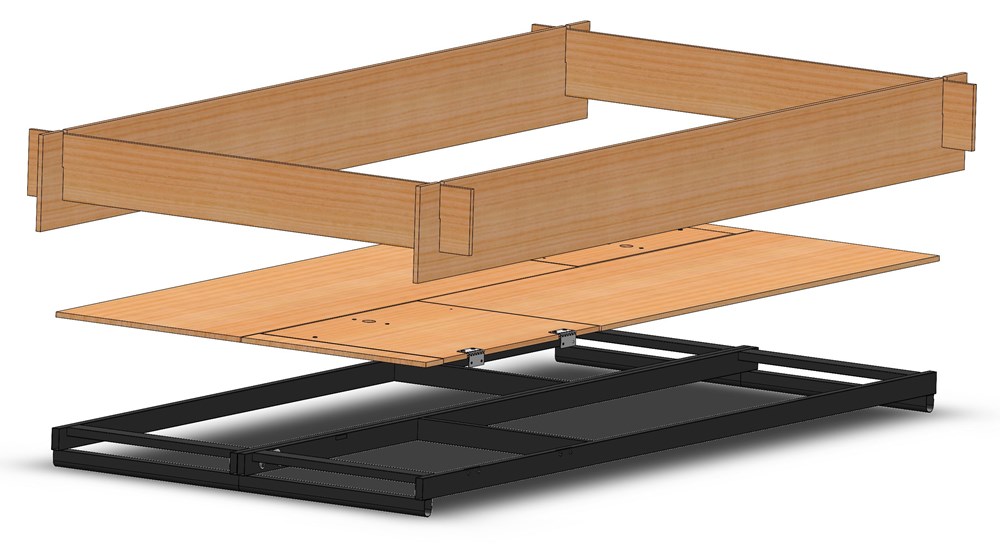

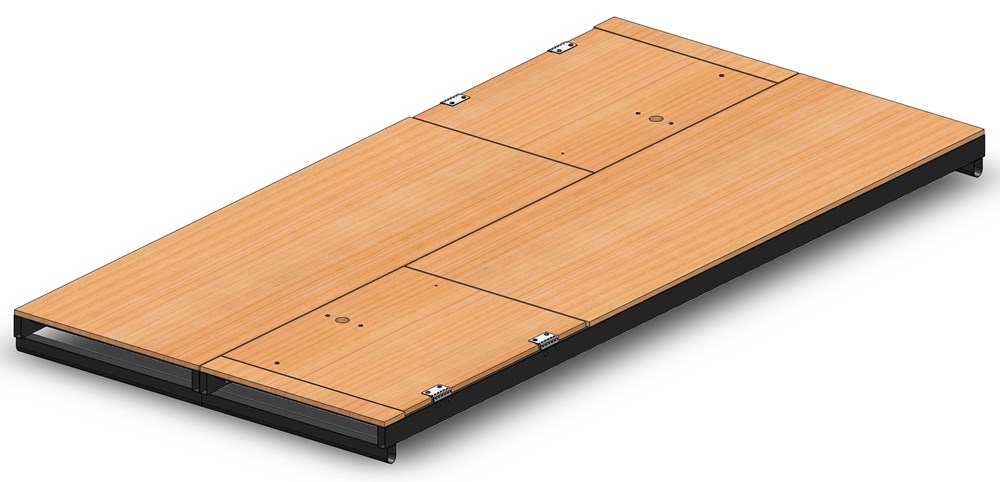

Steel platform with 2 trapdoors and toeboards (m 2,04x1) - Kg 40,4
Alu platform with 2 trapdoors and toeboards (m 2,04x1) - Kg 33,6

Steel platform with 2 trapdoors without toeboards (m 2,04x1) - Kg 32,8
Alu platform with 2 trapdoors without toeboards (m 2,04x1) - Kg 26

Full aluminium platform with 2 trapdoors with aluminium toeboards (m 2,04x1)
Full aluminium platform with 2 trapdoors without toeboards (m 2,04x1)

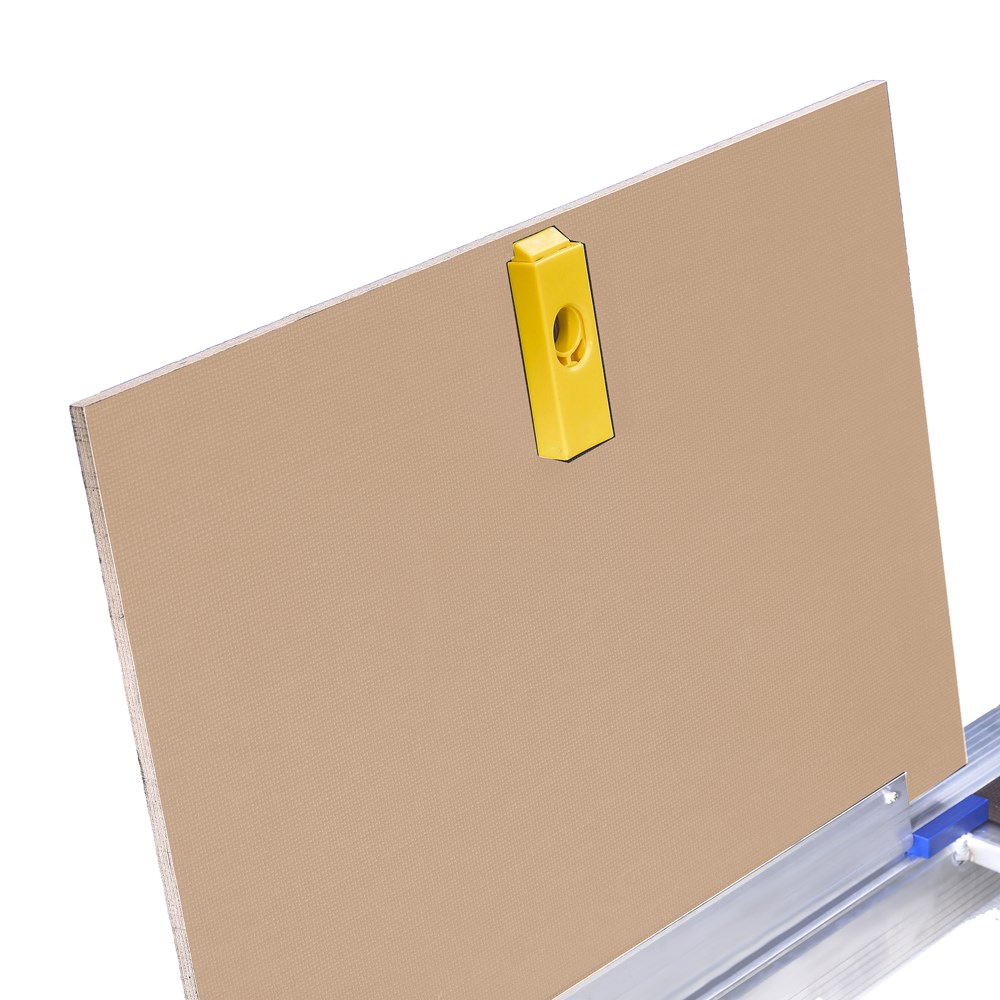

Set 4 fermapiedi legno (2 lunghi+2 corti) Kg 7,6
Base platform (m 1x0,56) - Kg 12.5

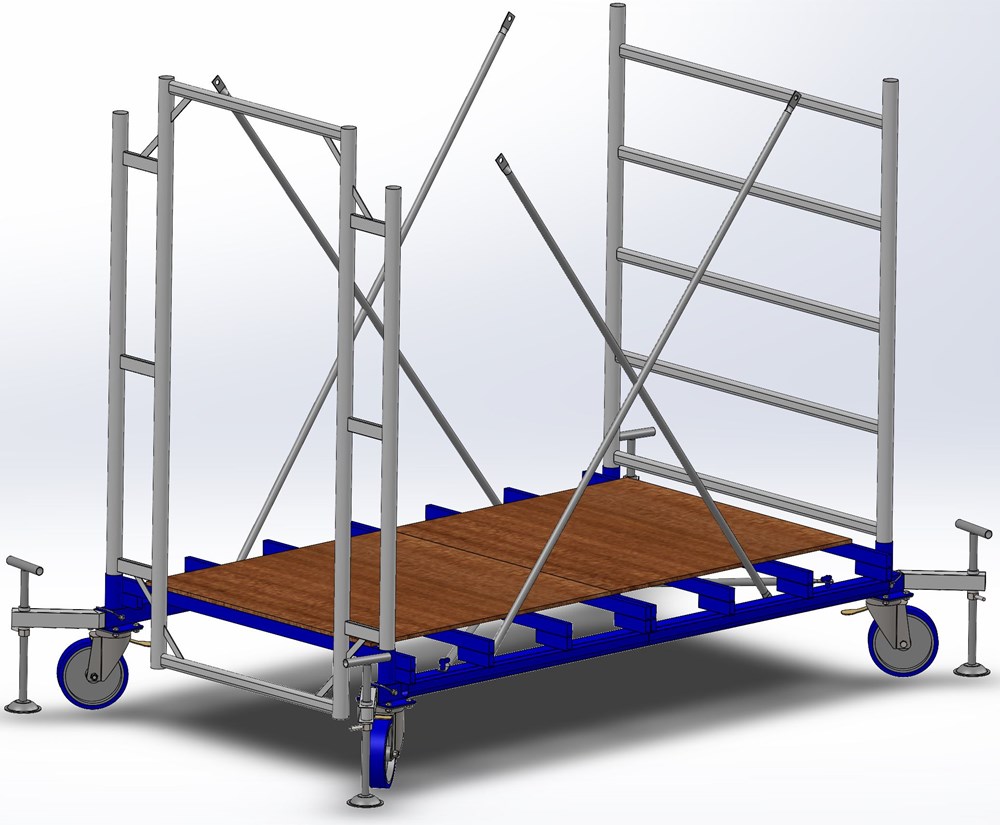

Entry base frame - Kg 18

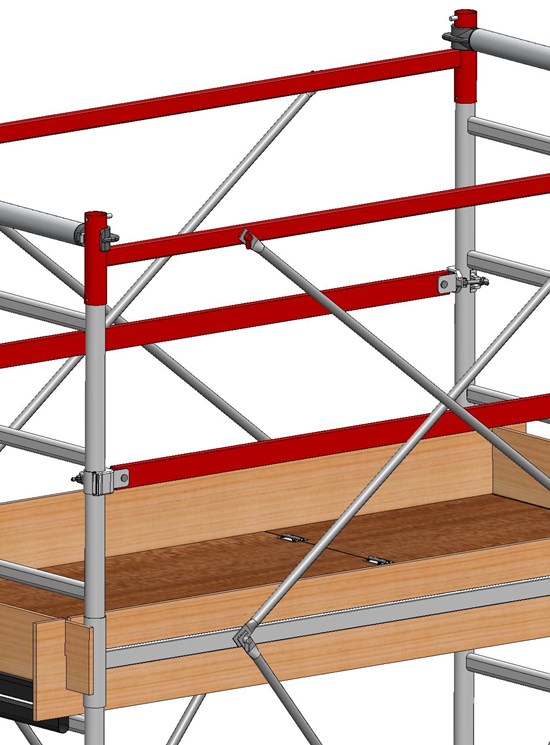

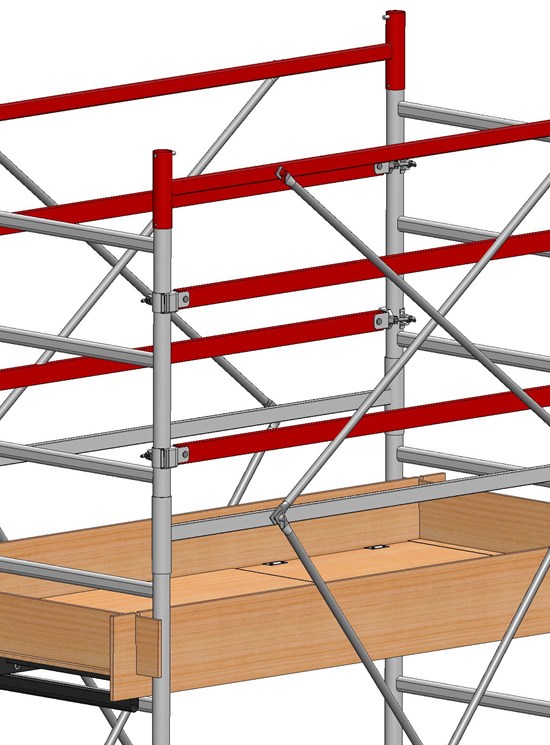

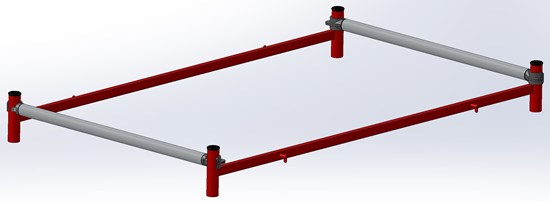

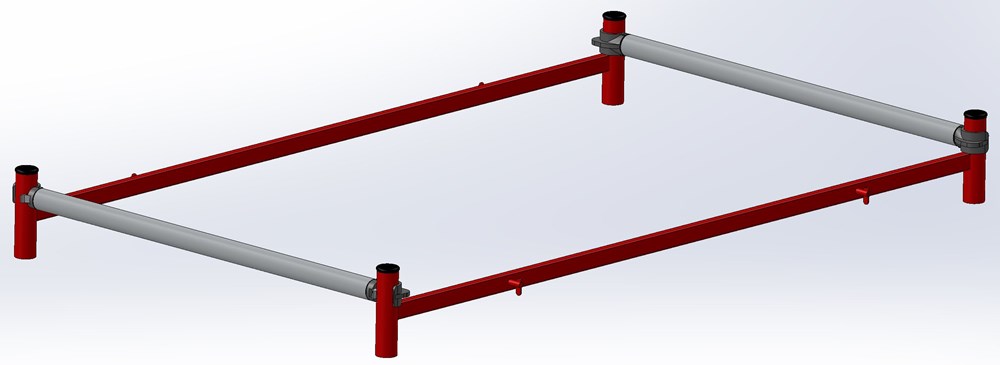

Top guardrail (2 handrails + 2 ledgers) - Kg 8,5
4 safety guardrails mandatory for each additional platform
Stabilizer

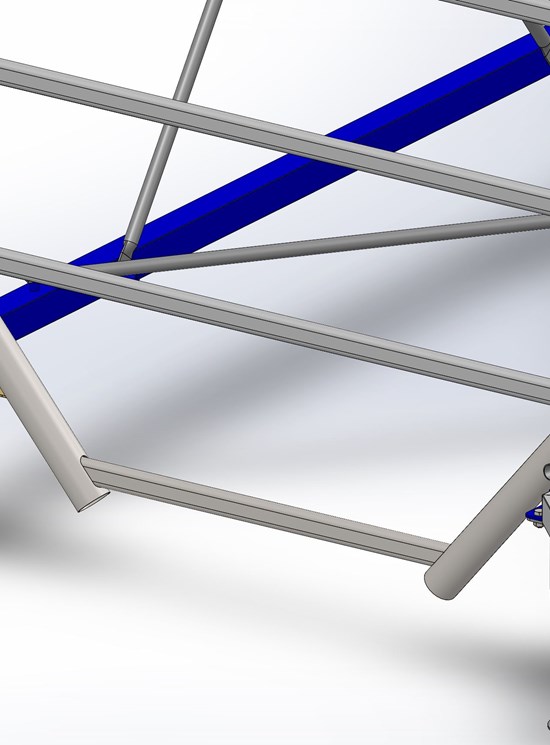

Open space span Kit (allow to take crossbars away, getting free space on the façade)

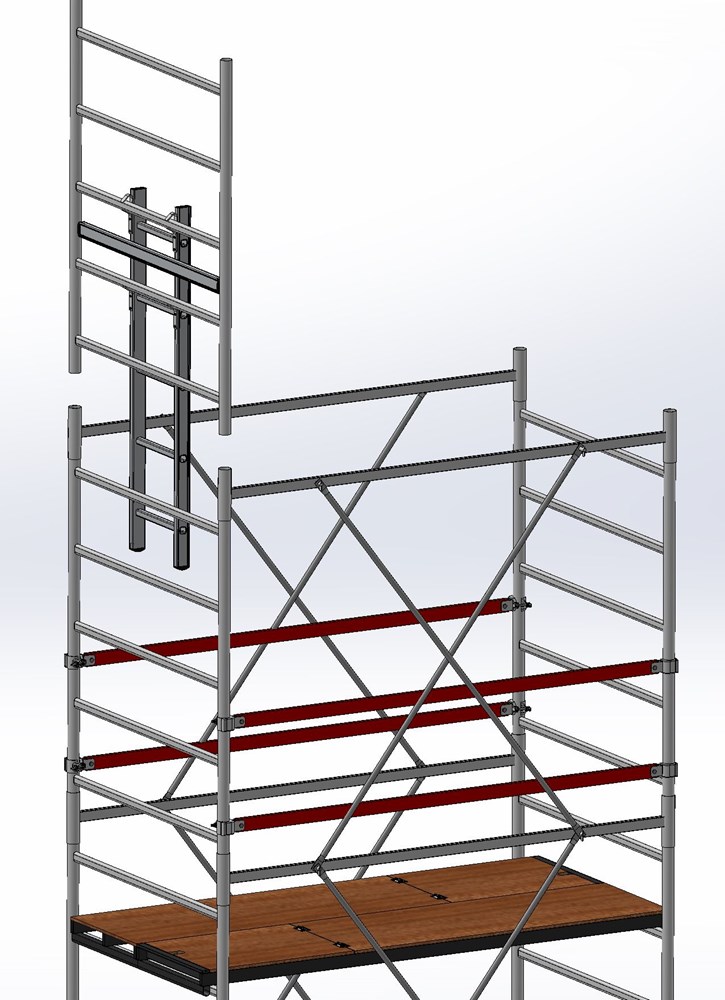

NEW SERVOSYSTEM

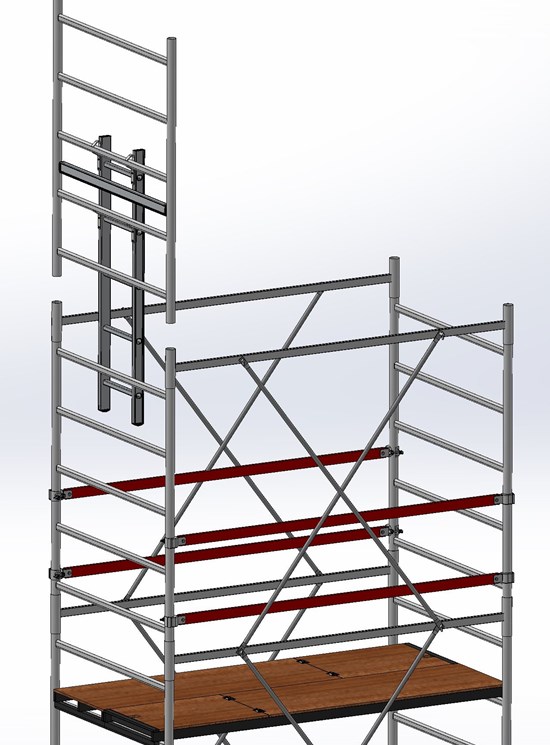

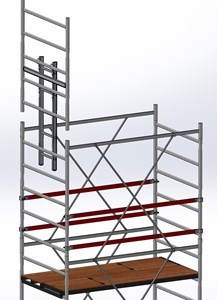

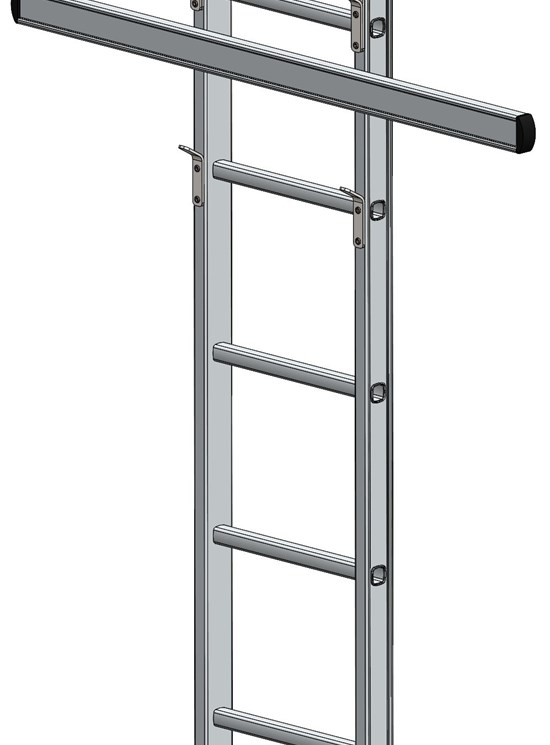

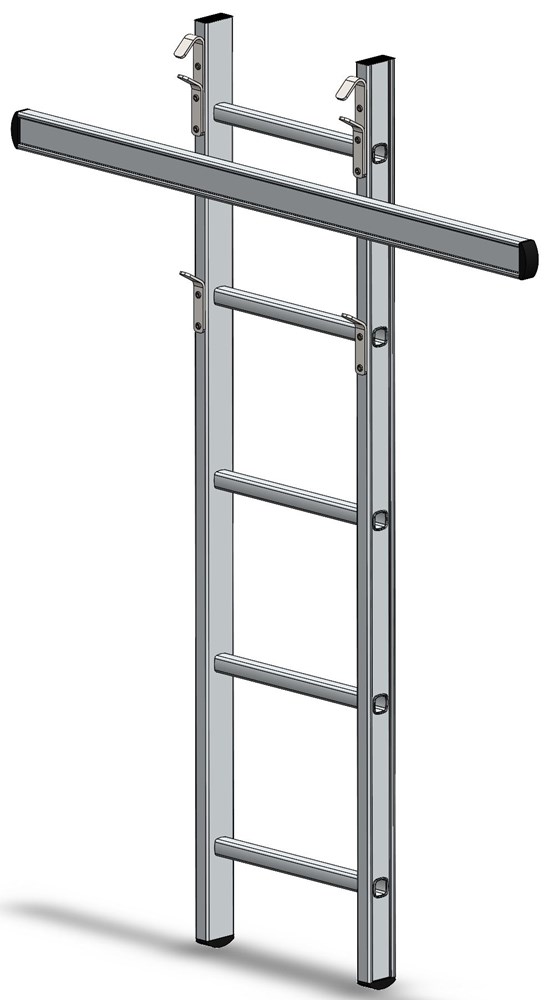

It is an accessory that allows the safe assembly of the frames according to EN1004.2.

The operator uses it as a “hanger” by assembling the frame without risk and without the need to climb on the rungs below

Each. 2.7 kg. Recommended for the following floor heights: 3.51-5.01-5.61 m and all heights over 6.51 m.

AVAILABLE HEIGHTS

Platform height m	Total height m	Working height m
0,81	1,90	2,81
1,11	2,11	3,11
1,41	2,80	3,41
1,71	2,80	3,71
2,01	3,40	4,01
2,31	3,40	4,31
2,61	3,70	4,61
2,91	4,30	4,91
3,21	4,30	5,21
3,51	4,90	5,51
3,81	4,90	5,81
4,11	5,20	6,11
4,41	5,80	6,41
4,71	5,80	6,71
5,01	6,40	7,01
5,31	6,40	7,31
5,61	6,70	7,61
5,91	7,30	7,91
6,21	7,30	8,21
6,51	7,90	8,51
6,81	7,90	8,81
7,11	8,20	9,11
7,41	8,80	9,41
7,71	8,80	9,71
8,01	9,40	10,01
8,31	9,40	10,31
8,61	9,70	10,61
8,91	10,30	10,91
9,21	10,30	11,21
9,51	10,90	11,51
9,81	10,90	11,81
10,11	11,20	12,11
10,41	11,80	12,41
10,71	11,80	12,71
11,01	12,40	13,01
11,31	12,40	13,31
11,61	12,70	13,61
11,91	13,30	13,91
12,21	13,30	14,21
12,51	13,90	14,51
12,81	13,90*	14,81

The most convenient heights in terms of price are highlighted in bold.
* Maximum height self-limited to 13.90 m.

In Eurotech scaffolding compliant with European standards UNIEN1004-1-2, the intermediate platforms can be used without toeboards. Anchoring is not mandatory.
Over 12.00 m (platform height), the scaffolding complies only with the local standard: mandatory anchoring and all platforms must be equipped with toeboards.
