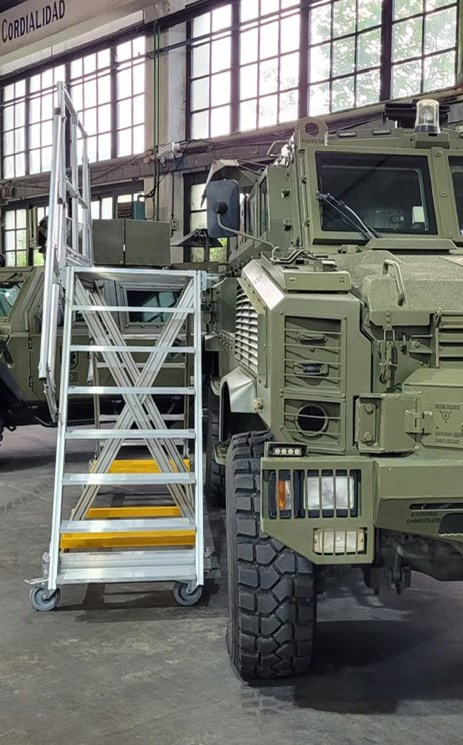

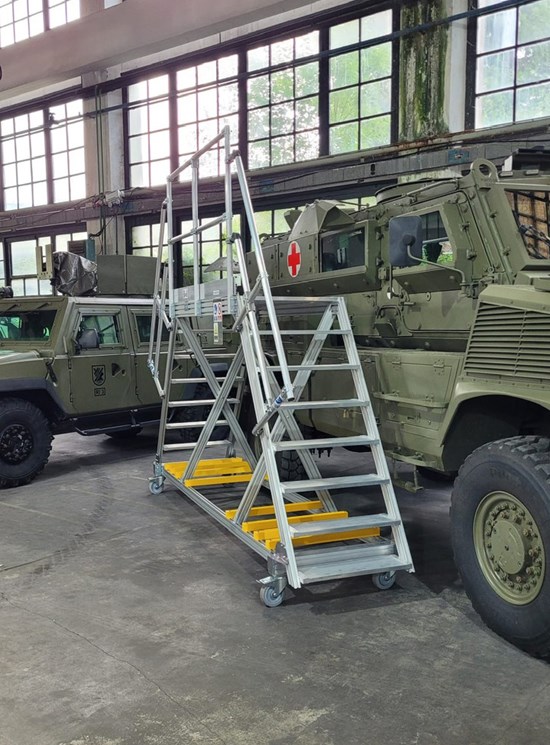

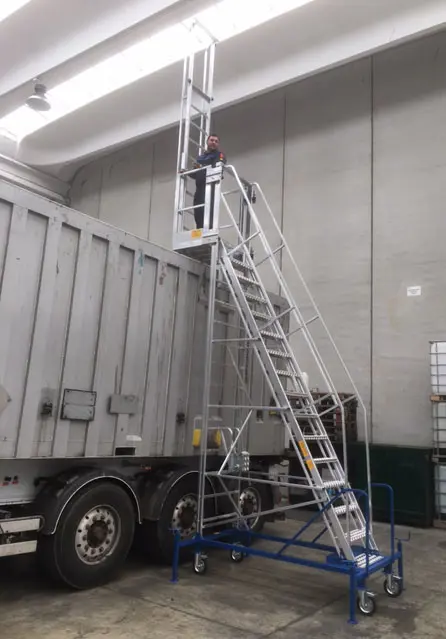

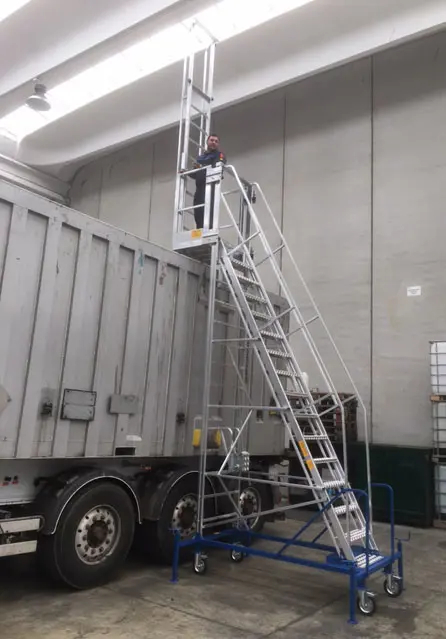

Customized adjustable ladder for trucks and containers

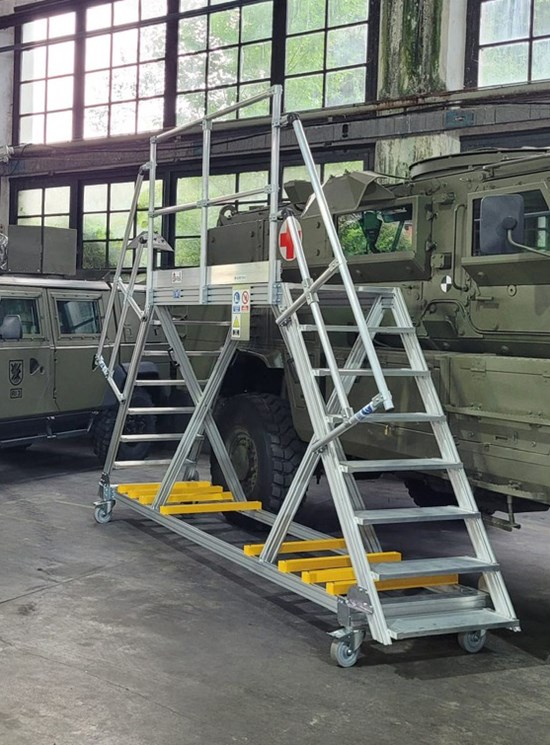

Produced in ultra-resistant aluminum, it is ideal for working on the side, front and back of trucks.

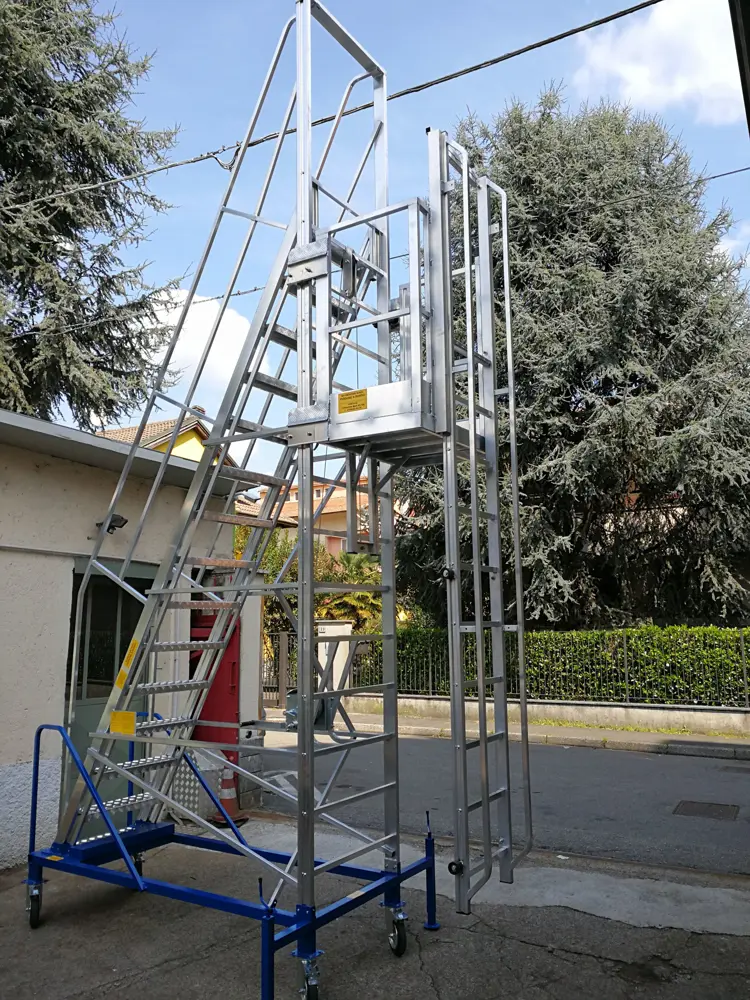

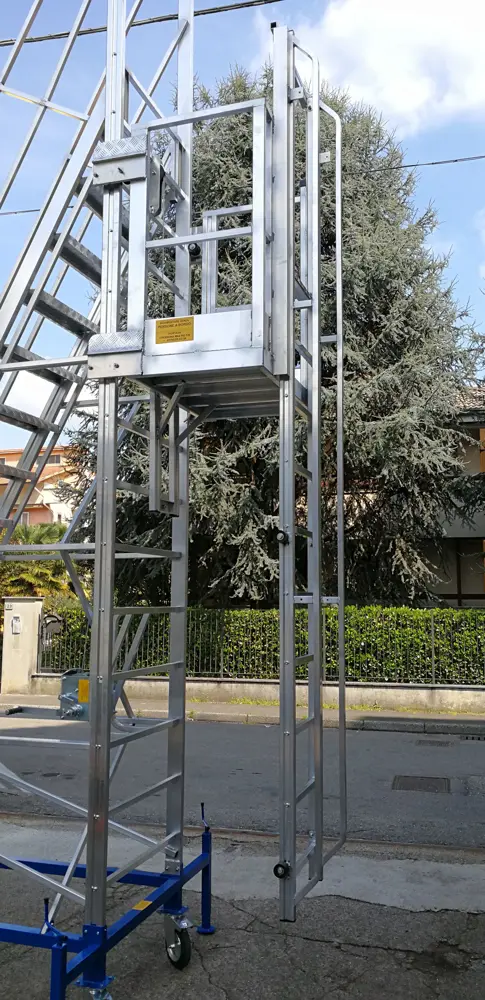

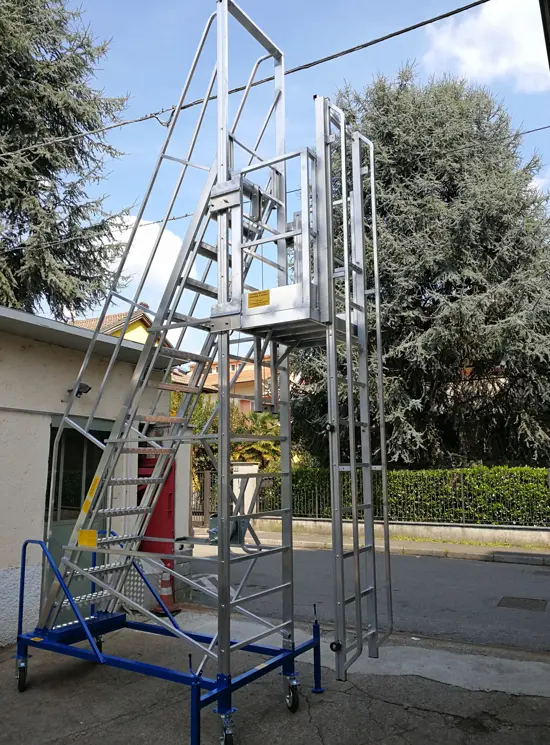

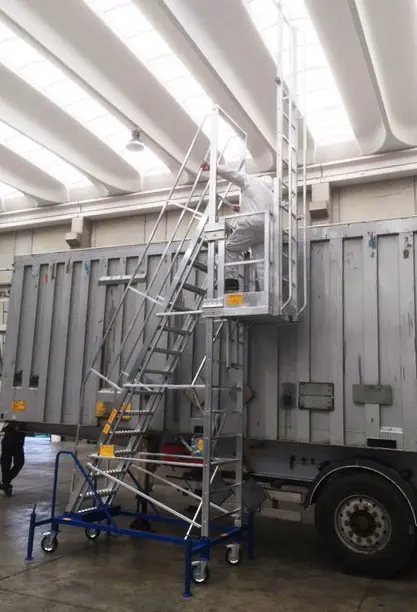

The vertical ladder has the purpose of allowing the operator to go down inside the body to carry out the work.
Both the platform and the vertical ladder are adjustable for trucks and bodies with different heights and depths.

STANDARD EQUIPMENT

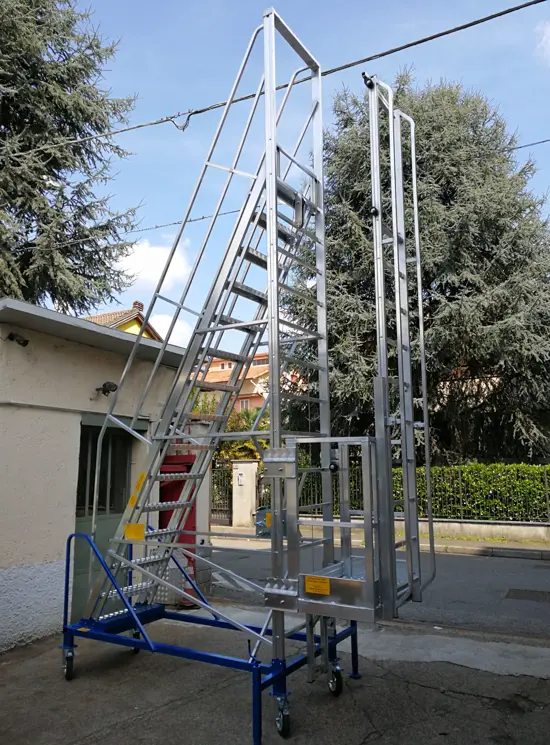

Platform height telescopically adjustable from 0.80 m to 3.00 m

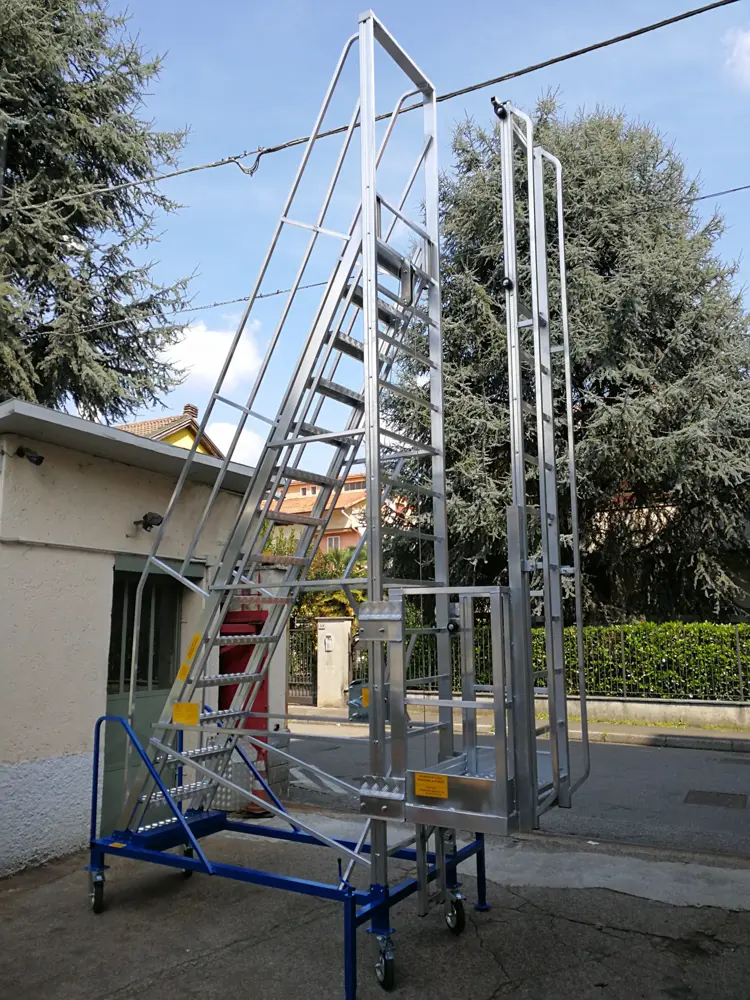

The basic structure (frame) is made of painted steel equipped with 4 solid swivel wheels diam. 200 mm with pedal brake
The wheels have diam. 200 mm
The ladder is made of aluminum with telescopic extension adjustable in height
It can be raised and lowered using a manual winch equipped with a steel rope

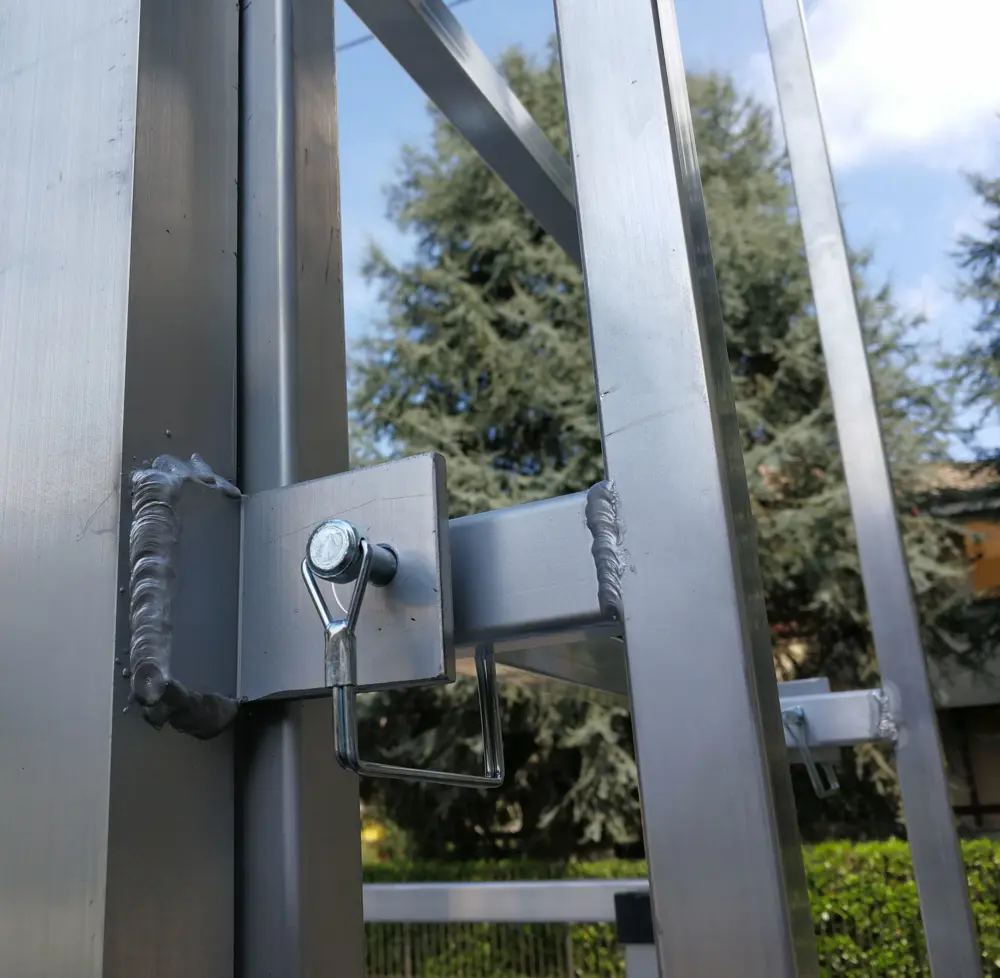

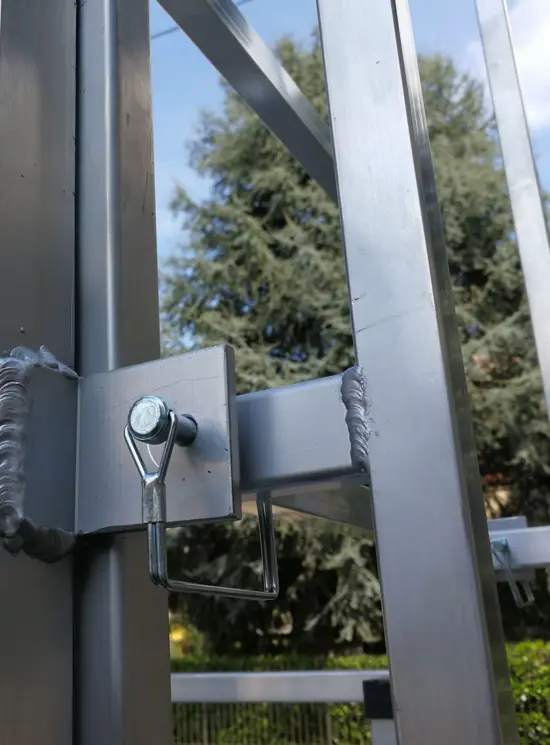

A 2 locking hook spring bolt provides mechanical safety in case of cable breakage
The ladder is equipped with handrails on both sides for a comfortable operator climb

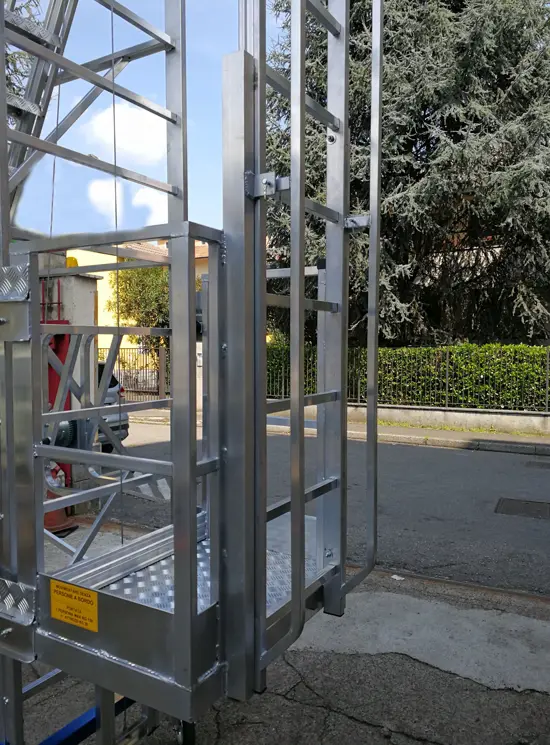

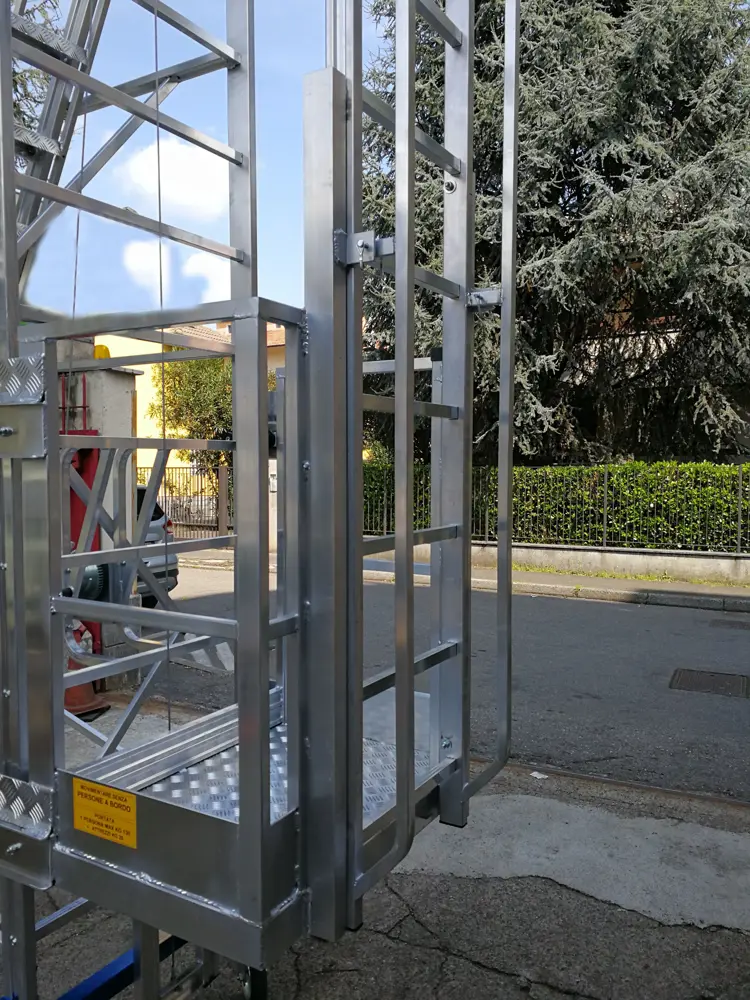

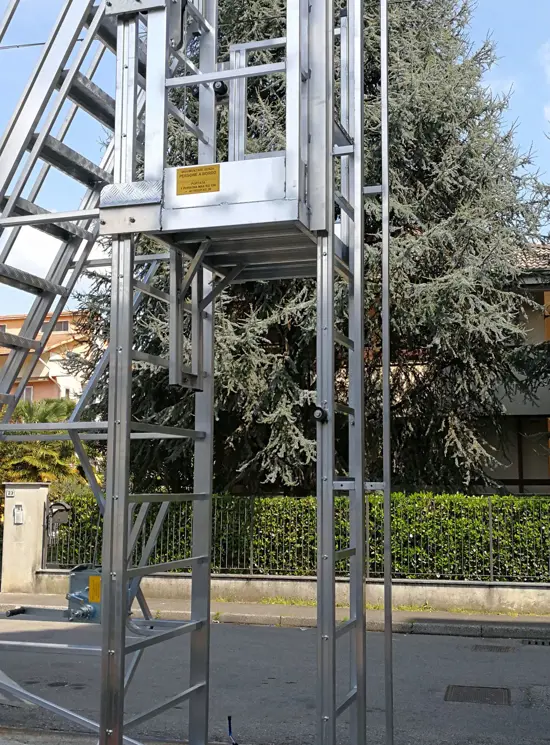

Aluminum platform with toe cap, knee protection and guard rail
Labels and user and maintenance manual
Test certificate according to Italian and European CE regulations
Approved for lifting and moving 20 kg of material (tools)

SPECIAL MEASURES ON REQUEST

Also available without lifting mechanism (non-telescopic fixed ladder).
necessary nor applicable.In this case the CE mark is neither

TECHNICAL FEATURES

Max height at floor 2.99 m
Height min. on the floor 0.83 m
Total height 4.00 m
Frame width m 0.85
Max width with stabilizers in place fully extracted 1.60 m
Frame length m 2.00
Work surface: platform dimensions 1.40 x 0.85 m
Toeboard height 150 mm
Parapet height m 1
Wheel diameter 200 mm. Pivoting rubber with brake (front)
Wheel diameter 200 mm. Pivoting rubber with positioner (rear)
Transport dimensions (lying down ladder): length 5 m - width 1 m - height 2.5 m
Capacity 150 kg including one person
Total weight Kg 300 ca.

N.B. Handling without people on board. Capacity 1 person max kg 130 + tools kg 20
