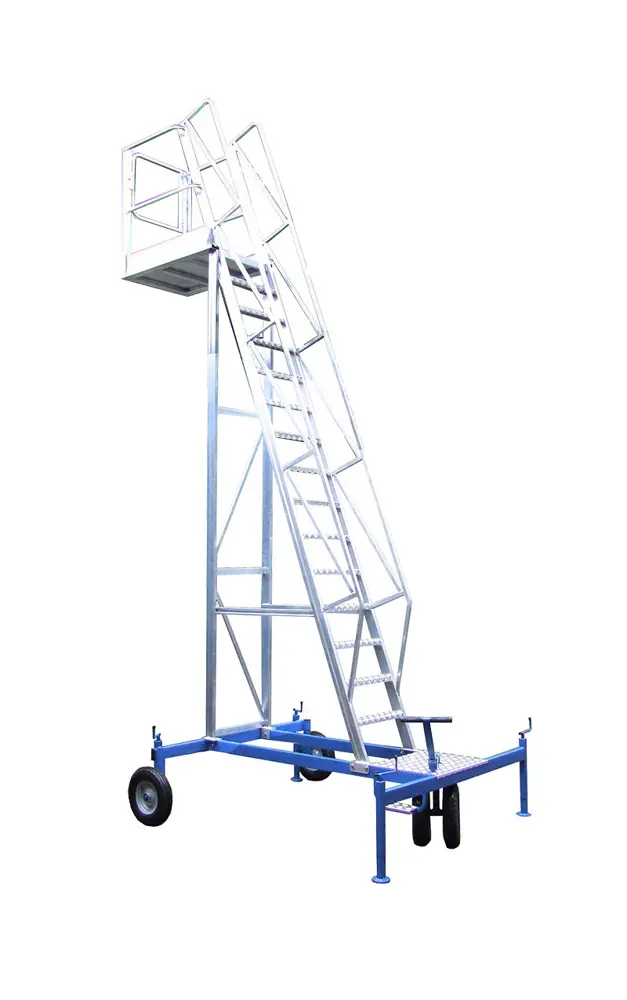

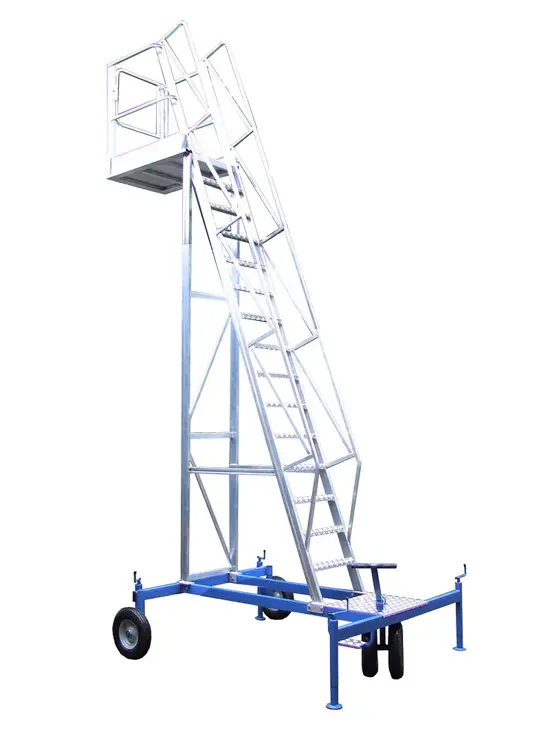

Tank ladder with rudder for tankers and tanks

Tank ladder with rudder for tankers and tanks

Customized dimensions

CE Material Lift

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

Suitable for heavy duty

Fixed or telescopic cantilever platform equipped with drawbar and pneumatic tires, it is suitable to work at different height thanks to its telescopic platform system, aluminium platform with toeboards and guardrails (1 m)

It is specially designed to allow a comfort access to tanks or boilers.
Our ladder can have a great outreach due to the perfect balance between outreach and ballast.
It is not necessary to introduce the ladder chassee under the truck to be able to get over the tank.

It is suitable to work at different height thanks to its telescopic platform system.
It can be rised and lowered by a very simple and efficient and smooth winch.

Minimum platform height is 289 cm, max is 700 cm.
The steel painted chassee hold a very heavy duty aluminium ladder with gruardrails and toeboards on all sides.

STANDARD EQUIPMENTS

Adjustable height from m 2.89 to m 7 (different models)

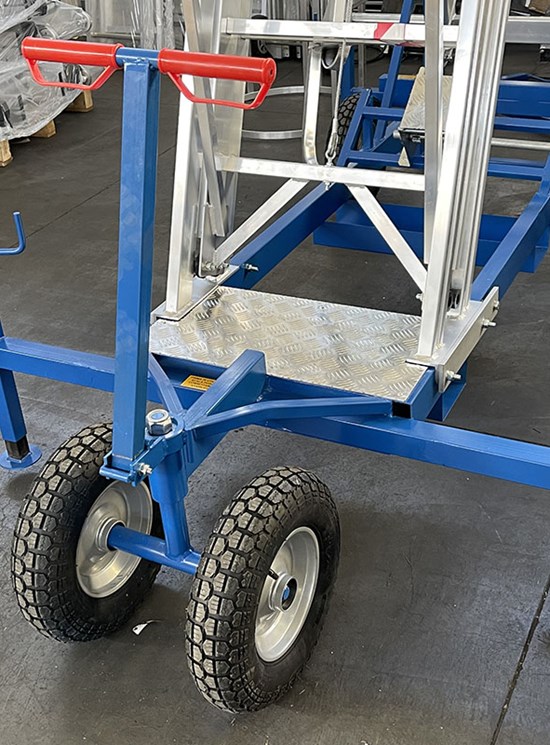

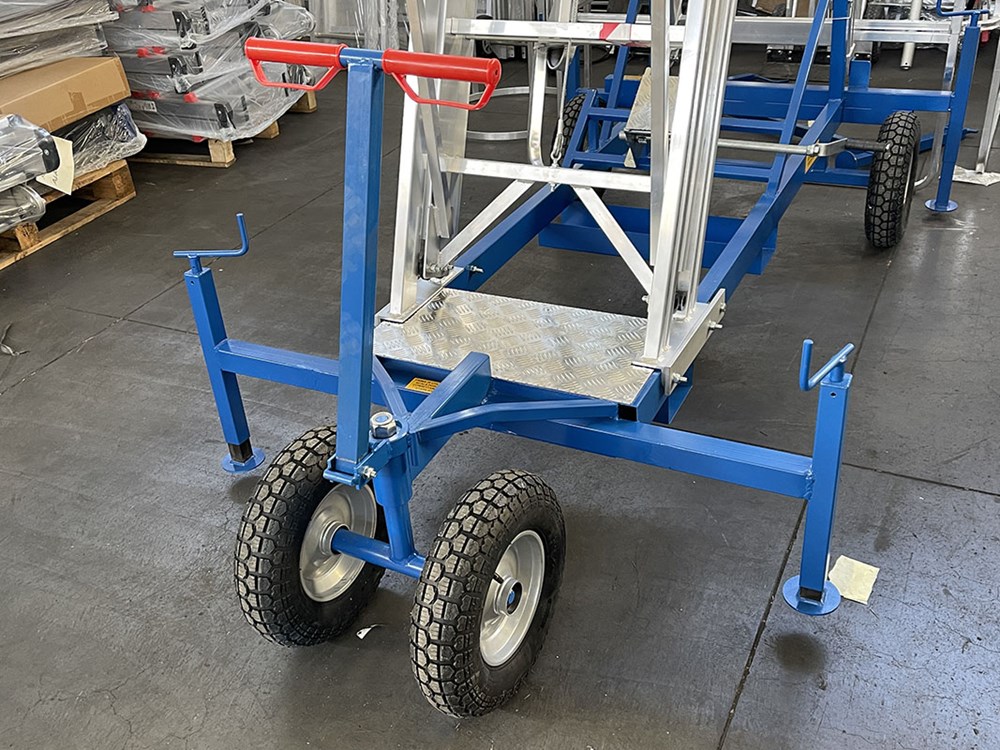

Steel chassee with 2 adjustable levellers

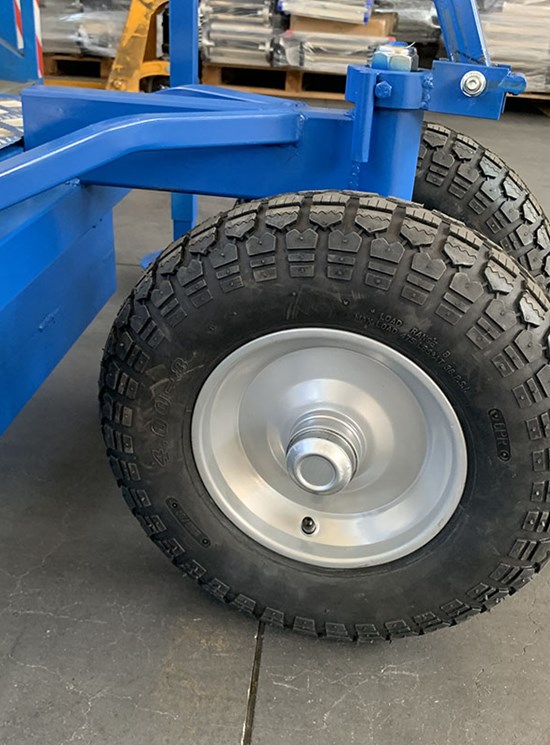

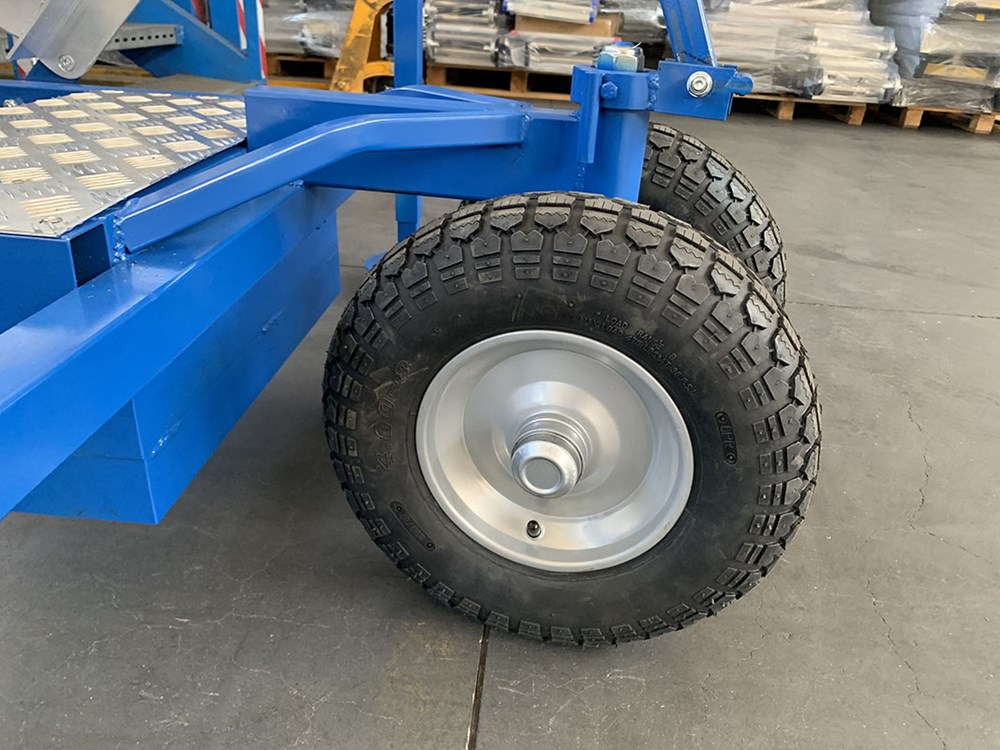

2 pivoting punture-proof wheels with brakes and 2 fix wheels (diameter 255 mm)
Elevation with a manual winch
Safety hooks to block the elevation at every height
Handrails on both sides of the ladder
Drive handrails on the base
Aluminium platform with toeboards and guardrails (1 m)
Stickers and manuals
Capacity 1 person max 130 kg + tools kg 20
CE Certification

TELESCOPIC MODEL

TANK LADDER SMALL platform height from m. 2.89 to m. 4.41
TANK LADDER MEDIUM platform height from m. 3.15 to m. 4.91
TANK LADDER LARGE platform height from m. 3.40 to m. 5.41
TANK LADDER MAXI platform height > m. 5.50 (max m. 7)

FIX MODEL

TANK LADDER (platform height within m. 2.35 and m. 3.50)
TANK LADDER (platform height within m. 3.51 and m. 4.30)

ON DEMAND

PROTECTION GUARDRAILS CAGE m 1.20x1.20
PROTECTION CAGE ON THE LADDER
DRAWBAR FOR TOWING AND SPECIAL PNEUMATIC WHEELS DIAMETER 400 mm
TANK LADDER ON TRAILER
CAGE ROOF PROTECTION FOR SUN AND RAIN
FLAT STEPS FOR FIX LADDERS
EXTRAWIDE PLATES FOR 2 LEVELLERS (for soft ground)
2 ADDITIONAL BACK LEVELLERS (2 AT THE FRONT ARE STANDARD)
SAFETY PROTECTION CHAIN ENTRANCE ON THE PLATFORM
GATE ENTRANCE ON THE GROUND (TO AVOID ENTRANCE OF PERSONEL THAT IS NOT ALLOWED)
FRONT GATE EXIT ON THE PLATFORM (TO ACCESS ON THE TANK)
EXTRA LONG PLATFORM m 1.60
PERIMETER TUBES FOR SAFETY BELT CONNECTION

n.b. Move without people on board.
