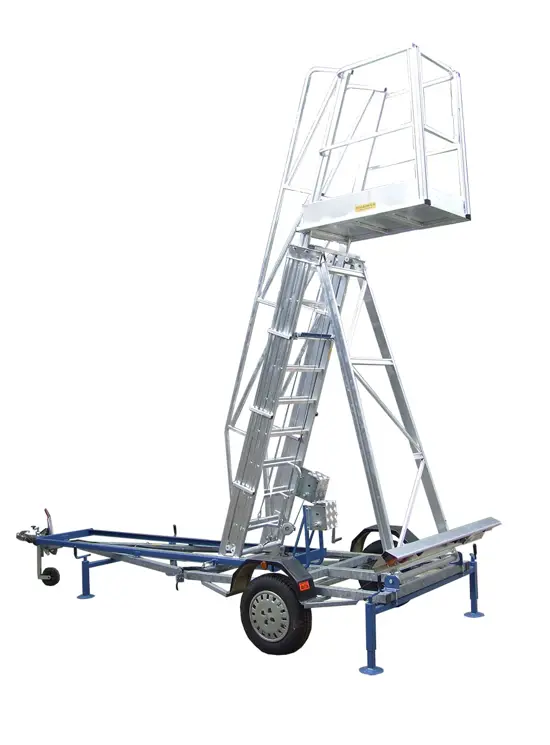

Towable tank ladder
Customized dimensions
CE Material Lift
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
It shows the number of people who can climb the structure at the same time
All our products conforms to the standads in force
Suitable for heavy duty

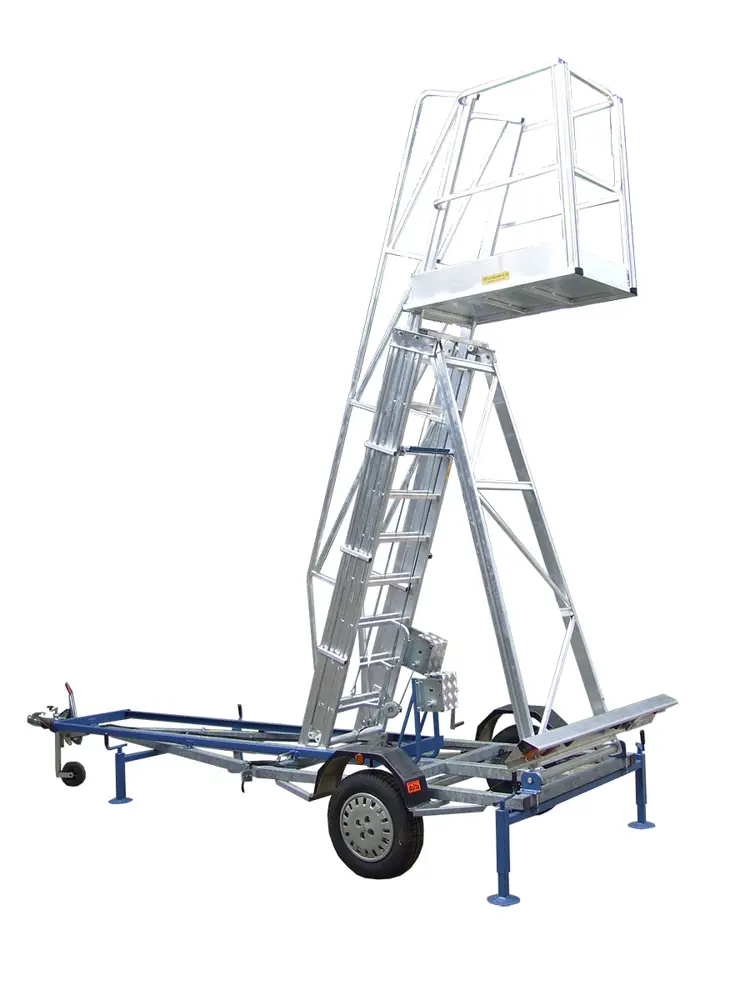

Tank ladder fixed or telescopic on a towable structure, designed to allow operators to work, empty and clean tanks or tank wagons.
Designed to allow operators to work, empty and clean tanks or tank wagons.
Safe access.

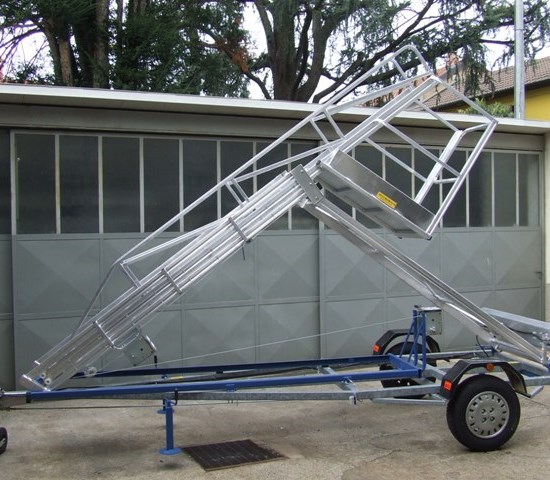

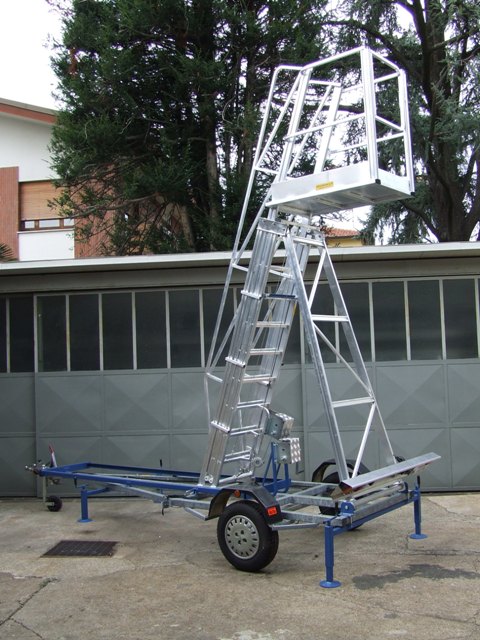

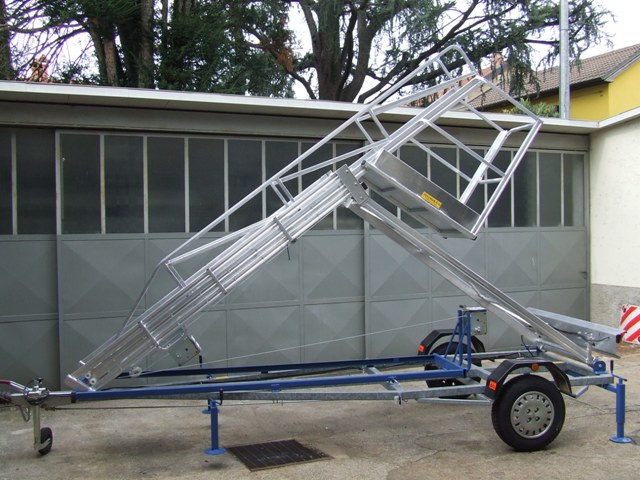

The peculiarity of this model is that of being mounted on a trolley approved for towing on the road.
This allows moving the ladder and accessing it in multiple usage situations.
The painted steel frame supports a ribbed aluminum staircase with a platform complete with parapets on all sides and (on request) with a front landing gate.

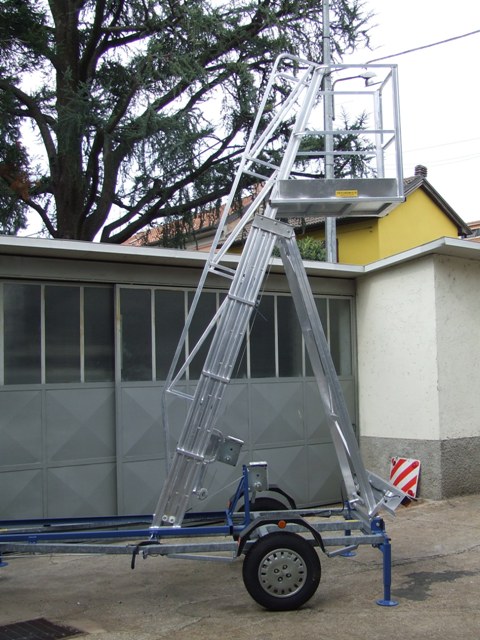

Fixed or telescopically adjustable height from 2.85 m to 4.00 m (other sizes on request)

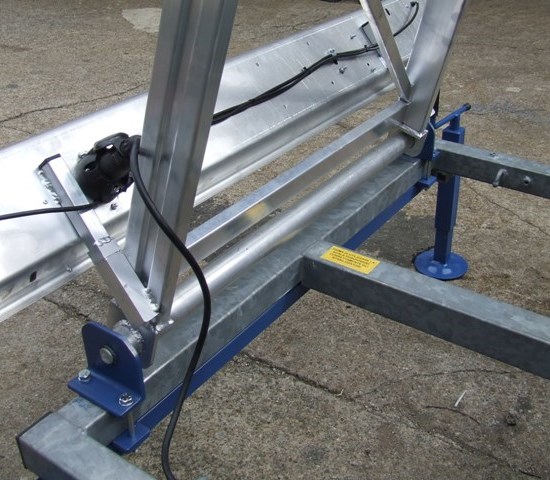

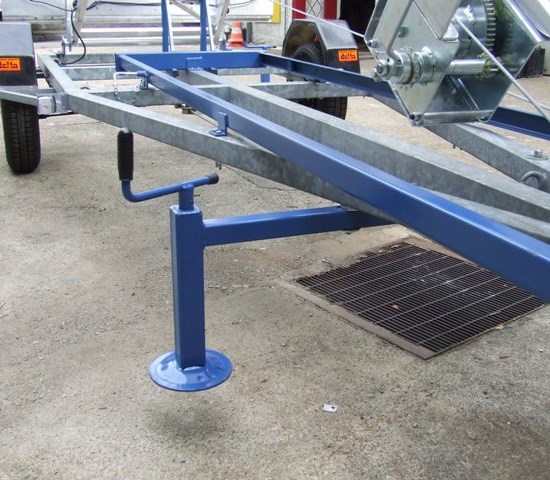

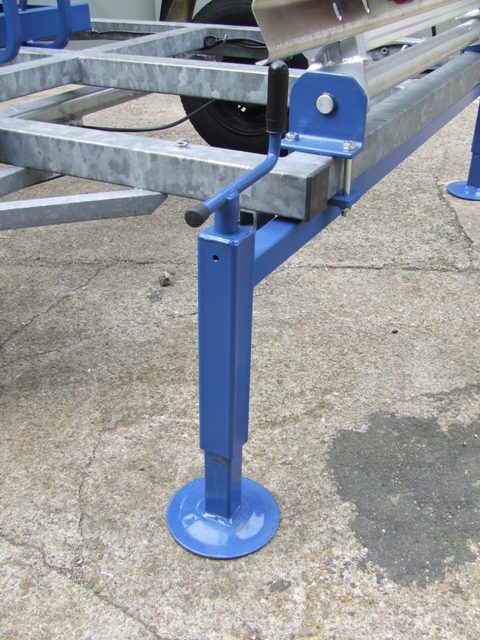

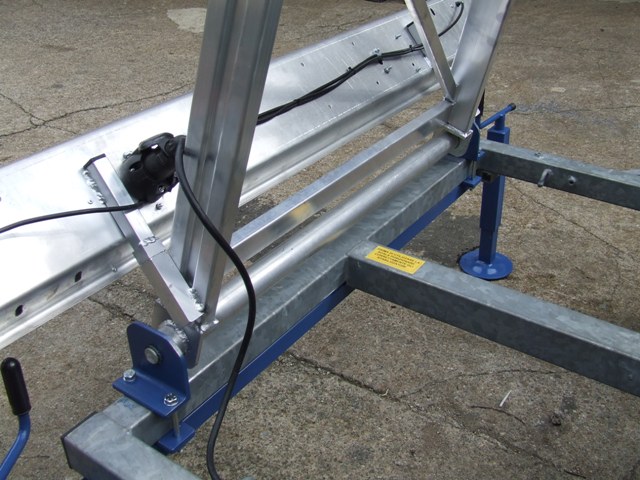

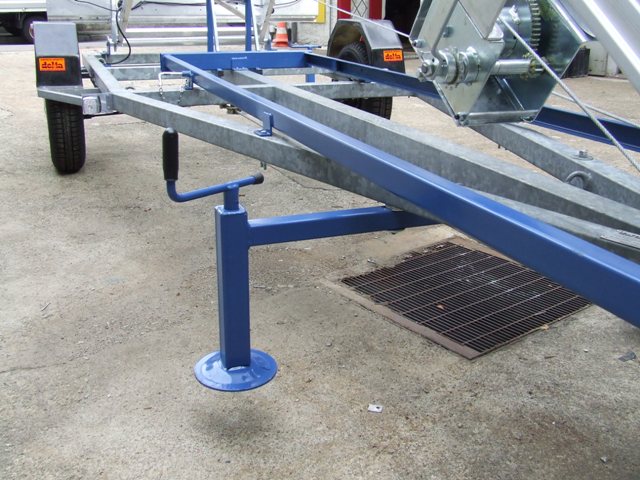

The basic structure (frame) is made of painted steel equipped with 2 levelers (+2 optional) and 4 solid rubber swivel wheels diam. 260 mm with brake (also suitable for gravel).
The platform for tankers and cisterns with 2 trunks is in telescopic aluminum with adjustable height.

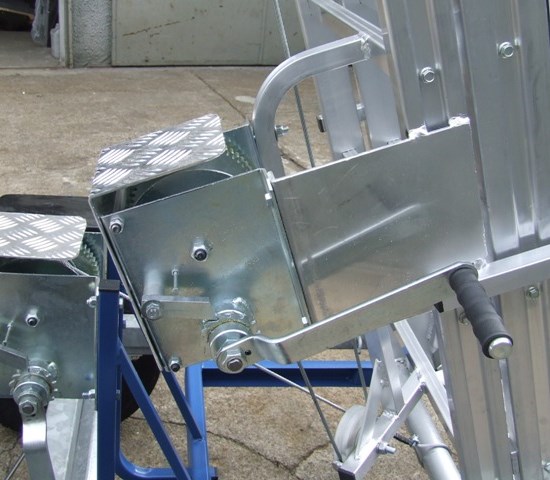

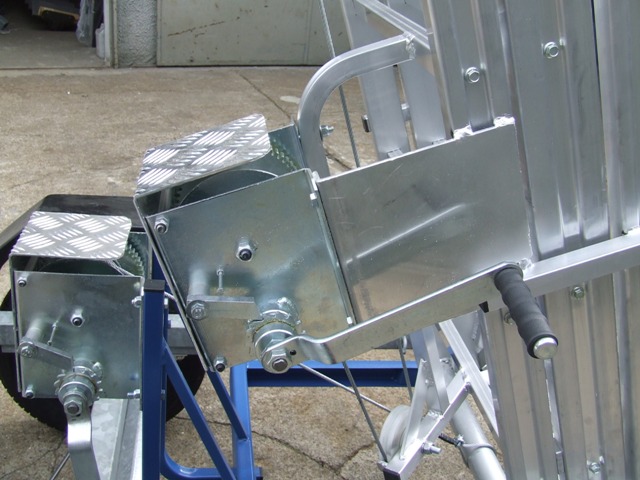

It can be raised and lowered using a manual winch equipped with a steel rope.
A 2-hook locking hook provides mechanical safety in case of cable breakage.
The staircase is equipped with a handrail on both sides for a comfortable operator climb.
Grip points under the frame for forklift truck for possible movement on site.
Aluminum platform with toe cap, knee guard and protection rail with opening gate and front landing (on request)
Optional cantilever protection cage to protect the operator working on the tank (on request)
STANDARD EQUIPMENT
The peculiarity of this model is that of being mounted on a trolley approved for towing on the road.
This allows moving the ladder and accessing it in multiple usage situations.
The painted steel frame supports a ribbed aluminum staircase with a platform complete with parapets on all sides and (on request) with a front landing gate.
Fixed or telescopically adjustable height from 2.85 m to 4.00 m (other sizes on request)
The basic structure (frame) is made of painted steel equipped with 2 levelers (+2 optional) and 4 solid rubber swivel wheels diam. 260 mm with brake (also suitable for gravel).
The platform for tankers and cisterns with 2 trunks is in telescopic aluminum with adjustable height.
It can be raised and lowered using a manual winch equipped with a steel rope.
A 2-hook locking hook provides mechanical safety in case of cable breakage.
The staircase is equipped with a handrail on both sides for a comfortable operator climb.
Grip points under the frame for forklift truck for possible movement on site.
Aluminum platform with toe cap, knee guard and protection rail with opening gate and front landing (on request)
Optional cantilever protection cage to protect the operator working on the tank (on request)
STANDARD EQUIPMENT
- Labels and user and maintenance manual
- Test certificate according to Italian and European CE regulations for lifting and moving a maximum load of 20 kg of equipment.
FIXED NON-TELESOPIC MODELS
- Also available without lifting mechanism (non-telescopic fixed ladder).
ON DEMAND
- Special measures
- Cantilever basket on the tank (120x120 cm)
- Sun / rain protection roof on the cantilevered basket
- Optional protection cage on the second extension element starting from c. 2 meters from the ground
- Platform protection chain
- Access gate
- Flat steps (only for fixed stairs)
N.B. Handling without people on board. Capacity 1 person max kg 130 + tools kg 20
