Aluminium modulare safety guardrails

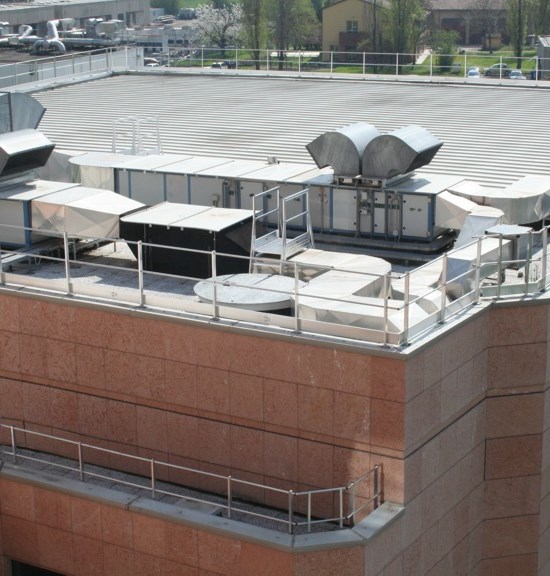

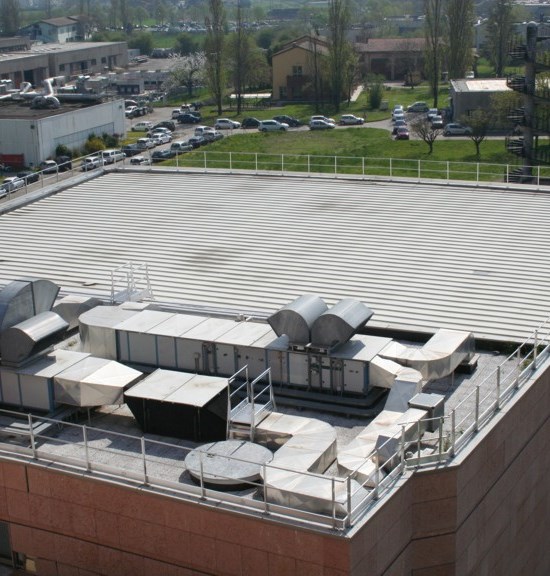

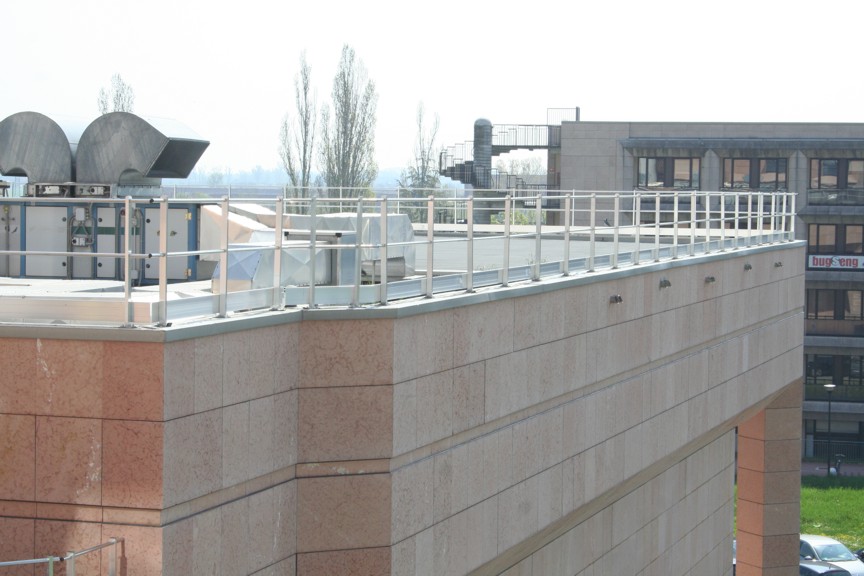

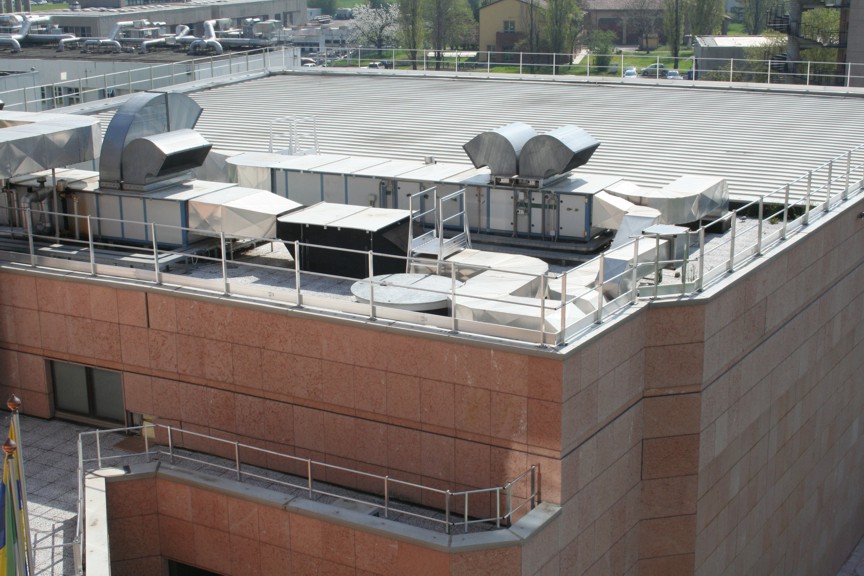

Custom-made temporary modular guardrails designed for roofs and machinery to protect edges.

They are extremely light and handy and are used to form the required perimeters.

Our high quality aluminium guardrails grant collective perfect safety according to standards.

Easy to assemble, aesthetically pleasant, statically resistant and rigid.
(designed and produced just for protection and safety of men at work)

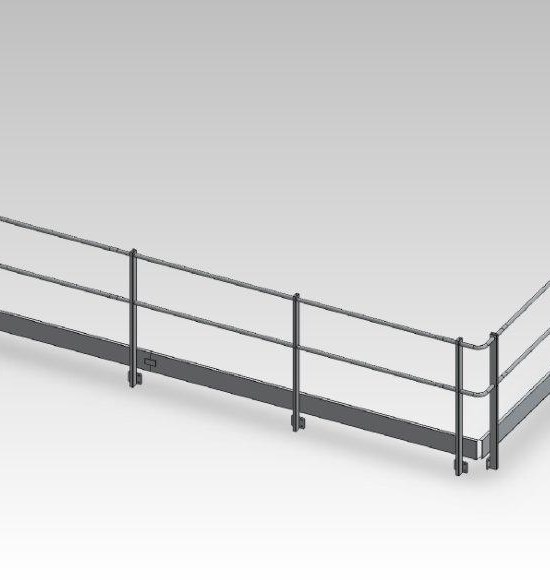

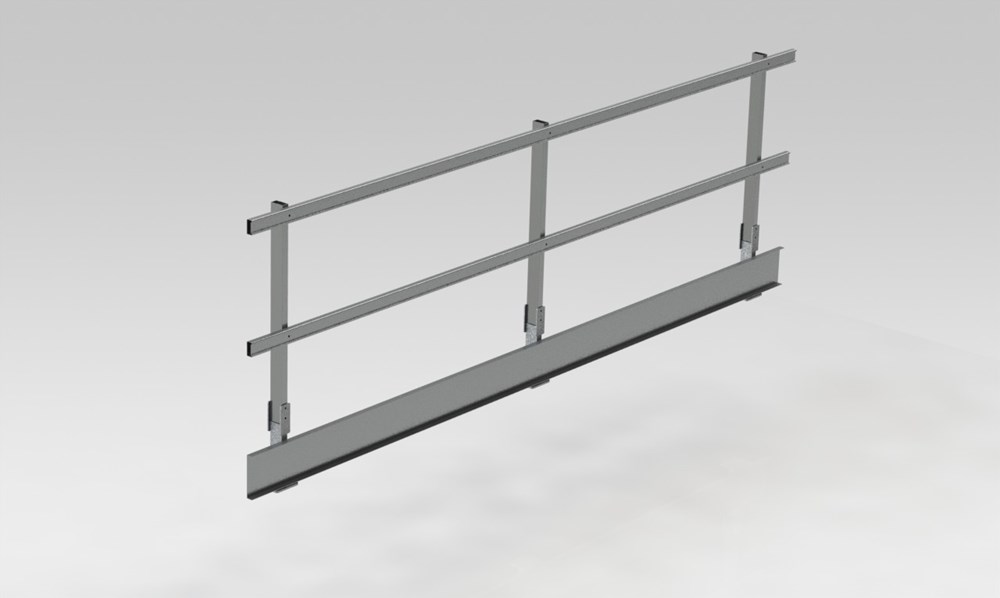

CLASS A MODULAR GUARDRAIL
(for roofs with slops up to 10° or 18%)
With a quick assembly, you can obtain a comfortable, light and rust-proof guardrail. Fixing to roof is made by the user.

Each module is equipped with joints to create a continuity along the whole roof.

The guardrail can also be fitted out with bends.

Guardrail systems must grant resistance to static loads.

The base features are:

Carrying a person who leans against the barrier and giving support when he walks sideways
Stopping a person who walks or falls towards the barrier

Technical features

Guardfrail height 1100 mm
Aluminium pillars with centre to centre distance up to1500 mm
Handrail diameter 32 mm
Toeboard height 175 mm
Pre-perforated lock plate for floor or wall fixing
Extremely compact for transport

SVELT GUARDRAILS are designed and manufactured according to local regulations.
European standards (optional): models PC1A and PC2A complies also with UNI EN 13374:2004 Temporary systems which protect edges – Product specification – Method of test – EN14122-3 – Permanent access solutions to machinery – Ladders, stepladders and guardrails.

PC1A and PC2A have been Tested by Politecnico di Milano (Applied-Science Faculty in Milan).

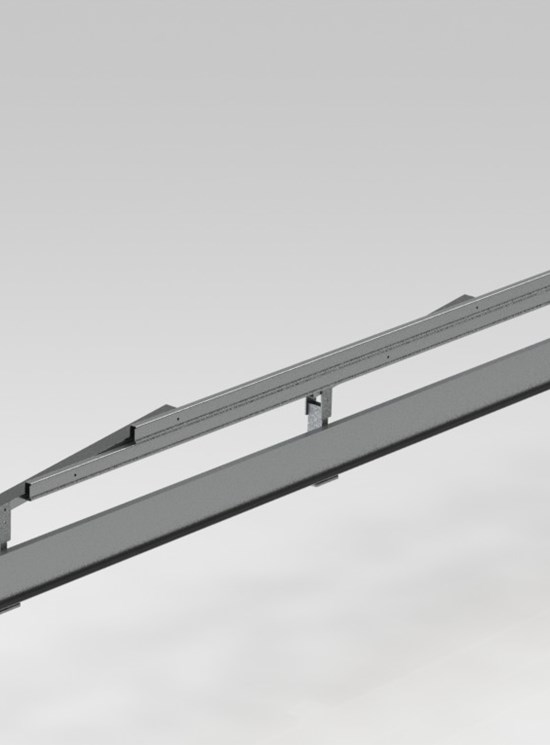

Foldable guardrail with adjustable inclination (ballasted on floor) equipped with toeboard, guardrail and handrail.

It is suitable for sloping roofs and easy to transport.

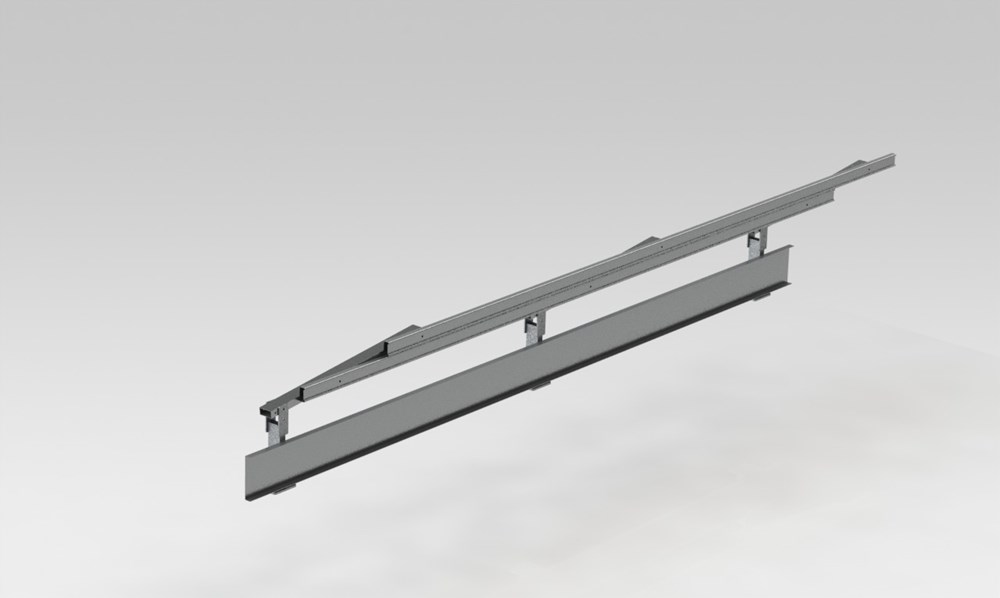

PHOTOVOLTAIC S: model PCR3A is perfect for roofs with photovoltaic systems on as it is always closed avoiding shading.

The guardrail is opened by the operator just before maintenance works and then closed again (on request also for models PC1A and PC2A).

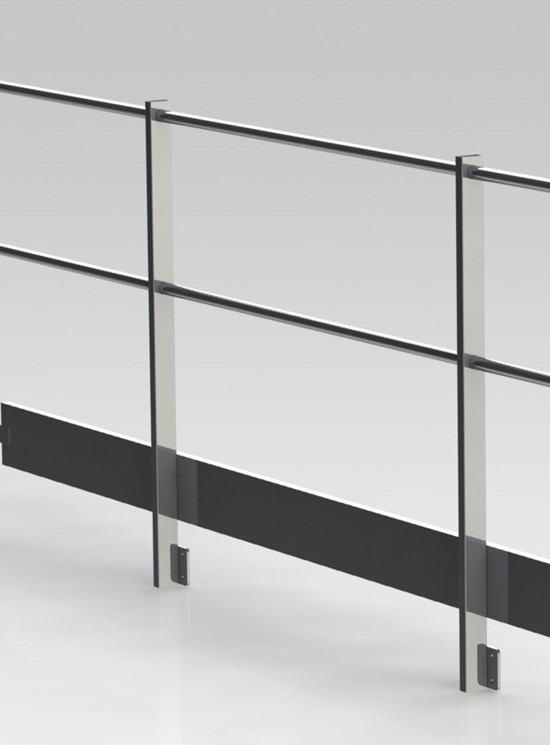

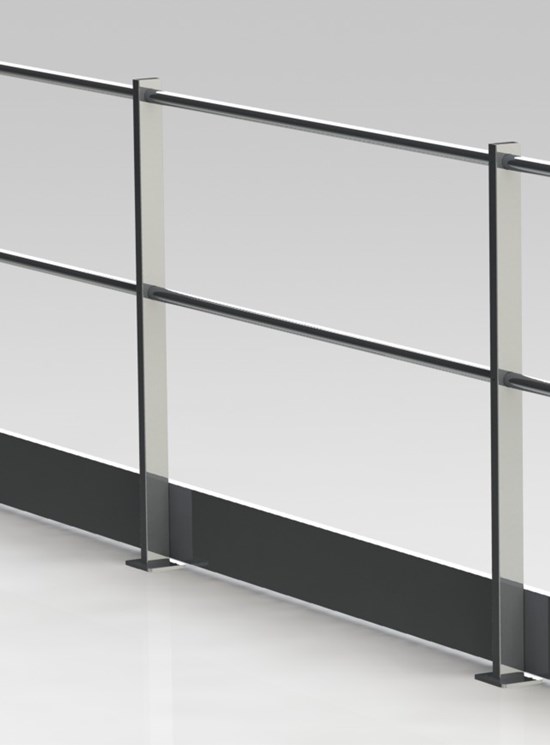

PC1A (floor fixing)

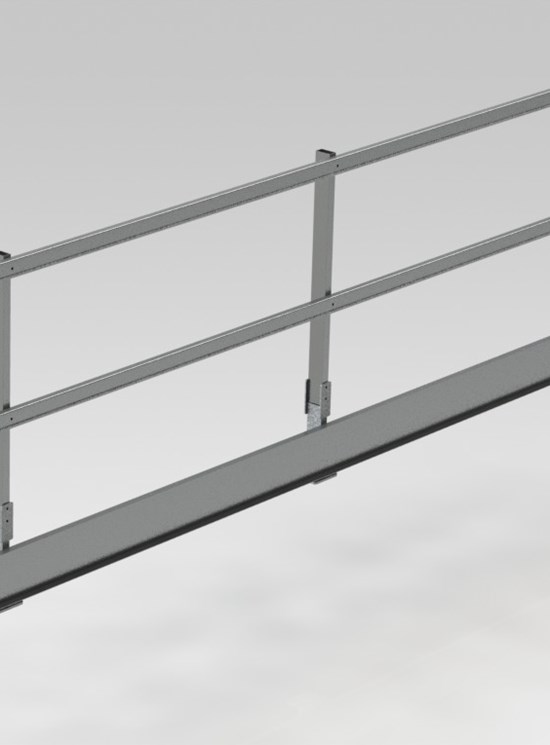

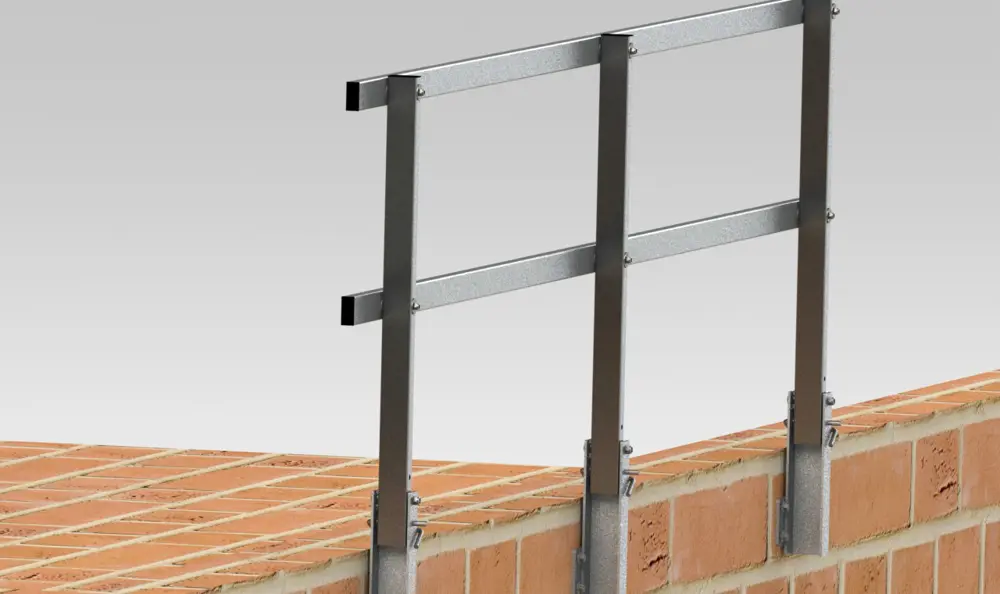

PC2A (wall fixing)

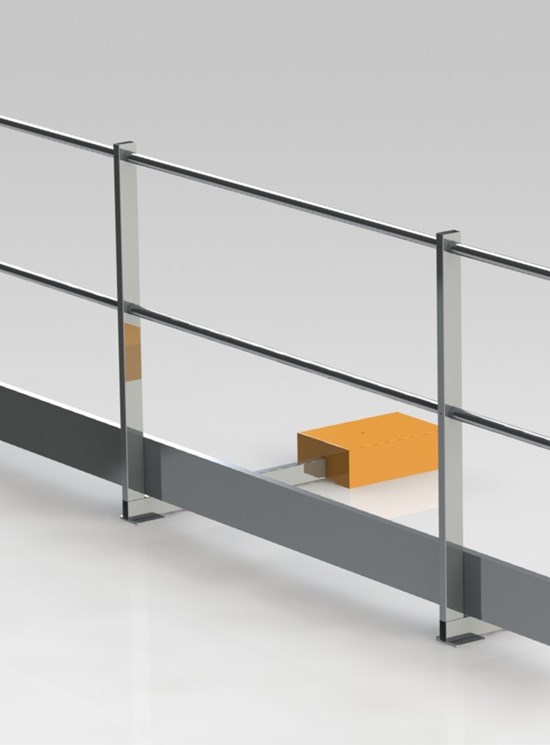

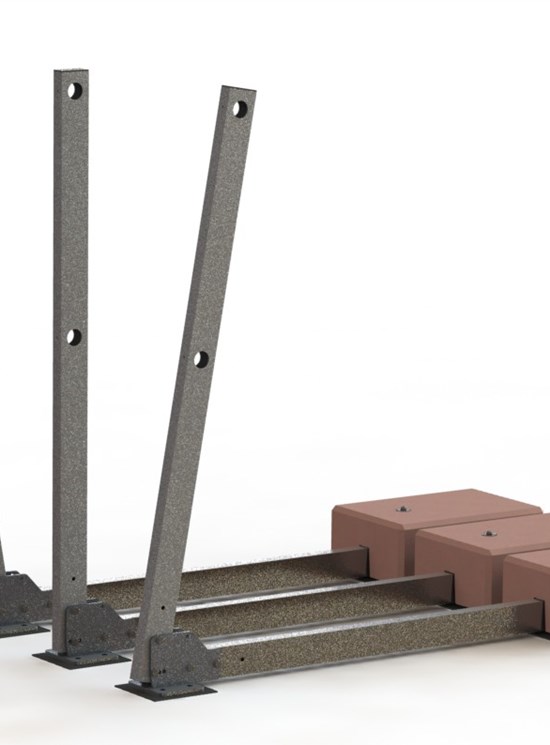

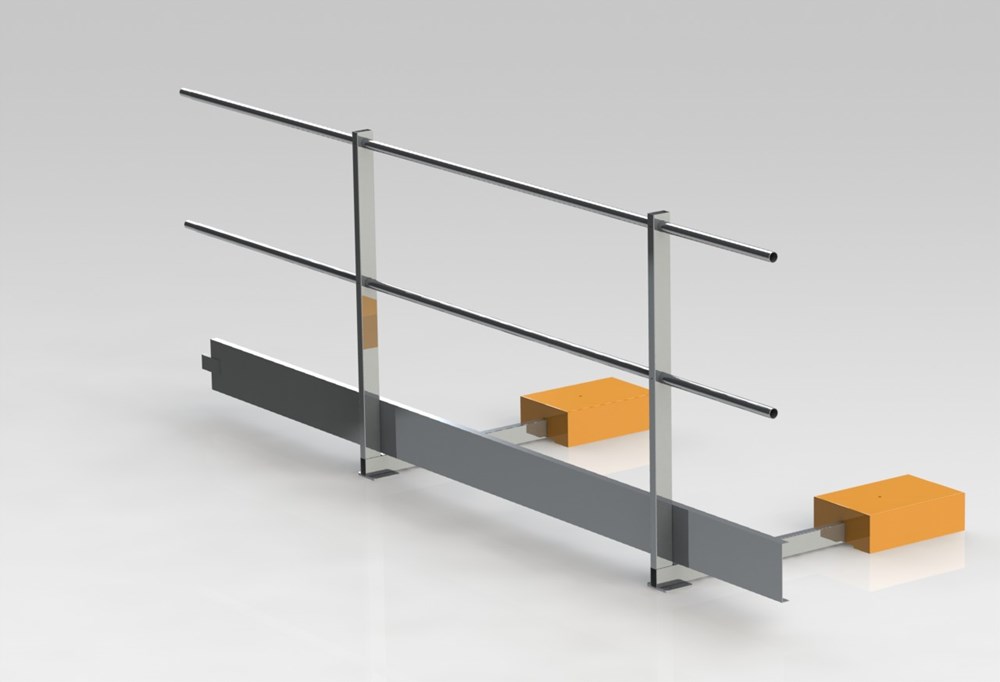

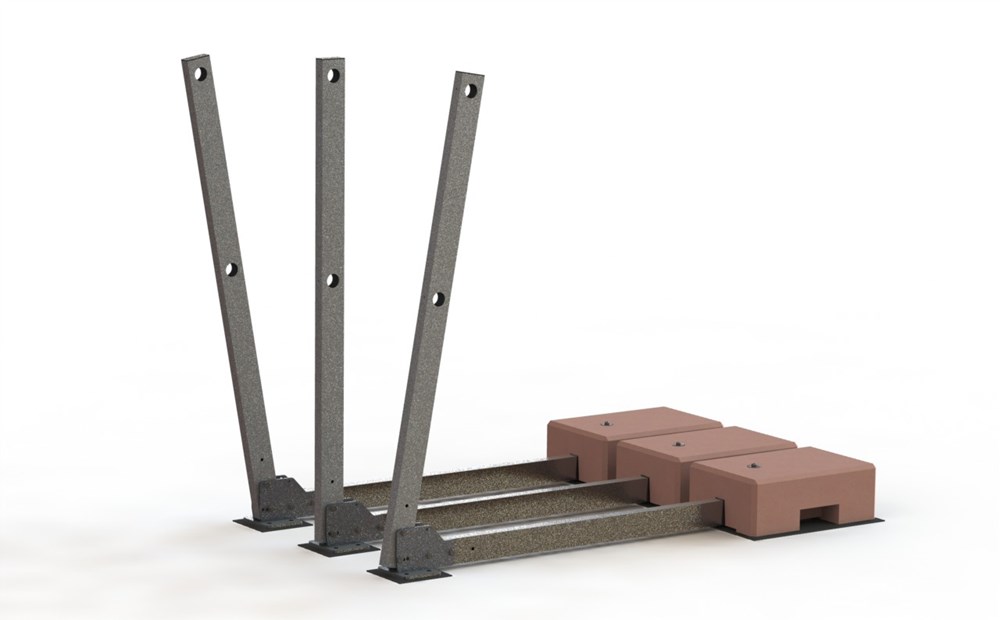

PC3A (ballasted on floor)

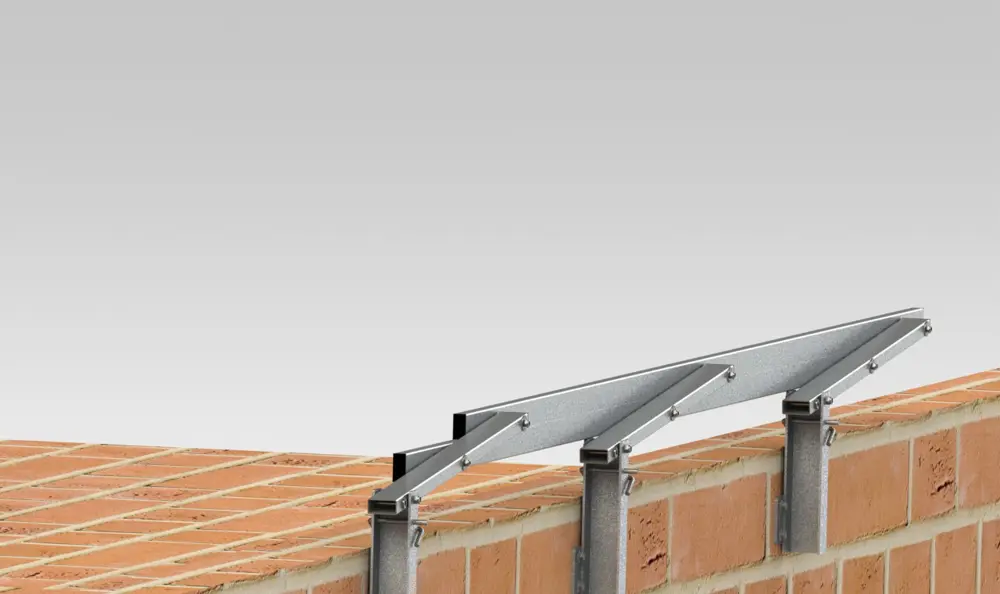

NEW PCR3A (adjustable/foldable)
