PID SP

Altezza max m 10,55

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

CE mark

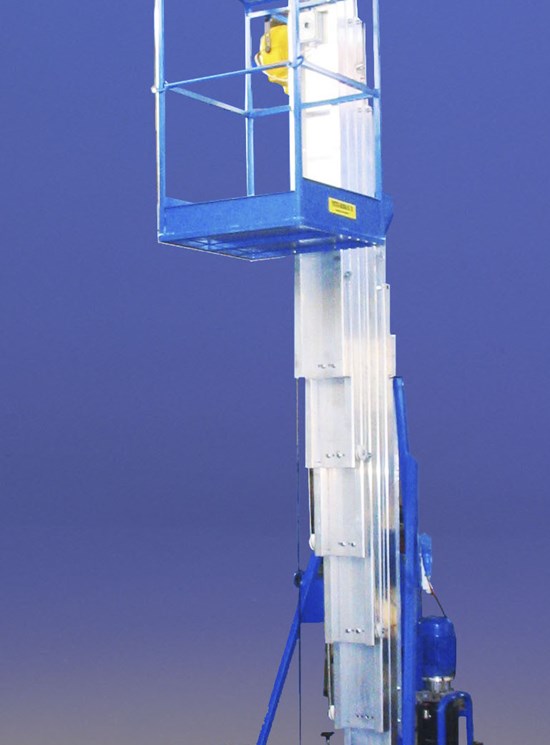

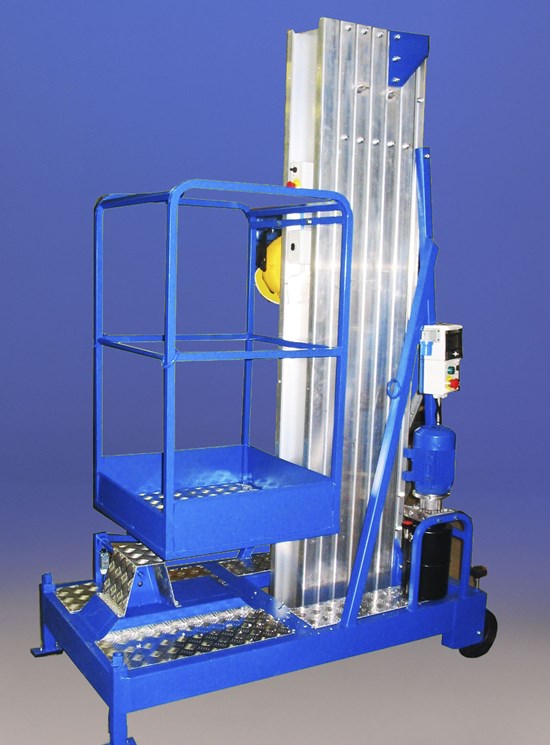

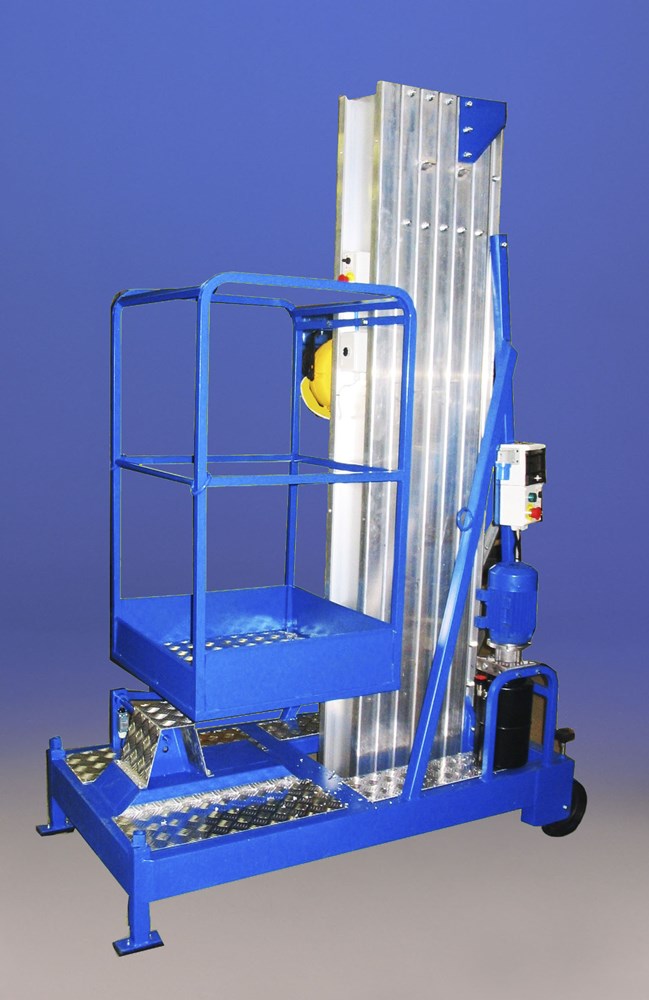

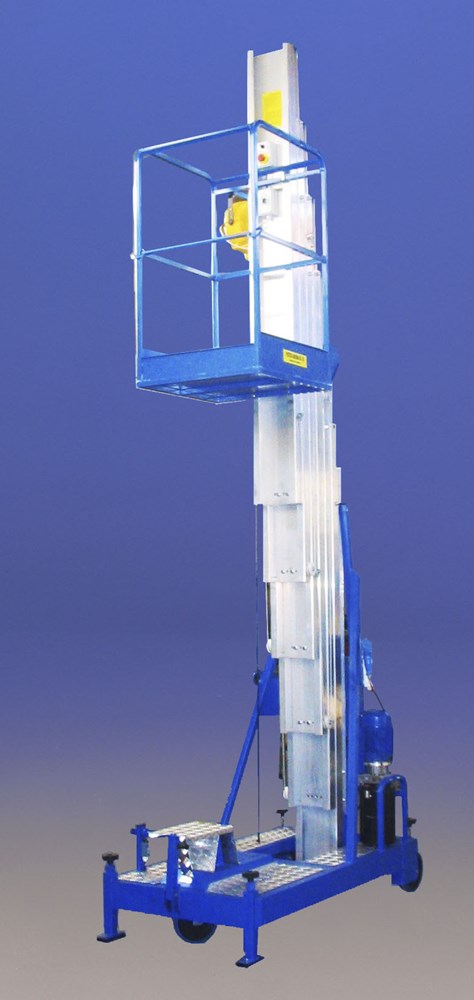

Push around personal lift without stabilizers, the reduced dimensions allow you to go through a very small space, can be moved by pushing or via a control lever.

With AC power (or DC optional) is controllable from the basket by easy to use control box.
The reduced dimensions allow you to go through a very small space.
The supporting column is mounted on self-lubricating nylon rollers to allow a smaller game and therefore greater stability. This is also in extreme temperatures (hot and cold).
It does not require stabilizers and can also be used where space is more limited.

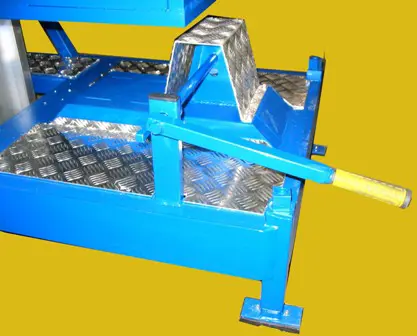

Can be moved by pushing or via a control lever.

TECHNICAL SPECIFICATIONS
HEIGHTS IN DECKING:
PID10SP 7.55 m
PID12SP 9.55 m

HEIGHTS OF WORK:
PID10SP 9.55 m
PID12SP 11,55 m

STANDARD EQUIPMENT
• Approved for indoor use
• Controls drive and emergency button on the drum and frame
• Key lock general machine
• Chains high safety factor
• Piston with double plating and pre-chamber oil recovery
• Safety device for mechanical locking
• Double locking safety device for hydraulic leak
• Robust aluminum sled elevation flexural controlled
• Emergency lowering valve
• Holes for forklift and crane
• Fingerprint-proof tires
• Rear wheels fixed with a locking device

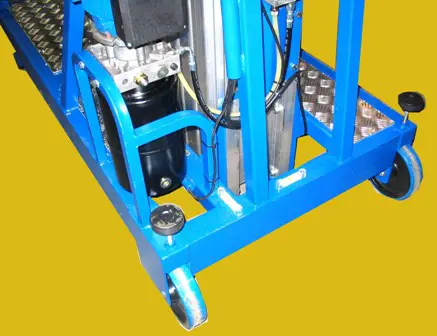

• Front wheels swivel
• Motor 12 V AC 220 V, 50 Hz, 0.75 kW
• Capacity for 1 person
• Labels and manual of use and maintenance
• Test certificate according to the Italian and European regulations (CE)

ON REQUEST
• Electrical power 220V and / or compressed air at high altitude
• Pid-pneumatic oil for use in explosion-proof
• Pid with stabilizers
• Pid self-propelled
• DC power supply with battery and 12V/125A
• Battery charger

SERIE PID 2012.pdf (5.5 MB)
