Telefly

Platform height max m 2,00

Producted in compliance with the European Standard for mobile platform ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is shown on products which conform to the European Standard on welding

It is the European Standard for ladders

It shows that the Politecnico di Milano (Applied-Science Faculty in Milan) has tested a product and certified that it conforms to UNI EN131-1-2-3-4 (ladders), UNIEN14183 (step-stools), UNIEN1004 (scaffolds)

It shows that the product has been patented

Suitable for heavy duty

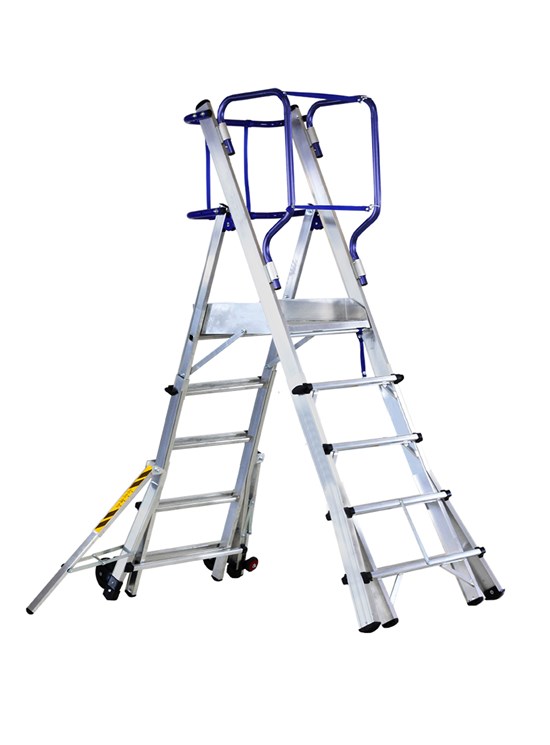

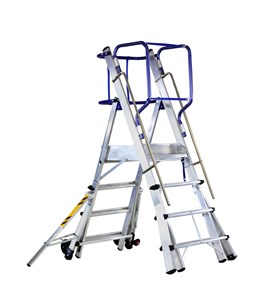

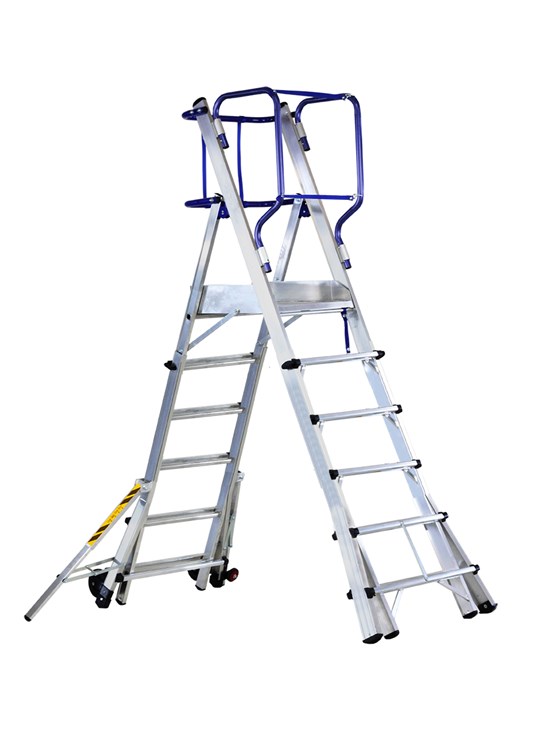

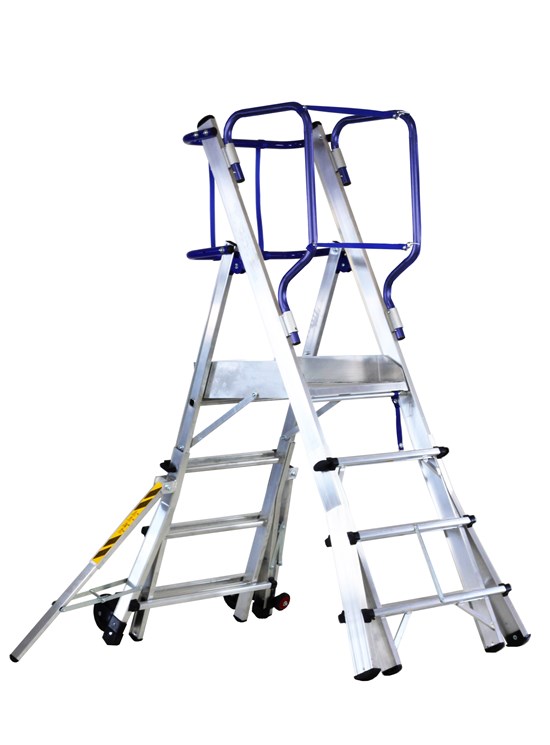

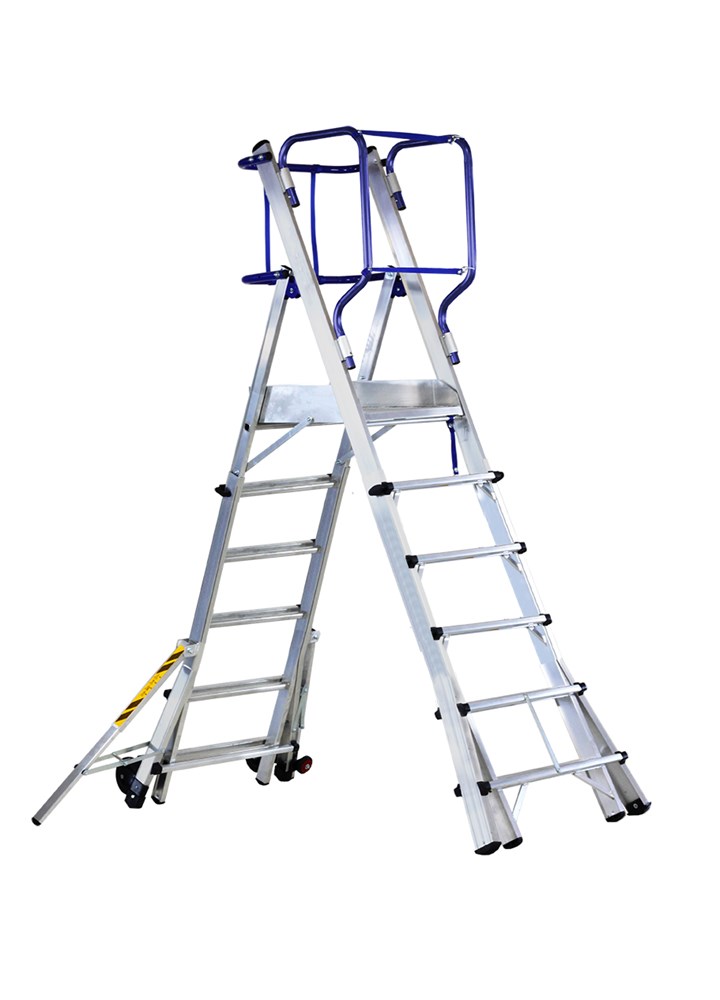

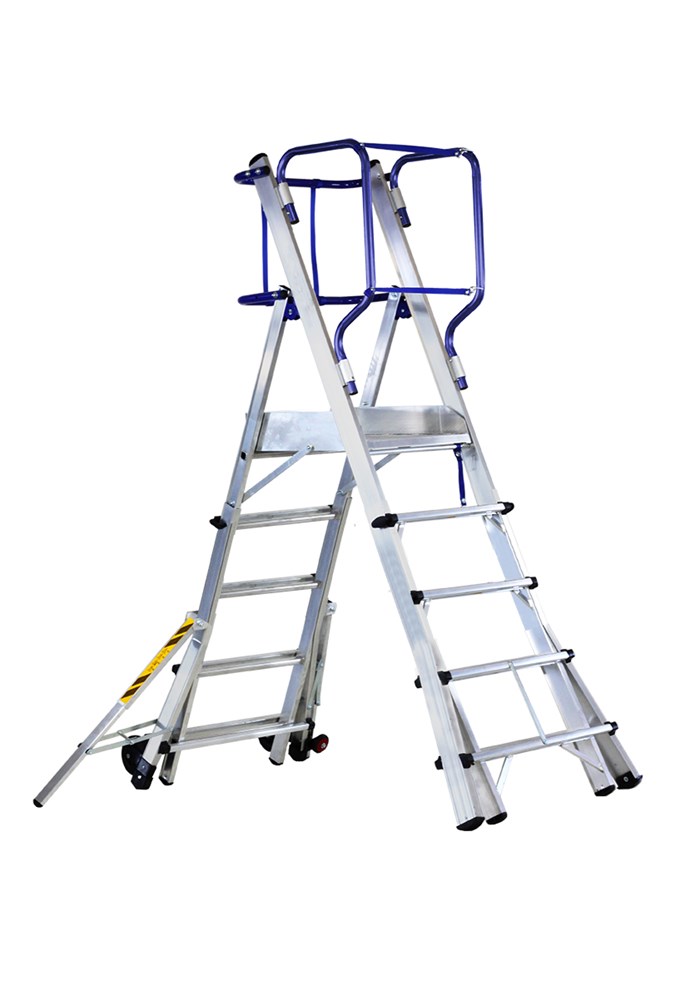

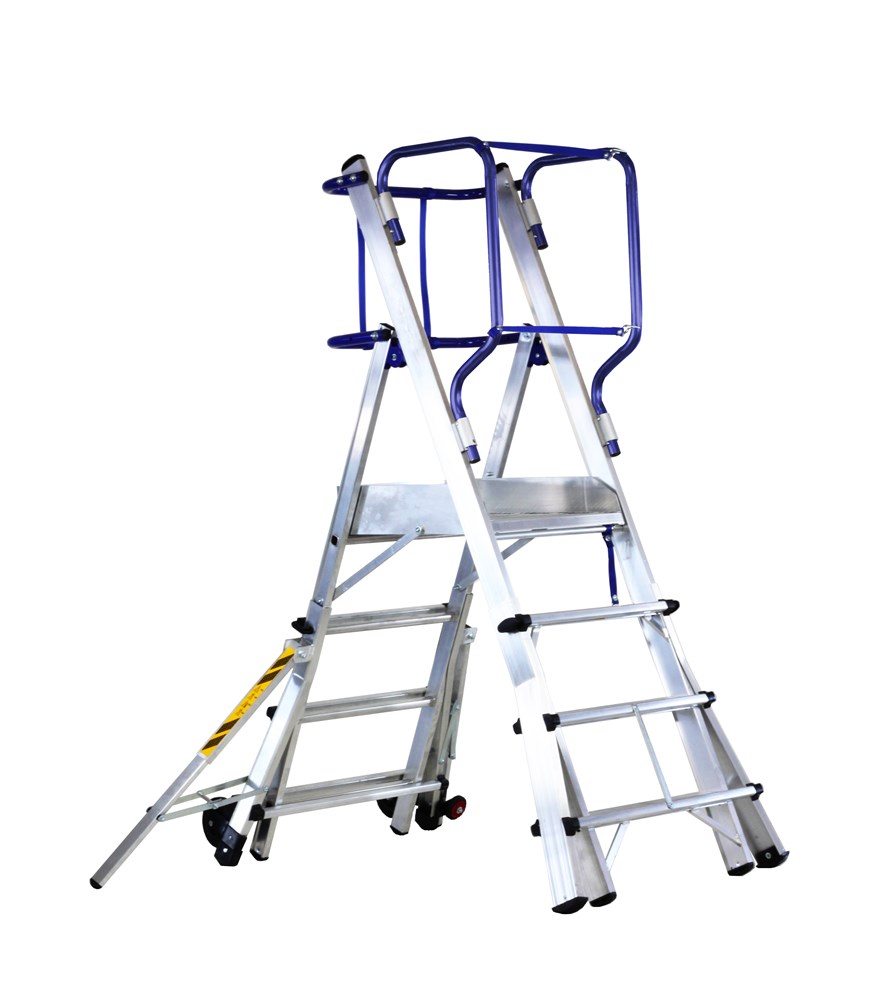

Adjustable telescopic platform stepladder with 360° guardrail protection, reinforced non-skid aluminum platform (60x53 cm) with anti-opening system and 10 cm toeboard, 100 cm guardrail on all 4 sides

It complies with the new European Standards UNIEN131/7 on stepladders and combines all the features of a telescopic ladder with those of a mobile warehouse stepladder, getting a mix of maneuverability, portability and

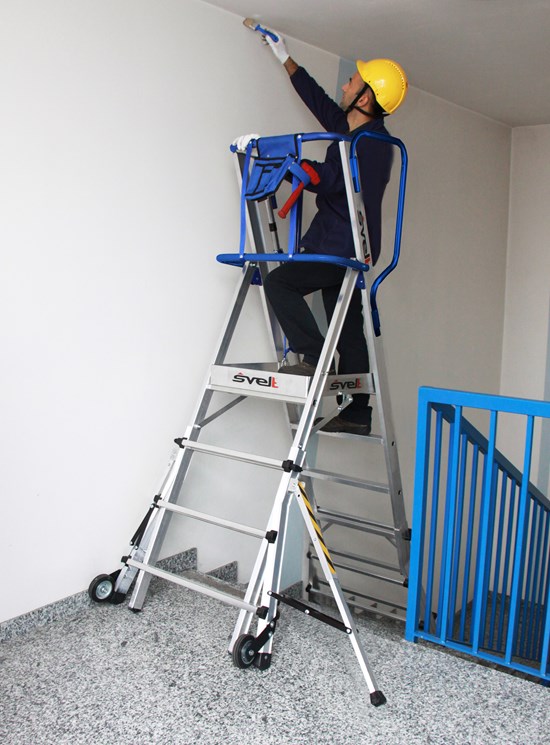

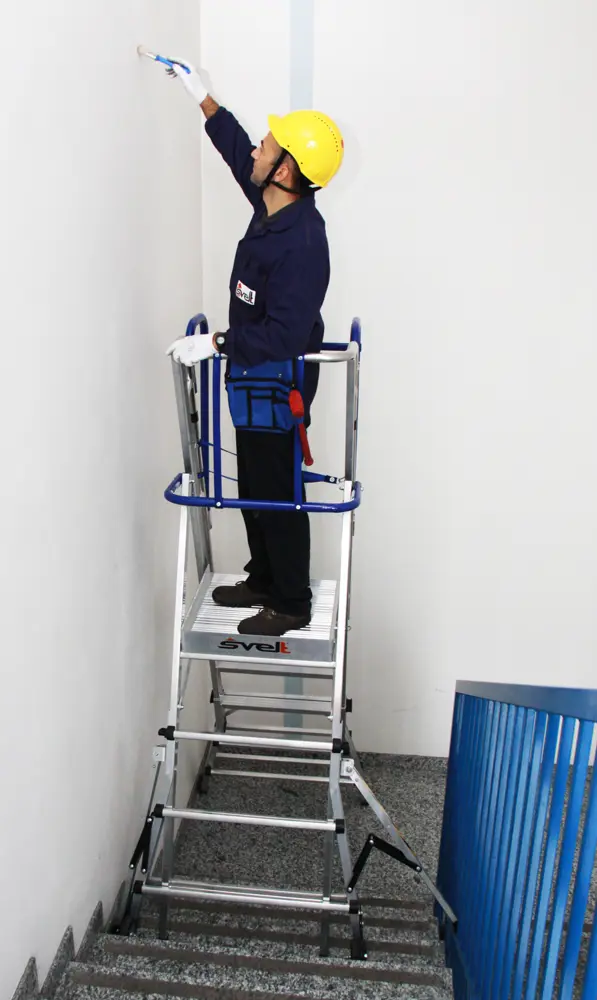

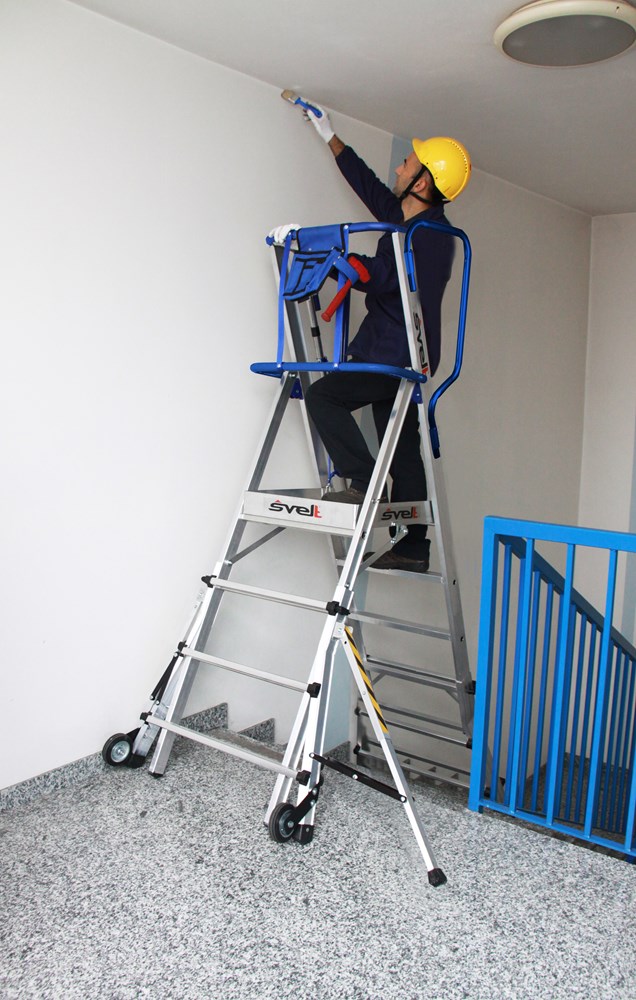

safety that cannot be found in other models. Thanks to the telescopic system you can get 3 different working heights on each of the 4 models and can be used on stairs or steps. It allows easy transportation and can be opened in seconds.

STANDARD EQUIPMENT:

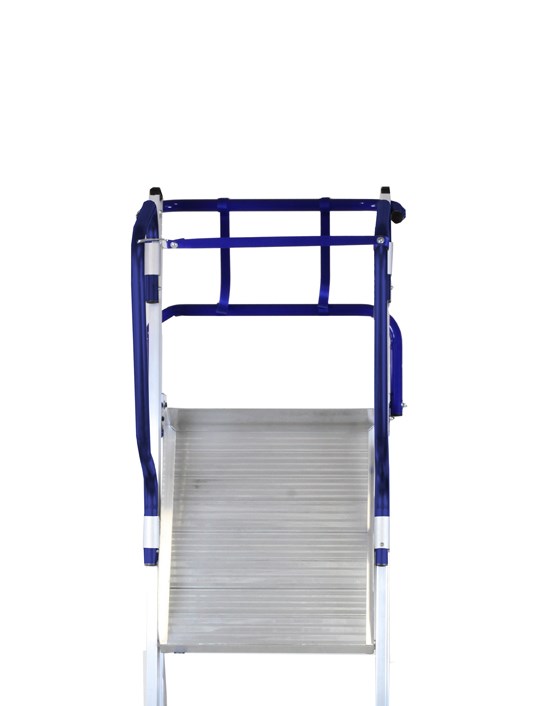

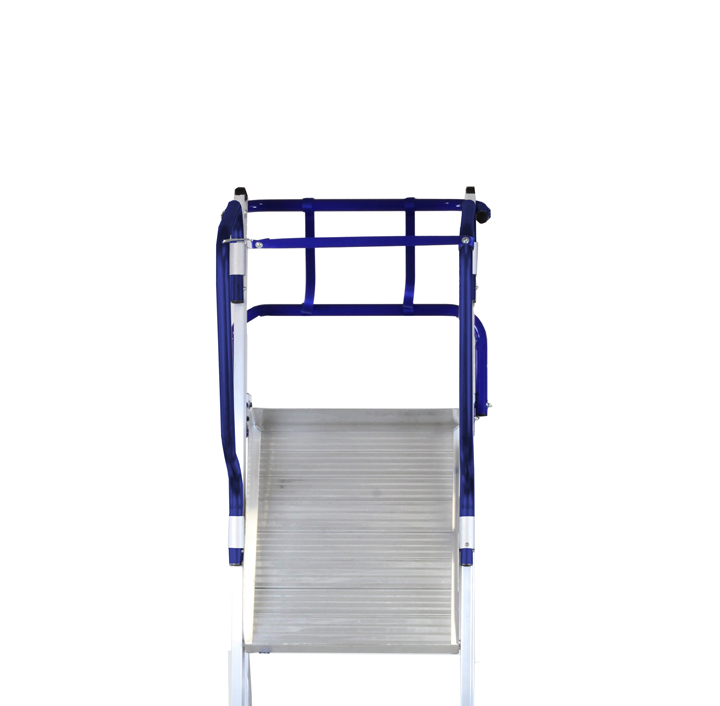

• Reinforced non-skid aluminum platform (60x53 cm) with anti-opening system and 10 cm toeboard

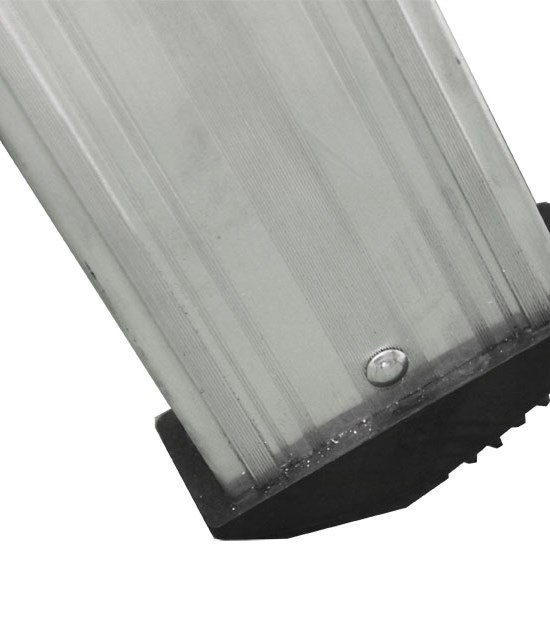

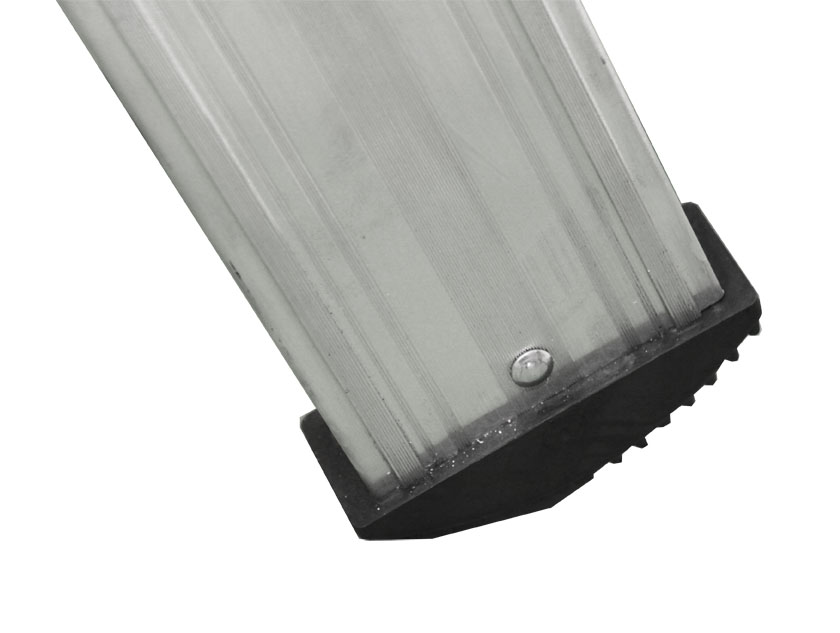

• PVC reinforced non-skid rubber feet with ergonomic design
• Non-skid steps: min/max depth 27/134 mm
• Distance between steps 28 cm
• Safety steel/nylon hooks for telescopic elevation
• 100 cm guardrail on all 4 sides

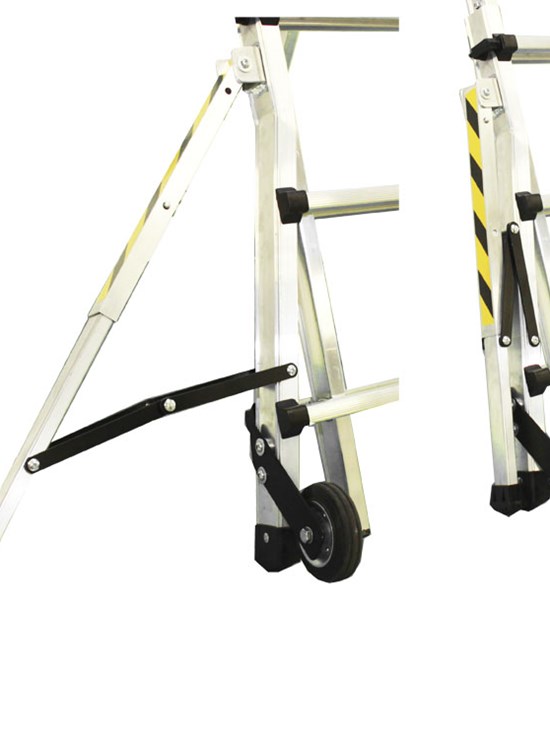

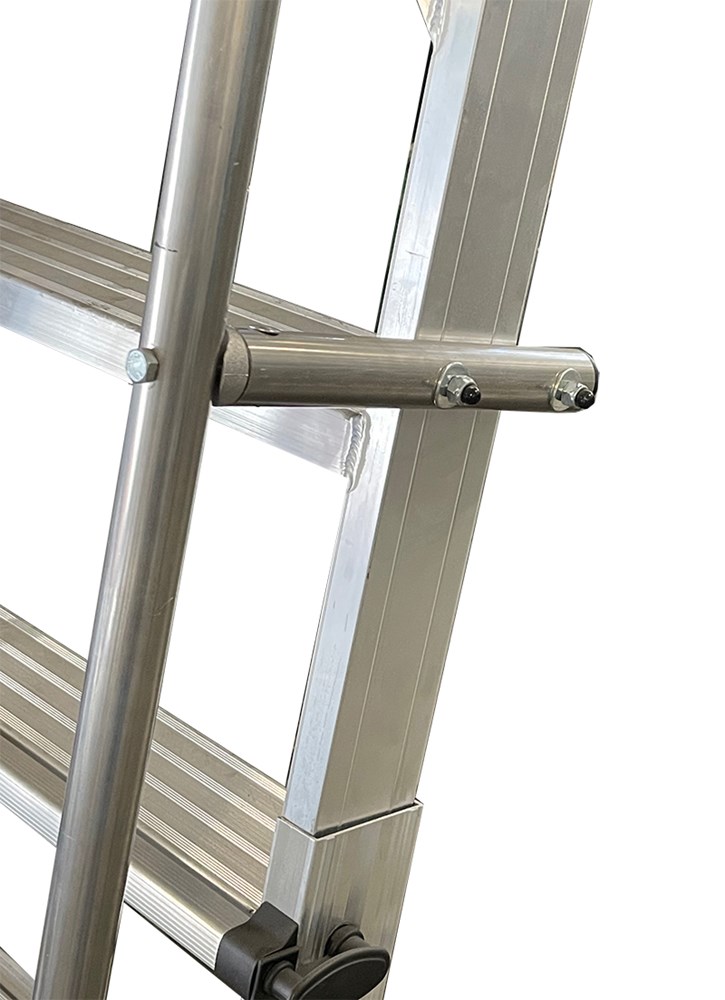

• Integrated lockable telescopic stabilizers (2 opening positions) closed/pos.1/pos.2 cm: 94/154/181
• Enlarged base (maximum stability)
• Anti-opening hook
• It stands when closed
• Patented foldable handrails

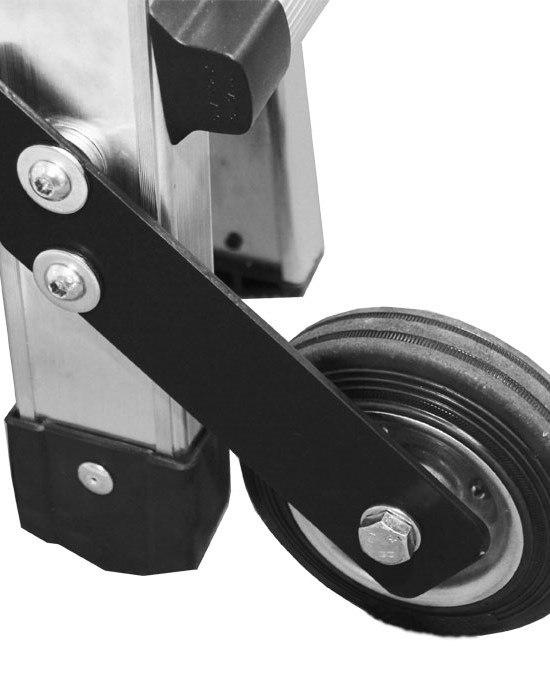

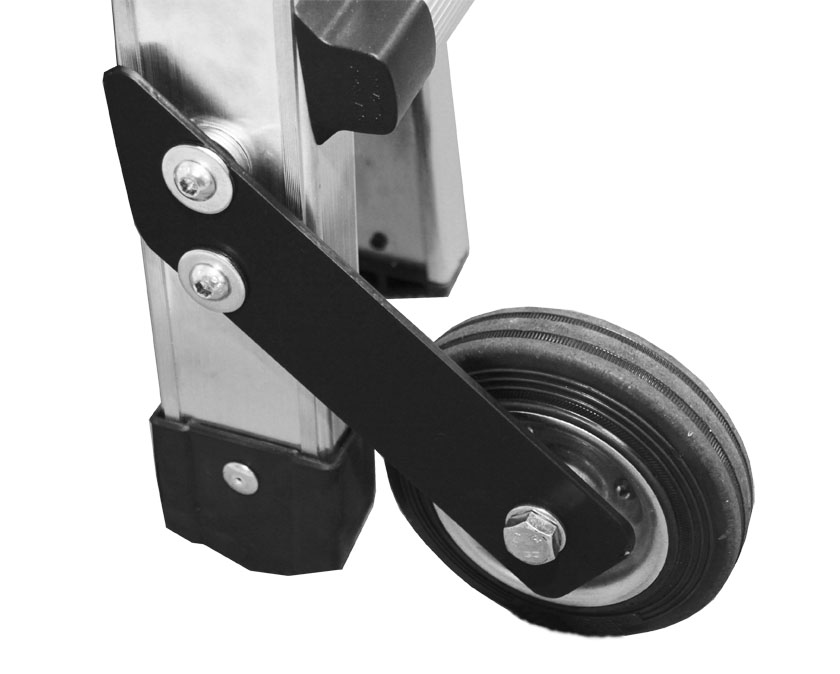

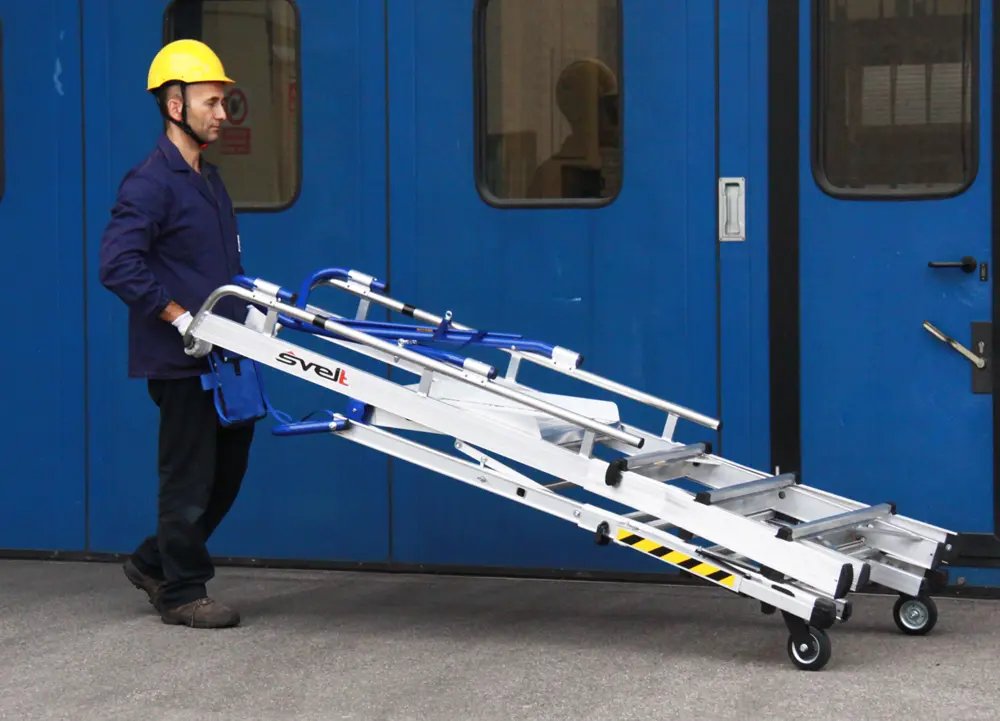

• Wheels for transportation diam. 120 mm
• Climbing ramp 55 cm
• Sveltbag tool-bag

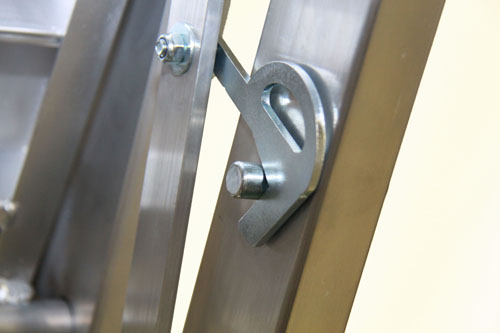

• Steel opening hinges

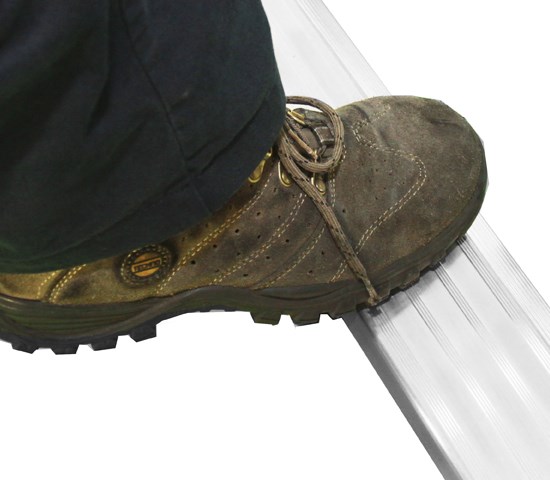

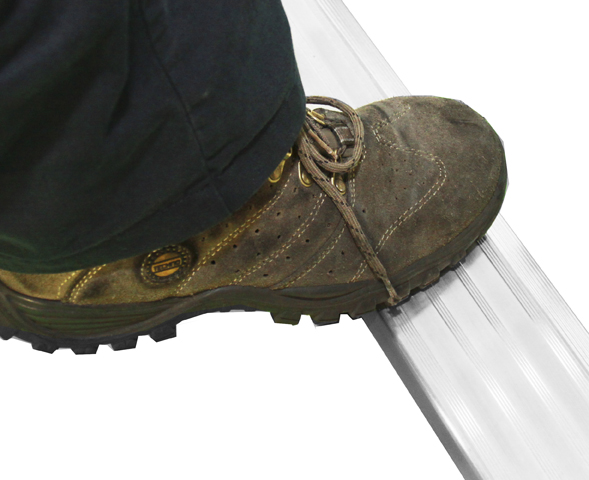

• Unique in its kind, it is equipped with 80 mm flat steps and 27 mm rungs: when combined they grant a support for feet of 134 cm.

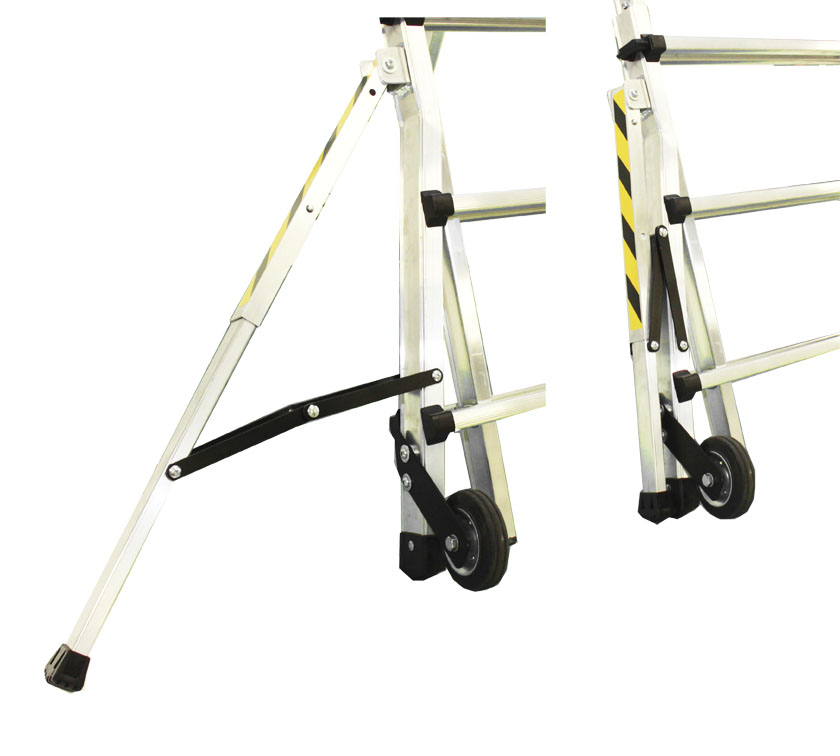

• The stabilizers have 2 opening positions to work in narrow spaces.

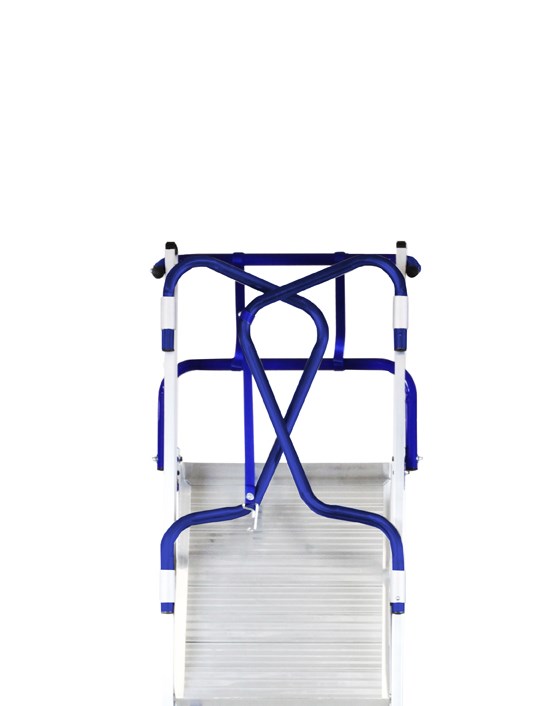

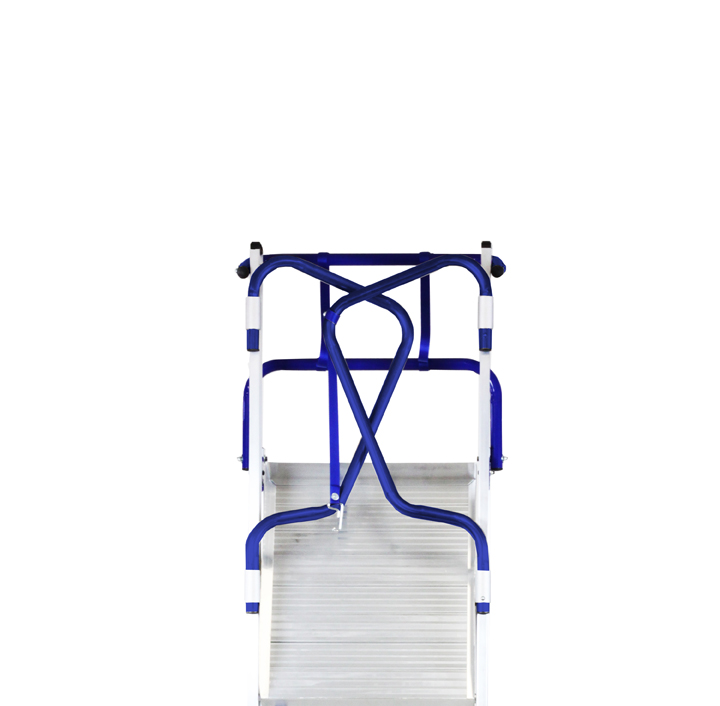

• Handrails are patented. They can be folded with just one gesture and allow to move the ladder in minimum amount of space.

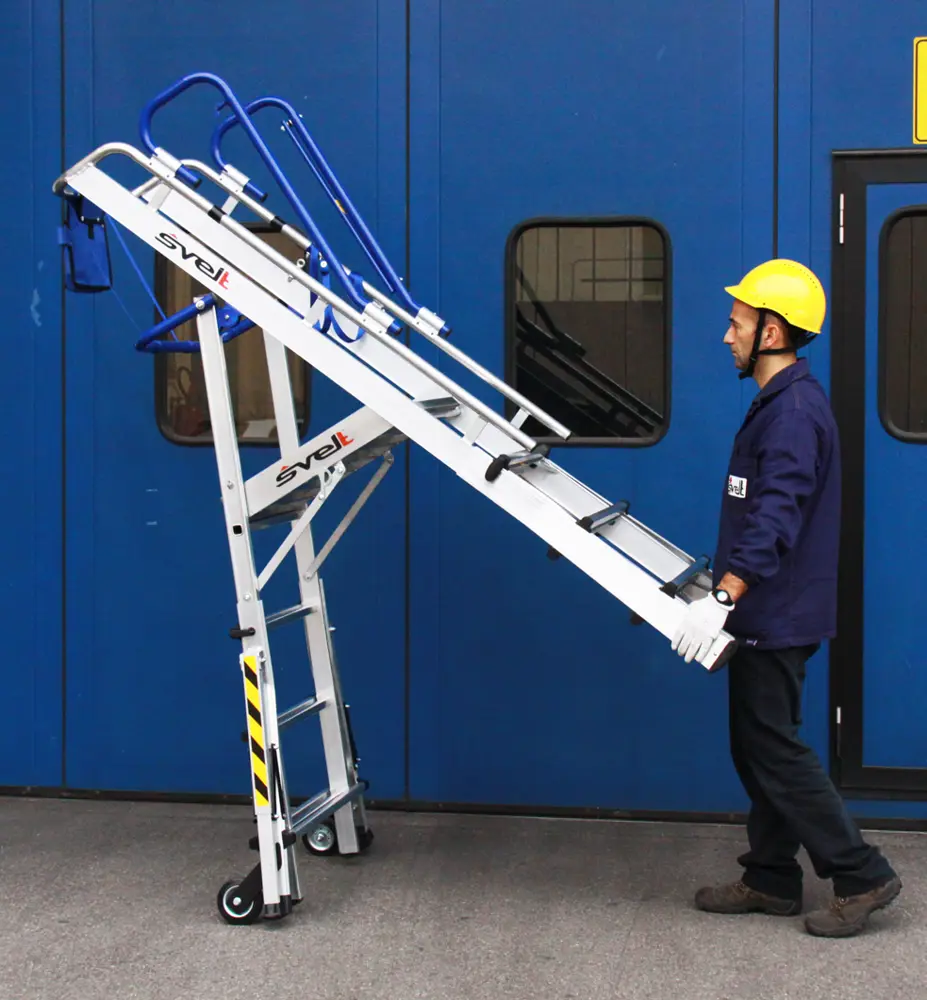

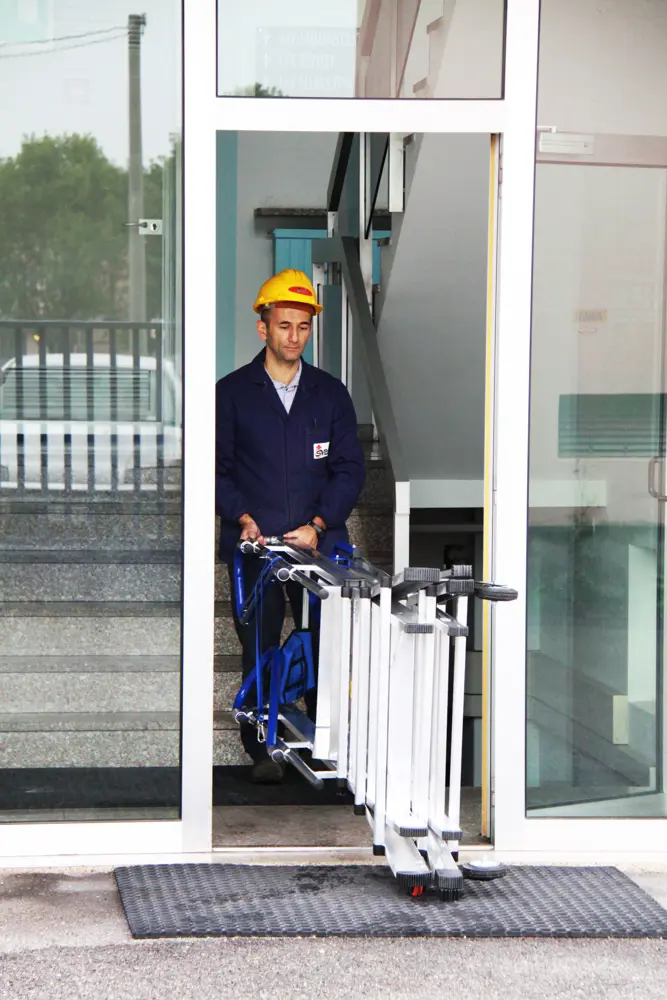

• The wheels allows the operator to go through narrow doors with the ladder in vertical position.

TECHNICAL FEATURES

Cod.	Steps n.	Platform height min. m	Total height max. m	Working height max. m	Dimensions on the ground cm	Weight Kg	Folded height m
SFLYTELE04	4	1,00	1,50	3,50	89х199	28	2,26
SFLYTELE05	5	1,25	1,75	3,75	89х221	31	2,54
SFLYTELE06	6	1,50	2,00	4,00	89х244	34	2,82

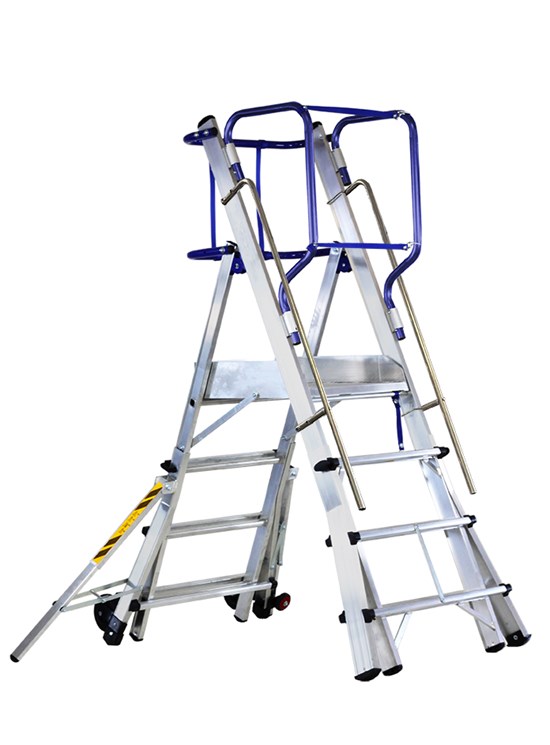

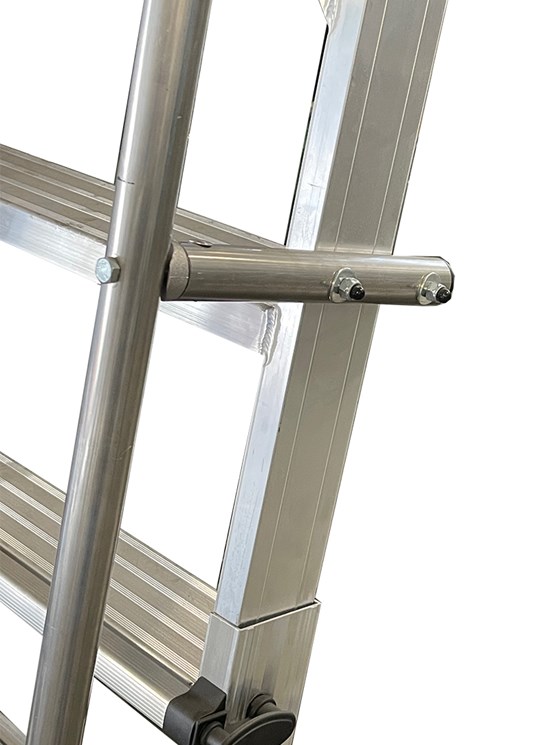

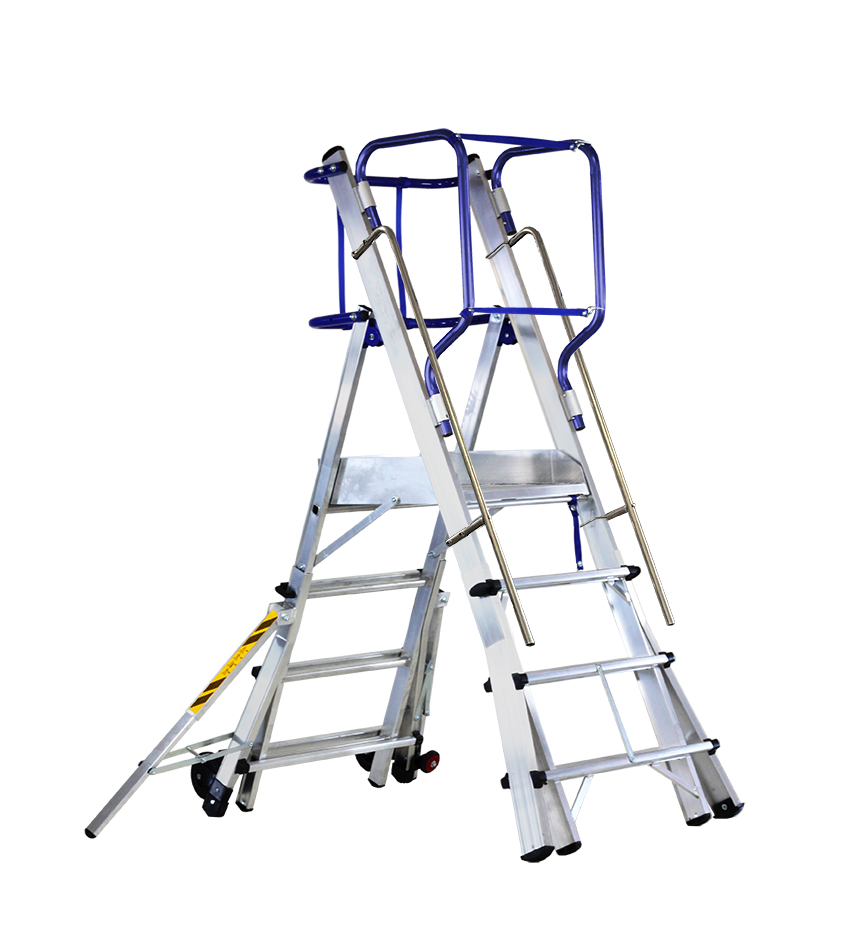

SFLYTELEC4	Optional handrails cm 120 (4 steps ladders)
SFLYTELEC5	Optional handrails cm 150 (5 steps ladders)
SFLYTELEC6	Optional handrails cm 180 (6 steps ladders)
