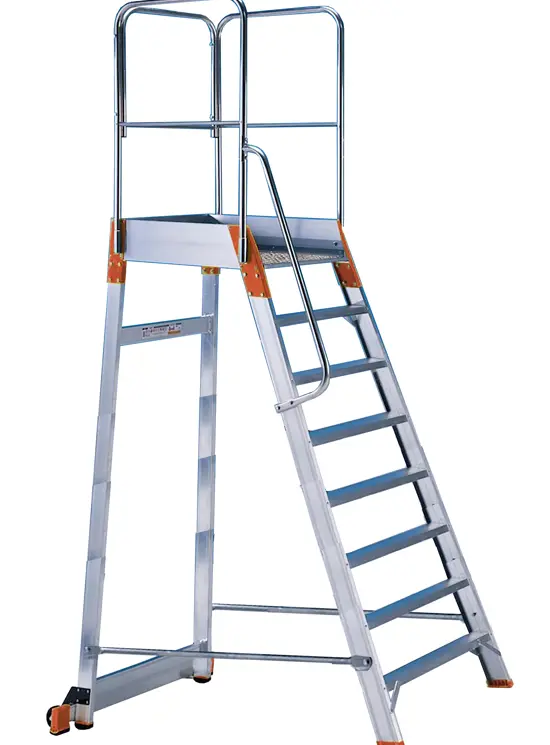

Palco Light

max height m 1,68

Producted in compliance with the European Standard for mobile platform ladders

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

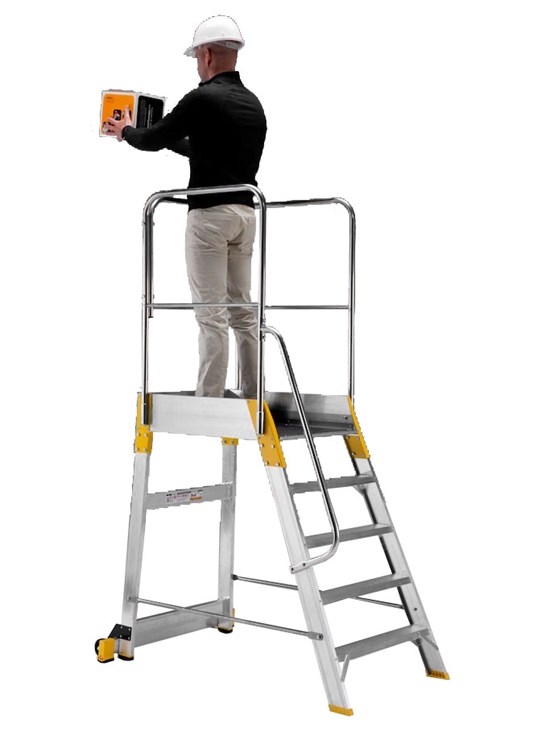

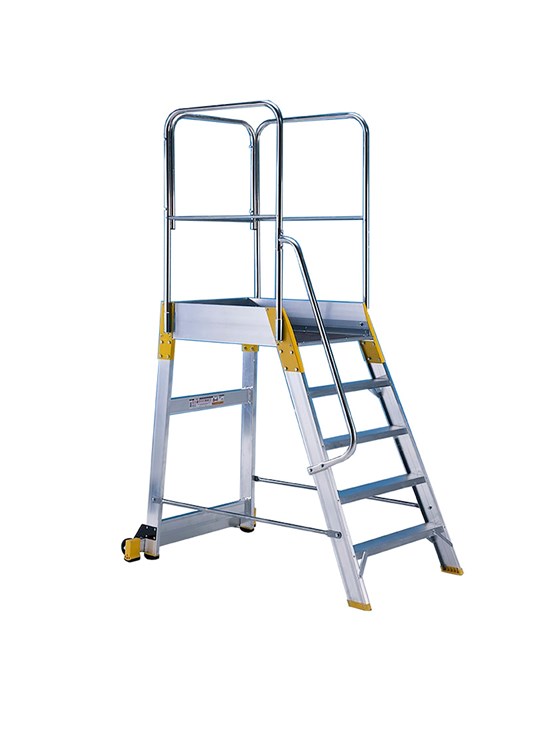

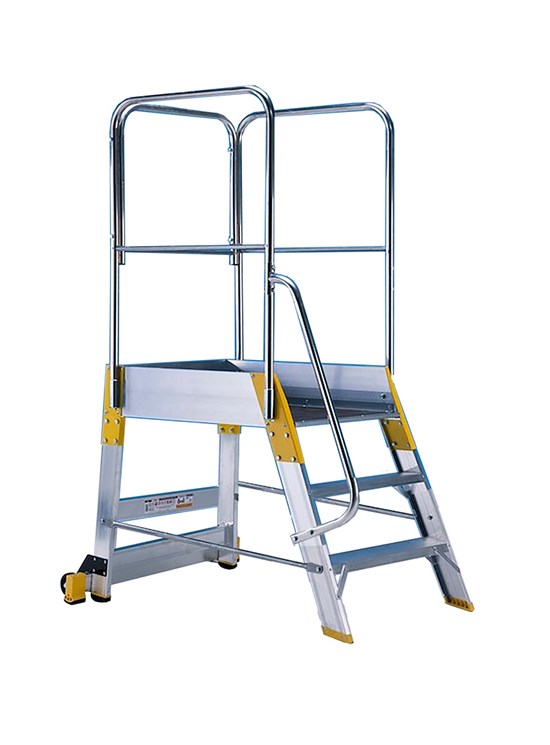

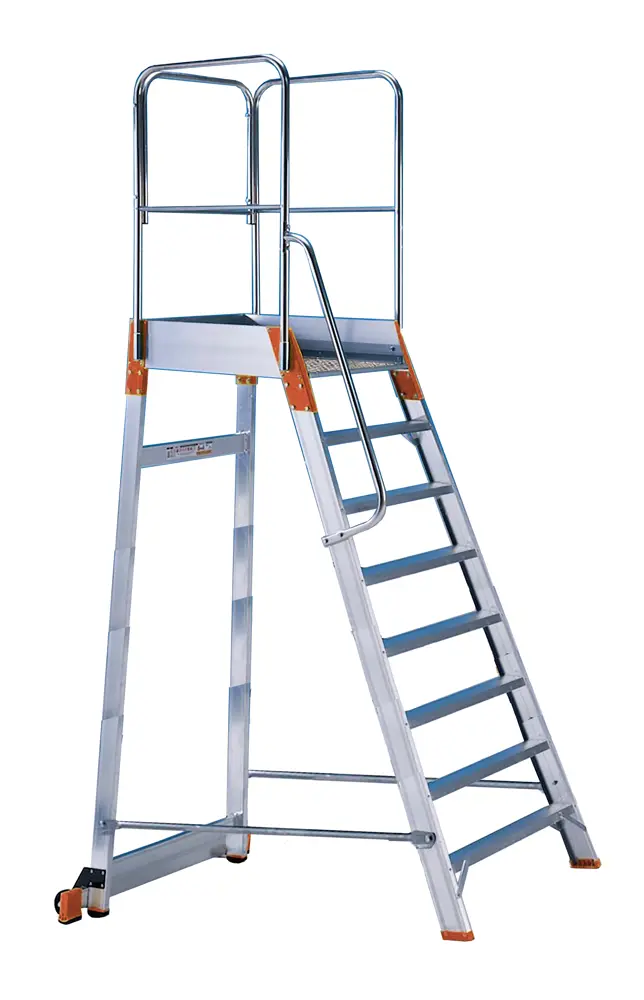

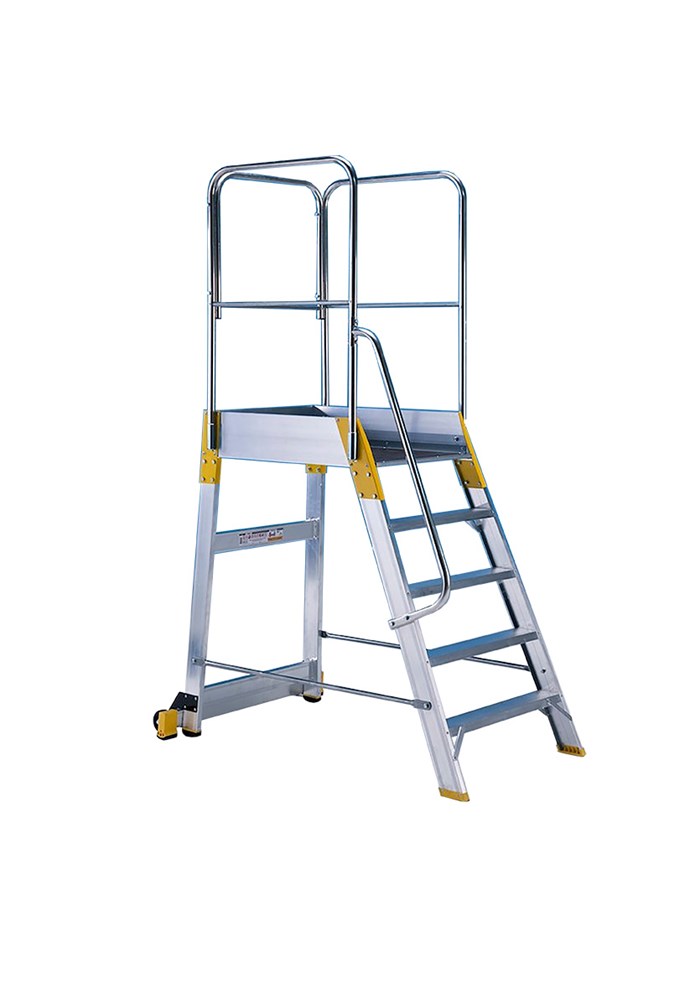

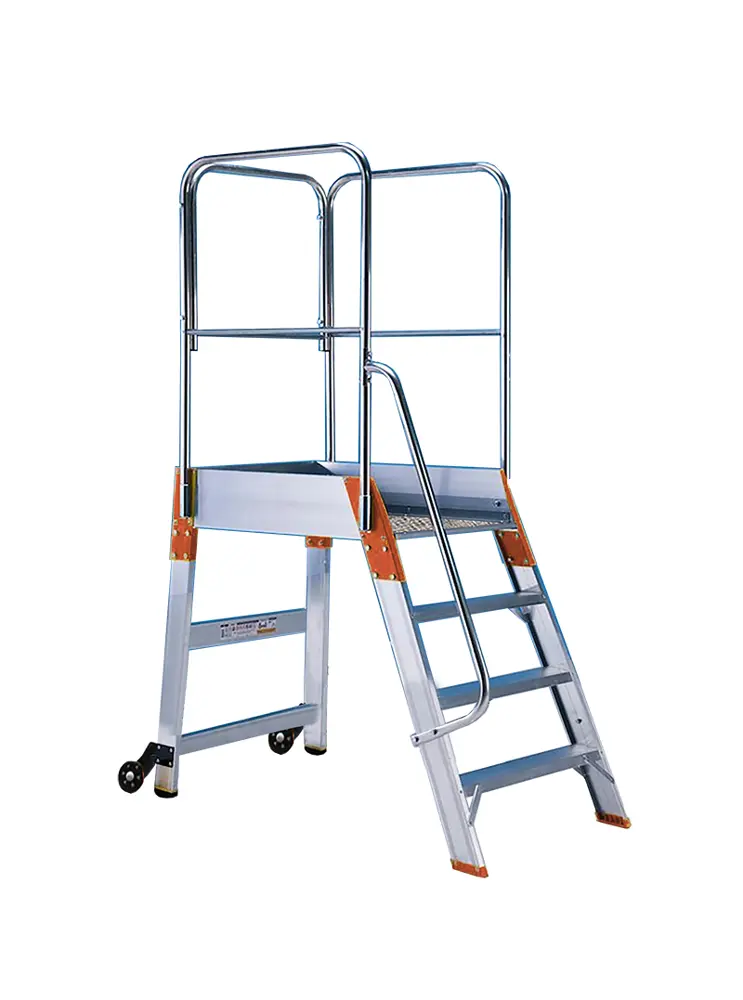

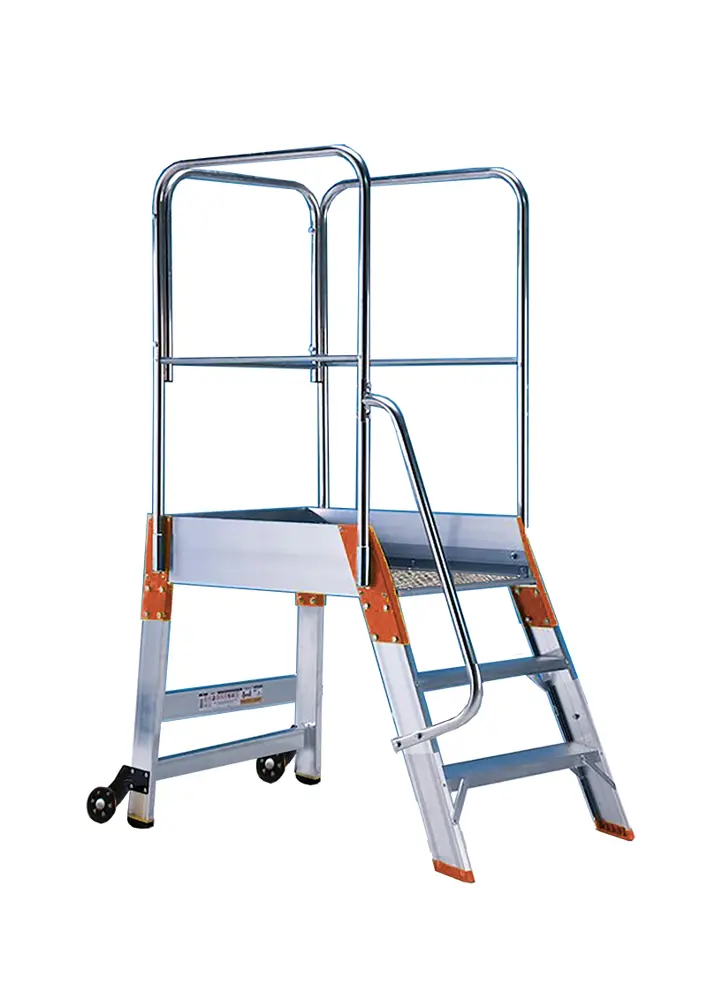

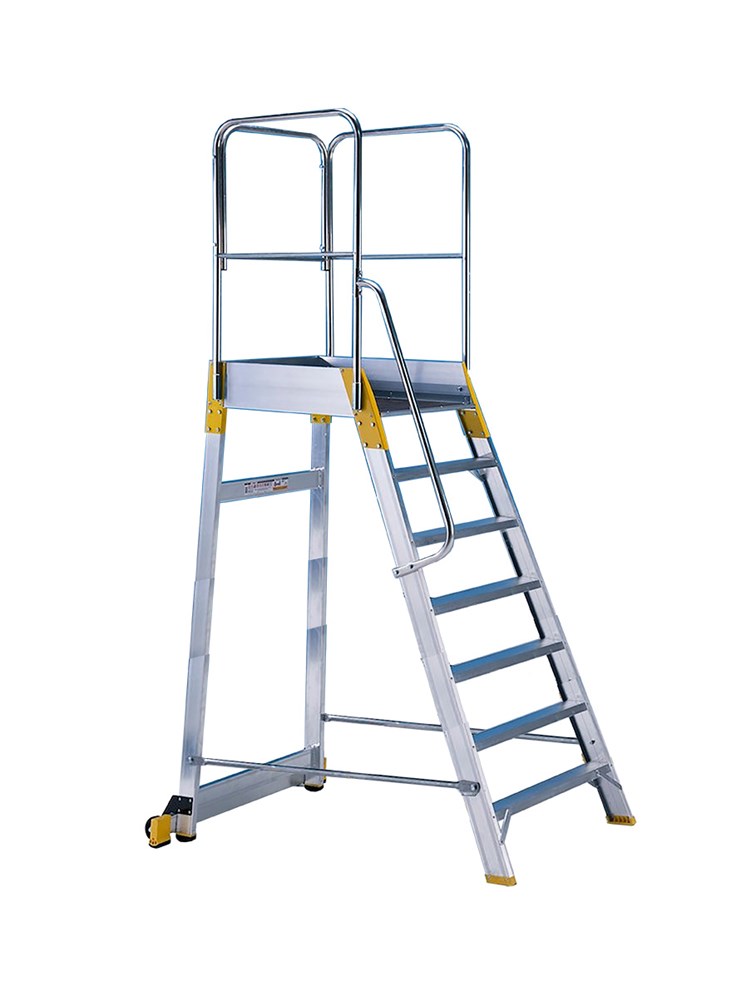

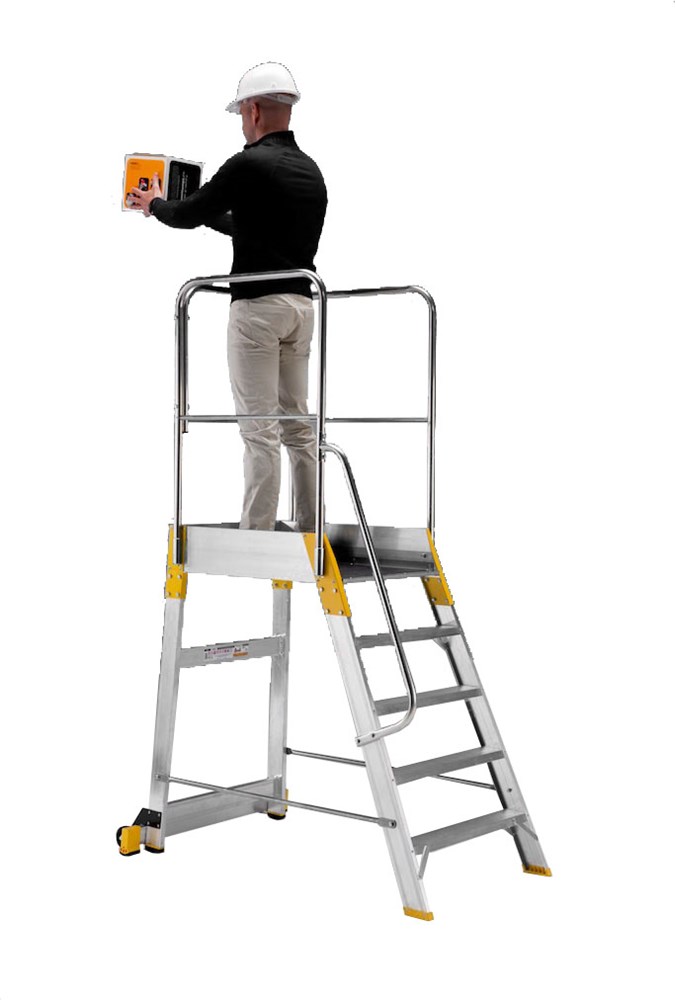

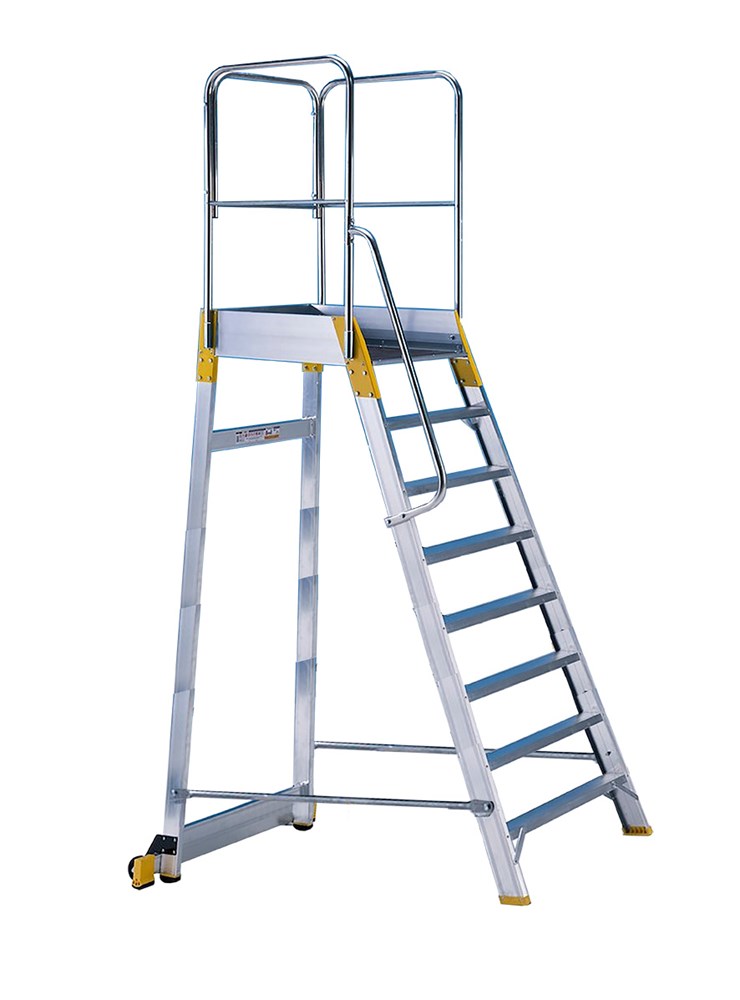

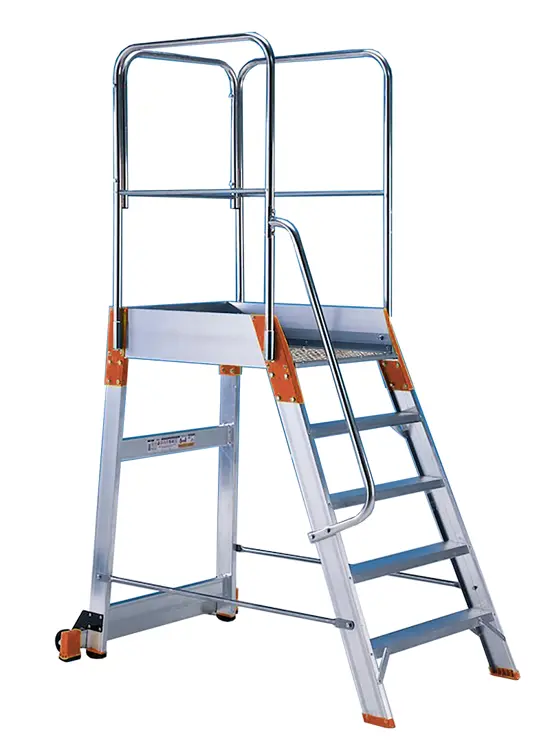

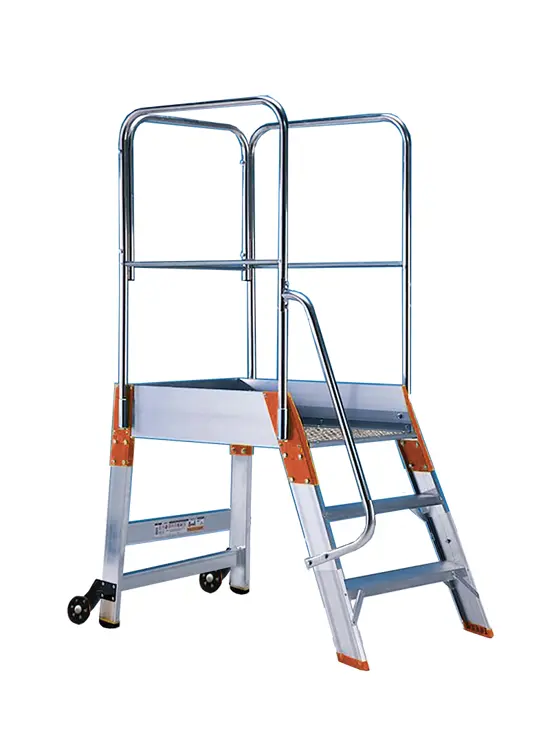

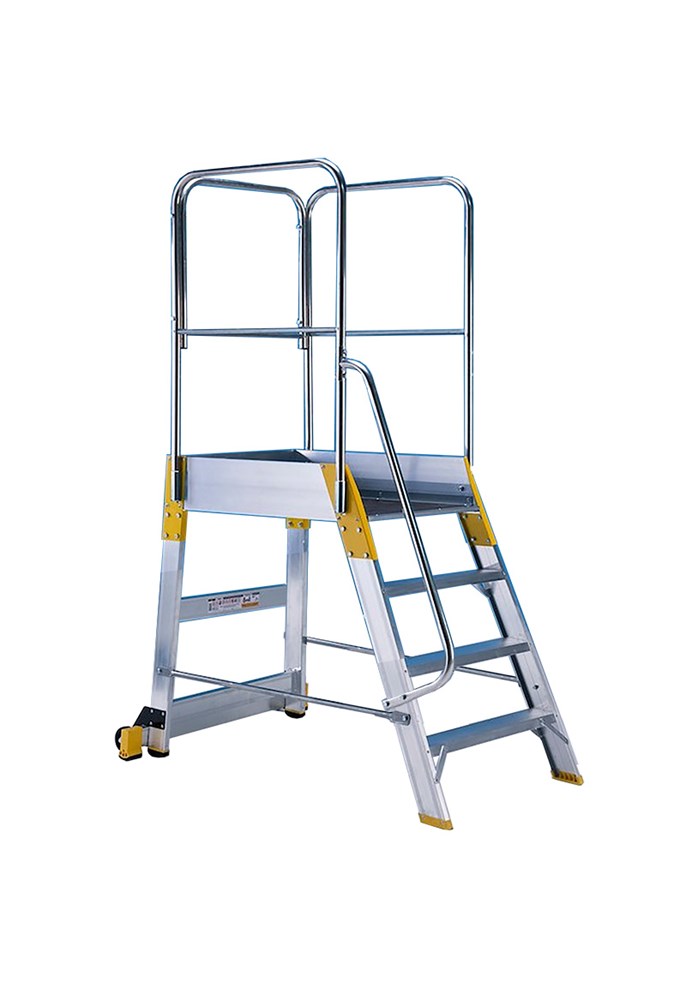

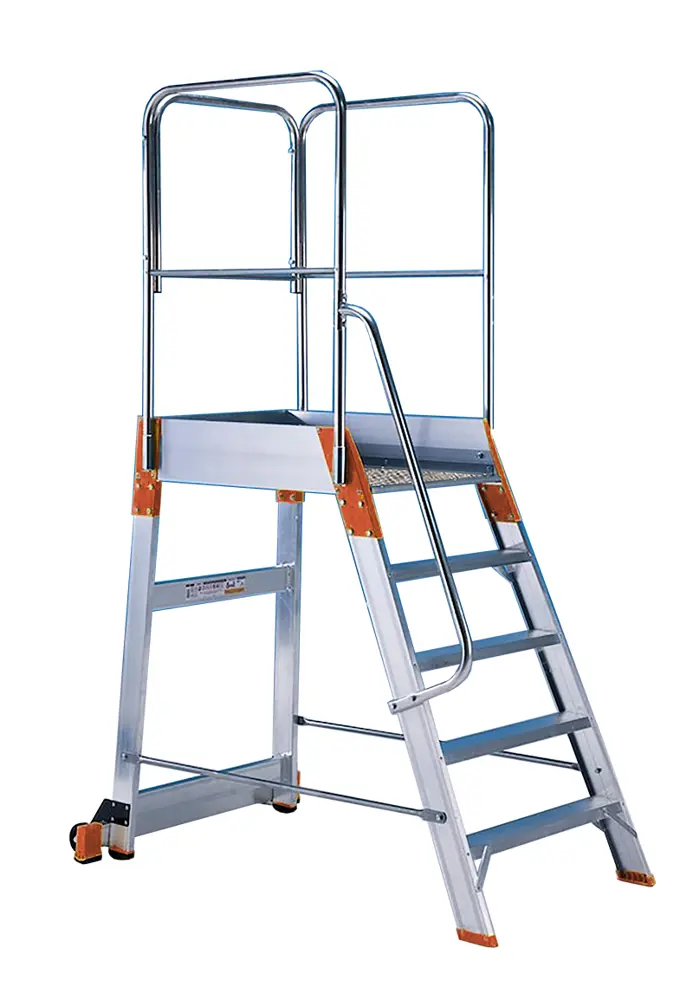

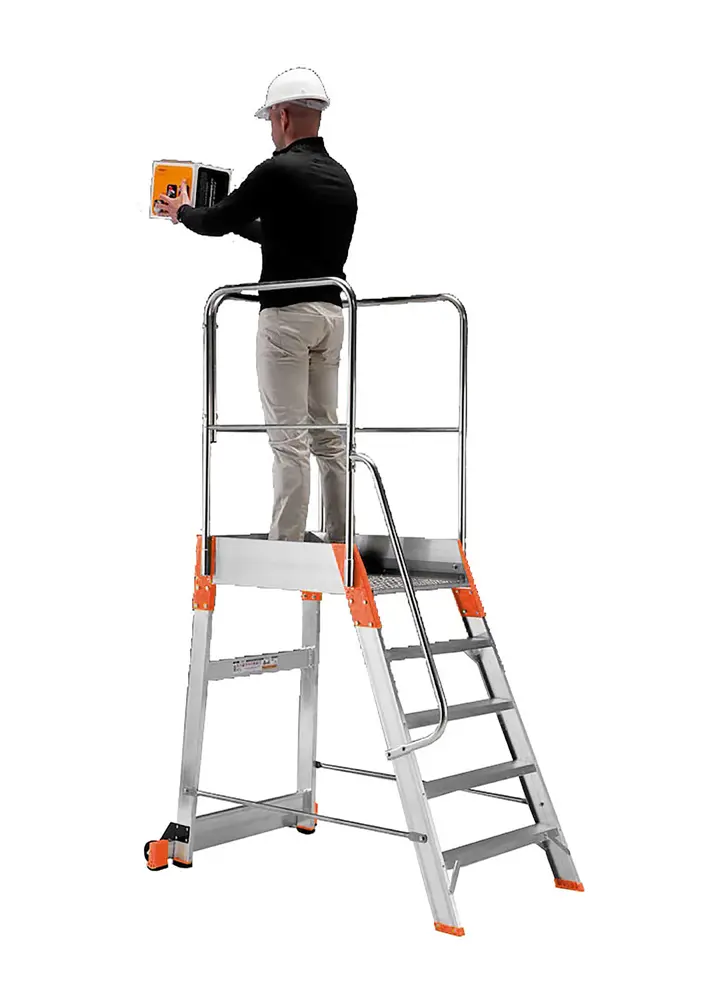

Single-sided platform ladder with 2 wheels

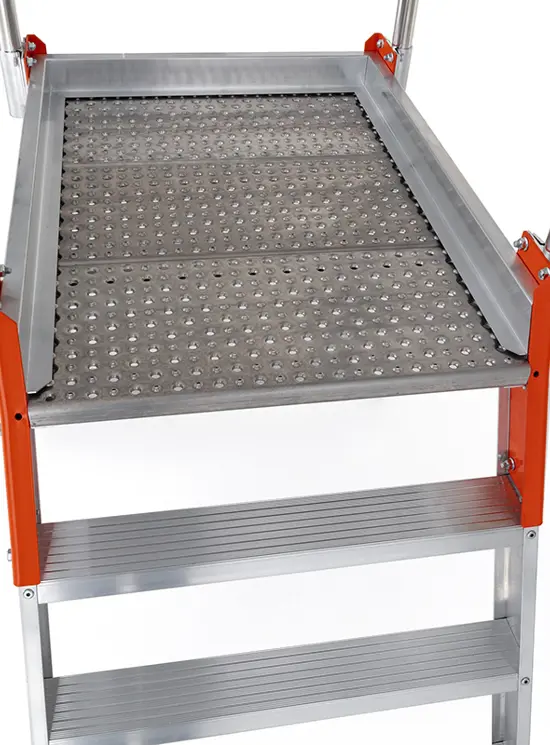

Ladder in extruded ribbed aluminium with large working platform, toeboards and 3-sided protection guardrail for top safety.

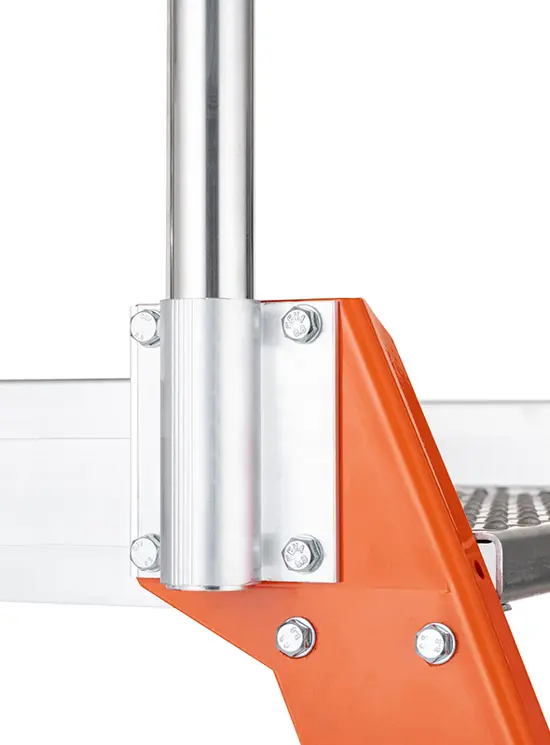

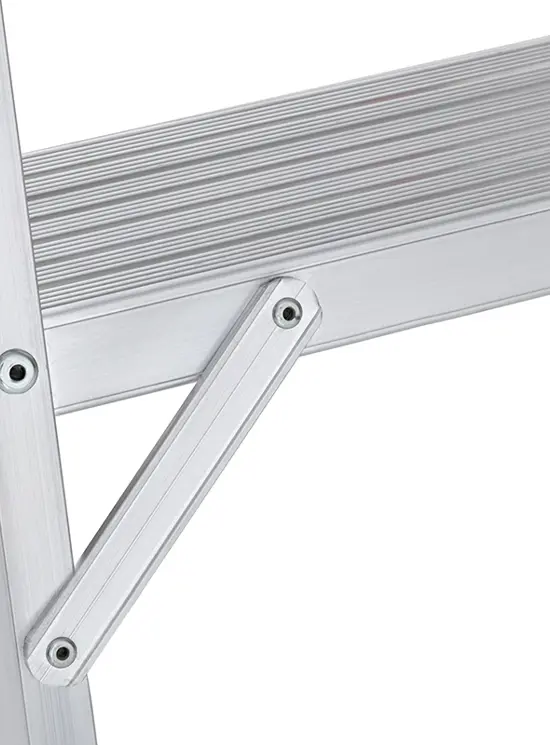

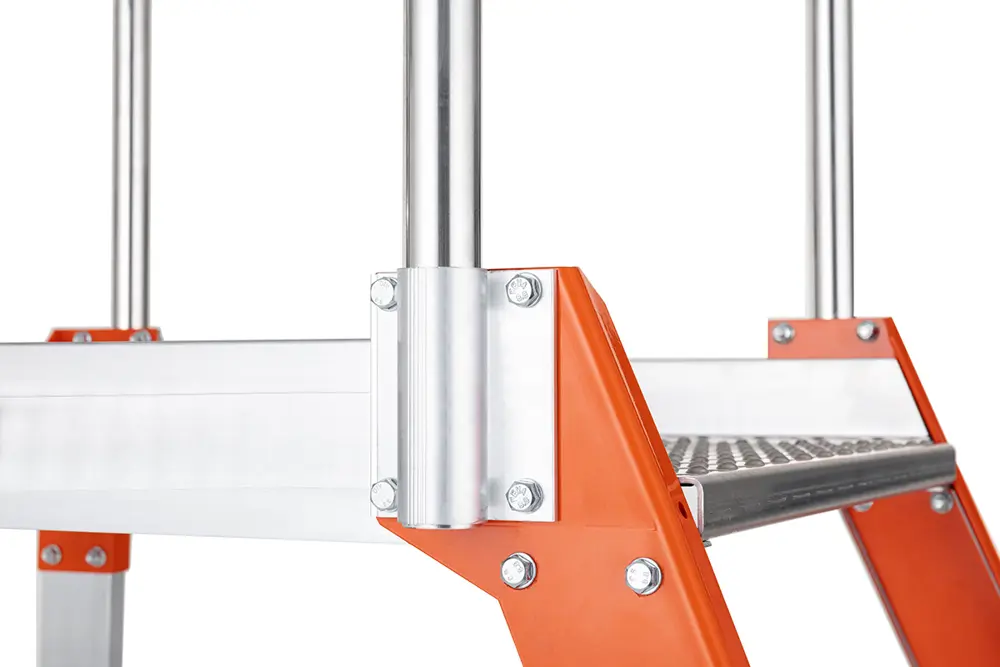

Connecting plates among front side, rear side and platform are in painted steel.
Assembling is by the user to reduce transport freight, but it is a simple task, in fact a detailed instruction manual is delivered with every stepladder.

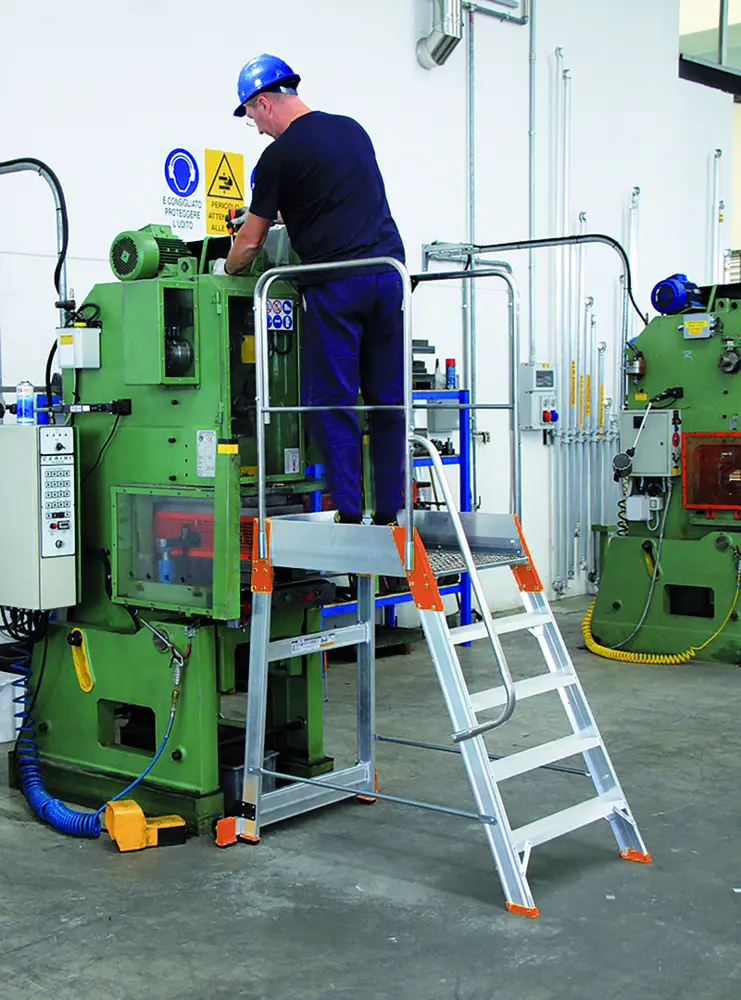

The rear side is almost perpendicular to the ground to enable working as close as possible to a wall or an equipment.

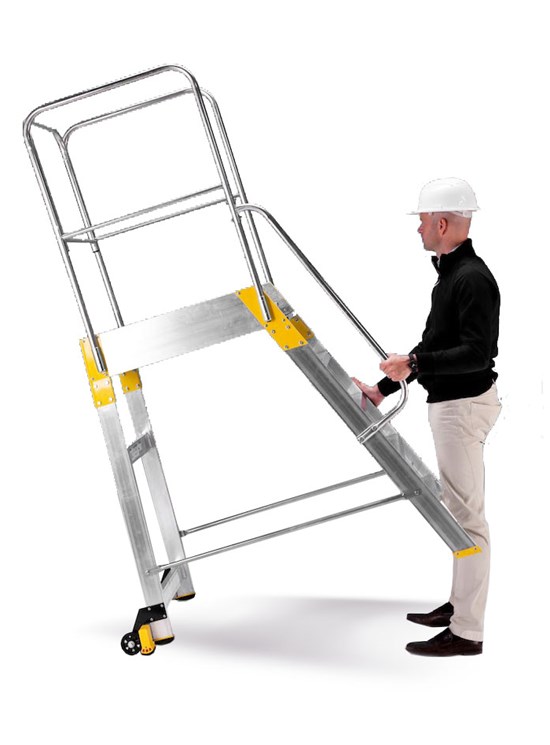

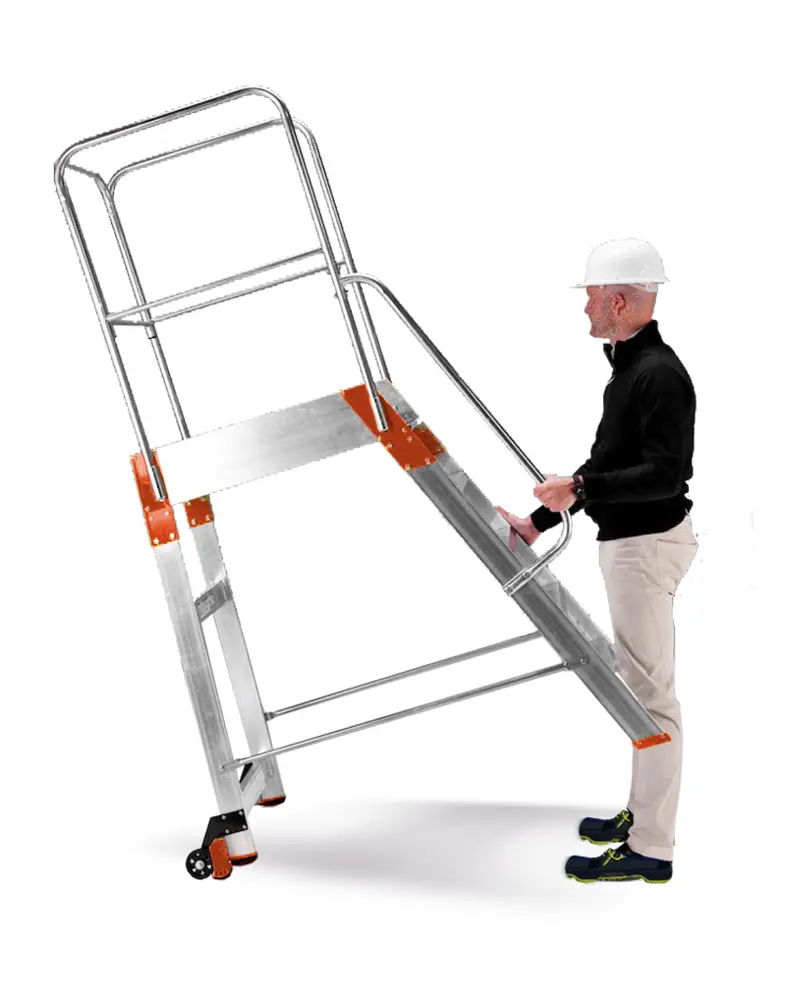

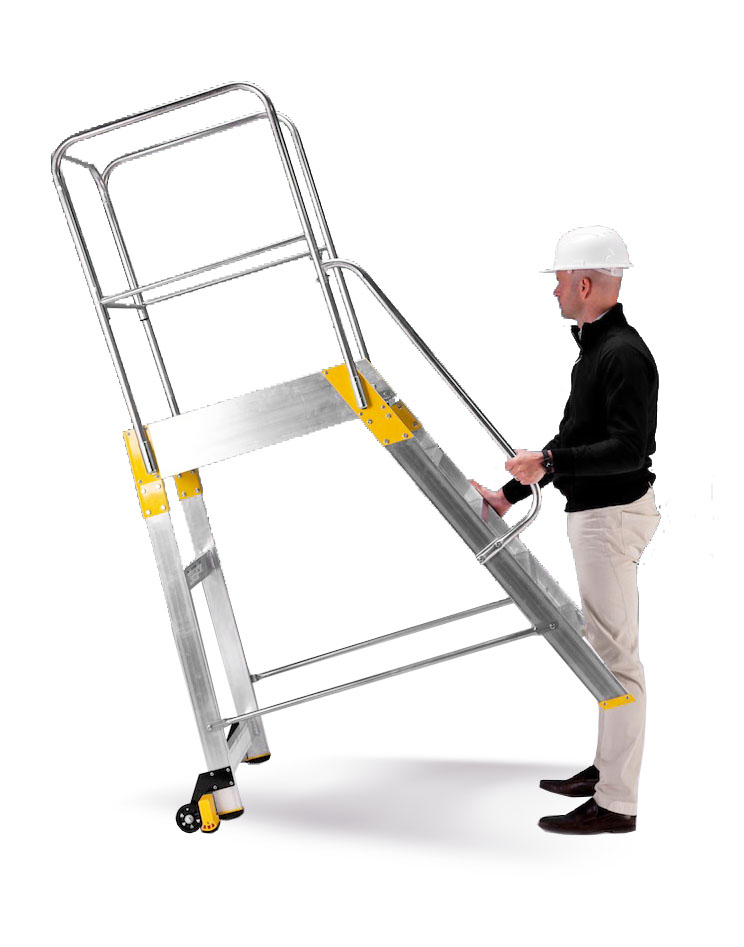

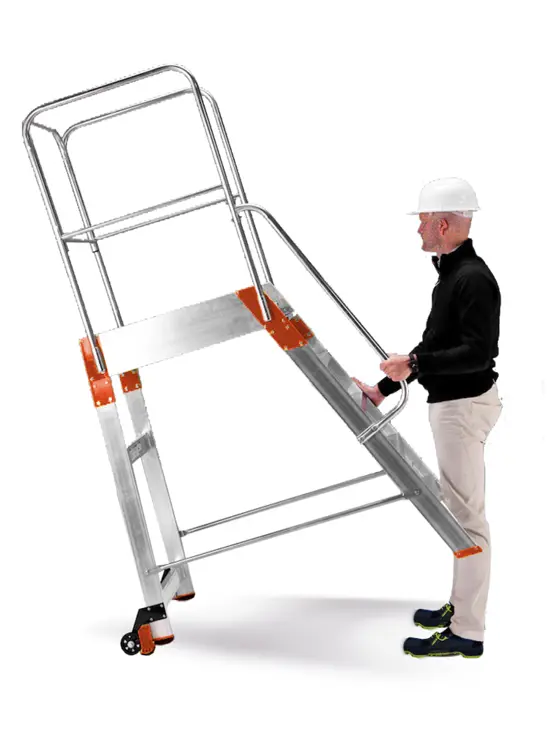

The self-braking system starts working when the ladder is in the right working position, while it stops working when the user lifts the ladder front side.

This way, ladder displacement is very easy.

TECHNICAL FEATURES

Step depth: 8 cm
Distance between steps: cm 23
Capacity: 150 Kg
Ramp C profile: C-shape (mm 85x20)/square (mm 70x25)
Guardrail height: 100 cm

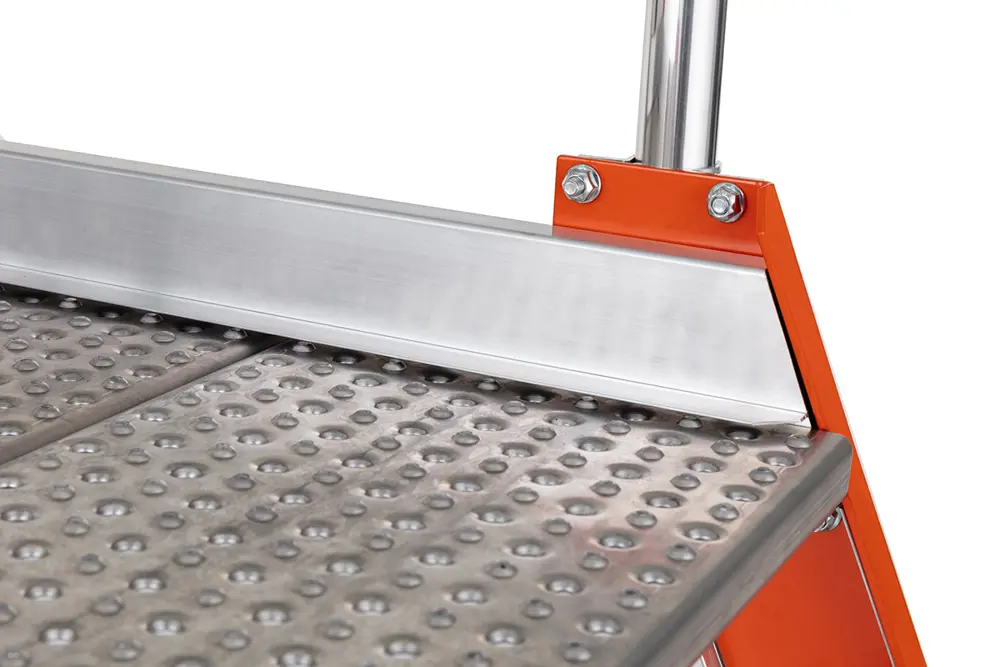

Toeboards height: 15 cm

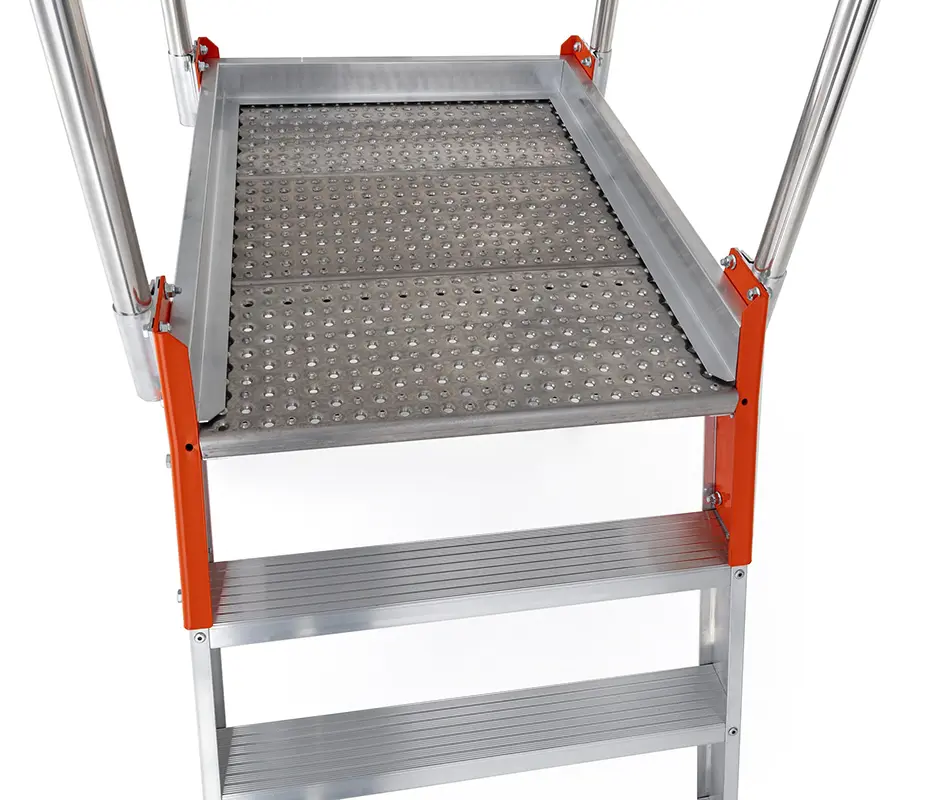

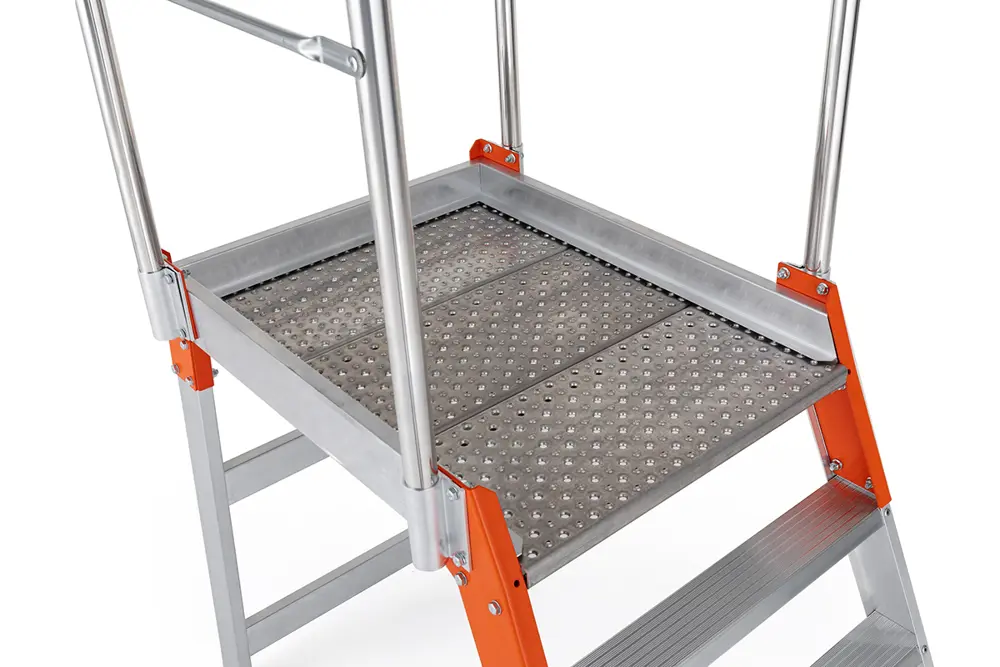

Non-skid painted wooden platform: cm 61x78
Ramp width: cm 60
Ramp inclination: 67°
Wheel diameter: mm 80
No. of rungs: 3 to 8
Platform height: 0,63 m to 1,68 m

STANDARD PARTS

Stabiliser starting 5 steps
Steps are fixed to th profiles by rivets: 6 rivets for each step

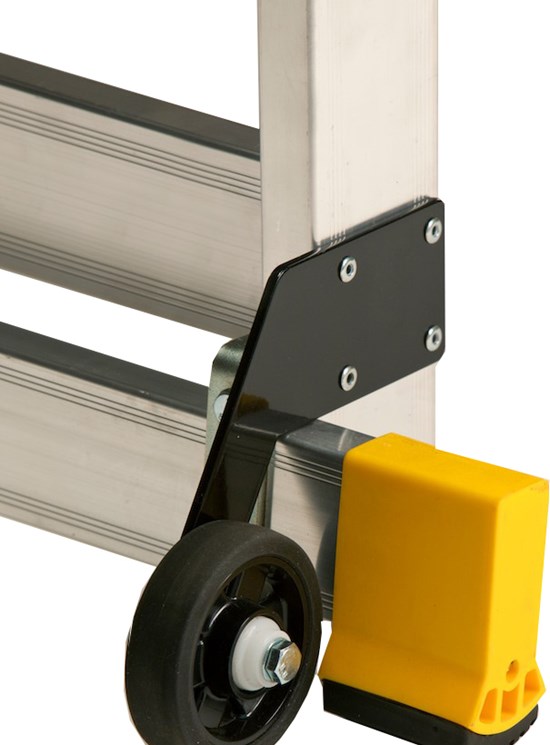

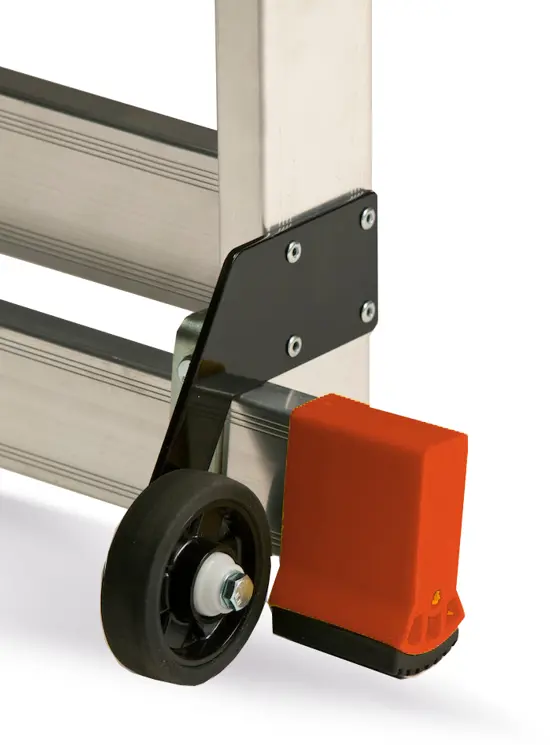

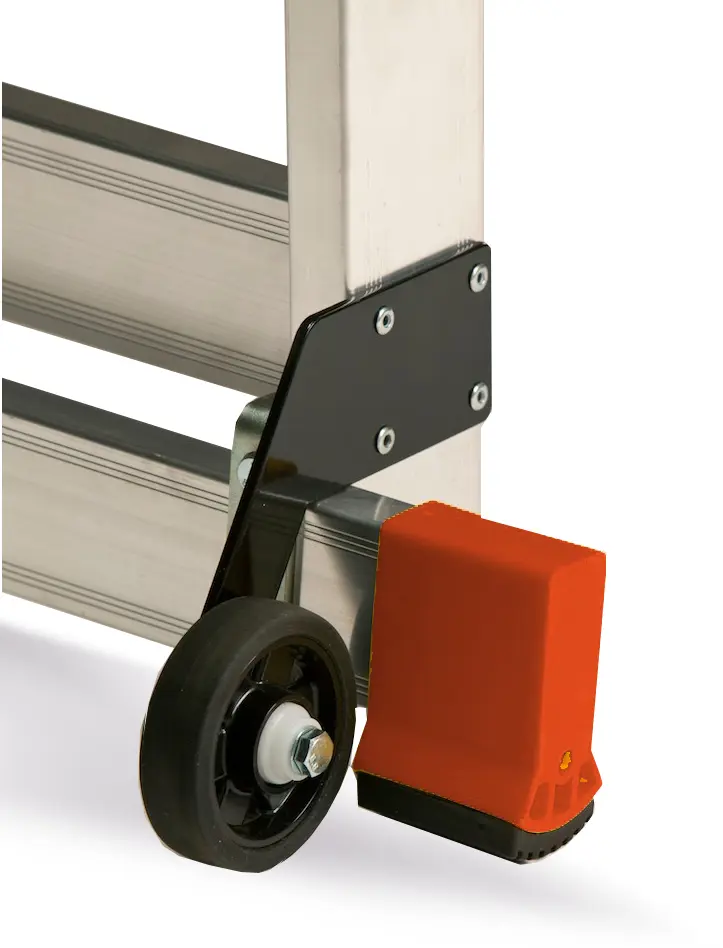

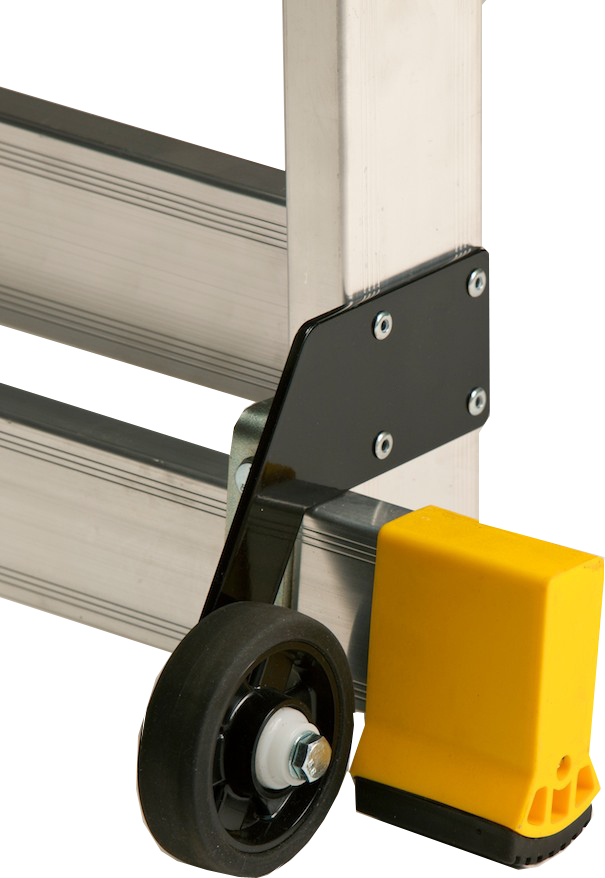

The ladder can be moved by 2 wheels Ø 80 mm

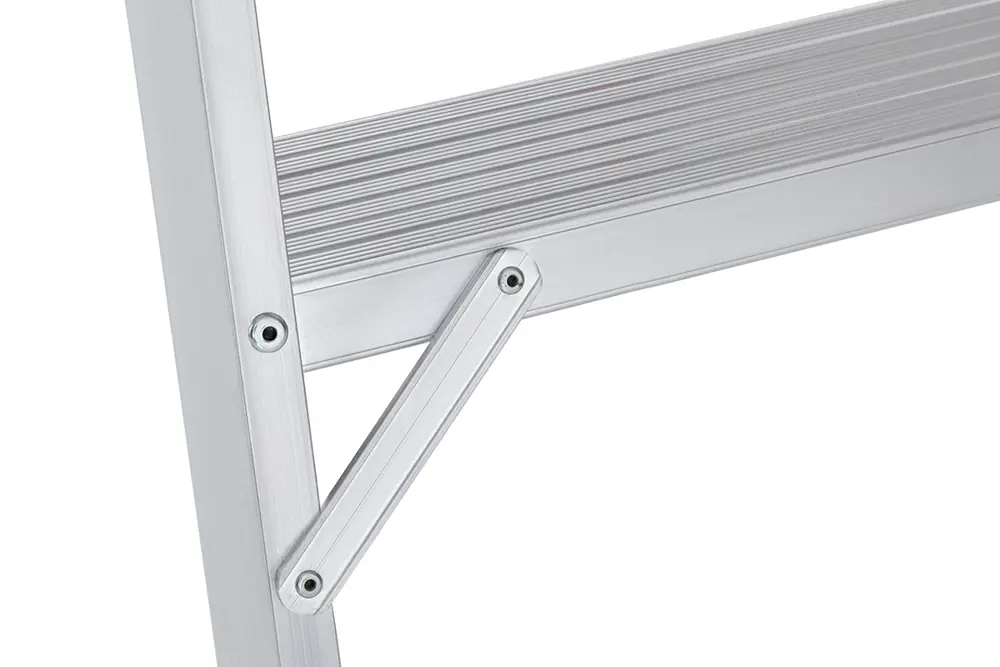

Reinforced bars in galvanized steel

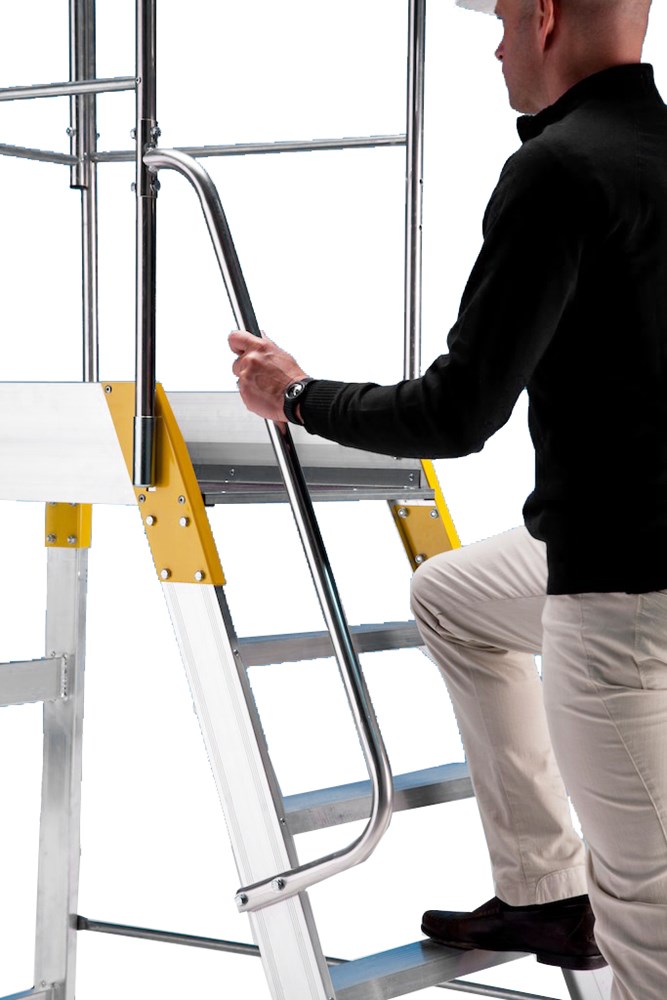

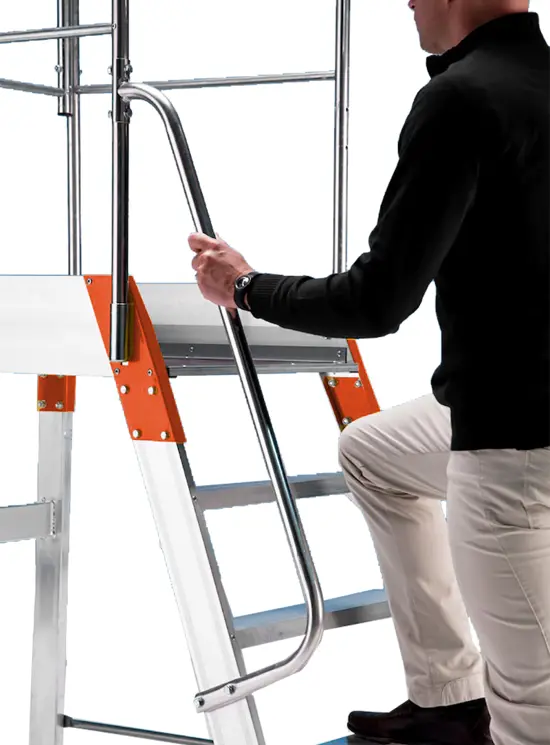

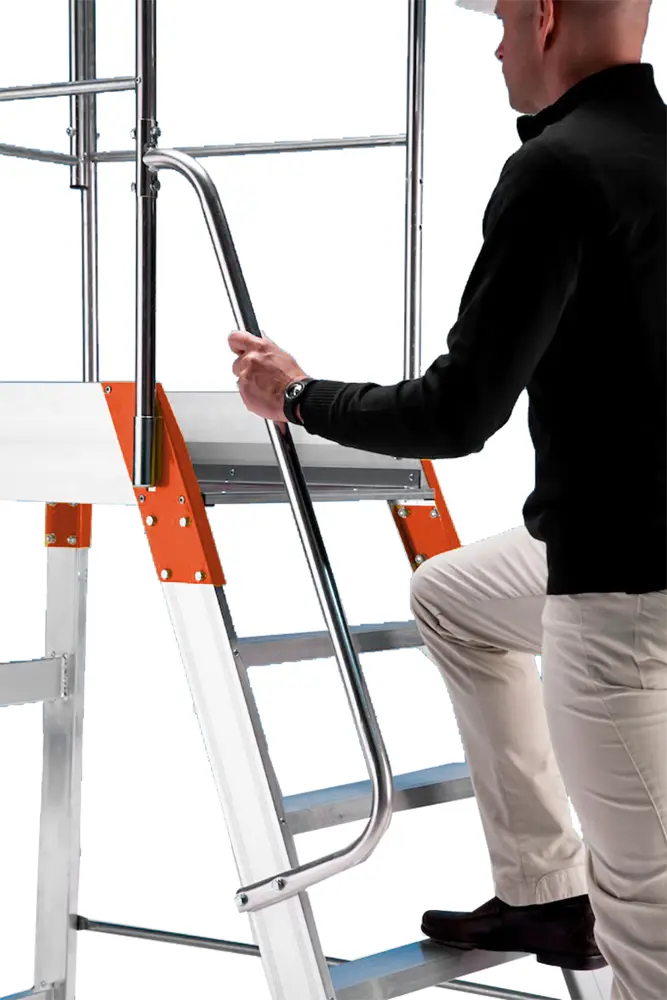

Standard handrail on one side
Label and instructions for assembly and use

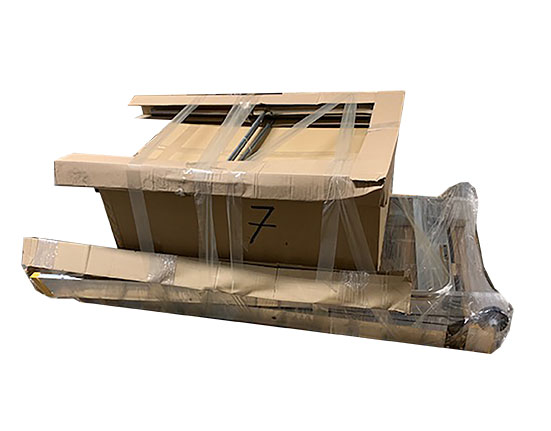

Thermo-shrinkable plastic package with showcard

On request:

Additional handrail on the other side (starting from 5 steps)
